INSTRUCTION MANUAL

VACUUM CLEANER

HOUSEHOLD AND COMMERCIAL USE

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be

followed, including the following.

READ ALL INSTRUCTIONS

BEFORE USING THIS VACUUM CLEANER

WARNING -To reduce the risk of fire, electric shock or injury:

1. Do not leave the vacuum cleaner when plugged in. Unplug it from the outlet

when not in use and before servicing.

2. Do not use outdoors or on wet surfaces.

3. Do not allow vacuum cleaner to be used as a toy. Close attention is necessary

when used by or near children or infirmed persons.

4. Use only as described in this manual. Use only the manufacturer's

recommended attachments.

6. Do not pull or carry by the cord, use the cord as a handle, close a door on the

cord, or pull the cord around sharp edges or corners. Do not run the vacuum

cleaner over the cord. Keep the cord away from heated surfaces.

7. Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.

8. Do not handle the plug or the vacuum cleaner with wet hands.

9. Do not put any objects into the openings. Do not use with any opening

blocked: keep free of dust, lint, hair and anything that may reduce air flow.

10. Keep hair, loose clothing, fingers and all the parts of your body away from

openings and moving parts.

11. Do not pick up anything that is burning or smoking, such as cigarettes,

matches or hot ashes.

12. Do not use without dust compartment and filters in place.

13. Turn off all controls before unplugging.

14. Use extra care when cleaning on stairs.

15. Do not use to pick up flammable or combustible liquids such as gasoline, or

use in areas where they may be present.

111

5. Do not use with a damaged cord or plug. If the vacuum cleaner is not working

as it should, or if it has been dropped, damaged, left outdoors or dropped into

water, return to FANTOM at 94 Main Mill Street, Door 16, Plattsburgh, NY 12901.

Rev. 06/05A

16. Do not touch the agitator while it is spinning.

17. Do not place any heavy items on top of the vacuum cleaner.

18. Do not step on the hose or pull it too strongly.

19. Do not pick up items such as pieces of waste paper or cloth which looks as

though they may cause the hose to become blocked.

20. Do not clean or store the vacuum cleaner in places where there are high

temperatures.

21. Store the vacuum cleaner away from excessive humidity.

22. When carrying the vacuum cleaner, hold it by the carrying handle.

23. Before servicing the vacuum cleaner, allow all internal metal parts to cool first.

25. If the supply cord of this appliance is damaged, it must only be replaced by

FANTOM, because special purpose tools are required.

24. Always place foot on handle release when adjusting the handle position

of the vacuum cleaner.

26. Connect to a properly grounded outlet only. See Grounding Instructions.

SAVE THESE INSTRUCTIONS

This vacuum is intended for household or commercial use.

Note to user concerning attachment plug:

Grounding Instructions

This appliance must be grounded. If it should malfunction or breakdown, grounding

provides a path of least resistance for electric current to reduce the risk of electric shock.

This appliance is equipped with a cord having an equipment-grounding conductor and

grounding plug. The plug must be inserted into an appropriate outlet that is properly

installed and grounded in accordance with all local codes and ordinances.

WARNING- Improper connection of the equipment-grounding conductor can result in a risk

of electric shock. Check with a qualified electrician or service person if you are in doubt as

to whether the outlet is properly grounded. Do not modify the plug provided with the

appliance - if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

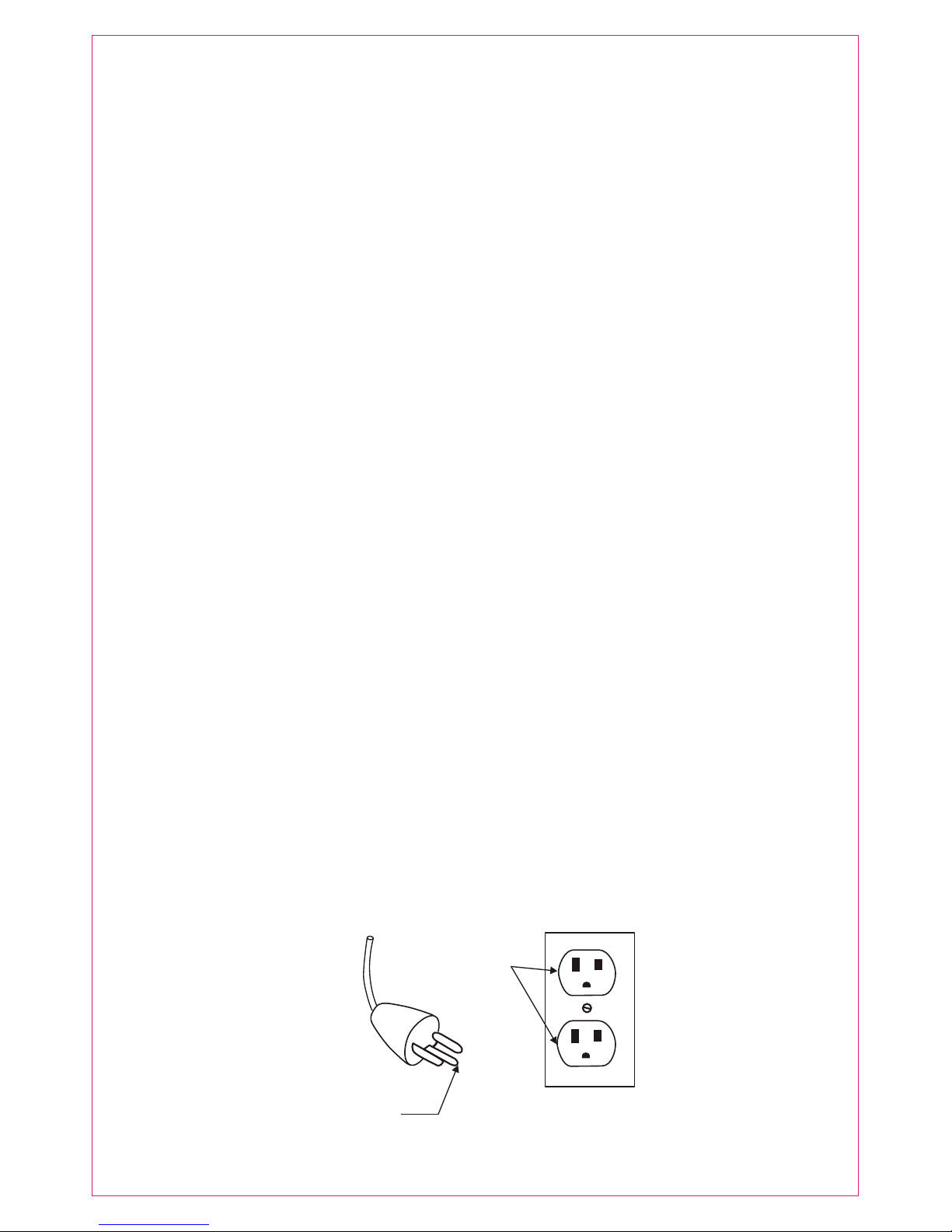

This appliance is for use on a nominal 120-volt circuit and has a grounding attachment plug

that looks like the plug illustrated below. Make sure that the appliance is connected to an

outlet having the same configuration as the plug.

Grounding

Grounded

Outlet

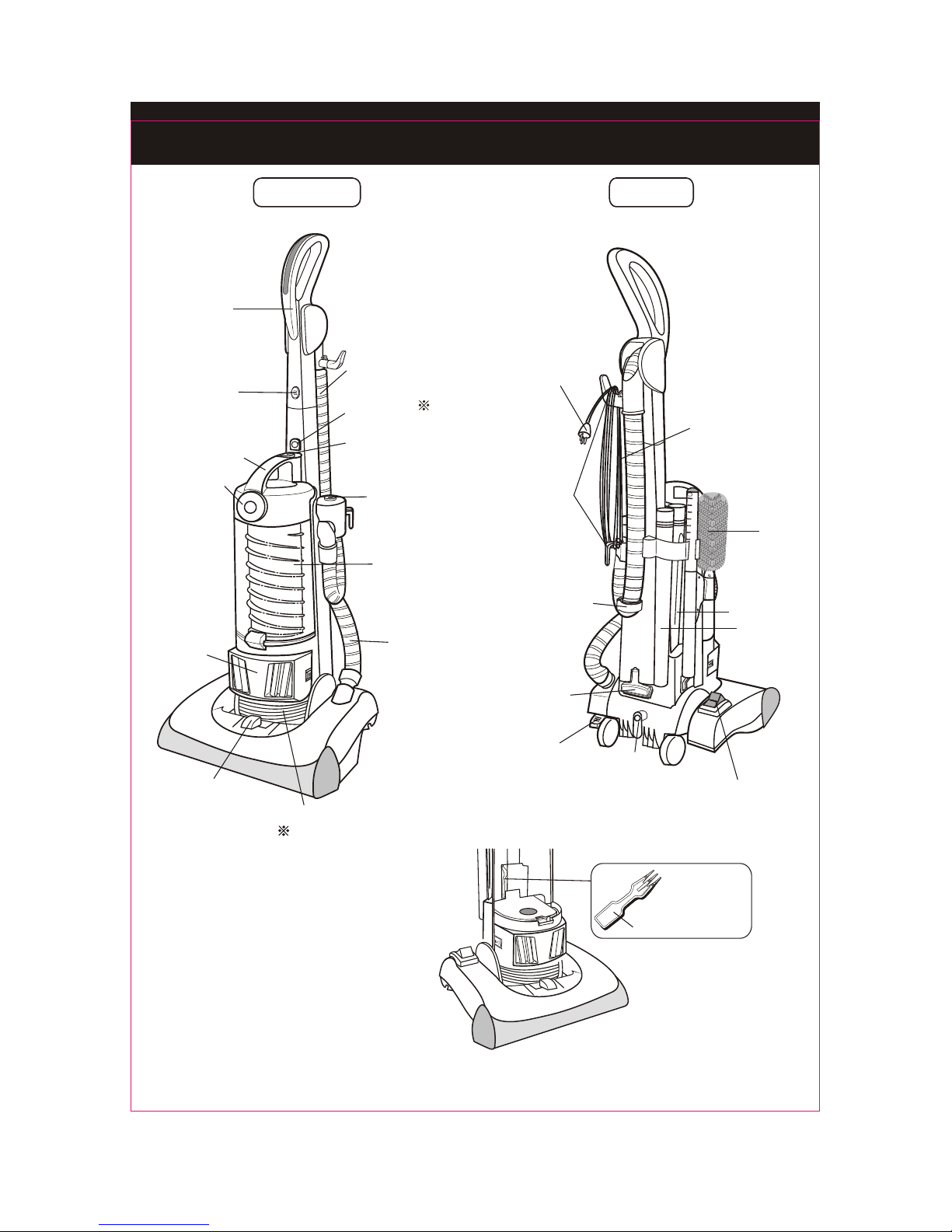

NAMES OF EACH PART

WARNING:

Operate vacuum cleaner only at the voltage specified on name plate.

FRONT REAR

Set the ON/OFF switch

to " ON " to light the

headlight.

Cleaning Utensil

Headlight

Handle

Suction Hose A

Dust

Compartment

Carrying Handle

Duster Knob

ON/OFF Switch

Release

Button A

Release

Button B

Release

Button C

Suction Hose B

Filter Cover

Wand

Handle Release

Lever

Power Cord

Upholstery Tool &

Dusting Brush

Power Cord

Plug

Crevice Tool

Hose Holder

Rug/Floor (Tools)

SELECTOR

Holder

Mount

Cord Storage

Hooks

Plug shown in figure

may differ from actual

plug attached to unit

for your area.

Height Adjustment

Lever

Duster

Handle

Wand

Crevice Tool

Upholstery Tool

& Dusting Brush

Duster

Hose Cuff

Suction Inlet

Suction Hose A

Caution: Do not connect the power cord plug to the wall outlet until assembly

is completed.

Attaching the handle

PREPARATIONS BEFORE USE

Attaching the suction hose A & attachments

Set the vacuum cleaner

to the upright position.

lnsert the handle

as shown in the illustration.

PREPARATIONS BEFORE USE

WINDING THE POWER CORD

Wind the power cord around

the cord storage hooks.

Secure the power

cord plug on the

power cord.

Cord Storage

Hooks

THERMAL SAFETY DEVICE IN MAIN BODY

To protect your vacuum cleaner motor from overheating, a thermal safety device has been

built in. If your vacuum cleaner hose or air intake clogs up with dust or dirt, or if your dust

bag becomes full and you continue to run the machine, the vacuum will shut off

automatically to prevent the motor from overheating. If this happens, turn off slide switch

and disconnect your vacuum from power outlet, remove the material clogging the machine

and let your vacuum cool down for approximately 45 minutes. You can then restart your

vacuum cleaner and use it again.

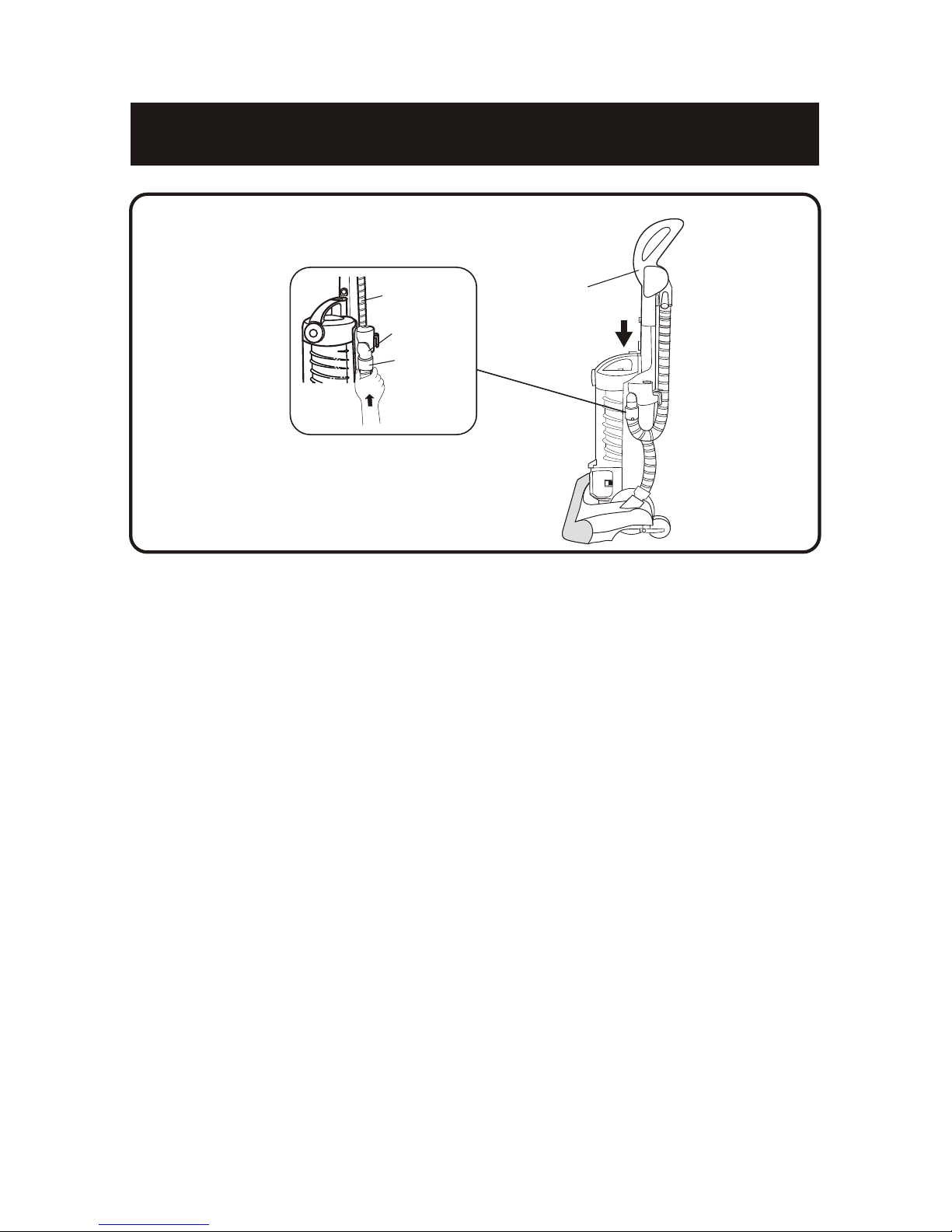

RELEASING THE POWER CORD

Rotate the upper cord

storage hook downward.

Return the hook to the

upright position before

attempting to rewind

the power cord.

Upper Cord

Storage Hook

Handle Release Lever

Parallel position

This position is used for cleaning under

furniture.

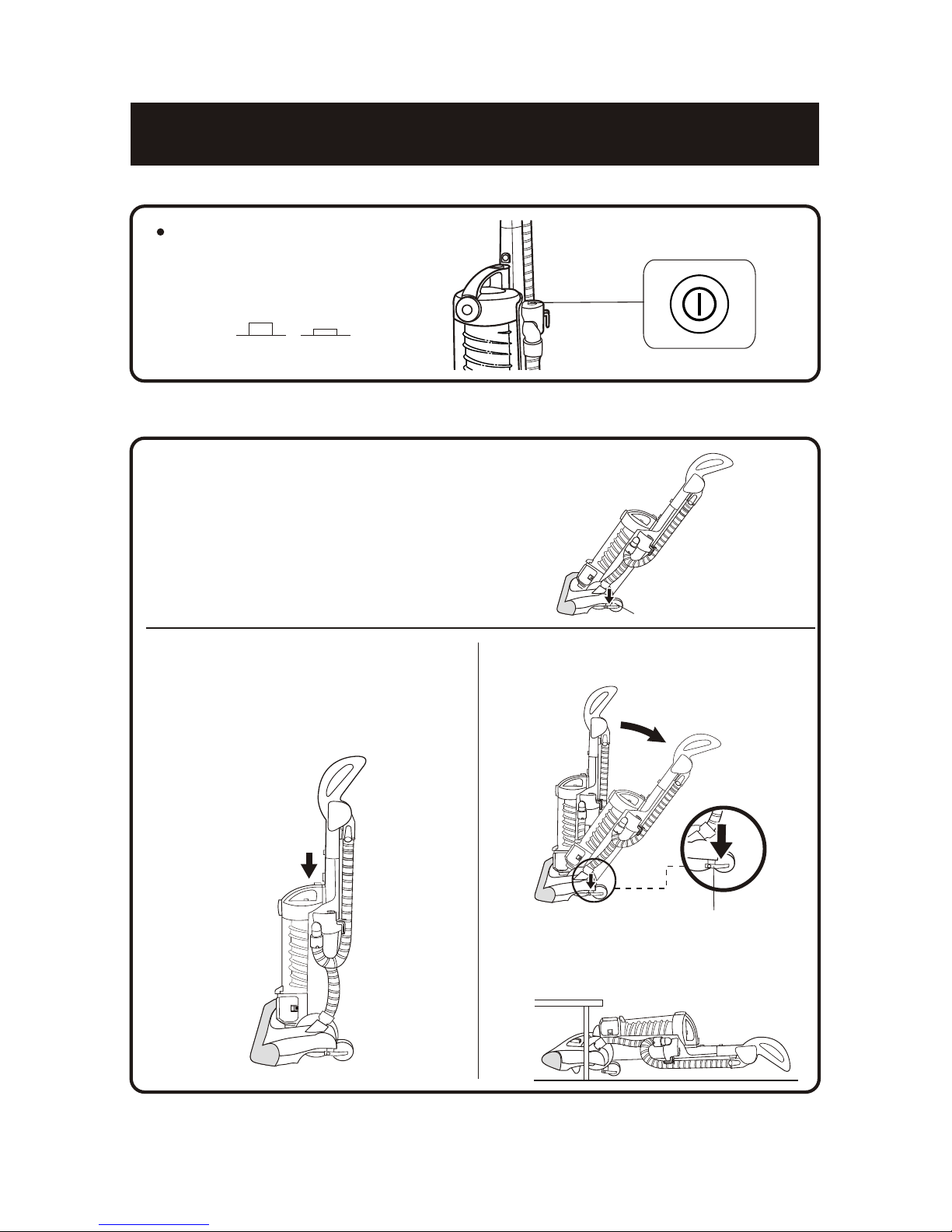

USING THE VACUUM CLEANER

ADJUSTING THE HANDLE

Upright position

The handle is normally locked inthis

The handle of this vacuum cleaner can be set to one of

three positions -Upright, Normal, Parallel. Place your foot

on handle release lever as shown and pull back on the handle

until it releases from its upright position.

position for storage or when using the

attachments.

Push the handle forward

until it locks.

Normal position

This position is used for normal cleaning.

ON/OFF Switch

ON/OFF SWITCH

Start or stop vacuum cleaner by pushing

on the switch.

OFF ON

Rug/Floor (Tools)

SELECTOR

EDGE CLEANING

This vacuum cleaner is equipped with an "edge cleaning" function for cleaning carpet edges

near baseboards and stationary furniture.

RUG/FLOOR (TOOLS)SELECTOR

The RUG/FLOOR(TOOLS)selector should only be

adjusted while the vacuum cleaner is turned on

and in the upright position.

When cleaning a rug or carpet,first turn the

ON/OFF switch to the ON position,and then

set the RUG/FLOOR(TOOLS)selector to the

RUG position.

When cleaning a bare floor or when using

one of the attachments,set the RUG/FLOOR

(TOOLS)selector to the FLOOR position.

Caution: Do not change the setting of the RUG/FLOOR(TOOLS)selector while the vacuum

cleaner is turned off.

Nozzle Head

Height AdjustmentLever

USING THE VACUUM CLEANER

HEIGHT ADJUSTMENT LEVER

The nozzle head can be

adjusted to four different

height settings.

Before using the height adj-

ustment lever,please make

sure the nozzle head is tilted

backward from the floor.

Caution:

Set the height adjustment to the

appropriate carpet length.

TURN OFF BRUSH ROLL

WHEN USING TOOLS.

LOW

Carpet

HIGH

Bare Floor/Tools

Holder

Mount

Hose

Holder

Release

Button C

Wand

Crevice Tool

Duster

Attachment Clamp

Caution: When using one of the attachments during cleaning,set the vacuum

cleaner to the upright position.

USING THE ATTACHMENTS

Press the release button C to

disconnect the handle from the

vacuum cleaner.

Remove the attachments from the

vacuum cleaner.

Caution:

When removing the attachments, pull

them in the directions shown in the

illustration.Pulling them in the wrong

direction or pulling them forcefully may

cause damage to the attachment clamp.

Attach the attachments as shown below.

Hook the hose holder onto the holder mount.

Caution:

Before using the attachments, please make sure

the hose is hooked on the holder mount.

When you have finished using the attachments,replace them

in their original positions as shown on page 4. Tabs

Groove

Upholstery tool & Dusting brush

To detach the dusting brush from the upholstery tool: Press the

tabs on the brush downward to remove it.

To reattach the dusting brush to the upholstery tool: Insert

the front of the upholstery tool under the hook on the front of the

dusting brush. Press down on the back of the upholstery tool to

snap it into place under the dusting brush tabs.

Suction Hose A

Wand Crevice Tool

Upholstery

Tool

Dusting

Brush

Suction Hose B

Attach the attachments on the handle or

the suction hose B.

Handle

Caution: Before using the suction hose B, please make sure the handle is

reattached on the body.

Duster

Hose Cuff

Suction Inlet

Suction Hose A

USING THE ATTACHMENTS

Hose Attachment

Line up notches

push hose in till it

clicks.

Handle

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Fantom Staubsauger Handbücher

Fantom

Fantom FM741HV Bedienungsanleitung

Fantom

Fantom FM741 Bedienungsanleitung

Fantom

Fantom CV242H Bedienungsanleitung

Fantom

Fantom FS800 Bedienungsanleitung

Fantom

Fantom Falcon FC251 Bedienungsanleitung

Fantom

Fantom FM718 Bedienungsanleitung

Fantom

Fantom FM430H Bedienungsanleitung

Fantom

Fantom FM742CS Bedienungsanleitung

Fantom

Fantom FM740 Bedienungsanleitung

Fantom

Fantom FANTOM FM760K Bedienungsanleitung

Fantom

Fantom FM743 Bedienungsanleitung

Fantom

Fantom 14.4 V DC Bedienungsanleitung

Fantom

Fantom FM742C Bedienungsanleitung

Fantom

Fantom FANTOM FM430K Bedienungsanleitung

Fantom

Fantom CW233H Bedienungsanleitung

Fantom

Fantom POWER PET BAGGED CANISTER FM765MC 31 Bedienungsanleitung

Fantom

Fantom FM760 Bedienungsanleitung

Fantom

Fantom VACUUM CLEANER FM766 Bedienungsanleitung

Fantom

Fantom EP031F Bedienungsanleitung

Fantom

Fantom FM709K Bedienungsanleitung

Fantom

Fantom FM310K Bedienungsanleitung

Fantom

Fantom FM604C Bedienungsanleitung

Fantom

Fantom FM788HB Bedienungsanleitung

Fantom

Fantom FM727C Bedienungsanleitung

Beliebte Staubsauger Handbücher anderer Marken

Bissell

Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung

Panasonic

Panasonic MC-YL637S147-AE Bedienungsanleitung

NEFF

NEFF N17XH10 0 Series Bedienungsanleitung

LG A9 Series Bedienungsanleitung

Oreck

Oreck Cordless Captura BK51700 Series Bedienungsanleitung

Kogan

Kogan KAVACROBVWA Bedienungsanleitung

Kränzle

Kränzle VENTOS 50 ID Benutzerhandbuch

EVVO

EVVO Ai35 Bedienungsanleitung

DeWalt

DeWalt DWH200D Bedienungsanleitung

Pontec

Pontec Pondomatic Vacuum Cleaner Bedienungsanleitung

Cleanmaxx

Cleanmaxx PC-P007E Bedienungsanleitung

Exido

Exido 240-114 Bedienungsanleitung

RIDGID

RIDGID WD1685AU0 Bedienungsanleitung

Ezviz

Ezviz RE4P Bedienungsanleitung

STG global

STG global TANVAC HDV3000 Bedienungsanleitung

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Bedienungsanleitung

Factory

Factory M3340 Bedienungsanleitung

Shop-Vac

Shop-Vac VN92 SERIES Bedienungsanleitung
