FM780

INSTRUCTION MANUAL

VACUUM CLEANER

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be

followed, including the following.

READ ALL INSTRUCTIONS

BEFORE USING THIS VACUUM CLEANER

WARNING -To reduce the risk of fire, electric shock or injury:

1. Do not leave the vacuum cleaner when plugged in. Unplug it from the outlet

when not in use and before servicing.

2. Do not use outdoors or on wet surfaces.

3. Do not allow it to be used as a toy. Close attention is necessary when used

by or near children or infirmed persons.

4. Use only as described in this manual. Use only the manufacturer's

recommended attachments.

5. Do not use with a damaged cord or plug. If the vacuum cleaner is not working

as it should, or if it has been dropped, damaged, left outdoors or dropped into

water, return to FANTOM at 94 Main Mill Street, Door 16, Plattsburgh,NY 12901.

6. Do not pull or carry by the cord, use the cord as a handle, close a door on the

cord, or pull the cord around sharp edges or corners. Do not run the vacuum

cleaner over the cord. Keep the cord away from heated surfaces.

7. Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.

8. Do not handle the plug or the vacuum cleaner with wet hands.

9. Do not put any objects into the openings. Do not use with any opening

blocked: keep free of dust, lint, hair and anything that may reduce air flow.

10. Keep hair, loose clothing, fingers and all the parts of your body away from

openings and moving parts.

11. Do not pick up anything that is burning or smoking, such as cigarettes,

matches or hot ashes.

12. Do not use without dust compartment and filters in place.

13. Turn off all controls before unplugging.

14. Use extra care when cleaning on stairs.

15. Do not use to pick up flammable or combustible liquids such as gasoline, or

use in areas where they may be present.

111

REV.01/03B

16. Do not touch the agitator while it is spinning.

17. Do not place any heavy items on top of the vacuum cleaner.

18. Do not step on the hose or pull it too strongly.

19. Do not pick up items such as pieces of waste paper or cloth which look as

though they may cause the hose to become blocked.

20. Do not clean or store the vacuum cleaner in places where there are high

temperatures.

21. Store the vacuum cleaner away from excessive humidity.

22. When carrying the vacuum cleaner, hold it by the carrying handle.

23. Before servicing the vacuum cleaner, allow all metal parts to cool first.

24. Always place foot on handle release when adjusting the handle position

25. If the supply cord of this appliance is damaged, it must only be replaced by

FANTOM, because special purpose tools are required.

of the vacuum cleaner.

SAVE THESE INSTRUCTIONS

This vacuum cleaner is intended for household use only.

Note to user concerning attachment plug:

To reduce the risk of electric shock, this appliance has a polarized plug (one

blade is wider than the other). This plug will fit in a polarized outlet only one

way. If the plug does not fit fully in the outlet, reverse the plug. If it still does

not fit, contact a qualified electrician to install the proper outlet. Do not

change the plug in any way.

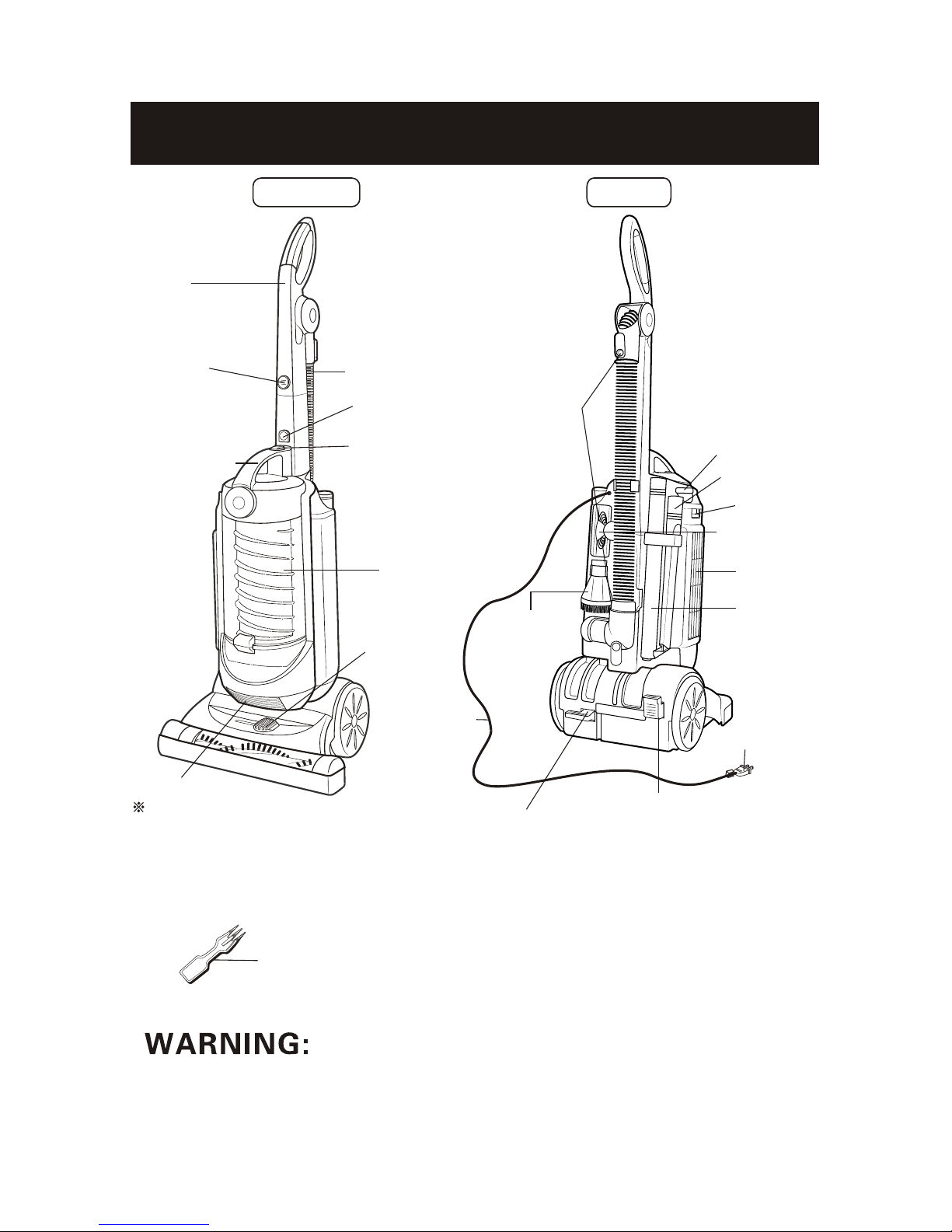

NAME OF E AC H PAR T

Operate vacuum cleaner only at the voltage specified on name plate.

C ord S torage

ON/OF F S witch

Hooks

Wand

F ilter C over

Handle R elease Lever R ug/F loor (Tools) S E L E C T OR

C revice Tool

P ower C ord P lug

P ower C ord

Upholstery Tool

Dus ting B rus h

F R ONT R E A R

R elease

B utton D

C leaning Utensil

Handle

S uction Hose

Dust

C ompartment

Height

Adjustment

Lever

C arrying Handle

to " ON " to light the headlight.

Headlight

S et the O N/O F F s witch

R eleas e B utton C

R eleas e B utton A

R eleas e B utton B

Wand

Crevice Tool

Dusting Brush

Upholstery Tool

Suction Hose

Hose Hook

Attaching the handle

PREPARATION BEFORE USE

Caution: Do not connect the power cord plug to the wall outlet until assembly

is completed.

Set the vacuum cleaner

to the upright position.

lnsert the handle

as shown in the illustration.

Attaching the suction hose & attachments

PREPARATION BEFORE USE

WINDING THE POWER CORD

Hook the power cord over

the clip which is located on

the upper cord storage hook

as shown.

Wind the power cord around the cord

storage hooks.

Secure the power

cord plug on the

power cord.

RELEASING THE POWER CORD

Rotate the upper cord storage hook

downward.

Return the hook to the

upright position before

attempting to rewind the

power cord.

INSERTING THE POWER CORD PLUG

WARNING: To reduce the risk of electric shock, this

appliance has a polarized plug (one blade is wider

than the other). This plug will fit in a polarized outlet

only one way. If the plug does not fit fully in the

outlet, reverse the plug. If it still does not fit, contact

a qualified electrician to install the proper outlet. Do

not modify the plug in any way.

Cord Storage

Hooks

Upper Cord

Storage Hook

Plug side

Clip

Handle Release Lever

USING THE VACUUM CLEANER

ON/OFF SWITCH

Start or stop vacuum cleaner by pushing

on the switch.

ADJUSTING THE HANDLE

Upright position

The handle is normally locked in this

The handle of this vacuum cleanercan be set to one of

three positions -Upright, Normal or Parallel.Place your foot

on handle release lever as shown and pull back on the handle

until it releases from its uprightposition.

position for storage or when using the

attachments.

Push the handle forward

until it locks.

Normal position

This position is used for normal cleaning.

Parallel position

This position is used for cleaning under

furniture.

Nozzle Head

Height AdjustmentLever

US ING THE VAC UUM C L E ANE R

HE IG HT ADJ US TME NT L E VE R

The nozzle head can be

adjusted to four different

height settings.

S et the height adjustment to the

appropriate carpet length.

Use the 5 ( )height

setting.

Use the 6 ( )height

setting.

E DG E C L E ANING

This vacuum cleaner is equipped with an "edge cleaning" function for cleaning carpet edges

near baseboards and stationary furniture.

R UG /F L OOR (TOOL S )S E L E C TOR

The R UG /F LOOR (TOOLS )selector should only be

adjusted while the vacuum cleaner is turned on

and in the upright position.

When cleaning a rug or carpet,firstturn the

ON/OF F switch to the ON pos ition,and then

set the R UG /F LOOR (TOOLS )selector to the

R UG position.

When cleaning a bare floor or when using

one of the attachments, s et the R UG /FLOOR

(T OOL S )s elector to the F LO OR pos ition.

C aution: Do not change the s etting of the R UG /F LOOR (T OOLS )s elector while the vacuum

cleaner is turned off.

R UG /F LOOR (T OOLS )s elector

R UG P os ition F LO OR Pos ition

B efore us ing the height adj-

ustment lever, pleas e make

sure the cleaner is at its

upright position.

C aution:

Remove the attachments from the

vacuum cleaner.

Press the release button C to

disconnect the handle from the

vacuum cleaner.

Caution:

USING THE ATTACHMENTS

Caution: When using one of the attachments during cleaning, set the vacuum

cleaner to the upright position.

Attach the attachments on the handle.

Attach the attachments as shown below.

When you have finished using the attachments,replace them

in their original positions as shown on page 4.

Wand

Crevice Tool

Upholstery Tool

Dusting Brush

Attachment Clamp

Wand

Suction Hose

Crevice Tool

Release

Button C

When removing the attachments, pull

them in the directions shown in the

illustration. Pulling them in the wrong

direction or pulling them forcefully may

cause damage to the attachment clamp.

Trapdoor

Projection

Groove

Release Lever

Release Button A

Release Button B

Spinner Handle

MAX mark

4Turn the spinner handle several times in the

direction shown to empty the dust

compartment.

EMPTYING THE DUST COMPARTMENT

Caution: Be sure to turn the ON/OFF switch to the "OFF" position and disconnect the

power cord from the wall outlet before cleaning.

Empty the dust compartment when

contents reach the MAX mark.

Press the release button A meanwhile

press the release button B to remove

the dust compartment.

Press the release lever to open the

trapdoor.

Reattaching the Dust Compartment

Close the trapdoor and insert the projection on the

dust compartment into the groove on the main body.

Push the dust compartment into

the main body as shown to

reattach.
