Flycam Zest Pro Bedienungsanleitung

What’s In The Box

Please inspect the contents of your shipped package to ensure you have received everything that

is listed below.

Zest Pro Electronic Stabilizer | V-Mount (ST-ZEST-PRO-02)

No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright

statutes or in wring by the Publisher.

Assembly Manua l

Telescopic centre post with Inbuilt

Cables

Weight Rods

2 x 300mm Male Rods

2 x 150 Female Rods

Monitor Mount

20pcs Weight Plates

V-Mount Baery

2 x HDMI male to male

cable

DC Power cable RC male to BNC

male cable RC to RC male cable

2 x RC Female to BNC male

Connector 3/16mm, 4mm, 3mm, 2.5mm Allen Keys Ratchet Knob

Storage Bag

FUNCTIONS

1/4"- 20 3/8"-16

Scaling

Quick & Precise

Camera Posion

Adjustments

Fine Tuning Knob

Front-to-Back Camera Adjustment

Fine Tuning Knob

Reversed to Forward Camera adjustment & Push from

Outer Side to free Dovetail Quick Release Plate from

Camera Plaorm

Dovetail Quick Release Knob

Secure Dovetail Quick Release

Plate to Camera Plaorm

Camera Plaorm with Dovetail

Quick-Release

For Quick Camera Mounng/

Dismounng

Scaling

Bubble leveler

Glow-in-the-dark bubble level

DC Connector

Power output

HDMI Connector

RC Video Connector

Laser Engraved Guide Scale

Markings

Quick & Precise Vercal Posion

Adjustment

Posive Twist Lock

Easy & Secure Low Mode

Operaon

Posion-Adjustable

Knurled 3-Axis Gimbal

3-Axis Smooth Rotaonal

Operaon

Gimbal Handle

Connects to Vibraon Isolator

Arm

 Loosen bolts to adjust the height of Zest

as per your requirement. Securely ghten

the bolts with the help of Allen key.

NOTE: Do not over ghten the bolts.

ZEST PRO SETUP

 Loosen the Bolts & knob to rotate

Monitor Mount plate. The unique pivot

mechanism of Monitor mount enable

360° Rotaon and angle adjustment for

more convenience.

Adjustment of Monitor Mount

 Aach the monitor mount to the

stabilizer rods and secure it properly

using the knob.

 This is adjustable by loosening the

Monitor Mount Knob with one hand

while supporng and adjusng the

monitor with the other.

 Add your choice of monitor by lining up

the registraon pins and aaching it to

the monitor mount via the capve ¼-20

screw.

 Insert the weight rods onto the stabilizer

& ghten the knobs accurately.

 Now aach provided Weight Plates at

both sides on Stabilizer rods and ghten

the knobs to secure them appropriately.

 Aach V-Mount Baery Plate onto

Stabilizer Rods and ghten the provided

knob to secure it properly.

Assembly of Weight Bar

Assembly of Head Plate

 Remove the bolt aached to the camera

plate with the help of a 3/16 mm Allen

key.

 Aer removing the bolt, you can use a

ratchet knob in its place.

Once the ratchet knob is aached,

ghten it correctly.

 The Camera plaorm knob helps in the

movement of the plate.

 As shown in the image, you can use the

knob to reverse and forward the plate as

per your choice.

 Pull the knob on the camera plaorm

and remove the quick release plate.

 Loosen the black knob on the camera

plaorm to move it right-le.

 The images show the camera plaorm

movement. You can move the plaorm

right-le as per your requirement.

 Aach the quick release camera plate to

the camera, and secure it using an Allen

Key.

 Pull the knob on the camera plate, slide

in the camera, push the knob where the

camera is balanced correctly.

 Aer balancing the camera properly,

push the knob and use the ratchet knob

to secure it properly.

 HDMI male cable– It is used when we

want to take video from hdmi connector

of camera .one will connect to camera

and other will to camera plate of zest. If

we need two hdmi output for display

then you can use it with power hdmi

splier cabinet .

 RC male to bnc male wire– It is used to

connect the camera of bnc funcon and

other side will connect to camera plate

of zest.

 DC power cable :- it is used with power hdmi splier. here we have many voltage output and we can

use voltage output for display according to your requirements. Voltages are specied in power splier.

 RC to RC male cable :- it is used when we have RC connector in camera .you can use this video cable

according to your requirements.

Cable Assembly

(SHOWN WITH OPTIONAL ACCESSORIES)

Warranty: We oer one year warranty for our products from date of purchase. Within this period of

me, we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor

does it cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to

inspecon and evaluaon by us.

Liability: We are not liable for damage caused by products that we do not supply or from mishandling

in transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our

company.

utmost support and care unl you use our product.

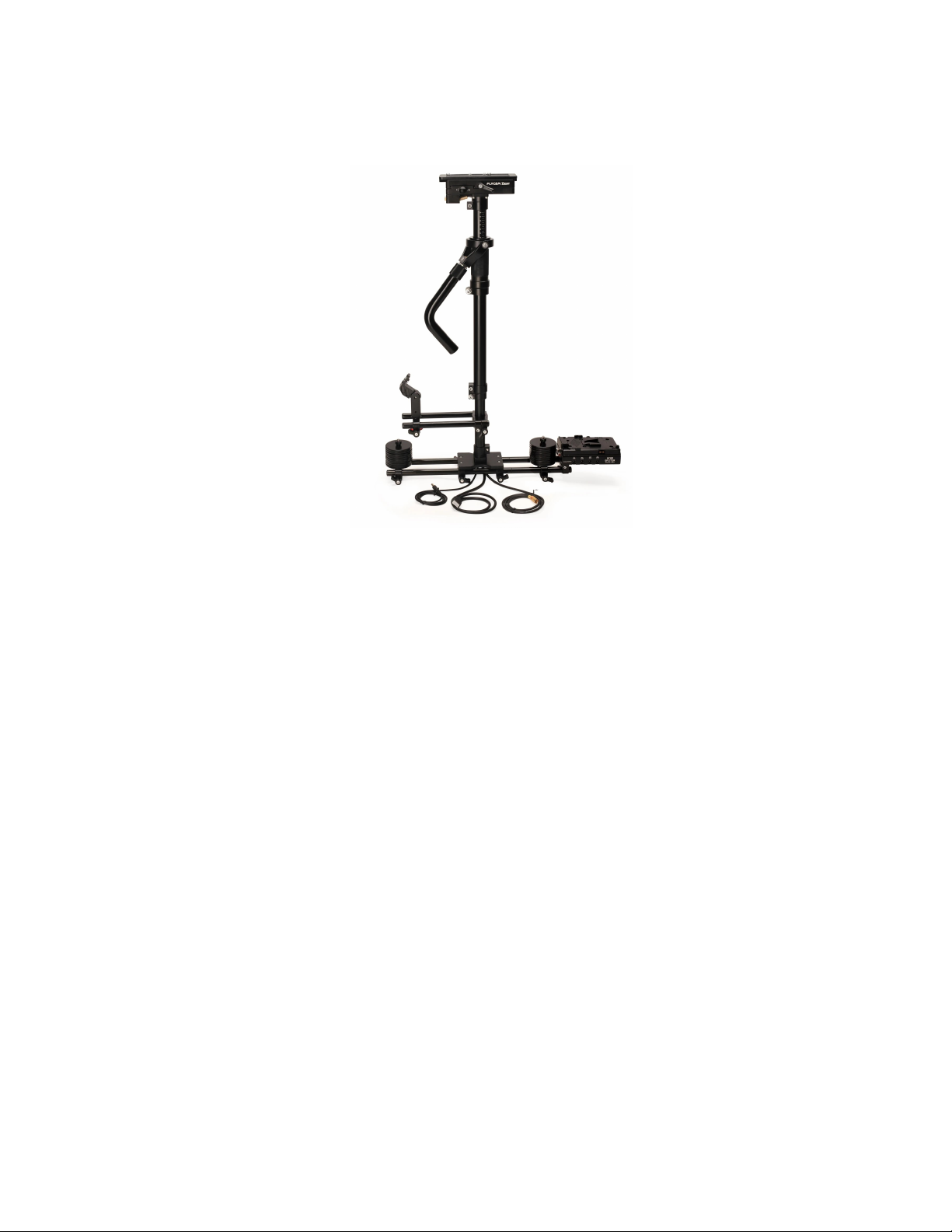

YOUR FLYCAM ZEST PRO ELECTRONIC VIDEO CAMERA STABILIZER

ALL DRESSED UP AND READY TO GO!
