FREE MOTION FMTL8255-INT.0 Bedienungsanleitung

Serial

Number

Decal

www.freemotionfitness.com

USERʼS MANUAL

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

QUESTIONS?

If you have questions, or if parts

are damaged or missing, please

see OW TO CONTACT CUS-

TOMER CARE on the back cover

of this manual.

Model No. FMTL8255-INT.0

Serial No.

Write the serial number in the

space above for future reference.

TABLE OF CONTENTS

WARNINGDECALPLACEMENT..............................................................3

IMPORTANTPRECAUTIONS ................................................................4

BE OREYOUBEGIN ......................................................................6

ASSEMBLY...............................................................................7

HOWTOMOVETHETREADMILL ...........................................................11

OPERATIONANDADJUSTMENT ............................................................12

PREVENTIVEMAINTENANCE ..............................................................31

SIX-MONTHPREVENTIVEMAINTENANCERECORD ...........................................34

TROUBLESHOOTING .....................................................................35

EXERCISEGUIDELINES ...................................................................37

PARTLIST ..............................................................................38

EXPLODEDDRAWING ....................................................................40

HOWTOCONTACTCUSTOMERCARE ...............................................BackCover

REEMOTION is a registered trademark of ICON IP, Inc.

These drawings show the locations of the warning decals. If a decal is missing or illegible, see the back cover

of this manual and request a free replacement decal. Apply the decal in the location shown. Note: The de-

cals may not be shown at actual size.

WARNING DECAL PLACEMENT

Note: There

is one decal

on each side.

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of serious injury, read all important precautions and in-

structions in this manual and all warnings on your treadmill before using your treadmill. FreeMotion

Fitness assumes no responsibility for personal injury or property damage sustained by or through

the use of this product.

1. Before beginning any exercise program, con-

sult your physician. This is especially impor-

tant for persons over age 35 or persons with

pre-existing health problems.

2. It is the responsibility of the owner to ensure

that all users of the treadmill are adequately

informed of all warnings and precautions.

3. Place the treadmill on a level surface, with at

least 2.4 m (8 ft.) of clearance behind it and

0.6 m (2 ft.) on each side. Do not place the

treadmill on a surface that blocks any air

openings. To protect the floor or carpet from

damage, place a mat under the treadmill.

4. Keep the treadmill indoors, away from mois-

ture and dust. Do not place the treadmill in a

garage or covered patio, or near water.

5. Do not operate the treadmill where aerosol

products are used or where oxygen is being

administered.

6. Do not operate the treadmill until it is prop-

erly and fully assembled (see ASSEMBLY on

page 7).

7. Regularly inspect and tighten all parts of the

treadmill.

8. Keep children under age 12 and pets away

from the treadmill at all times.

9. The treadmill should not be used by persons

weighing more than 350 lbs. (159 kg).

10. Never allow more than one person on the

treadmill at a time.

11. Wear appropriate exercise clothes when

using the treadmill. Do not wear loose

clothes that could become caught in the

treadmill. Athletic support clothes are recom-

mended for both men and women. Always

wear athletic shoes. Never use the treadmill

with bare feet, wearing only stockings, or in

sandals.

12. When connecting the power cord, follow the

instructions on page 12. No other appliance

should be on the same circuit as the tread-

mill. Do not use an extension cord.

13. Keep the power cord away from heated sur-

faces.

14. Never move the walking belt while the power

is turned off. Do not operate the treadmill if

the power cord or plug is damaged or if the

treadmill is not working properly. (See

TROUBLES OOTING on page 35 if the tread-

mill is not working properly.)

15. Read, understand, and test the emergency

stop procedure before using the treadmill

(see GETTING STARTED on page 16).

16. Never start the treadmill while you are stand-

ing on the walking belt. Always hold the

handrails while using the treadmill.

17. The treadmill is capable of high speeds.

Adjust the speed in small increments to

avoid sudden jumps in speed.

18. The pulse sensor is not a medical device.

Various factors, including the user's move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

19. Never leave the treadmill unattended while it

is running.

20. Do not change the incline of the treadmill by

placing objects under it.

21. Never insert or drop any object into any

opening.

22. Make sure to perform all maintenance proce-

dures outlined in this manual. Failure to do

so will void the warranty and may result in

damage to the treadmill.

23. DANGER: Always unplug the power

cord before cleaning the treadmill and before

performing the maintenance and adjustment

procedures described in this manual.

Servicing other than the procedures in this

manual should be performed by an autho-

rized service representative only.

24. Over exercising may result in serious injury

or death. If you feel faint or if you experience

pain while exercising, stop immediately and

cool down.

25. Use the treadmill only as described in this

manual.

SAVE T ESE INSTRUCTIONS

Congratulations for selecting the revolutionary

REEMOTION®TREADMILL. The TREADMILL offers

an impressive array of features to make your workouts

more effective and enjoyable.

For your benefit, read this manual carefully before

you use the treadmill. If you have questions after

reading this manual, please see the back cover of this

manual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Handrail

Accessory Tray

Console

Key/Clip

Power Switch

Walking Belt

Cushioned Walking Platform

oot Rail

Power Cord

Roller Adjustment Bolts

Handgrip Pulse Sensor

BEFORE YOU BEGIN

Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not

dispose of the packing materials until assembly is completed. Assembly can be completed using a 3/8" hex

key, a 7/32" hex key, and a Phillips screwdriver.

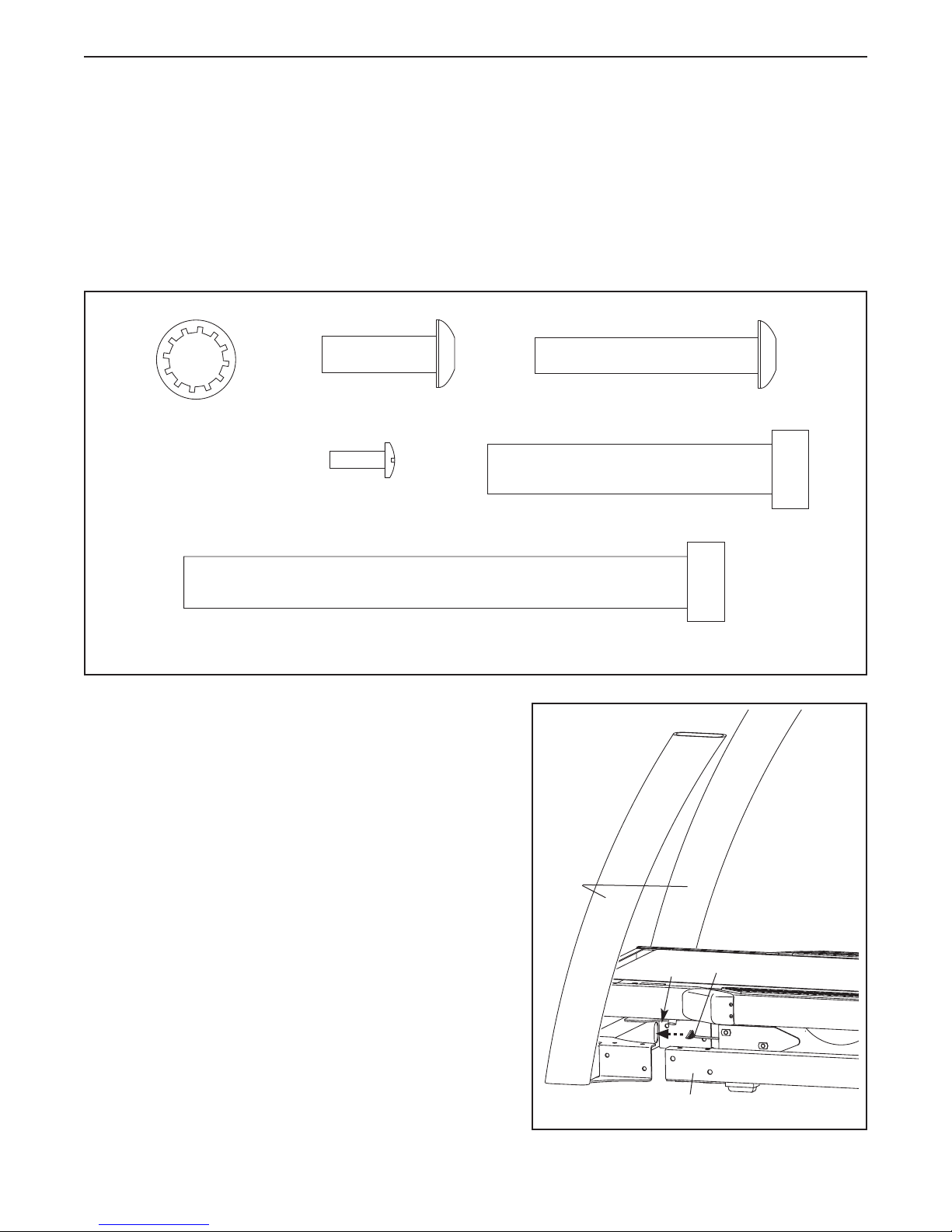

Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is

the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses

is the quantity needed for assembly. Note: Some small parts may have been preassembled. To avoid dam-

aging parts, do not use power tools for assembly. Extra hardware may be included.

1/2" Star

Washer (124)–4

1/2" x 2 1/2" Bolt (95)–4

1/2" x 4 1/2" Bolt (96)–4

3/8" x 1" Bolt (51)–4 5/16" x 2" Bolt (102)–4

#8 x 1/2"

Machine Screw

(129)–2

ASSEMBLY

1. Place the Uprights (93) near the front of the Base rame

(56) as shown.

As you slide the Uprights (93) onto the Base rame (56),

insert the 80" Wire Harness (118) into the large hole in

the Upright. Be careful to avoid pinching the wire.

Align the holes in the Uprights (93) with the holes in the

Base rame (56).

Hole

RIG T

LEFT

118

4. Partially tighten two 1/2" x 4 1/2" Bolts (96) with two 1/2"

Star Washers (124) through the top of the bracket near

the right Upright (93) and into the Base rame (56); do

not tighten the Bolts yet. Be careful not to pinch any

wires.

Repeat this step on the left side of the treadmill.

Then, tighten the 1/2" x 4 1/2" Bolts (96) and the 1/2" x

2 1/2" Bolts (95) on both sides.

124

3. Partially tighten two 1/2" x 2 1/2" Bolts (95) through the

bracket near the right Upright (93) and into the Base

rame (56); do not tighten the Bolts yet. Be careful

not to pinch any wires.

Repeat this step on the left side of the treadmill.

56 95

2. Locate the 80" Wire Harness (118) and 72" Wire

Harness (119) in the Upright (93) access hole.

Connect the 80" Wire Harness (118) and 72" Wire

Harness (119) at the front of the Uprights (93). See the

inset drawing. The connectors should slide together

easily and snap into place. If they do not, turn one

connector and try again. IF YOU DO NOT CONNECT

T E CONNECTORS PROPERLY, T E CONSOLE

MAY BECOME DAMAGED W EN YOU TURN ON

T E POWER.

Attach the Access Plate (130) to the Uprights (93) with

two #8 x 1/2" Machine Screws (129).

130

118

119

129

118

119

6. With the help of a second person, set the handrail as-

sembly onto the top of the Uprights (93). Make sure

that the 5/16" x 1 3/4" Bolts (113) are inserted into

the indicated holes in the bottom of the handrail as-

sembly (only one side is shown). Be careful not to

pinch any wires.

Carefully slide the handrail assembly forward until the

5/16" x 1 3/4" Bolts (113) slide into the indicated slot.

Allow the handrail assembly to tilt forward so that you

can see the 72" Wire Harness (119) and Console Wire

Harness (116). Make sure the handrail assembly is

held securely by the Bolts.

Slot

113

Hole

Handrail

Assembly

119

116

7. Connect the 72" Wire Harness (119) and Console Wire

Harness (116). See the inset drawing. The connec-

tors should slide together easily and snap into

place. If they do not, turn one connector and try again.

IF YOU DO NOT CONNECT T E CONNECTORS

PROPERLY, T E CONSOLE MAY BECOME DAM-

AGED W EN YOU TURN ON T E POWER. Insert the

wires downward into the right Upright (93).

Make sure that the handrail assembly is sitting flat on

the Handrail Brackets (92). Be careful not to pinch any

wires.

116, 119

Handrail

Assembly

116

119

5. Orient one of the Handrail Brackets (92) with the 5/16" x

1 3/4" Bolt (113) postioned as shown. Insert the 72" Wire

Harness (119) through the large hole in the Handrail

Bracket.

Attach the Handrail Bracket (92) to the top of the right

Upright (93) with two 5/16" x 2" Bolts (102). Start both

Bolts, and then tighten each of them. Be careful not

to pinch any wires.

Attach the other Handrail Bracket (92) to the top on the

left Upright (93) as described above. Note: There is not

a wire on the left side.

102

119

113

102

9. After the treadmill is placed in the location where it will

be used (see HOW TO MOVE THE TREADMILL on

page 11), make sure that both Rear Leveling eet (38)

and the Base Pads (not shown) rest firmly on the floor. If

the treadmill rocks even slightly, turn one of the Rear

Leveling eet clockwise or counterclockwise until the

rocking motion is eliminated.

Remove the #10 x 1/2" Screws (34) and the Power Cord

Bracket (64). Plug the power cord into the treadmill and

reattach the Power Cord Bracket. Note: The Power

Cord Bracket must be attached at all times. To pur-

chase a power cord, see page 12.

10. Make sure that all parts are properly tightened before you use the treadmill. To protect the floor or car-

pet, place a mat beneath the treadmill.

8. Attach the handrail assembly to the Handrail Brackets

(92) with four 3/8" x 1" Bolts (51); start all four Bolts,

and then tighten each of them. Handrail

Assembly

51 92

Inhaltsverzeichnis

Andere FREE MOTION Tretmühle Handbücher

FREE MOTION

FREE MOTION i11.9 INCLINE TRAINER Bedienungsanleitung

FREE MOTION

FREE MOTION i10.9b INCLINE TRAINER Bedienungsanleitung

FREE MOTION

FREE MOTION FMTL39813.2 Bedienungsanleitung

FREE MOTION

FREE MOTION VMTL82907.0 Bedienungsanleitung

FREE MOTION

FREE MOTION SFTL18910.1 Bedienungsanleitung

FREE MOTION

FREE MOTION Incline trainer Bedienungsanleitung

FREE MOTION

FREE MOTION t 6.4 Bedienungsanleitung

FREE MOTION

FREE MOTION t 7.4 Bedienungsanleitung

FREE MOTION

FREE MOTION R0209A Bedienungsanleitung

FREE MOTION

FREE MOTION t 5.2 Bedienungsanleitung

FREE MOTION

FREE MOTION 455 SFEL58014.0 Bedienungsanleitung

FREE MOTION

FREE MOTION VFMTL1156.0 Bedienungsanleitung

FREE MOTION

FREE MOTION VMTL39811.0 Bedienungsanleitung

FREE MOTION

FREE MOTION Treadmill Bedienungsanleitung

FREE MOTION

FREE MOTION t10.8 Bedienungsanleitung

FREE MOTION

FREE MOTION FMTK7256P.3 Bedienungsanleitung

FREE MOTION

FREE MOTION SFTL90009.0 Bedienungsanleitung

FREE MOTION

FREE MOTION TT 50 Bedienungsanleitung

FREE MOTION

FREE MOTION VMTL83607.5 Bedienungsanleitung

FREE MOTION

FREE MOTION Incline trainer Bedienungsanleitung

FREE MOTION

FREE MOTION Treadmill Bedienungsanleitung

FREE MOTION

FREE MOTION incline trainer i7.7 Bedienungsanleitung

FREE MOTION

FREE MOTION SFTL82207.0 Bedienungsanleitung

FREE MOTION

FREE MOTION FMTK7256-INT.0 Bedienungsanleitung

Beliebte Tretmühle Handbücher anderer Marken

Treadly

Treadly TREADLY 2 Bedienungsanleitung

HEALTH ONE

HEALTH ONE Walk Ro Bedienungsanleitung

NordicTrack

NordicTrack NTL12941 Bedienungsanleitung

NordicTrack

NordicTrack T7.5 S Bedienungsanleitung

Gold's Gym

Gold's Gym ADVANTAGE GGTL12920 Bedienungsanleitung

Merax

Merax MS282992 Bedienungsanleitung

FYTTER

FYTTER RU-2SX Bedienungsanleitung

Precor

Precor 903 Bedienungsanleitung

FitLogic

FitLogic freewill d225 Bedienungsanleitung

HOP-SPORT

HOP-SPORT ESTIMA HS-3200LB Bedienungsanleitung

Horizon Fitness

Horizon Fitness Adventure 5 Plus Bedienungsanleitung

Stamia

Stamia InMotion II Bedienungsanleitung

Smooth Fitness

Smooth Fitness EVO 3i Bedienungsanleitung

NordicTrack

NordicTrack NETL81810.0 Bedienungsanleitung

Schwinn

Schwinn 830/Journey 8.0 Bedienungsanleitung

Keys Fitness

Keys Fitness HealthTrainer HT-740T Bedienungsanleitung

Spirit

Spirit XT8 Bedienungsanleitung

NordicTrack

NordicTrack T 14.0 Treadmill Bedienungsanleitung
