FREE MOTION SFTL27808.0 Bedienungsanleitung

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

Serial Number Decal

Model No. SFTL27808.0

Serial No.

Write the serial number in the space

above for reference.

www.freemotionfitness.com

QUESTIONS?

If you have questions, or if parts are

damaged or missing, CONTACT

THE STORE WHERE YOU

PURCHASED THIS PRODUCT.

If you are unable to contact the

store, see HOW TO CONTACT

CUSTOMER CARE on the back

cover of this manual.

USER'S MANUAL

TABLE OF CONTENTS

WARNIN DECALPLACEMENT ..............................................................2

IMPORTANTPRECAUTIONS .................................................................3

BEFOREYOUBE IN .......................................................................5

ASSEMBLY ...............................................................................6

HOWTOUSETHECHESTPULSESENSOR ...................................................12

OPERATIONANDADJUSTMENT ............................................................13

HOWTOMOVETHETREADMILL ............................................................25

TROUBLESHOOTIN ......................................................................26

EXERCISE UIDELINES ...................................................................28

PARTLIST ...............................................................................30

EXPLODEDDRAWIN ......................................................................32

HOWTOCONTACTCUSTOMERCARE ...............................................BackCover

LIMITEDWARRANTY ..............................................................BackCover

These drawings show the locations of the

warning decals. If a decal is missing or il-

legible, see the back cover of this manual

and request a free replacement decal.

Apply the decal in the location shown.

Note: The decals may not be shown at ac-

tual size.

WARNING DECAL PLACEMENT

FREEMOTION is a registered trademark of ICON IP, Inc.

1. Before beginning this or any exercise pro-

gram, consult your physician. This is espe-

cially important for persons over age 35 or

persons with pre-existing health problems.

2. It is the responsibility of the owner to ensure

that all users of this treadmill are adequately

informed of all warnings and precautions.

3. Use the treadmill only as described.

4. Place the treadmill on a level surface, with at

least 8 ft. (2.4 m) of clearance behind it and 2

ft. (0.6 m) on each side. Do not place the

treadmill on any surface that blocks air open-

ings. To protect the floor or carpet from dam-

age, place a mat under the treadmill.

5. Keep the treadmill indoors, away from mois-

ture and dust. Do not put the treadmill in a

garage or covered patio, or near water.

6. Do not operate the treadmill where aerosol

products are used or where oxygen is being

administered.

7. Keep children under age 12 and pets away

from the treadmill at all times.

8. The treadmill should be used only by per-

sons weighing 350 lbs. (159 kg) or less.

9. Never allow more than one person on the

treadmill at a time.

10. Wear appropriate exercise clothes when

using the treadmill. Do not wear loose

clothes that could become caught in the

treadmill. Athletic support clothes are recom-

mended for both men and women. Always

wear athletic shoes. Never use the treadmill

with bare feet, wearing only stockings, or in

sandals.

11. When connecting the power cord (see page

13), plug the power cord into a surge suppres-

sor (not included) and plug the surge sup-

pressor into a grounded circuit capable of

carrying 15 or more amps. No other appliance

should be on the same circuit. Do not use an

extension cord.

12. Use only a single-outlet surge suppressor that

meets all of the specifications described on

page 13. To purchase a surge suppressor, see

the back cover of this manual and order part

number 146148, or see your local electronics

store.

13. Failure to use a properly functioning surge

suppressor could result in damage to the con-

trol system of the treadmill. If the control sys-

tem is damaged, the walking belt may slow,

accelerate, or stop unexpectedly, which may

result in a fall and serious injury.

14. Keep the power cord and the surge suppres-

sor away from heated surfaces.

15. Never move the walking belt while the power

is turned off. Do not operate the treadmill if

the power cord or plug is damaged, or if the

treadmill is not working properly. (See

TROUBLESHOOTING on page 26 if the tread-

mill is not working properly.)

16. Read, understand, and test the emergency

stop procedure before using the treadmill (see

HOW TO TURN ON THE POWER on page 15).

17. Never start the treadmill while you are stand-

ing on the walking belt. Always hold the

handrails while using the treadmill.

WARNING: To reduce the risk of serious injury, read all important precautions and in-

structions in this manual and all warnings on your treadmill before using your treadmill. FreeMotion

Fitness assumes no responsibility for personal injury or property damage sustained by or through

the use of this product.

IMPORTANT PRECAUTIONS

18. The treadmill is capable of high speeds.

Adjust the speed in small increments to

avoid sudden jumps in speed.

19. The pulse sensors are not medical devices.

Various factors, including the user's move-

ment, may affect the accuracy of heart rate

readings. The pulse sensors are intended

only as an exercise aid in determining heart

rate trends in general.

20. Never leave the treadmill unattended while it

is running. Always remove the key, unplug

the power cord, and switch the reset/off cir-

cuit breaker to the “off” position when the

treadmill is not in use. (See the drawing on

page 5 for the location of the reset/off circuit

breaker.)

21. Do not attempt to move the treadmill until it is

properly assembled. (See ASSEMBLY on page

6, and HOW TO MOVE THE TREADMILL on

page 25.) You must be able to safely lift 45 lbs.

(20 kg) to move the treadmill.

22. Do not change the incline of the treadmill by

placing objects under the treadmill.

23. Inspect and properly tighten all parts of the

treadmill regularly.

24. Never insert or drop any object into any

opening on the treadmill.

25. DANGER: Always unplug the power

cord immediately after use, before cleaning

the treadmill, and before performing the main-

tenance and adjustment procedures de-

scribed in this manual. Never remove the

motor hood unless instructed to do so by an

authorized service representative. Servicing

other than the procedures in this manual

should be performed by an authorized service

representative only.

26. The treadmill is intended for in-home use

only. Do not use the treadmill in any commer-

cial, rental, or institutional setting.

SAVE THESE INSTRUCTIONS

Thank you for selecting the revolutionary FREEMO-

TION®t5.8 treadmill. The t5.8 treadmill offers an im-

pressive selection of features designed to make your

workouts at home more enjoyable and effective.

For your benefit, read this manual carefully before

using the treadmill. If you have questions after read-

ing this manual, please see the back cover of this

manual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

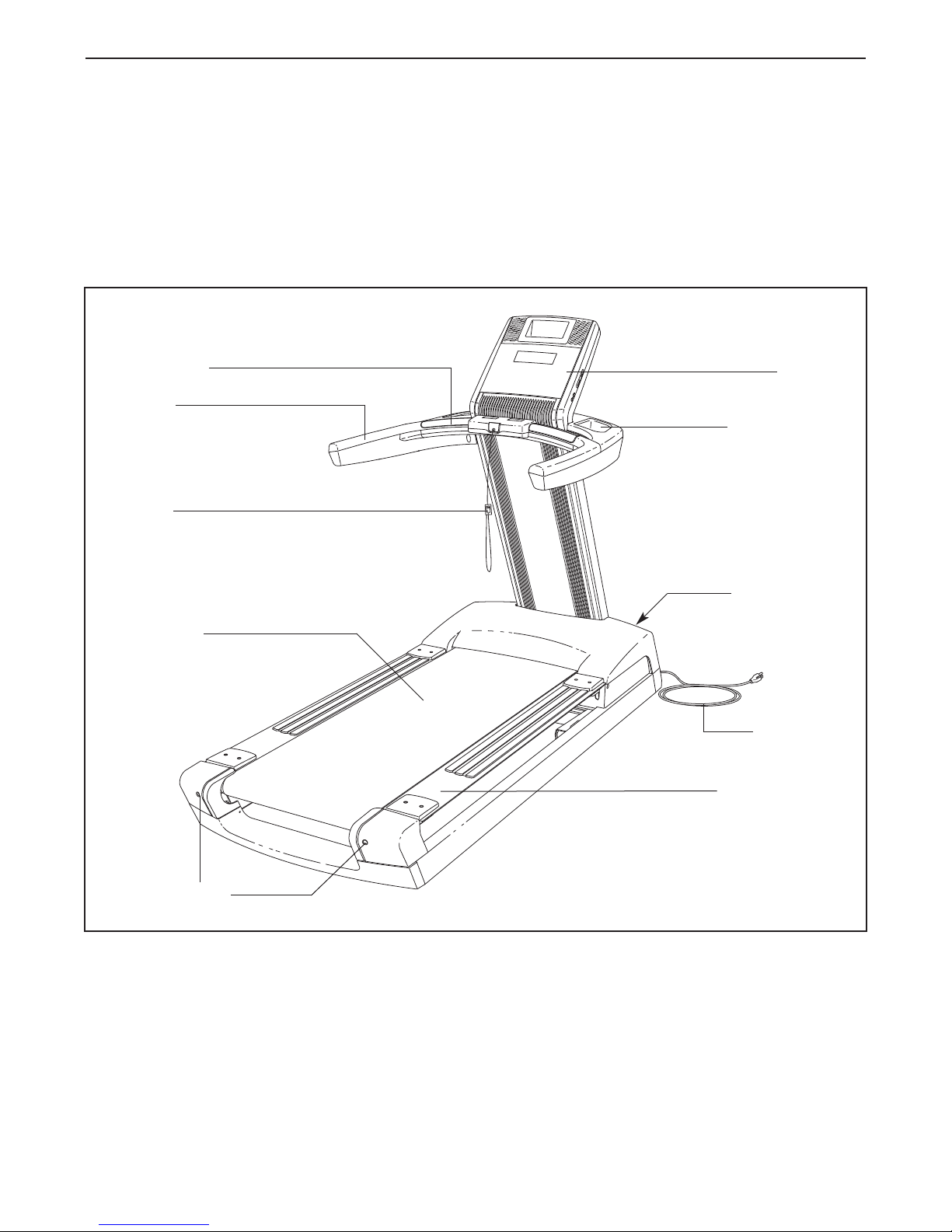

Before reading further, please review the drawing

below and familiarize yourself with the labeled parts.

BEFORE YOU BEGIN

Handrail

Console

Key/Clip

Reset/Off

Circuit Breaker

Walking Belt

Power Cord

Idler Roller

Adjustment Bolts

Pulse Sensor

Walking Platform

Accessory Tray

ASSEMBLY

Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not

dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking

belt is coated with high-performance lubricant. During shipping, some lubricant may be transferred to the top of

the walking belt or the shipping carton. This is normal and does not affect treadmill performance. If there is lubri-

cant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.

Assembly requires the included hex key and your own Phillips screwdriver .

Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is

the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses

is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it is preattached

to one of the parts to be assembled. To avoid damaging plastic parts, do not use power tools for assem-

bly. Extra hardware may be included.

3/8" Star

Washer (2)–6

#8 x 2 1/4" Machine Screw (3)–6

#8 x 1/2" Machine

Screw (4)–2

#6 x 5/8" Screw

(128)–2 3/8" x 3 1/4" Bolt (1)–6

2. Insert the end of the Upright Wire (111) through

the looped plastic ties at the top of the Upright

(81). Make sure that the Upright Wire is be-

hind the crossbar on the Upright. Then, gen-

tly pull up on the Upright Wire as you tighten the

plastic ties around the Upright Wire.

111

1. Make sure that

the Power Cord

(70) is unplugged

and lying on the

floor.

Slide the Upright Cover (not shown) off of the

Upright (81). Orient the Upright and the plastic

ties as shown. Set the Upright on the tabs on

the Frame (53). Attach the Upright to the Frame

with four 3/8" x 3 1/4" Bolts (1) and four 3/8"

Star Washers (2). Start all four Bolts before

tightening any of them. Be careful not to

pinch the Upright Wire (111).

53 111

Plastic Ties

Crossbar

4. Have a second person hold the handrail assem-

bly near the Upright (81). Insert the Upright Wire

(111) up through center of the handrail assem-

bly. Slide the bracket on the handrail assembly

over the crossbar on the Upright and set the

handrail assembly on the Upright. Be careful

not to pinch any wires.

Handrail

Assembly

3. Slide the Upright Cover (80) down onto the

Upright (81). Be careful not to pinch the

Upright Wire (111). Be careful not to hit the

ceiling.

111

Bracket

111

Crossbar

6. Have a second person hold the Console (101)

near the handrail assembly.

Connect the Upright Wire (111) and the handrail

wires to the console wires. Make sure that the

console wire and the handrail wire that you are

connecting have connectors that are the same

size. See the lower drawing. The connectors

should slide together easily and snap into

place. If they do not, turn one connector and

then try again. IF THE CONNECTORS ARE

NOT CONNECTED PROPERLY, THE CON-

SOLE MAY BE DAMAGED WHEN THE

POWER IS TURNED ON.

Insert the excess wires down into the Upright

Cover (80).

Set the Console (101) on the handrail assembly.

Be careful not to pinch any wires.

101

111

Console

Wires

111

Console

Wire

Handrail

Assembly

Handrail

Wires Handrail

Wire

5. Remove the two #8 x 1/2" Washer Head Screws

(23) and the Fan rill (102) from the Console

(101). The Washer Head Screws and the Fan

rill will be used in step 9.

102

101

7. Align the holes in the Console (101) with the

holes in the handrail assembly and the holes in

the Upright (not shown). Attach the Console and

the handrail assembly to the Upright with two

3/8" x 3 1/4" Bolts (1) and two 3/8" Star

Washers (2). Do not fully tighten the Bolts

yet. Note: It may be helpful to press the indi-

cated bracket against the Upright (81) and to

press down on the Console to align the

holes.

7101

81 Handrail

Assembly

Bracket

9. Reattach the Fan rill (102) to the Console

(101) with two #8 x 1/2" Washer Head Screws

(23). See the lower drawing. Make sure that

the teeth on the Fan Grill (102) sit inside the

grooves on the Upright Cover (80).

See step 7. Tighten the two 3/8" x 3 1/4"

Bolts (1).

102 101

Teeth

8. Tighten two #6 x 5/8" Screws (128) into the

Upright Cover (80) in the locations shown. Be

careful not to overtighten the Screws.

128

Dieses Handbuch passt für folgende Modelle

Andere FREE MOTION Tretmühle Handbücher

FREE MOTION

FREE MOTION SFSR81908.0 Bedienungsanleitung

FREE MOTION

FREE MOTION VMTL39811.0 Bedienungsanleitung

FREE MOTION

FREE MOTION Incline trainer Bedienungsanleitung

FREE MOTION

FREE MOTION Freemotion 730 Bedienungsanleitung

FREE MOTION

FREE MOTION t8.7 Bedienungsanleitung

FREE MOTION

FREE MOTION Incline trainer Bedienungsanleitung

FREE MOTION

FREE MOTION XTR 90 Bedienungsanleitung

FREE MOTION

FREE MOTION VMTL83907.5 Bedienungsanleitung

FREE MOTION

FREE MOTION FMTK7256-INT.0 Bedienungsanleitung

FREE MOTION

FREE MOTION VMTL83907-INT.1 Bedienungsanleitung

FREE MOTION

FREE MOTION SFTL15619.2 Bedienungsanleitung

FREE MOTION

FREE MOTION t10.9 REFLEX Bedienungsanleitung

FREE MOTION

FREE MOTION VMTL82907.0 Bedienungsanleitung

FREE MOTION

FREE MOTION 455 SFEL58014.0 Bedienungsanleitung

FREE MOTION

FREE MOTION incline trainer i7.7 Bedienungsanleitung

FREE MOTION

FREE MOTION Reflex T11.8 Bedienungsanleitung

FREE MOTION

FREE MOTION 750 Bedienungsanleitung

FREE MOTION

FREE MOTION FMTK74817.1 Bedienungsanleitung

FREE MOTION

FREE MOTION SFTL89810.0 Bedienungsanleitung

FREE MOTION

FREE MOTION Treadmill Bedienungsanleitung

FREE MOTION

FREE MOTION SFTL25808.0 Bedienungsanleitung

FREE MOTION

FREE MOTION t 7.4 Bedienungsanleitung

FREE MOTION

FREE MOTION FMTL8255-INT.0 Bedienungsanleitung

FREE MOTION

FREE MOTION SFTL81507.0 Bedienungsanleitung

Beliebte Tretmühle Handbücher anderer Marken

Treadly

Treadly TREADLY 2 Bedienungsanleitung

HEALTH ONE

HEALTH ONE Walk Ro Bedienungsanleitung

NordicTrack

NordicTrack NTL12941 Bedienungsanleitung

NordicTrack

NordicTrack T7.5 S Bedienungsanleitung

Gold's Gym

Gold's Gym ADVANTAGE GGTL12920 Bedienungsanleitung

Merax

Merax MS282992 Bedienungsanleitung

FYTTER

FYTTER RU-2SX Bedienungsanleitung

Precor

Precor 903 Bedienungsanleitung

FitLogic

FitLogic freewill d225 Bedienungsanleitung

HOP-SPORT

HOP-SPORT ESTIMA HS-3200LB Bedienungsanleitung

Horizon Fitness

Horizon Fitness Adventure 5 Plus Bedienungsanleitung

Stamia

Stamia InMotion II Bedienungsanleitung

Smooth Fitness

Smooth Fitness EVO 3i Bedienungsanleitung

NordicTrack

NordicTrack NETL81810.0 Bedienungsanleitung

Schwinn

Schwinn 830/Journey 8.0 Bedienungsanleitung

Keys Fitness

Keys Fitness HealthTrainer HT-740T Bedienungsanleitung

Spirit

Spirit XT8 Bedienungsanleitung

NordicTrack

NordicTrack T 14.0 Treadmill Bedienungsanleitung
