Front Runner TBMK011 Bedienungsanleitung
TBMK011_REV_A02 © 2019 FRONT RUNNER VEHICLE OUTFITTERS

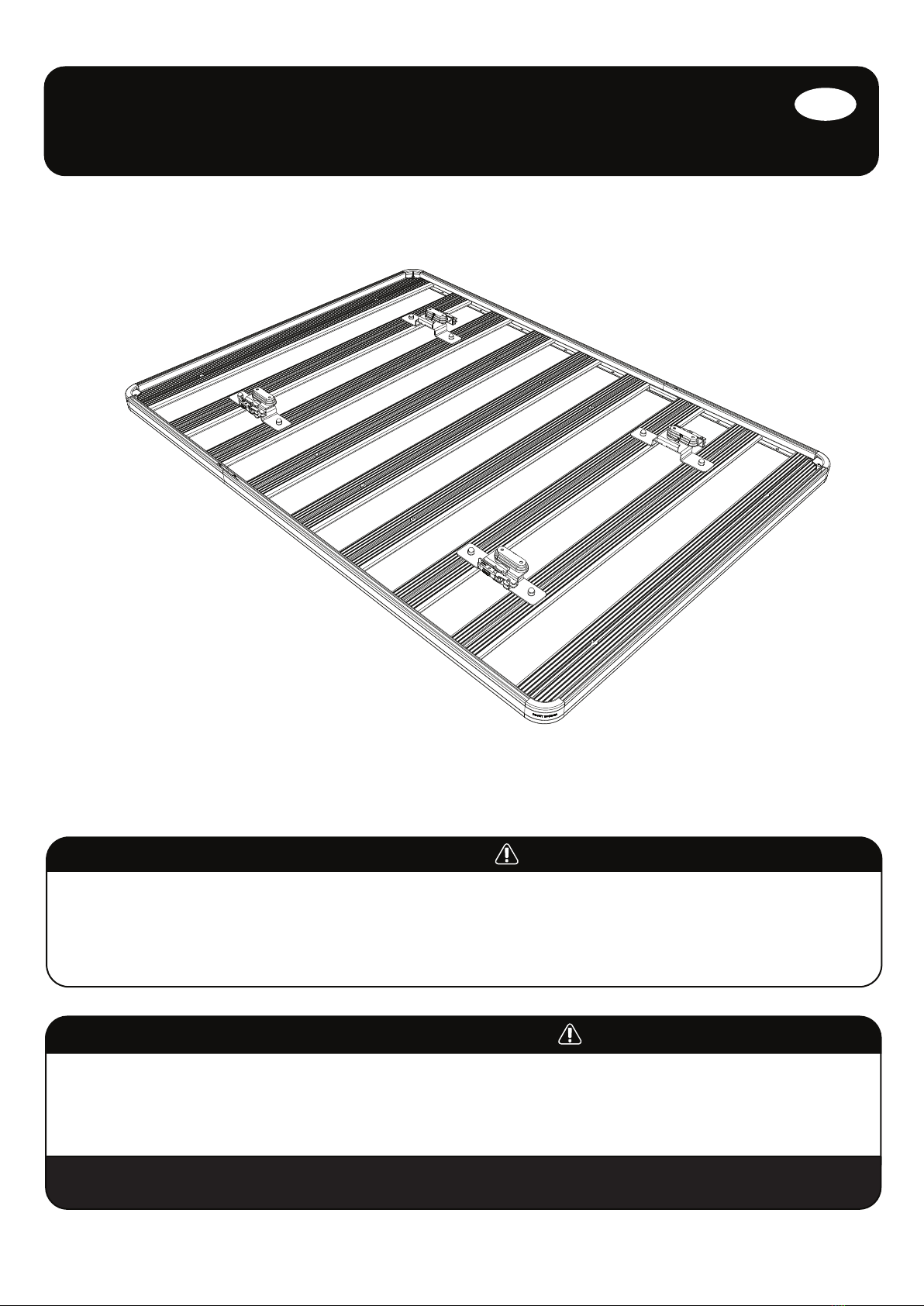

Quick Release
Tent Mount Kit
TBMK011
ENG
1
Thank you for purchasing a Front Runner Quick Release Tent Mount Kit.
Before you start, take a moment to familiarize yourself with the Fitting Instructions and the components received.
Refer to Page 2 for a list of all the components, quantities and tools required.
READ ME !
IMPORTANT WARNING!
IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD
RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT
RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND
DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO
INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY
FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.
NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.
Please call us if you have any questions about the installation of this product.
front runner
TBMK011_REV_A02
2
© 2019 FRONT RUNNER VEHICLE OUTFITTERS

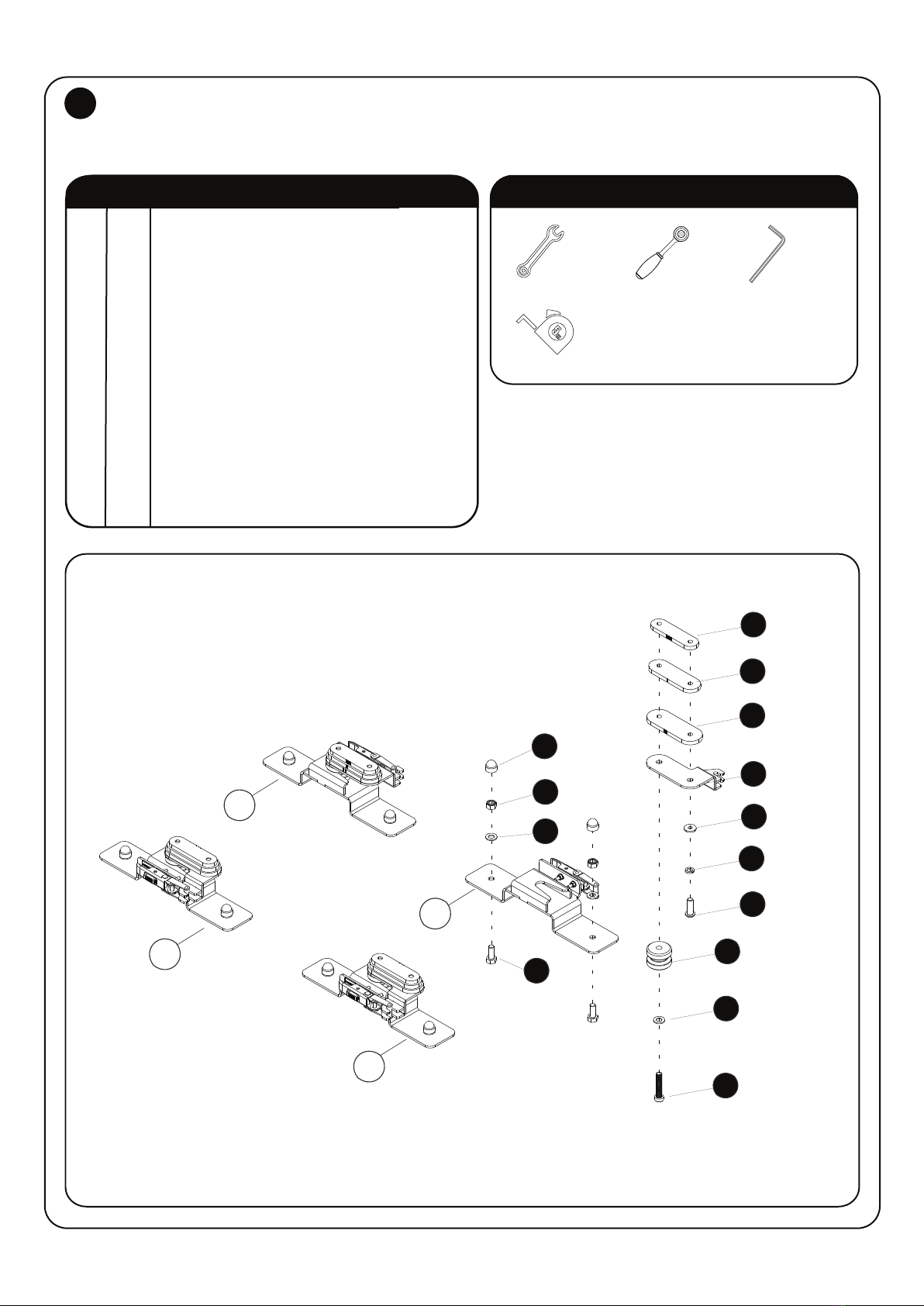

TOOLS NEEDED
13MM 13MM
FIGURE 1.1
1 2 X Mount Brackets with Non Adjustable Latch (RH)
2 2 X Mount Brackets with Non Adjustable Latch (LH)
3 4 X Channel Nut Plates - (Autohome)
4 X Channel Nut Plates - (Front Runner)
4 X Channel Nut Plates - (James Baroud)
4 4 X Latch Brackets
5 4 X M8 x 25 x 3 Flat Washer
6 4 X M8 Spring Washer
7 4 X M8 x 20 Button Head
8 4 X Guide Bolt
9 4 X M8 Nylon Washer
10 4 X M8 Low Head Cap Screw
11 8 X M8 Nut Cap
12 8 X M8 Nyloc Washer
13 8 X M8 Flat Washer
14 8 X M8 x 20 Hex Bolt
GET ORGANIZED
1
IN THE BOX
5mm
3
1RH
3
3
4
5
6
7
8
9
10
11
12
13
14
1RH
2LH
2LH
Back Of Rack
6
11
TBMK011_REV_A02
3

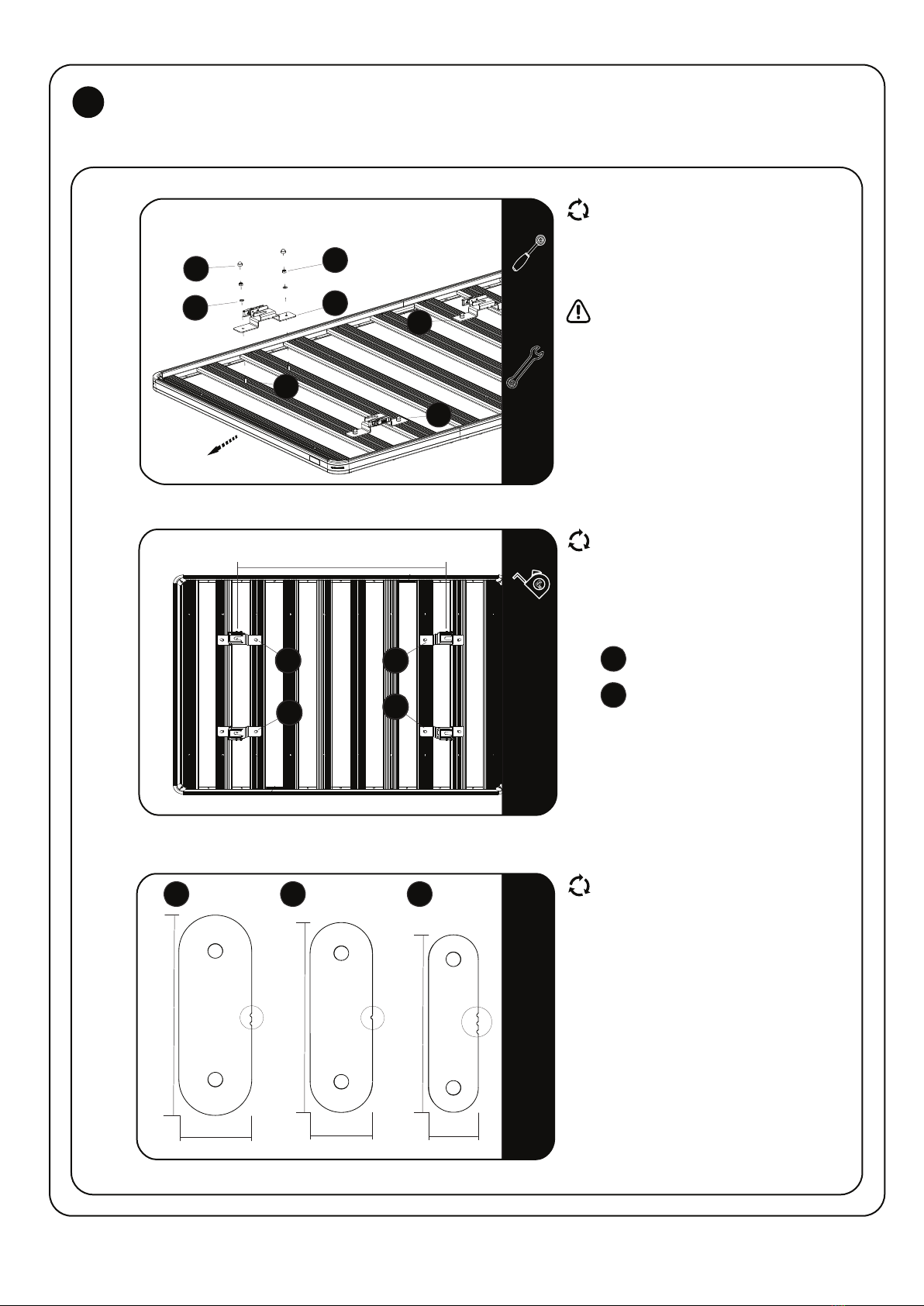

FIT AND SECURE
2
2.1
2.2
2.3
13MM
Taking into account the length and width of
your tent, choose where you'd like to
position it on the rack. This will determine
where you will need to fit the Mount
Brackets (Item 1 & 2).
Loosely fit the Mount Brackets (Item 1 & 2)
to the rack using fasteners 12, 13 and 14.
Note that position of the Mount Bracket With
Latch orientation. Mount as shown in Step 2.1.
Make sure that the closed side of the
Mount Brackets are facing toward the
front of the rack and that they are
parallel to the side of the rack.
13MM
Measure the distance between the center
points of the Rack Mount Brackets. You will
need this measurement for fitting the Latch
Bracket assembly to the tent channel in Step
2.5.
The Tent Channel Nut Plates included were
designed for the following tents but will
also work with other popular tents.
Check your mounting channel measurements
for the appropriate size.
All Channel Nut Plates are 6mm thick.
1. Front Runner
2. Autohome
3. James Baroud
CENTER
2LH
1RH
1RH
2LH
1 2 3
23.5mm
0.93"
"73.3/mm5.58
"6.3/mm5.19
29.5mm
1.16"
"8.3/mm5.69
34.5mm
1.36"
Right Hand Mount
2RH
Left Hand Mount
2LH
© 2019 FRONT RUNNER VEHICLE OUTFITTERS
13
12
2LH
14
2LH
1RH
FRONT
TBMK011_REV_A02
4
FIT AND SECURE
2
2.4
2.5
Hard shell tents may need additional
support. If you are using these brackets
with hard shell tents, such as James
Baroud or Autohome, and you are unable
to position the tent to rest directly on
the rack side profiles (A), use
TBMK009 – Hard Shell Tent Support
Channels - by Front Runner (B) sold
seperatly.
Depending on the tent manufacturer,
your hard shell tent warranty may be
voided if your tent becomes damaged
and you did not provide proper lateral
support for the hard shell tent.
Flip your tent over to get to the mounting
channels.
Loosely fit the Latch Bracket Assembly
(Item 4)
by sliding the chosen Channel Nut
Plate
(Item 3) into the mounting channel and
fastening with (Items 5, 6, 7, 9 & 10)
as shown.
Make sure that the Guide Bolts
(Item 8) ARE
facing towards the front of the rack as
shown.
5MM
3
Tent Front
A
B
© 2019 FRONT RUNNER VEHICLE OUTFITTERS
4
8
9
10
5
6
7
TBMK011_REV_A02
5
FIT AND SECURE
2
2.6
2.7
13MM
Measure the distance between the centers
of Channel Feet to make sure it matches
the position of the Rack Mount Brackets
installed in Step 2.2.
Once measurements have been confirmed,
fully tighten the Latch Bracket Assembly to
the tent channel.
Flip the tent over and lower it onto the rack
making sure the Guide bolts align with the
rack mount brackets.
Push the tent forward so that the Guide Bolts
slide fully into the Rack Mount Brackets.
Latch all 4 Latches to secure tent into the
brackets.
5MM
13MM
Front Of Rack
Center
Front
© 2019 FRONT RUNNER VEHICLE OUTFITTERS
INSTALL OTHER VEHICLE AND RACK ACCESSORIES
4
Now's the time to visit your favorite Front Runner Dealer in person or online.
Be sure to tag us. We love to see our gear in action! #FrontRunnerOutfitters #BornToRoam
Share your adventures on:
FINISH
3
Congratulations! You did it. Take a step back and admire your work!
