Front Runner TRFD001 Bedienungsanleitung

ENG

Don’t be a hero and muscle through this installation without reading these ﬁtting instructions ﬁrst! Improper installation of this gear may void certain

aspects of your warranty.

Before you begin, take a moment and open all your Front Runner rack kit boxes and gather the assembly instructions for the various components.

A complete kit will contain:

1. A Front Runner Mounting System speciﬁc to your vehicle

2. A Front Runner Rack Tray or Load Bar Slats

This document will guide you through the assembly of the mounting system and assist you in ﬁtting the roof rack tray or load bars to your speciﬁc

vehicle.

Please refer to the next page for a list of all the components, quantities and tools required.

TRFD001

READ ME FIRST

START HERE!

front runner FORD /MAZDA DC TRACKS /1250MM

IMPORTANT WARNING!

IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD

RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT

RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND

DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO

INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY

FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.

NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.

Please call us if you have any questions about the installation of this product.

FIGURE 1.1

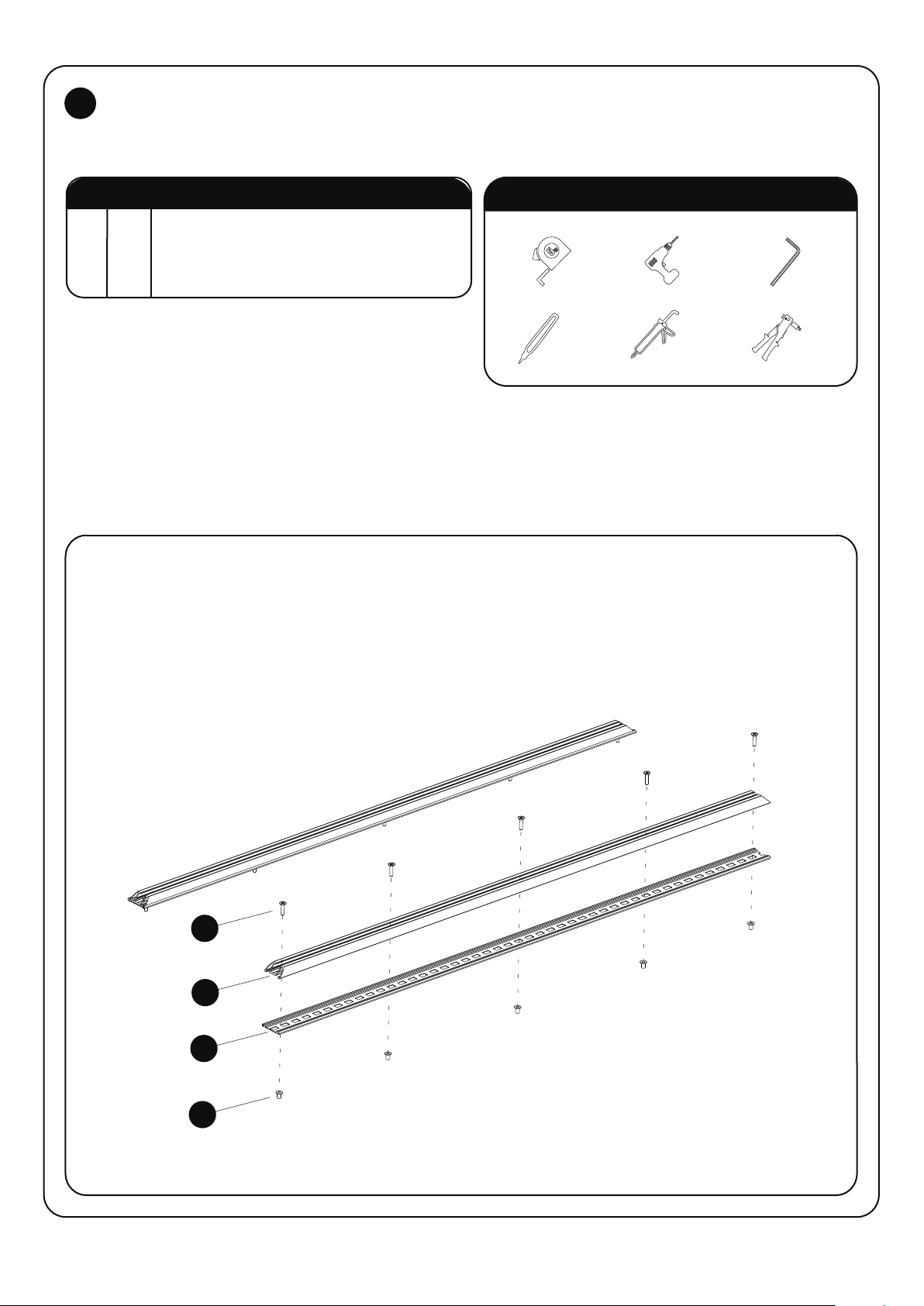

IN THE BOX

1 2 X Track - 1250mm Long

2 2 X Rubber Strip - 1250mm Long

3 10 X M6 x 25 Countersink Bolt

4 10 X M6 Rivnut

1GET ORGANIZED

TOOLS NEEDED

9mm

5mm

4mm

TRFD001_REV_A00

FIT AND SECURE

2.1

2.2

2.3

Place the track (Item 1) on roof so that rear

is level with rear door. Track must run next to

the rib in roof. Mark all ﬁve holes in the track

onto the vehicle.

Remove the Track and drill a 5mm pilot hole

on all the marks you have made. Open the

holes to 9mm.

Insert and set M6 Rivnut (Item 4) in all the

holes drilled in 2.2.

Treat holes with Anti rust and place Silicone

in and around all the M6 Rivnuts (Item 4).

Before starting the ﬁtment, remove the

protective strip from the double sided

tape applied to the bottom of the Tracks

(Item 1) and ﬁt the Rubber Strip (Item 2)

to the bottom of the Tracks.

5mm

9mm

COMPLETION

3.1

Congratulations! You did it. Take a step back and admire your work!

INSTALL OTHER VEHICLE AND RACK ACCESSORIES

Now's the time to visit your favorite Front Runner Dealer in person or online.

IMPORTANT!

Be sure to tag us. We love to see our gear in action! #FrontRunnerOutfitters #BornToRoam

Share your adventures on:

FRONT RUNNER RACK KITS OFTEN HAVE A HIGHER LOAD RATING THAN THE VEHICLES THEY ARE MOUNTED TO. PLEASE REFER TO YOUR SPECIFIC VEHICLE MANUFACTURER

FOR A RECOMMENDED ROOF RATING. FRONT RUNNER CANNOT BE RESPONSIBLE FOR IMPROPER LOADING BEYOND THE VEHICLE MANUFACTURER'S STATED LOAD CAPACITY.

TRFD001_REV_A00

FIT AND SECURE

2.4

Place the Track in position again and secure

using M6 x 25 Countersink Bolts (Item 3).

4mm
