Front Runner SSDS115 Bedienungsanleitung

SSDS115

ENG

Drawer Deck Completion Set

Toyota Land Cruiser 70

IMPORTANT WARNING!

Thank you for purchasing a Front Runner Deck Completion Set.

Before you start, take a moment to familiarize yourself with the Fitting Instructions and the components received.

Refer to Page 2 for a list of all the components, quantities and tools required.

READ ME !

FRONT RUNNER CAN NOT RECOMMEND A MAXIMUM LOAD CARRYING CAPACITY. PLEASE REFER TO YOUR VEHICLE MANUFACTURER'S RECOMMENDATIONS. IT IS CRITICAL

THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD RESULT IN AN

AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT RUNNER PRODUCTS

TO YOUR VEHICLE. CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND DAMAGE. THEREFORE YOU

MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO INSTALLATION OR USE. IF YOU

DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY FAMILIAR WITH THE

INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.

NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.

Please cal us if you have any questions about the installation of this product.

SSDS115_REV_A01

2RH

2LH

1RH

1LH

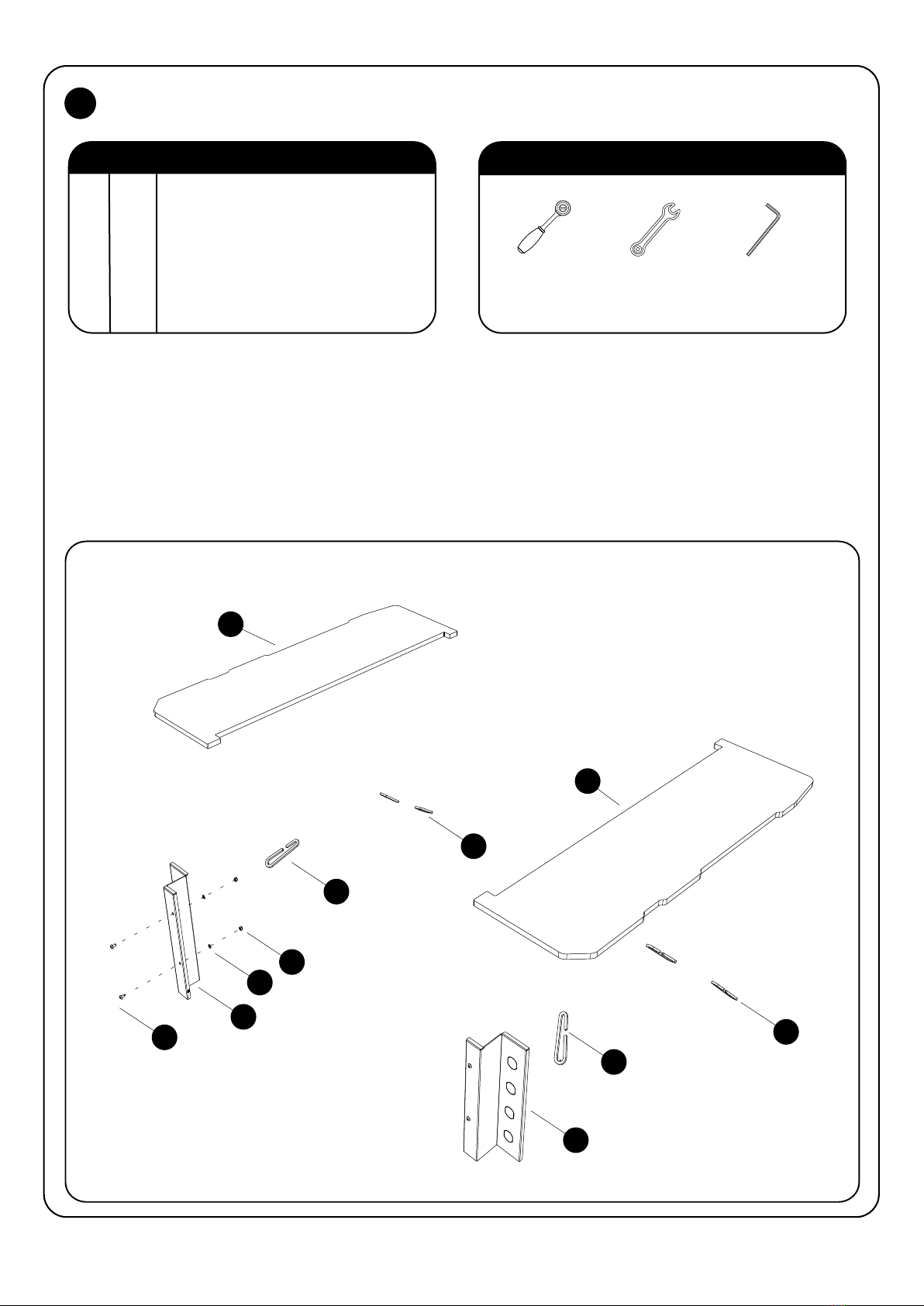

TOOLS NEEDED

13MM

10MM

8MM

1 2 X Side Deck 1LH + 1RH

2 2 X Front Face 1LH + 1RH

3 4 X M5 x 10 Button Head

4 4 X M5 x 10 x 1SS Flat Washer

5 4 X M5 Nyloc Nut

6 6 X 115mm Carabiner

IN THE BOX

FIGURE 1.1

3mm

GET ORGANIZED

SSDS115_REV_A01

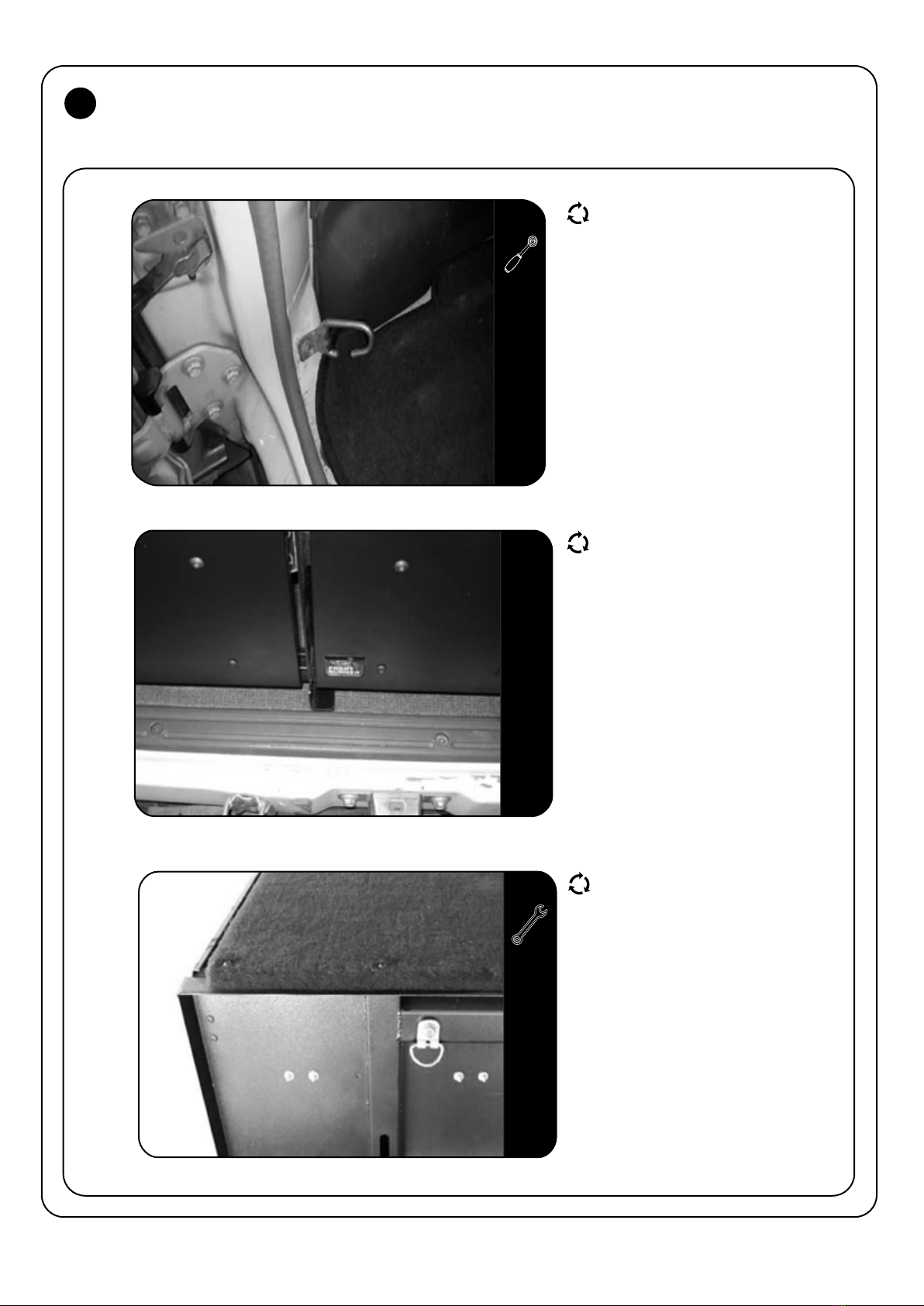

FIT AND SECURE

2.1

2.2

2.3

Place the Drawer System into the vehicle,

aligning the front of the Drawer to the edge of

the plactic trim as shown. Ensure that the

Drawer System is centered left to right.

Inside the rear door, loosen and rotate the

left and right tie-down ring as shown.

13MM

At the sides of the Drawer System, loosen

and remove the D-ring closest to the front

of the Drawer.

The D-ring will be reﬁtted in Step 2.4.

FIT AND SECURE

Secure the Front Faces (Item 2LH & 2RH) to

the Drawer using M5 x 10 Button Heads,

M5 x 10 x 1SS Flat Washers and M5 Nyloc

Nuts (Items 3, 4 & 5) as shown.

2.4

2.5

2.6

Fit the Adjustable Wing Set (SSWS003) to the

Drawer.

Please see SSWS003 Fitment Guide for

assembly details.

Secure the D-ring that you have removed in

Step 2.3 in the top hole of the Wings closest

to the front of the Drawer Sytem as shown.

Secure the Drawer System in position using

two Turn Buckles (supplied with SSDR005)

and two 115mm Carabiners (Item 6) at the

rear of the Drawer.

At the front of the Drawer use one Turn

Buckle, 60mm Carabiner (supplied with

SSDR005) and one 115mm Carabiner (Item 6)

as shown.

Tighten the wing nut on each Turn Buckle to

prevent it from coming loose.

2RH

10MM

3MM

8MM

60mm Carabiner

Wing Nut

D-ring

2RH

FIT AND SECURE

Place the Side Decks (Item 1LH & 1RH) onto

the Drawer making sure that you slide it into

the C-clip of the Front and Rear

Side Wings.

Push the Adjustable Wing up against the

Side Deck.

Carefully remove the Side Deck so that the

adjustable Wings do not move. Fully tighten

the Adjustable Wings and reﬁt the

Side Decks.

2.7

10MM

1LH

FIT ECOM SOCKETS

3.1

Twist the pre cut knock outs to remove.

Socket Inserts (Sold Separately) can be put

into this front face.

ECOM117 - Amp Meter

ECOM118 - USB Socket

ECOM119 - 12/24V Socket

ECOM120 - Merit Socket

ECOM121 - Engel Socket

ECOM124 - Volt Meter

Be sure to tag us. We love to see our gear in action! #FrontRunnerOutfitters #BornToRoam

Share your adventures on:

INSTALL OTHER VEHICLE AND RACK ACCESSORIES

Now's the time to visit your favorite Front Runner Dealer in person or Online.

COMPLETION

4.1

10mm

Congratulations! You did it. Take a step back and admire your work!
