Front Runner FSLI022 Bedienungsanleitung
FSLI022_REV_A01 © 2022 FRONT RUNNER VEHICLE OUTFITTERS
front runner
FSLI022
ENG
1
Thank you for purchasing a Front Runner Cargo Fridge Slide 75L.
Before you start, take a moment to familiarize yourself with the Fitting Instructions and the included components.
Refer to Page 2 for a list of all the components, quantities and tools required.
READ ME !
IMPORTANT WARNING!
IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD
RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT
RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND
DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO
INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY
FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.
NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.
Please call us if you have any questions about the installation of this product.
CARGO FRIDGE SLIDE 75L
FSLI022_REV_A01 © 2022 FRONT RUNNER VEHICLE OUTFITTERS
2
TOOLS NEEDED
FIGURE 1.1
TOOLS NEEDED
TOOLS NEEDED
CHECK ONLINE FOR THE LATEST FITMENT GUIDE WWW.FRONTRUNNEROUTFITTERS.COM
GET ORGANIZED
1
Mounting Hardware for Wooden Deck or Drawer System
1 1 X Fridge Slide 75L
2 4 X M6 x 16 Button Head
3 4 X Strap
4 12 X M6 x 19 x 1 Flat Washer
5 6 X M6 x 25 Hex Head Bolt
6 6 X M6 Wood Insert
Mounting Hardware for Flat Surface Using Rivnuts
1 1 X Fridge Slide 75L
2 4 X M6 x 16 Button Head
3 4 X Strap
4 12 X M6 x 19 x 1 Flat Washer
5 6 X M6 x 25 Hex Head Bolt
7 6 X M6 Rivnut
Mounting Hardware for Flat Surface Using Nuts & Bolts
1 1 X Fridge Slide 75L
2 4 X M6 x 16 Button Head
3 4 X Strap
4 12 X M6 x 19 x 1 Flat Washer
5 6 X M6 x 25 Hex Head Bolt
8 6 X M6 Nyloc Nut
1
2
4
6
7
8
5
3
5mm 10mm
4mm
7mm
10mm
4mm
9mm
10mm
4mm
7mm
Rivnut
Crimp
Tool
4
5
FSLI022_REV_A01 © 2022 FRONT RUNNER VEHICLE OUTFITTERS
3
FIT AND SECURE - WOODEN DECK OR DRAWER SYSTEM
2
2.1
2.2
2.3

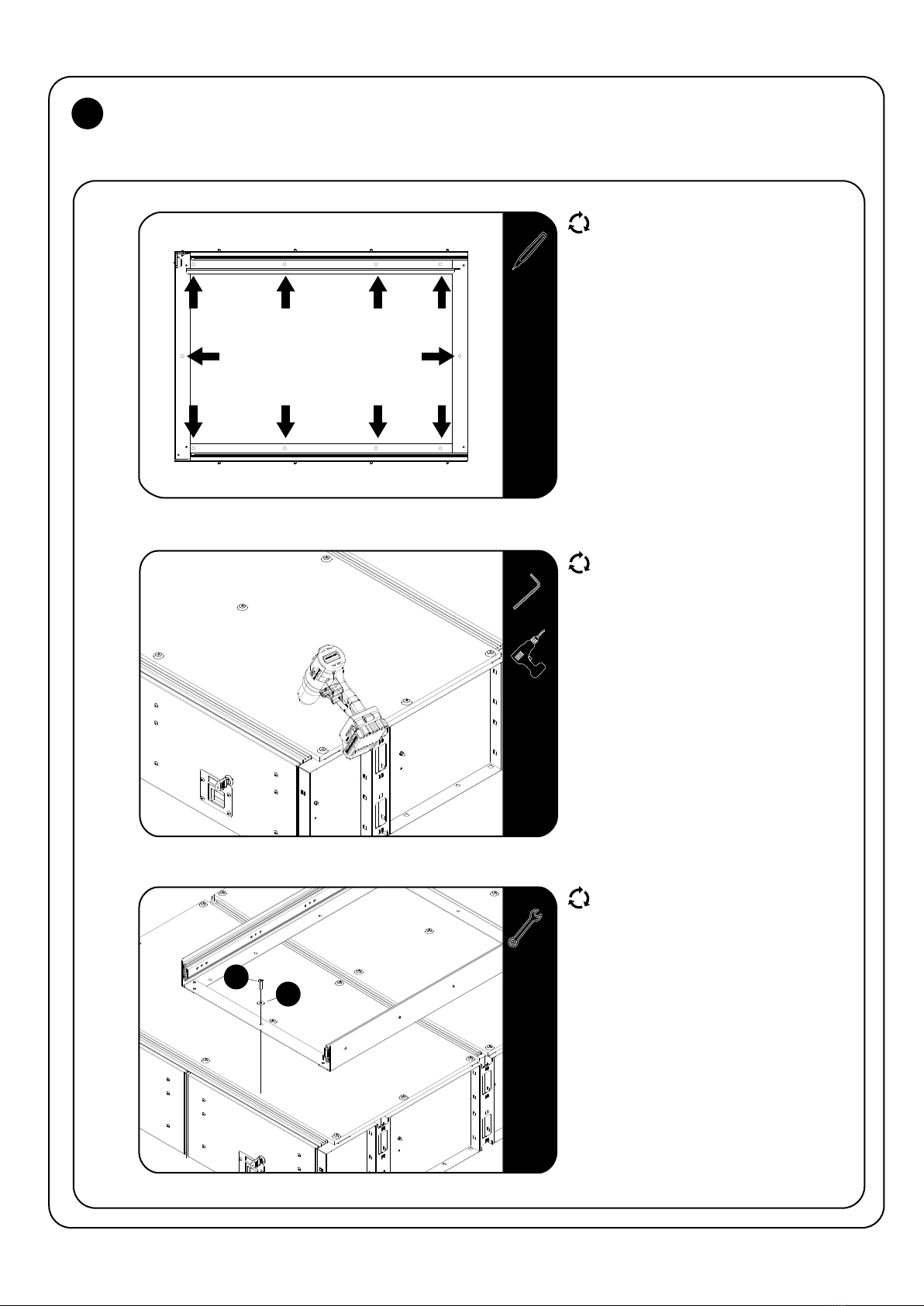

Place the Fridge Slide (Item 1) on the
suitable surface, open the slide and mark
the positions as shown as indicated by the
arrows (at least 6 fixing points recommend-
ed).
Remove the Fridge Slide and Drill a 7mm
hole through the wood on each of your
markings. Loosen and remove the deck.
Turn the deck upside down and screw the
Wood Inserts (Item 6) into each of the holes
drilled in step 2.1.
Secure the Deck back onto the drawer
system. Place the fridge Slide (Item 1)
back into position and secure using M6 x
20 Hex Bolts and M6 x 19 x 1 Flat Washers
(Items 4 & 5).
Marker
5mm
4mm
7mm
10mm
2
5
4
4
7
1
3
FSLI022_REV_A01 © 2022 FRONT RUNNER VEHICLE OUTFITTERS
3
FIT AND SECURE - FLAT SURFACE USING RIVNUTS
3
3.1
3.2
3.3
Place the Fridge Slide (Item 1) on the
suitable surface, open the slide and mark
the positions as shown as indicated by the
arrows (at least 6 fixing points recommend-
ed).
Remove the Fridge Slide (Item 1) and drill
a 4mm pilot hole on each of the markings,
open the holes to 9mm.
Insert and Crimp a M6 Rivnut (Item 7) into
each hole.
Secure the Fridge Slide (Item 1) to a flat
surface using M6 x 25 Hex Head Bolts and
M6 x 19 x 1 Flat Washers (Items 4 & 5).
The M6 x 16 Button Head Bolts
(Item 2), supplied are used to secure a
Dometic Fridge.
Marker
4mm
9mm
10mm
Rivnut
Crimp
Tool
Keeping the markings in mind, look
below the vehicle for any obstructions.
4mm
4
5
4
8
FSLI022_REV_A01 © 2022 FRONT RUNNER VEHICLE OUTFITTERS
3
FIT AND SECURE - FLAT SURFACE USING NUTS AND BOLTS
4
4.1
4.2
4.3
Place the Fridge Slide (Item 1) on the
suitable surface, open the slide and mark
the positions as shown as indicated by the
arrows (at least 6 fixing points recommend-
ed).
Remove the Fridge Slide (Item 1) and drill
a 4mm pilot hole on each of the markings,
open the holes to 7mm.
Secure the Fridge Slide (Item 1) to a flat
surface using M6 x 25 Hex Head Bolts, M6 x
19 x 1 Flat Washers & M6 Nyloc Nuts (Items
4, 5 & 8).
The M6 x 16 Button Head Bolts
(Item 2), supplied are used to secure a
Dometic Fridge.
Marker
4mm
7mm
10mm
Keeping the markings in mind, look
below the vehicle for any obstructions.
2
4mm
FSLI022_REV _A01 © 2022 FRONT RUNNER VEHICLE OUTFITTERS
4
INSTALL OTHER VEHICLE AND RACK ACCESSORIES
6
Now's the time to visit your favorite Front Runner Dealer in person or online.
Be sure to tag us. We love to see our gear in action! #FrontRunnerOutfitters #BornToRoam
Share your adventures on:
FINISH
5
Congratulations! You did it. Take a step back and admire your work!
