M3096EX/GX ConsuMablE REplaCEMEnt and ClEaninG instRuCtions

M3096EX/GX Consumable Replacement

and Cleaning Instructions

CG00000-676601b

M3096EX/GX ConsuMablE REplaCEMEnt and ClEaninG instRuCtions

Kit Contents

Pad Assembly Qty 3 Pick Roller Qty 2

Q-Tips

Qty 1 100/pack

Lint Free

Cleaning Cloths

Qty 2 20/pack

Cleaning Paper

Qty 1 10/pack

F1 Cleaner

Isopropyl Alcohol

Qty 1

Note: Kit contents may vary

M3096EX/GX ConsuMablE REplaCEMEnt and ClEaninG instRuCtions

Consumables list

m3096eX/GX Consumables

Description Qty. Life Fujitsu P/N

Pad Assembly 1 100,000 PA02201-0020

Pick Roller 1 200,000 PA02201-0025

Note:

NCR or Carbonless paper has chemical composition which damages

the Pad and the Pick Roller. Cleaning of these items will be needed

more frequently to avoid feed problems. Also their life will be

reduced if this paper is scanned.

Pad Assembly

Pick Roller

Pick Roller Qty 2

M3096EX/GX ConsuMablE REplaCEMEnt and ClEaninG instRuCtions

• Lift the ADF Lever and open the ADF.

ADF Lever

ADF

• Make sure the Paper Select Lever is set to “N” before removing the

Pad Assembly.

Paper Thickness

Adjustment

Thick

Paper Normal

Paper

ADF

Frame

Slot

• Hold the Pad Assembly at

points A & B, or insert a coin

or a at head screwdriver

into the slot in the Pad

Assembly.

• Slide the Pad Assembly to

ReplaCinG the pad assembly

Side Views of New and Worn Pads

Retainer Worn Pad

Pick

Spring

New Pad

Retainer

Pick

Spring

Multiple feeds can be caused by a worn out Pad Assembly. The life span

of the Pad Assembly is about 100,000 sheets or 1 year if maintained

properly. If NCR or carbonless paper is used the life span may be

decreased by half.

M3096EX/GX ConsuMablE REplaCEMEnt and ClEaninG instRuCtions

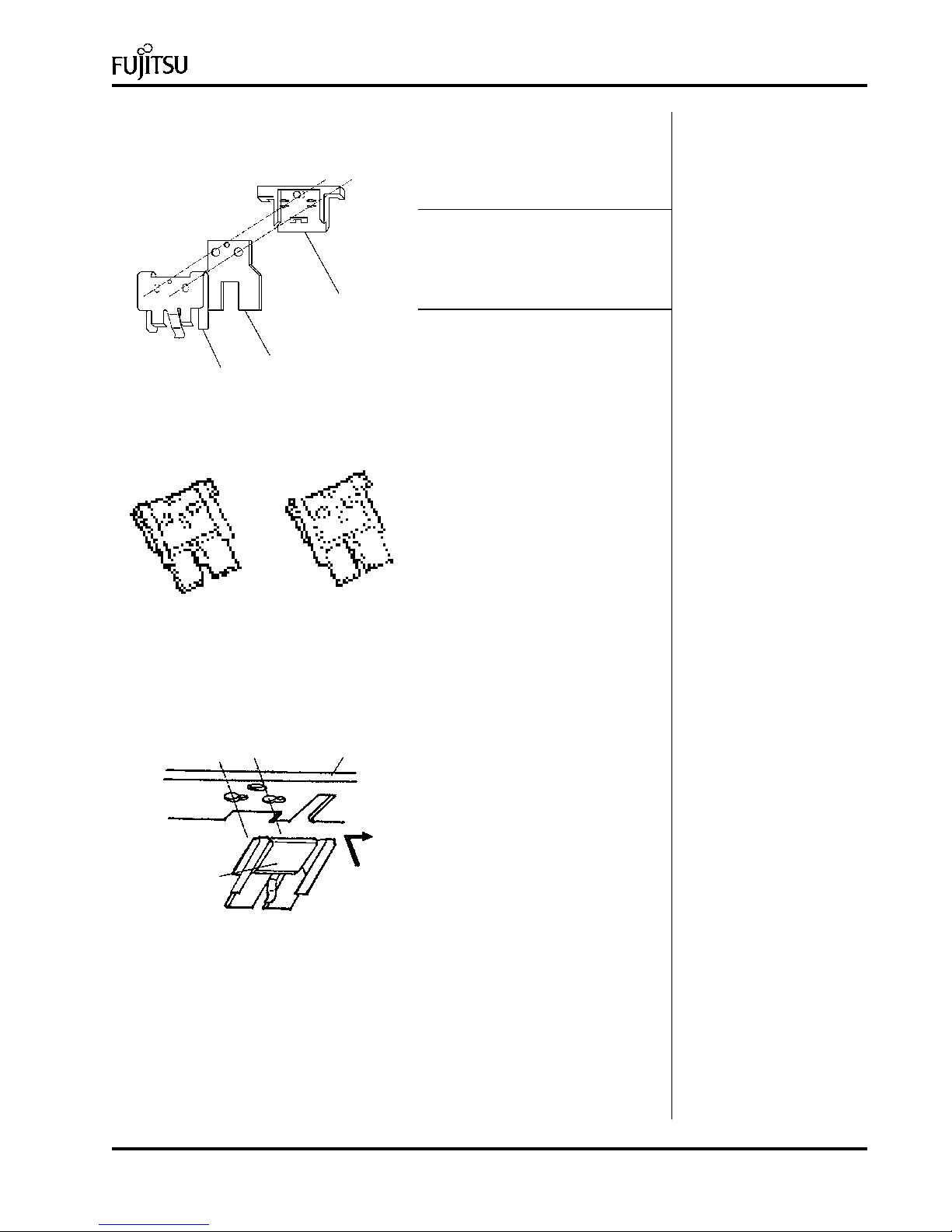

ReplaCinG the pad assembly (Cont.)

Note:

The Pad Assembly consists of

the Pad, the Pick Spring, and

the Pad Holder.

• If you receive only the

rubber pad, replace the Pad

according to the following

procedure.

• Remove the Pick Spring.

• Remove the Pad from

the Pad Holder.

• Align the holes in the

new Pad with the pins on

the Pad Holder.

• Attach the Pick Spring so

that both ends of the Pick

Spring are located on the

Pad.

• Insert the new Pad Assembly

into the bigger side of the

mounting holes in the ADF

frame, and then slide to the

right until it locks into place.

• Close the ADF.

Pad

Pad Holder

Pick

Spring

Pad Assy

ADF Frame

Correct Incorrect

M3096EX/GX ConsuMablE REplaCEMEnt and ClEaninG instRuCtions

ReplaCinG the piCK RolleR

• Lift the ADF Lever and

open the ADF.

• Remove the two thumb

screws and lift the Pick

Roller Cover out of the

ADF.

• Compress the ends of

the retaining hook and

remove from the groove

in the shaft.

• Slide the retaining hook

and Bushing A toward

the sponge roller.

• Slide the roller shaft

towards the center of

the scanner (direction of

Arrow A) to remove the

roller shaft from the rear

ADF frame.

• Now slide toward the

back of the scanner

(direction of Arrow B) to

remove the Pick Roller

Shaft from the ADF.

Thumb

Screw

Thumb

Screw

Pick Roller

Cover

• Remove the bushings and the retaining hook from the roller shaft.

Retaining Hook

Bushing Bushing

Retaining Hook

Bushing A

Misfeeds can be caused by a worn Pick Roller. The life span of the Pick

Rollers is about 200,000 sheets or 1 year if maintained properly. If NCR

or carbonless paper is used the life span may be decreased by half.

Bushing

M3096EX/GX ConsuMablE REplaCEMEnt and ClEaninG instRuCtions

ReplaCinG the piCK RolleR (Cont.)

• Take the new Pick Roller and place the retaining hook on the end of

the shaft closest to the black sponge roller.

• Place the bushing that has the at spot on the end of the roller shaft

where you placed the retaining hook. Make sure the large diameter

of the bushing is facing the inside of the shaft. Also, make sure the

hook and bushing are as close to the roller as possible.

• Place the round bushing into

the mounting hole at the rear

of the ADF.

• Place the end of the roller

shaft with the bushing into

the retaining bracket in the

center of the ADF.

• Now slide the roller shaft

into the mounting hole and

bushing in the back of the

scanner.

• Make sure the bushings

are placed in the mounting

holes properly and move

the retaining hook into the

groove in the roller shaft.

• Reinstall the Pick Roller

Cover and tighten the two

thumb screws.

Retaining Hook

Bushing

Round

Bushing

Back of Scanner

Bushing

M3096EX/GX ConsuMablE REplaCEMEnt and ClEaninG instRuCtions

CleaninG Kit

CleaninG loCations and FRequenCies

F1 Cleaner

Isopropyl Alcohol

Location Tools Frequency

Flatbed Area Cloth with F1 Cleaner Whenever Dirty

Pad Cloth with F1 Cleaner Every 5,000 Pages

Pick Rollers Cloth with F1 Cleaner Every 5,000 Pages

Feed Rollers Cloth with F1 Cleaner Every 5,000 Pages

Plastic Rollers Cotton Swab with F1 Cleaner Every 5,000 Pages

ADF Glass Cloth with F1 Cleaner Every 5,000 Pages

Sheet Guide Cloth with F1 Cleaner Every 5,000 Pages

Q-Tips

Lint Free

Cleaning Cloths Cleaning Paper

M3096EX/GX ConsuMablE REplaCEMEnt and ClEaninG instRuCtions

Document Cover

Document

Holding Pad

Cloth

Document Bed

Neutral Cleanser

or Isopropyl Alcohol

CleaninG the Flatbed

• Open the Document Cover.

• Apply F1 Cleaner or isopropyl alcohol. to a clean cloth.

• Wipe the Document Holding Pad and Document Bed.

• Allow to dry.

Note:

Window or glass cleaner can be used instead of F1 Cleaner or

isopropyl alcohol.

Be sure to prevent liquid from seeping through the opening between

the document bed and the plastic cover.

A dirty Document Bed or Holding Pad can cause repetitive spots, marks

or unclear areas when scanning from the Flatbed.

M3096EX/GX ConsuMablE REplaCEMEnt and ClEaninG instRuCtions

ADF Lever

ADF

Paper Guide

Cleaning

Sheet

CleaninG the adF with the CleaninG papeR

• Pull the ADF Lever to open

the ADF.

• Apply F1 Cleaner or

isopropyl alcohol. to both

sides of a new sheet of

Cleaning Paper.

• Place the Cleaning Paper

on the ADF so that the

edge of the sheet touches

the Plastic Rollers.

• Close the ADF and turn

the scanner ON. The

Cleaning Paper will be fed

through the scanner.

• Turn the scanner OFF.

The cleaning paper is designed to remove only loose paper dust and ink

from the rollers. Use them approximately every 5,000 pages scanned.

They are to be used in between the thorough cleanings of the scanner.

Using the cleaning paper does not take the place of the more

complete cleanings described later in this section

• Flip the Cleaning Paper over and repeat the steps above.

Note:

The cleaning paper only remove loose paper particles and toner.

They are not a substitute for doing a thorough cleaning to the ADF.
