Cleaning Instructions for

fi-5110C Scanner

It is recommended that these items be

cleaned EVERY 1,000 SCANS

Consumables Part Number

Consumable Kit CON-3360-001A

Cleaning Kit SC-CLE-WGD

Using F1 Impregnated Cleaning Wipes



Pad Assy

Wipe downwards. When cleaning take care to prevent the cleaning wipe from catching on the

metal parts





BEFORE CLEANING

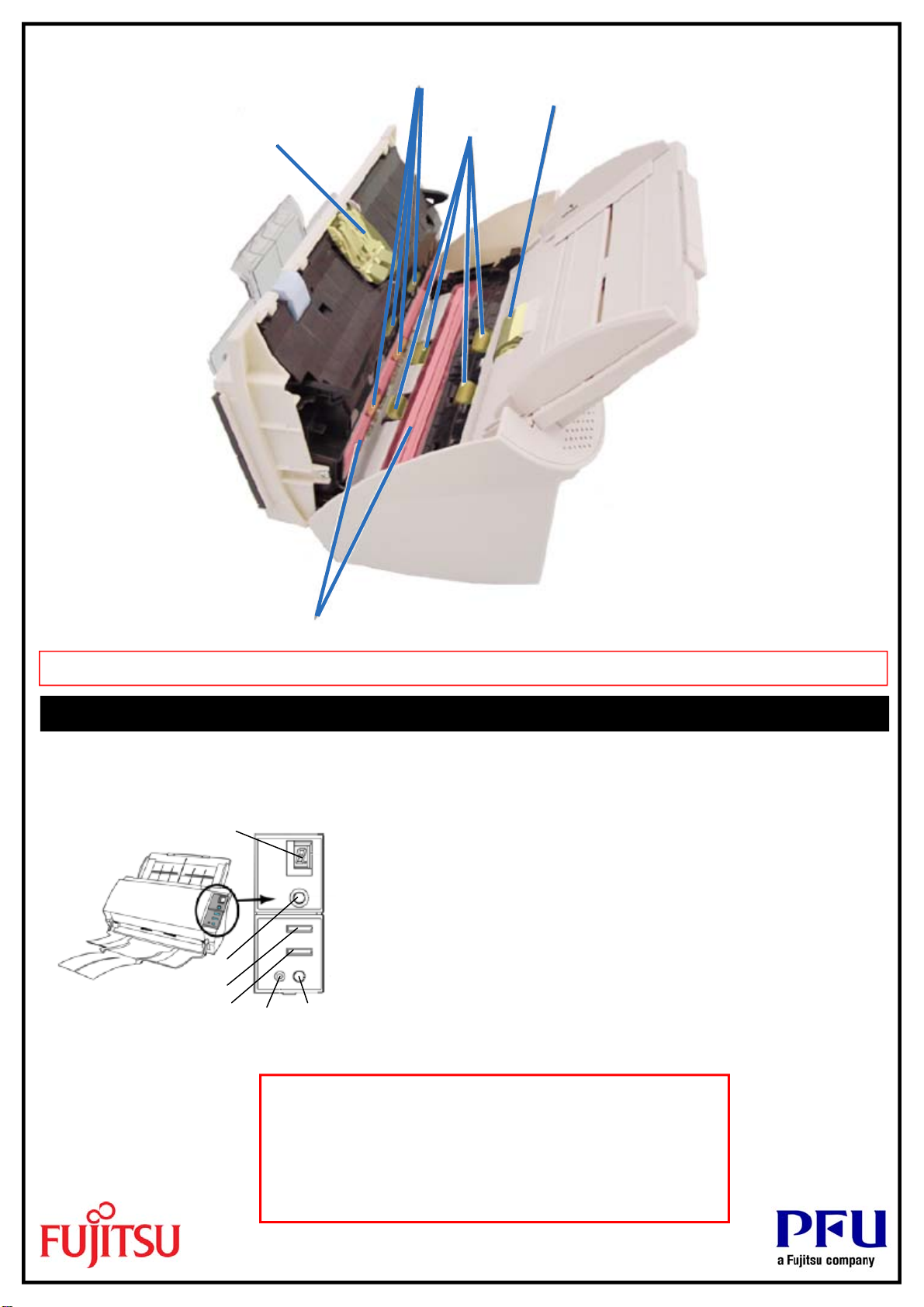

Open the ADF while pulling the cover open lever

ADF Glass Surfaces x 2

Located on the ADF cover and opposite side. Clean lightly.

Pick Roller

Clean lightly taking care not to scratch the surface of the roller and the Myler sheet.

P.T.O.



Plastic Rollers x 4

Clean lightly while rotating with your finger. Take care not to roughen the surface.









Plastic

Feed Rollers

Glass

Pick Roller

Pad Assy



Turn the Scanner OFF while cleaning the following locations



Feed Rollers x 2

Clean lightly while rotating with your finger. Take care not to roughen the surface.

For further information please refer to the

fi-5110C Scanner Operators Guide

which can be found on our Website:

http://www.fujitsu.com/emea/products/

January 2010

Using F1 Impregnated Cleaning Wipes

Turn the Scanner ON while cleaning the following locations

PFU Imaging Solutions Europe Ltd Cleaning Instructions for fi-5110C Scanner

Open the ADF when the indication of the Function Number

display is not “P” or “O”.

Simultaneously hold down the “Send to” and “Scan” buttons on

the operator panel. The Feed Rollers will start to rotate slowly

Hold a cleaning wipe against the surface of the rotating rollers,

lightly cleaning the surface.

As a guideline, 6 presses of the “Send to” and“Scan” buttons

make the rollers rotate one full turn









Plastic

Feed Rollers

Glass

Pick Roller

Pad Assy



Function Number Display

Function

Send to

Scan LED Power

Button
