Configuring the SAN Boot Environment

C122-E206-04EN

FUJITSU Server

PRIMEQUEST 2000 Series

Configuring the SAN Boot Environment

C122-E206-04EN

Configuring the SAN Boot EnvironmentCHAPTER 1

Thischapterdescribesthe procedureforinstallingtheSAN boot environmentandprovidesnotes ondesign.

Thechapter assumesthatanETERNUS modelis used astheSAN storageunit.

Onlyfieldengineersshouldperform the following tasksonthisproduct and theoptions provided by

Fujitsu.Customersmustnotperformthesetasksunder anycircumstances.Otherwise,electric

shock,injury,orfire mayresult.

- Newlyinstalling ormoving equipment

- Removingthefront, rear,and sidecovers

- Installingand removingbuilt-inoptions

- Connectinganddisconnectingexternal interfacecables

- Maintenance (repairandperiodicdiagnosis and maintenance)

1.1 Preparing to Configure the SAN Boot Environment

Thefollowinghardwareand softwarearerequired toconfigure theSANboot environment.

Required hardware

PRIMEQUEST2000seriesmainunit

FibreChannelcard(8Gbps/16Gbps FCcard).

ThemainunitforperformingaSANbootmusthaveamountedFCcard(8Gbps/16Gbps).

PC forthesetupofthe SANstorageunit(ETERNUS)andFCswitch (IfthePCrequirements aresatisfied, itcanalso

be usedas anotherconsolesuchas the MMBconsole.For details,see the manualforeachdevice.)

Remark

ForinformationontheFCcard, contact thedistributor where youpurchased yourproduct,or yoursalesrepresentative.

Required software

Fordetailsonthe operating systemsthat supporttheSANboot,the FCcard/driver/firmware,andtheFCcard/firmware

version,visitthefollowing website. Also, thelatestdriverandfirmwarecanbeobtainedfrom the following website. Fora

multipathconfiguration,the ETERNUSmultipathdriveris required.

- Driver/firmware website

http://support.ts.fujitsu.com/Download/

**Acquirethedriversandutilitiesfor theFCcard from theabove website.For amultipath configuration, the ETERNUS

multipathdriveris required.

Configuring the SAN Boot Environment

C122-E206-04EN

1.2 SAN Boot Environment Configuration Flow

This section describes the configurationflow forSANbootenvironment. Followsteps1to4 below to

configuretheSANbootenvironment.

Notes

Usea singlepath configuration (connection withonlyoneFC cable)until the installationof the operating

systemandmultipathdriveris completed.

Afterinstalling the operatingsystem andmultipath driver, connecttheFCcableto restoretheoriginal

state. Then,power onthepartitionof the PRIMEQUEST2000seriesserveragain.

Register theLUNthatis the destinationof operatingsystem installation in allofthe HBAs to beusedfor

startingthe system.

Before turningonthe powertothepartitionofthe PRIMEQUEST2000 seriesserver,confirmthatthe

SANstoragewhere the operating systemis tobestoredandtheFCswitch are completelyready.

1. Designing theSAN boot environment

Createadrawing forFCcabling betweenthe SANstorage unit andthePRIMEQUEST2000seriesserverin

which the SANbootenvironmentistobeconfigured. Alsocreatea zonedesigndrawing.

DesigntheRAID(LUN_R)settingsandpartition (LUN)fortheSANstoragethatstoresthetargetoperating

systemofSANboot.

Check 1.3 Notes on SAN BootEnvironment Design.

2. MakingthesettingsforthePRIMEQUEST2000seriesserver

ChangetheUEFIsettingofthePRIMEQUEST2000seriesserverandtheHBAUEFI/extendedBIOSsetting of

theFCcard.

Record theWWNforeach FCport.Also recordtheWWNNas required.

3. MakingthesettingsfortheSANenvironment

According tothe drawingforFC cablingdesignedinstep1,install theSANstorage and FCswitchand connect

them with cables.

Based onthe RAIDsetting,partition design,and zone information designedinstep1andon theWWN

informationwrittendown instep2,makethesettingsfor the SANstorage and FC switches.

Inthesettingof theHBAUEFI/extendedBIOSoftheFCcard includedinthePRIMEQUEST2000seriesserver,

search fortheWWNoftheconnectiondestinationSANstorageand setit.

4. Installingthe OSandbundled software

UseSVIMtoinstall theOS andbundledsoftware.

Install the multipathdriveras required.

According tothedrawingforFC cabling designedin step1,connect thePRIMEQUEST2000seriesserver with

theSANstorage/FCswitch.

Registerthe bootdisk(LUNthat isthedestinationofoperating system installation)inall ofthe HBAsto beused

forstarting thesystem.

LUNatthedumpoutput destination isregisteredon theFCcard when setting ittodumpdevice SANstorage of

sadump.

Configuring the SAN Boot Environment

C122-E206-04EN

Specifythepriorityof the bootdeviceswith the UEFIorLegacyBIOSofthePRIMEQUEST2000series server.

1.3 Notes on SAN Boot Environment Design

This sectionprovides notes ondesigningthe SAN bootenvironment.

1.3.1Notes onsystemdesign

1.3.2Notes onsysteminstallation

1.3.3Notes on systemafterinstallation

1.3.4Notes onsystemoperation

1.3.1 Notes on system design

Note thefollowing pointswhendesigningthesystem.

TrafficontheFC maybemaximizedforsomesoftware used.Besuretomeasure itsperformanceonasystemsuch

as apseudosystembeforeinstalling it.

ForSANstorage,thebootdisktobeassignedforeach server mustbeconfiguredsothatitisexclusivelyaccessed

fromotherservers.ThisisdonebyzoningormaskingLUNs (LUN)orcombiningthem.(InaSANbootenvironment,

bootdiskLUNs(LUN)mustbesuchthatserversandstoragehaveaone-to-one correspondence.)

Onlyasinglepass iseffectivefordump truck outputofsadump.Therefore,Even ifapassiscut duringdumptruck

output,otherpasses don't become effective.Without continuing,thedumptruckoutput isfailed.

Onlyaportonthe FCcardusedforan OSstartmakesthebootsettingeffective.Whenbootsettinginaportonthe

FC card whichisn'tusedforan OSstart (data pass) becomeseffective, OSdoesn'tsometimes start.

Restriction: The followingWindows operatingsystemscan beinstalledin the SANbootenvironment.

- WindowsServer2012R2

- WindowsServer2012

- WindowsServer2008R2SP1

- WindowsServer2008R2

1.3.2 Notes on system installation

Keep thefollowing pointsin mind when installing thesystem.

ForNotesonServerViewSuite,contactthedistributorwhere youpurchasedyourproduct,oryoursales

representative.

Everydiskexceptthe bootdiskmustnotbe visibleduringinstallationoftheoperatingsystem.Disconnectalldisks

otherthan theinstallationdestination disk.Foramultipathconfiguration,change itto asingle-pathconfiguration (only

oneFCcableconnected).Also,the settings ontheETERNUSside mustbesuchthatonlythe boot disk isvisible.

Fordetailsonsettings onthe ETERNUSside,see1.4 ETERNUSConnectionSettings.

Configuring the SAN Boot Environment

C122-E206-04EN

1.3.3 Notes on system after installation

When the system is installed on UEFI BIOS, to set the by-path boot in the boot option is recommended after the OS

installation.

Procedure for the boot option setting by using SAN boot by-path.

1. Start the Partition.

During FUJITSU logo appears, press any key (except the [Enter] key) to display the Boot Manager front page.

2. Select [Boot Maintenance Manager].

3. Select [Boot Option] in the [Boot Maintenance Manager] screen.

Configuring the SAN Boot Environment

C122-E206-04EN

4. Select [Add Boot Option] in the [Boot Option] screen.

5. Select Fibre Disl Volume (Main) in the [File Explorer] screen.

Select Volume(Main) for …/Fibre (connected to WWN, connected to LUN).

Select boot file, and the [ESC] several times.

The hierarchy of the selection and the chosen file are different, according to the kind of OS.

[exp.] Windows server,

Select [<EFI>] -> [<Microsoft>] -> [<Boot>] -> [bootmgfw.efi].

[exp.] RHEL server,

Select [<EFI>] -> [<redhat>] -> [grub.efi].

Configuring the SAN Boot Environment

C122-E206-04EN

6. Move the cursor on [Input the description] in the Modify Boot Option Description screen, and then press the [Enter] key.

7. Enter the <<Boot Option Name (Main)>> in the [Please type in your data] screen.

(Create the Boot Option Name with five and more characters.)

Configuring the SAN Boot Environment

C122-E206-04EN

8. Select [Commit Changes and Exit] in the [Modify Boot Option Description] screen, and then press the [Enter] key.

9. Follow the procedures 5 to 8 to setup the Boot Option (Sub).

10. Select [Boot Options] in the [Boot Maintenance Manager] screen.

11. Select [Change Boot Order] in the [Boot Option] Screen.

Configuring the SAN Boot Environment

C122-E206-04EN

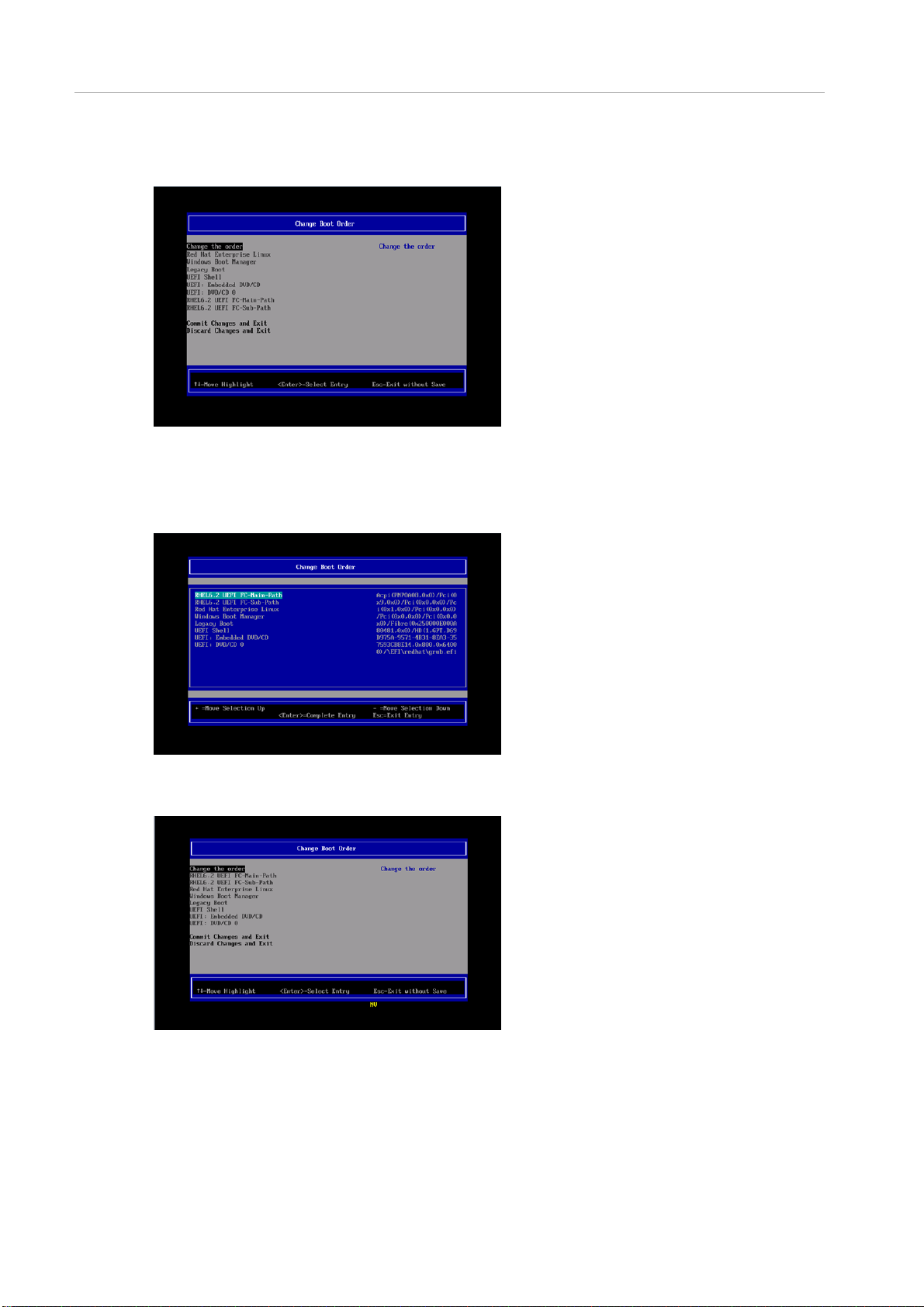

12. Select [Change the order] in the [Change Boot Order] screen.

13. Press the [+] key or the [-] key in the [Change Boot Order] screen and set the Boot priority as below.

Move the <<Boot Option Name (Main)>> to the top.

Move the <<Boot Option Name (Main)>> to the second top.

14. After modifying the Boot priority, press the [Enter] key.

Configuring the SAN Boot Environment

C122-E206-04EN

15. Select [Commit Changes and Exit] in the [Change Boot Order] screen, and then press the [Enter] key.

16. Select [Boot Options] in the [Boot Maintenance Manager] screen.

17. Select [Delete Boot Option] in the [Boot Options] screen.

18. In the [Delete Boot Options] screen, select the by-id boot option which is set when installing the OS to delete it and press

the [Enter] key. (If the by-id Boot Option is shown as entry named HD(….)/…)
