Fujitsu PRIMERGY TX150 S4 Technisches Handbuch

PRIMERGY TX150 S4

System configurator and order-information guide

Contents

Instructions

Configuration diagram

Configurator

0System software

IBasic unit

II Processor

III Memory

IV Graphics

VAccessible drives

VI Hard disk drives

VII SCSI Controller

VIII Disk array

IX Communication/Network

XSystem management options

XI Miscellaneous

XII Country specific options

Change report

PRIMERGY Server

December 2005

System configurator and order-information guide

PRIMERGY TX150 S4 Status 25.11.2005

Instructions

This document contains basic product and configuration information that will enable you to configure your system via

PC-/ System-Architect.

Only these tools will ensure a fast and proper configuration of your PRIMERGY server or your complete

PRIMERGY Rack system.

You can configure your individual PRIMERGY server in order to adjust your specific requirements.

The System configurator is divided into several chapters that are identical to the current price list and PC-/ System-Architect

Please follow the lines. If there is a junction, you can choose which way or component you would like to take. Go through

the configurator by following the lines from the top to the bottom.

Section III Memory, example

There are X memory slots which can be equipped with XXX MB.

It is permissible to make up to X passes through the memory upgrade options.

S26361-XXX-XXX S26361-XXX-XXX

Memory XXX MB Memory XXX MB

X times

max. X times per system max. X times per system

In one chapter you can only select as many components (here 4x) as the arrow indicates.

Please note that there are information symbols which indicate necessary information.

Further information in the internet see:

http://www.primergy.com

(internet)

http://extranet.fujitsu-siemens.com/primergy

(extranet)

Prices and availability see price list and PC-/ System-Architect

Subject to change and errors excepted

Fujitsu Siemens Computers

Enterprise Products - PRIMERGY Server 2 of 18

System configurator and order-information guide

PRIMERGY TX150 S4 Status 25.11.2005

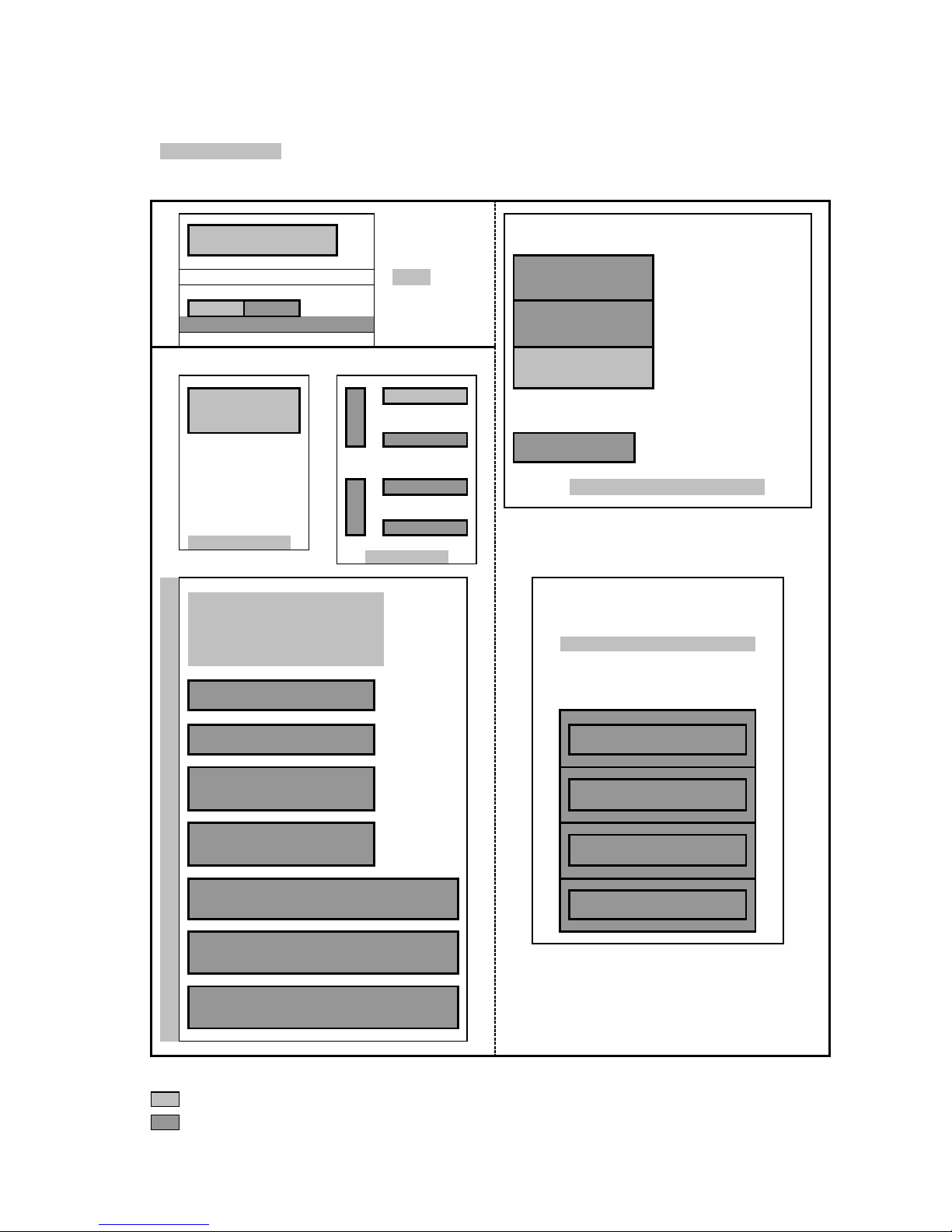

Configuration diagram PRIMERGY TX150 S4

System unit ( I )

SIDE VIEW FRONT VIEW

3 x 5.25"

or PS (I) 5.25" x 1.6"

1. PSU 2. PSU

Redundant power supply option 5.25" x 1.6"

Modul 1

Pentium 4

Modul 3

Modul 2

Accessible drives ( V )

Modul 4

Processor ( II )

Memory ( III )

Extension slots

SCSI Controller ( VII )

Disk array ( VIII ) Hard disk drives ( VI )

Communication/Network ( IX )

PCIe x 1

PCIe x 4 (x8 Slot)

PCI short (5V) 32-Bit / 33MHz

PCI-X 66 long (3,3V)

(Slot for Zero-Channel Controller)

PCI long (5V) 32-Bit / 33MHz

Key:

Included in basic unit

Option

1 PCI-Bus

5.25" x 1.6" CD / DVD drive

Bank 1Bank 2

4.2.1. 7.

Standard Power Supply

SCSI 1"

3.5"x1" Floppy disk (optional)

Fujitsu Siemens Computers

Enterprise Products - PRIMERGY Server 3 of 18

System configurator and order-information guide

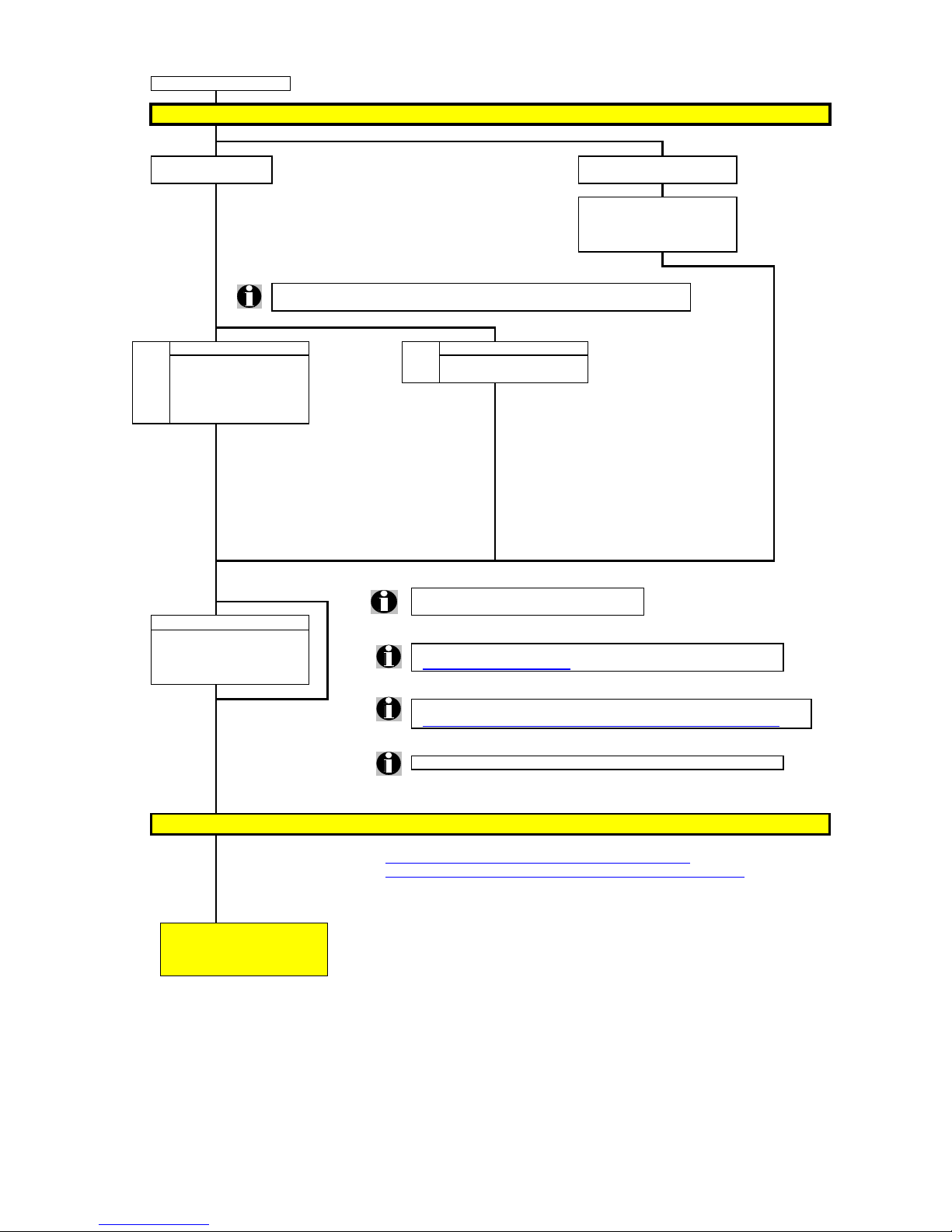

Start PRIMERGY TX150 S4

PRIMERGY TX150 S4 Status 25.11.2005

SW Configurator IA32

with OEM-Software without OEM-Software

for PRIMERGY Server for PRIMERGY Server

Later use of OEM operating system

VMware-Software software is not allowed,

- VCMS VirtualCenter Management Server apart from few VMware

- GSX Server and GSX Virtual Infrastructure Node add-ons

- P2V Assistant Enterprise Edition

For all SW products please refer to the corresponding software configurator accessible via

the Extranet under Configuration & Tools, -All configurations, -Software, URL see below.

Microsoft - Software: **) OES/NetWare-Software ***) PRIMECLUSTER *)

- Small Business Server 2003 - NetWare - Clustering

- Windows Server 2003, - Load Balancing

Web Edition (only English)

Standard Edition

Enterprise Edition

- Additional loose Linux - Software: **)

Client-Access-Licenses (CALs) - SUSE Linux Enterprise Server

(not for Web Edition) - SUSE Professional Linux

- Red Hat Enterprise Linux

SCO - Software: **)

- SCO OpenServer

- SCO UnixWare

CITRIX-Software für

Windows: W-MF

- Presentation Server

LoadBalancing

Additional User Licences

Manageability Software: V**) Details eg. version numbers are published

- RemoteView Software in the separate SW-Configurator

- RemoteView Service Board

- RemoteDeploy

- Terminal Server Deploy *) Pay attention to the PRIMECLUSTER release and ordering information in the Extranet under

- vPMS 2005std

http://extranet.fujitsu-siemens.com/primecluster

- Altiris Server Deployment

**) Pay attention to the release and ordering information in PRINCE -> Operating System

Backup-Software /

http://vil.mch.fsc.net/vil/pc/vil/primergy/overview/prince/index_en.htm

Application-Software: U

- ARCserve

- openSM2 ***) Supply over distribution or procurement from FSC VP BC Software

Various Software Configurators and release lists (OS-Matrix / System Management / Security) can be optain under the following adresses:

for internal users:

http://vil.mch.fsc.net/vil/oec/special/primergy/index_en.htm

for partners:

http://vilpart.fujitsu-siemens.de/vil/oec/special/primergy/index_en.htm

Continue with PRIMERGY

HW configurator

Fujitsu Siemens Computers

Enterprise Products - PRIMERGY Server 4 of 18

System configurator and order-information guide

Start PRIMERGY TX150 S4

PRIMERGY TX150 S4 Status 25.11.2005

SW Configurator EM64T

with OEM-Software without OEM-Software

for PRIMERGY Server for PRIMERGY Server

Later use of OEM operating system

software is not allowed,

apart from few VMware

add-ons

For all SW products please refer to the corresponding software configurator accessible via

the Extranet under Configuration & Tools, -All configurations, -Software, URL see below.

Microsoft - Software: W Linux - Software: L *) **)

only - Windows Server 2003, only

- SuSE Linux Enterprise Server

EM64T x64 Standard Edition EM64T - Red Hat Enterprise Linux

x64 Enterprise Edition

- Additional loose

Client-Access-Lizenzen (CALs)

Details eg. version numbers are published

in the separate SW-Configurator

Manageability Software: V**)

- RemoteView Software

- RemoteView Service Board *) Pay attention to release information on datasheet under

- RemoteView Diagnosis

http://www.primecluster.com

**) Pay attention to release and order information in PRINCE -> Operating System

http://vil.mch.fsc.net/vil/pc/vil/primergy/overview/prince/index_en.htm

***) Supply over distribution or procurement from FSC VP BC Software

Various Software Configurators and release lists (OS-Matrix / System Management / Security) can be optain under the following adresses:

for internal users:

http://vil.mch.fsc.net/vil/oec/special/primergy/index_en.htm

for partners:

http://vilpart.fujitsu-siemens.de/vil/oec/special/primergy/index_en.htm

Continue with PRIMERGY

HW configurator

Fujitsu Siemens Computers

Enterprise Products - PRIMERGY Server 5 of 18

System configurator and order-information guide

Start PRIMERGY TX150 S4

PRIMERGY TX150 S4 Status 25.11.2005

Section IBasic unit

System unit consisting of:

* Housing including standard power supply (no redundancy)

* Sliding screen with lock (only for floorstand version)

Systemboard with:

* 7 PCI slots:

1x PCIe x 1

1x PCIe x 4 (x8 Slot)

1x PCI-X 66 long (3,3V)

1x PCI-X 66 (3,3V) ZCR Slot

1x long / 2x short 32Bit / 33MHz (5V)

* 4 memory slots for up to 8GB (PC4200) registered DDR II RAM (ECC), max. 2GB modul per slot

* 1 drive bay 3.5" occupied by 1 floppy disk 1.44MB 1" height (optional)

* 3 Einbauplätze 5,25" für bedienbare Laufwerke

* 4 bays 1" for hot plug SCSI HD)

* ATI Range XL Graphic controller 8MB

* Intel Broadcom (5721) 10/100/1000 Mb/s on-board

* 1 x Fast-IDE (ATA) Controller on-board (for 1x 2 devices)

* 1-channel Ultra 320 SCSI Controller LSI 1020A on-board

with HW RAID IME (IME = Integrated Mirroring Enhanced)

Options:

* Hot plug PS or a second redundant hot plug PS version can be configured by ordering the

appropriate upgrade option

* LSI Zero Channel RAID option, simultaneous use of HD and Tape Drive possible

Cables:

1. IDE cable for CD/DVD

2. With SCSI variant wide LVD SCSI cable for connection of the HD backplane and two

accessible drives

PS/2 mouse (only for floorstand version)

ServerStart packet incl. ServerBooks CD, ServerSupport CD and ServerView

External Interfaces:

2x RS-232-C (serial, 9 pins)

1x Centronics (parallel, 25 pins, EPP/ECP compatible)

1x keyboard (PS/2)

1x mouse (PS/2)

1x VGA (15 pins)

1x USB 2.0 on front and 2x USB 2.0 on rearside

1x LAN RJ45

Cables included in basic unit

Connections

Cable

PRIMERGY TX150 S4

IDE CD/DVD

Key:

68pins

Backplane for 1x4

68 or 50pins

SCSI hard disks

IDE

incl. terminator

terminator

Fujitsu Siemens Computers

Enterprise Products - PRIMERGY Server 6 of 18

System configurator and order-information guide

PRIMERGY TX150 S4 Status 25.11.2005

Floorstand version SCSI basic unit 19" Rack version SCSI basic unit (5 U)

Pentium 4 processor, memory Pentium 4 processor, memory

PD 820 2.8GHz/800MHz/2x1MB 512MB S26361-K999-V136 PD 820 2.8GHz/800MHz/2x1MB 512MB S26361-K999-V336

PD 820 2.8GHz/800MHz/2x1MB 1GB S26361-K999-V146 PD 820 2.8GHz/800MHz/2x1MB 1GB S26361-K999-V346

PD 820 2.8GHz/800MHz/2x1MB 2GB S26361-K999-V156 PD 820 2.8GHz/800MHz/2x1MB 2GB S26361-K999-V356

S26113-F483-E1 floorstand S26113-F483-E1

hot plug power supply upgrade option versions hot plug power supply upgrade option

With this option the basic units contains A second, redundant With this option the basic units contains

1 hot plug power supply, 1 power power supply requires 1 hot plug power supply, 1 power

backplane and 1 dummy cover an additional power backplane and 1 dummy cover

replacing the standard power supply cord replacing the standard power supply

(no redundancy !) (section XII) (no redundancy !)

max. 1x per system max. 1x per system

S26113-F483-E11 S26113-F483-E11

2nd power supply module (PSU) 2nd power supply module (PSU)

for redundancy for redundancy

occupies one bay for occupies one bay for

hot plug power supply hot plug power supply

max. 1x per system max. 1x per system

For later conversion of basic units with standard power supply

to hot plug power supply, the following kit is available:

1.) hot plug PS upgrade kit, incl. 2 PS module: S26113-F483-L1

Conversion standard into hot plug PS

2.) Supplementary power supply module S26113-F483-L11

for redundancy or repair

B1 B2

Fujitsu Siemens Computers

Enterprise Products - PRIMERGY Server 7 of 18

System configurator and order-information guide

B1 B2

PRIMERGY TX150 S4 Status 25.11.2005

PRIMERGY Floorstand PRIMERGY Rack

PRIMECENTER- Rack

SNP:SY-F1647E301-P "rack-mounting ex factory"

Installation ex works for one This service is to be ordered once

server or subsystem per installable server/storage

Hereby the rack will be delivered subsystem, in order to get the

completely pre-mounted and server/storage subsystem

all wired connections are tested mounted into the PRIMERGY racks.

With racks 12U, 24U, 38U: In case of the 46 U PRIMERGY rack,

Systems and components this service has to be ordered,

will be delivered installed in the rack to get the mounting kits and the

With racks 46U: cables installed.

Systems and components

will be delivered separately

To be ordered only together with

a PRIMERGY-

PRIMECENTER rack

e.g.:SNP:SY-K614V10x-P

S26361-K826-V10x

refer configurator PC-rack

max. 1x per System

For later conversion of TX150 base unit floorstand into base unit rack the following kit is availible

1.) Conversion TX150S4 base unit floorstand into base unit rack S26361-F2618-L240

rack mount kit has to be ordered separately

For (later) mounting in racks the following kits are available:

1.) PRIMERGY Classic-rack 42/23U adapter kit: S26361-F1331-L300

incl. cable carrier

2.) PRIMERGY DC- / PC- rack mounting kit: S26361-F2734-L32

incl. DC- PC- bracket, cable managment

3.) PRIMERGY mounting kit for server racks S26361-F2734-L32

conforming to EIA standards EIA-310-D for 19" racks.

Fujitsu Siemens Computers

Enterprise Products - PRIMERGY Server 8 of 18

System configurator and order-information guide

PRIMERGY TX150 S4 Status 25.11.2005

Section II Processor

Section III Memory

There are 2 memory banks with 2 DIMM slots each.

Single channel memory configuration allow maximum flexibility:

Additional memory can be configured as single memory modules.

Dual channel memory configurations for maximum performance:

For optimum performance memory has to be configured in pairs of memory modules with identical size.

S26361-F3000-E513 S26361-F3000-E514 S26361-F3000-E515

Main memory 512MB Main memory 1GB Main memory 2GB

3x DDR2 533/PC2-4200 ub ECC DDR2 533/PC2-4200 ub ECC DDR2 533/PC2-4200 ub ECC

consisting of one module consisting of one module consisting of one module

occupies one bank occupies one bank occupies one bank

max. 3x per system max. 3x per system max. 3x per system

Section IV Graphics

ATI Rage XL (8MB)

Fujitsu Siemens Computers

Enterprise Products - PRIMERGY Server 9 of 18

System configurator and order-information guide

PRIMERGY TX150 S4 Status 25.11.2005

Section VAccessible drives

There are 3x 5.25" bays for accessible drives:

- 1x 5.25" bay is occupied by a DVD-/CD- respectively a CD-RW drive

- 2 x 5.25" bays remaining, can be occupied by 2x accessible drives

Setup TX150 S4 by ServerStart is supported with following configurations:

no DVD, no CD:

remote installation only ( PXE service & DHCP server required)

built in CD/DVD:

UNC Network share reachable or USB Floppy or MemoryBird connected

One of the following USB devices must be used for integrating the drivers during installation

process if no automized (e.g. Serverstart / Altiris / RIS / ADS / …) installation is done:

1) FDD USB (external): external USB FDD (USB cable included) S26391-F264-L226

2) USB Memorybird: Memorybird 256 MB S26391-F6046-L256

Memorybird 1GB S26391-F6046-L24

S26361-F2575-E1

Floppy disk drive 1"

Connector: 26pin

incl. description (Ger/US)

1" * 3.5", anthracite bezel

max. 1x per system

SNP:SY-F2234E1-A S26361-F3148-E1

DVD-ROM ATAPI DVD-RW 16x super multi drive

all formats, DUAL/DL, DVD-RAM

incl. description (Ger/US) only W2K, W3K and Linux

1.6 x 5.25", anthracite bezel 1.6 x 5.25", anthracite bezel

max. 2x per system max. 1x per system

S26361-F3157-E3

Tape drive LTO2HH Ultrium

200GB, 24MB/s, U160 SCSI

Connector: HD68

without cable

incl. description (Ger/US)

data and cleaning cartridge

1.6 * 5.25", anthracite bezel

max. 1x per system

S26361-F2849-E3

Tape drive VXA-2

80GB, 6MB/s, U2W SCSI

Connector: HD68

2x without cable

incl. description (Ger/US)

data and cleaning catridge

1.6 x 5.25", anthracite bezel

max. 2x per system

S26361-F2848-E3

Tape drive DDS Gen5

S26361-F2848-E31 (only for OBDR)

DDS-G5 for One buttom dis. recov.

36GB, 3MB/s, U2W SCSI

Connector: HD68

without cable

incl. description (Ger/US)

data and cleaning catridge

1.6 x 5.25", anthracite bezel

max. 2x per system

Fujitsu Siemens Computers

Enterprise Products - PRIMERGY Server 10 of 18

Andere Handbücher für PRIMERGY TX150 S4

Inhaltsverzeichnis

Andere Fujitsu Server Handbücher

Fujitsu

Fujitsu PRIMEQUEST 2000 Series Bedienungsanleitung

Fujitsu

Fujitsu Primergy BX920 S3 Bedienungsanleitung

Fujitsu

Fujitsu PRIMERGY RX200 S3 Betriebsanleitung

Fujitsu

Fujitsu FUTRO S940 Bedienungsanleitung

Fujitsu

Fujitsu PRIMERGY BX600 S3 Bedienungsanleitung

Fujitsu

Fujitsu SPARC Enterprise M8000 Installationsanleitung

Fujitsu

Fujitsu PRIMERGY TX2540 M1 Bedienungsanleitung

Fujitsu

Fujitsu PRIMERGY BX900 Bedienungsanleitung

Fujitsu

Fujitsu PRIMERGY BX400 S1 Bedienungsanleitung

Fujitsu

Fujitsu BS2000 SE Series Bedienungsanleitung

Fujitsu

Fujitsu PRIMEQUEST 2400E3 Bedienungs- und Wartungsanleitung

Fujitsu

Fujitsu PRIMERGY ECONEL 30 Bedienungsanleitung

Fujitsu

Fujitsu SPARC Enterprise T5440 Server Bedienungsanleitung

Fujitsu

Fujitsu SPARC Enterprise M3000 Service-Handbuch

Fujitsu

Fujitsu PRIMERGY TX2550 M4 Bedienungsanleitung

Fujitsu

Fujitsu PRIMERGY BX620 S5 Bedienungsanleitung

Fujitsu

Fujitsu PRIMERGY BX400 S1 Bedienungsanleitung

Fujitsu

Fujitsu SPARC Enterprise M8000 Bedienungsanleitung

Fujitsu

Fujitsu PRIMEQUEST 2000 Series Leitfaden

Fujitsu

Fujitsu SPARC Enterprise M4000 Bedienungsanleitung

Fujitsu

Fujitsu FD-1000ST Bedienungsanleitung

Fujitsu

Fujitsu PRIMERGY RX200 S8 Benutzerhandbuch

Fujitsu

Fujitsu PRIMERGY TX150 S8 Bedienungsanleitung

Fujitsu

Fujitsu BS2000 SE Series Bedienungsanleitung

Beliebte Server Handbücher anderer Marken

HP AlphaServer ES47 Bedienungsanleitung

Dell

Dell PowerEdge R410 Bedienungsanleitung

PowerNAS

PowerNAS CMA Bedienungsanleitung

Supero

Supero FatTwin F617R3-FT Bedienungsanleitung

MSI

MSI P1-109N-L70 Bedienungsanleitung

Dell

Dell PowerEdge XE9640 Handbuch

Dell

Dell PS4100 Montageanleitung

EtroVISION

EtroVISION EV3151 Bedienungsanleitung

NEC

NEC Express5800/T110j Bedienungsanleitung

HP ProLiant Gen9 Bedienungsanleitung

Compaq

Compaq ProLiant 3000 Handbuch

Dell

Dell PowerEdge 3YPMN Bedienungsanleitung

iRobo

iRobo IPC2U Bedienungsanleitung

Nortel

Nortel 1000 Con?guration guide Bedienungsanleitung

Asus

Asus AP7500 Bedienungs- und Wartungshandbuch

Avid Technology

Avid Technology AirSpeed 5000 Bedienungsanleitung

HP Integrity rx2600 Installationsanleitung

Milestone

Milestone Husky IVO 350T Bedienungsanleitung
