This guide describes the minimum steps you must perform to power on and boot your server for the first time

using the preinstalled Solaris™ Operating System (Solaris OS).

Servers that use DC input power require you to build and connect the power cords to specific safety

specifications. The specifications are described in the SPARC Enterprise T5120 and T5220 Servers Installation Guide

that is available from http://www.fujitsu.com/sparcenterprise/manual/.

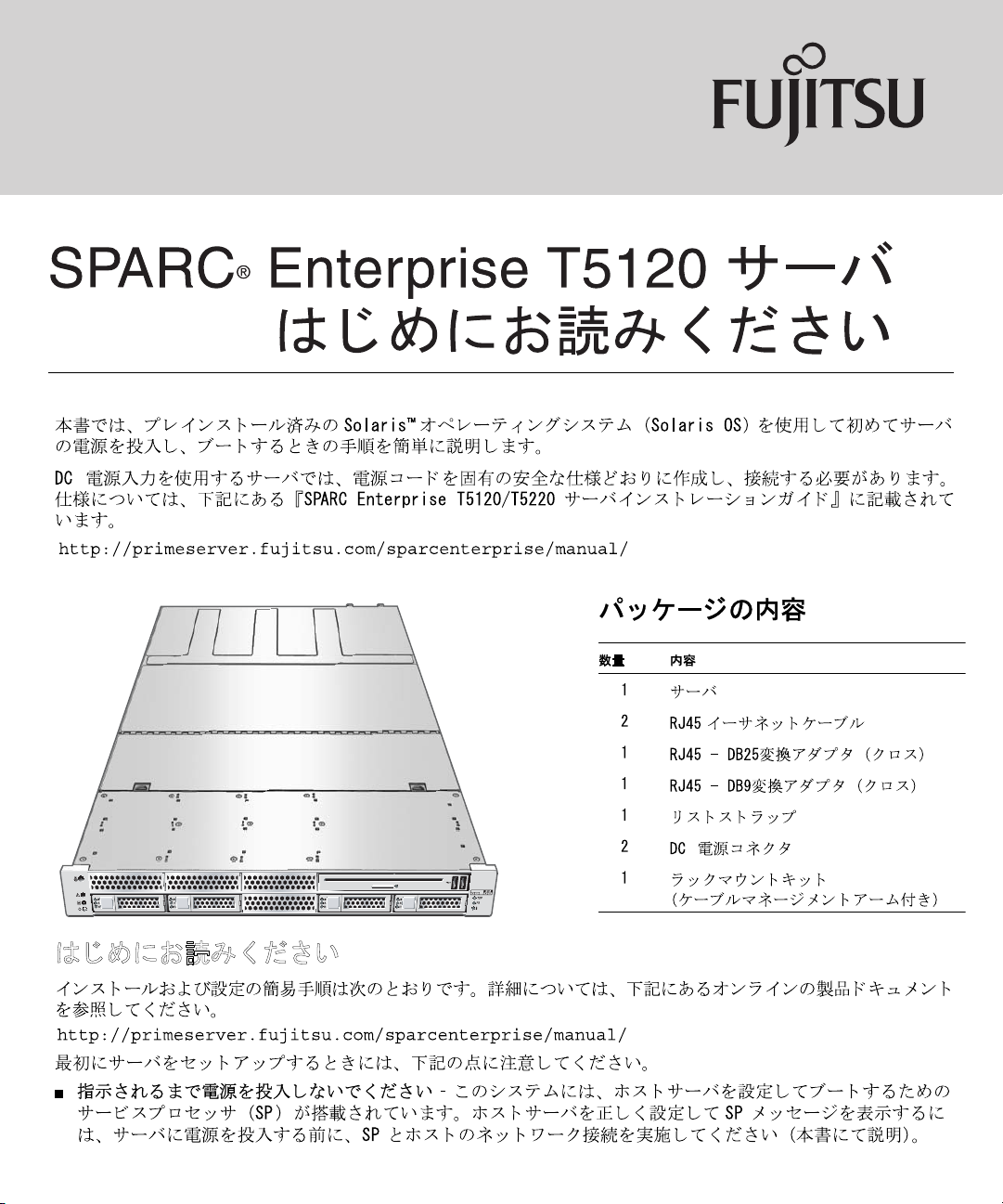

FIGURE 1 SPARC Enterprise T5120 Server

Shipping Contents

Before You Begin

For quick installation and configuration, follow these steps. For more detailed information, refer to the complete

online product documentation set at: http://www.fujitsu.com/sparcenterprise/manual/

Understand the following information before you set up the server for the first time:

■Do not apply power until instructed to do so – This system includes a service processor (SP) that is used to

configure and boot the host server. To properly configure the host server and view SP messages, do not apply

power to the server until the SP and host networking connections are made, as described in this guide.

Quant

ity Item

1Server

2 RJ-45 Ethernet cable

1 RJ-45 to DB-25 adapter (crossover)

1 RJ-45 to DB-9 adapter (crossover)

1Wriststrap

2 DC power connectors

1 Rackmounting kit with cable

management assembly

SPARC®Enterprise T5120 Server Getting Started Guide

(For Models That Run on DC Input Power)

■Choose the best instructions for your situation – The quick setup instructions in this guide work for any

networking environment, and require the use of a terminal device for connection to a serial port. If you have

a networking environment running DHCP, you can configure your system using the Ethernet management

port. To take advantage of the DHCP setup method, refer to the online installation guide in the online

product documentation set at: http://www.fujitsu.com/sparcenterprise/manual/

■Set aside sufficient time – Installation times vary, but if you are performing these setup instructions for the

first time, plan to spend about 45 to 75 minutes to complete all of these instructions. Additional time might be

required for installing optional hardware and rackmounting kits.

■Obtain a terminal device – You configure this rackmountable server through the SP using the built-in serial

and network management ports, and not through a graphical interface and keyboard. To communicate with

the SP, you will need a terminal device, which can be a terminal, terminal server, or laptop running terminal

emulation software.

■Gather your configuration information – During the configuration, you are prompted for time zone and

networking parameters for your environment. Use TABLE 1 to record your configuration information.

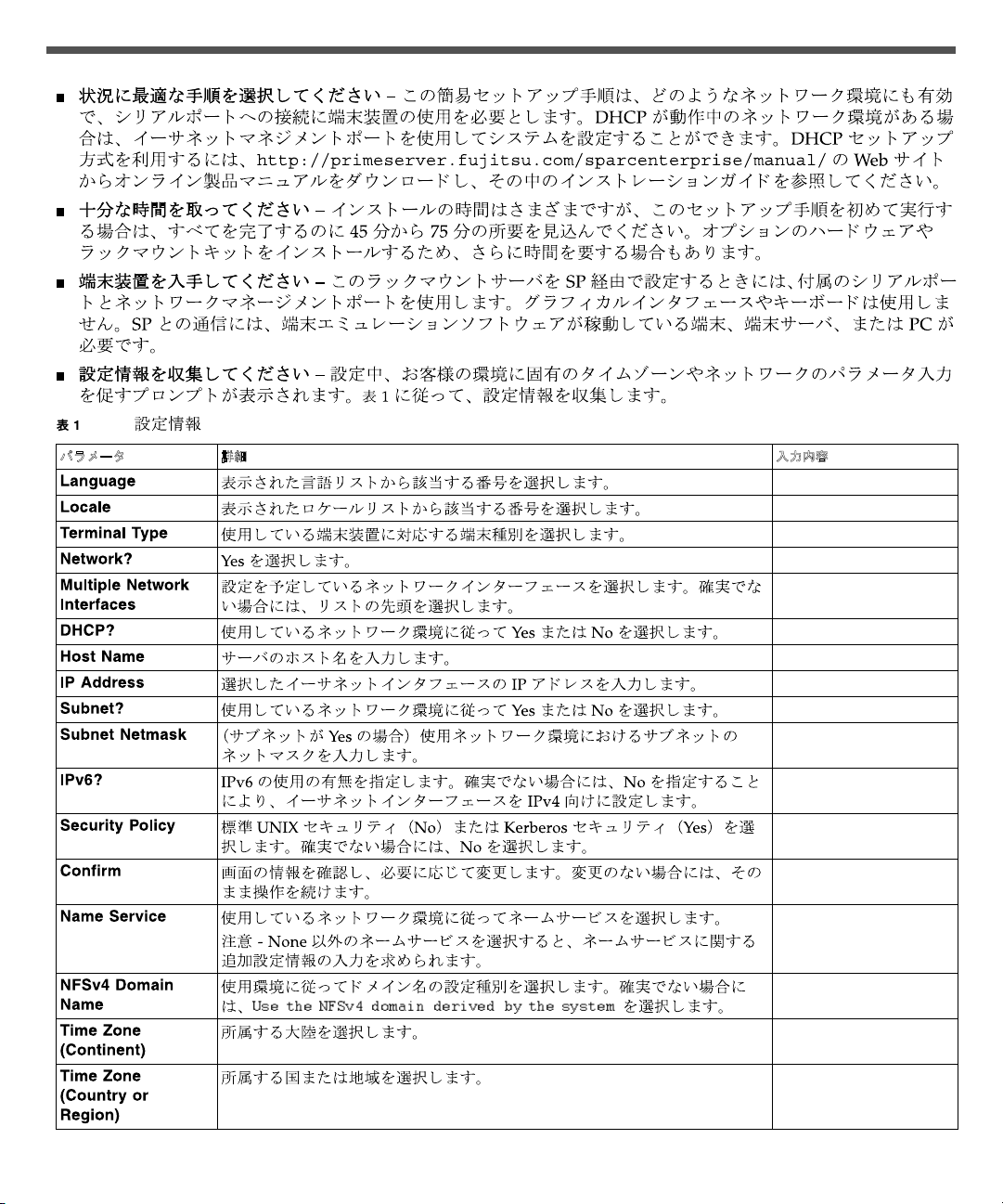

TABLE 1 Configuration Information

Parameter Description You r En tr y

Language Select a number from the displayed language list.

Locale Select a number from the displayed locale list.

Terminal Type Select a terminal type that corresponds with your terminal device.

Network? Select Yes.

Multiple Network

Interfaces

Select the network interfaces that you plan to configure. If you are not sure,

select the first one in the list.

DHCP? Select Yes or No according to your network environment.

Host Name Enter the host name for the server.

IP Address Enter the IP address for the selected Ethernet interfaces.

Subnet? Select Yes or No according to your network environment.

Subnet Netmask (If subnet was Yes) Enter the netmask for the subnet for your network

environment.

IPv6? Specify whether or not to use IPv6. If you are not sure, select No to

configure the Ethernet interface for IPv4.

Security Policy Select either standard UNIX security (No) or Kerberos Security (Yes). If you

are not sure, select No.

Confirm Review the onscreen information and change it if needed. Otherwise,

continue.

Name Service Select the name service according to your network environment.

Note – If you select a name service other than None, you will be prompted

for additional name service configuration information.

NFSv4 Domain

Name

Select the type of domain name configuration according to your

environment. If you are not sure, select Use the NFSv4 domain derived

by the system.

Time Zone

(Continent)

Select your continent.

Time Zone

(Country or Region)

Select your country or region.

Quick Setup Instructions

1. Unpack the server, and check that you received all of the shipping contents (FIGURE 1).

2. Place the server in its intended location for verification.

For rackmounting instructions, refer to the instructions included with the rail kit, the service label on the

server, and to the online SPARC Enterprise T5120 and T5220 Servers Installation Guide.

3. Connect a serial cable between the server’s SER MGT port (FIGURE 2) and a terminal device.

This connection provides your initial communication with the SP.

The device must be set up to communicate using 9600 baud, 8 bit, no parity, 1 stop bit. A null modem

configuration is needed, meaning the transmit and receive signals are reversed (crossed over) for DTE to

DTE communications. You can use the supplied RJ-45 crossover adapters with a standard RJ-45 cable to

achieve the null modem configuration.

FIGURE 2 Server Connections

Time Zone Select the time zone.

Date and Time Accept the default date and time, or change the values.

root Password Enter the root password twice. This password is for the superuser account

for the Solaris OS on this server. This password is not the SP password.

TABLE 1 Configuration Information

4. (Optional) Connect an Ethernet cable between the server’s NET MGT port (FIGURE 2) and the network to

which future connections to the SP and host will be made.

After the initial configuration of the system using the SER MGT port, communication with the SP and host is

usually performed through this Ethernet interface.

5. Connect an Ethernet cable between one of the server’s NET ports (FIGURE 2) and the network to which the

server will communicate.

6. Build and connect your DC power cables into the server power supplies and into separate power sources.

Instructions for building the DC power cables are in the SPARC Enterprise T5120 and T5220 Servers

Installation Guide.

To provide redundancy, plug both power supplies into separate power sources. Note that the system can

operate with only one power connection, but there is no redundancy in this case.

When power is applied, the SP initializes and power supply LEDs illuminate. After a few minutes, the SP

7. At the terminal device, log in to the SP as root with a password of changeme.

After a brief delay, the SP prompt is displayed (->).

At this point, there are many commands you can perform using the Integrated Lights Out Manager interface.

For example, to create a user named admin, and to set the admin account role to Administrator and the

CLI mode to alom, enter:

Note that the asterisks in the example will not appear when you enter your password.

In the future, when you log in to the admin account, you use the ALOM CMT compatibility command set. In

the meantime, you are using the default ILOM command set.

Additional SP information, such as how to change the password and how to set up the SP network

parameters, is available in the online documentation set.

8. Power on the server and redirect the host output to display on the serial terminal device:

After you start the SP console, the server initialization takes approximately 20 minutes to complete.

SUNSP00144FAC732F login: root

Password: changeme

. . .

-> create /SP/users/admin role=Administrator cli_mode=alom

Creating user...

Enter new password: ********

Enter new password again: ********

Created /SP/users/admin

-> start /SYS

Are you sure you want to start /SYS (y/n)? y

-> start /SP/console

Are you sure you want to start /SP/CONSOLE (y/n)? y

Serial console started. To stop, type #.

. . .

9. When prompted, follow the onscreen instructions and enter the configuration information.

Refer to TABLE 1 for the list of configuration information and your entries. You will be prompted to confirm

the configuration several times, enabling confirmation and changes. If you are not sure how to respond to a

particular value, you can accept the default, and make future changes when the Solaris OS is running.

When the configuration menus are completed, the server reboots and displays the Solaris login prompt.

10. Log in to the server and explore the capabilities.

The following commands provide information about the system:

■showrev – Displays the hostname and system architecture information. Use the -a option with this

command to see the patches that are installed.

■psrinfo – Displays information about the number and status of the processors and cores in the host.

Review the Solaris OS man pages and documentation for more details.

Accessing Important Information for SPARC Enterprise Series Servers

Before you deploy your server, check for the Product Notes for your server and other important information on

the following websites.

Global Site

http://www.fujitsu.com/sparcenterprise/manual/notes/

North American Site

https://download.computers.us.fujitsu.com/

Japanese Site

http://primeserver.fujitsu.com/sparcenterprise/manual/notes/

Accessing Documentation

The following websites provide the latest versions of SPARC Enterprise Series manuals:

Global Site

http://www.fujitsu.com/sparcenterprise/manual/

North American Site

https://download.computers.us.fujitsu.com/

Japanese Site

http://primeserver.fujitsu.com/sparcenterprise/manual/

Manual Code C120-E552-01XA

Part No. 875-4475-10

April 2009, Revision B
