Garmin Intelliducer Transom Mount Sensor with Depth & Temperature (NMEA... Bedienungsanleitung
Transom Mount Intelliducer™
Installation Instructions
To obtain the best possible performance, install your Transom Mount Intelliducer according to
the following instructions. If you experience difculty during the installation, contact Garmin
Product Support, or seek the advice of a professional installer.
This Transom Mount Intelliducer provides depth information either to a NMEA 0183-
compatible device, or to your existing NMEA 2000
®
network, depending on the model. For
more information about NMEA 2000, visit www.garmin.com.
WARNING: See the Important Safety and Product Information guide in the product box for
product warnings and other important information.
Product Registration
Help us better support you by completing our online registration today! Connect to our Web site
at http://my.garmin.com. Keep the original sales receipt, or a photocopy, in a safe place.
For future reference, write the serial number assigned to your Intelliducer in the space provided.
The serial number is located on a sticker around the cable.
Serial number
Contact Garmin
Contact Garmin if you have any questions while installing or using your Intelliducer. In the
USA contact Garmin Product Support by phone: (913) 397-8200 or (800) 800-1020, or go to
www.garmin.com/support/.
In Europe, contact Garmin (Europe) Ltd. at +44 (0) 870.8501241 (outside the UK) or 0808
2380000 (within the UK).
Packing List and Tools Needed
Before installing your Intelliducer, conrm that your package includes the following items. If
any parts are missing, contact your Garmin dealer immediately.
Standard Package
• Transom Mount Intelliducer (not pictured)
A –5mmatwashers(2)
B – 5 ×30mmscrews(2)
C –10-32locknut(1)
D – 4 ×12mmscrew(4)
E –10-32×1.75in.screw(1)
F – 1/4in.cableclamps(2)
G – Plastic spacer (1)
H – 1/4in.rubberwasher(1)
I – Cable tie, 5.6 in. (4)
J – Cable entry cover (1)
K –NMEA2000T-connector(1)
(NMEA2000Intelliduceronly)
FH
C
D
K
I
J
G
E
A
B
Tools Needed
• Drill and drill bits
• 3/8in.(9.5mm)wrenchorsocket
• Maskingtape
• Number2Phillipsscrewdriver
• Marine sealant
March2008 190-00889-01Rev.B PrintedinTaiwan
2 Transom Mount Intelliducer Installation Instructions
Install the Intelliducer
To install the Transom Mount Intelliducer:
1. AssembletheIntelliducer.
2. MounttheIntelliducer.
3. ConnecttheIntelliduceryourexistingNMEA2000network.
OR
ConnecttheIntelliducertopowerandaNMEA0183-compatibledevice.
4. UpdateyourGarminchartplotter(ifapplicable).
Step 1: Assemble the Intelliducer
To assemble the Intelliducer:

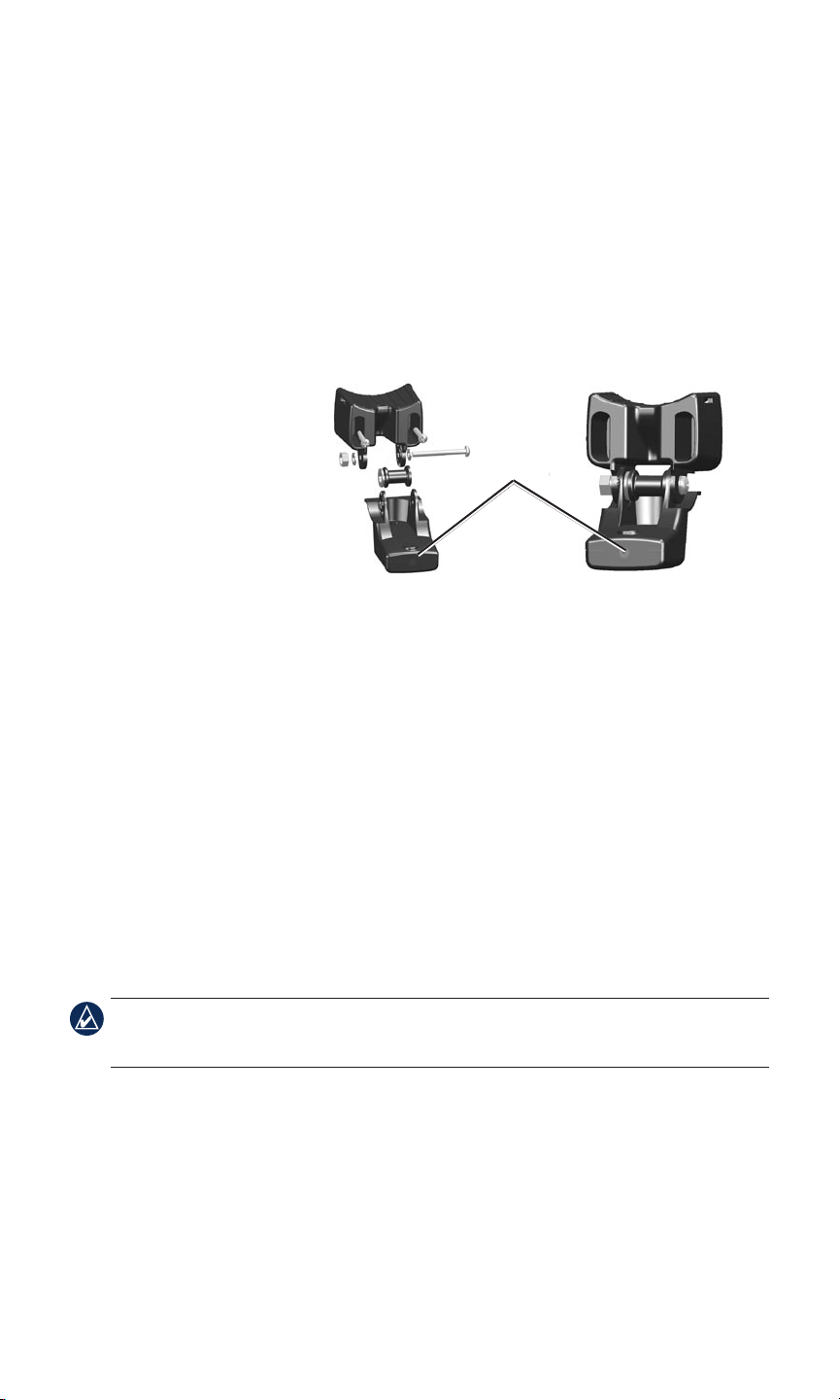

1.Inserttherubberwasherand
theplasticspacerintothe
Intelliduceratthesametime.
DONOTlubricatetherubber
washer.
2. RoutetheNMEA2000or
power/datacabletoward
thebackoftheIntelliducer.
SlidetheIntelliducerintothe
Intelliducer mount.
3.Placethe5mmatwasheronthe10-32×1.75in.screw,andinsertthescrewthroughthe
Intelliducermount,thespacer,andtherubberwasher.
4.Placetheremaining5mmatwasherontheexposedendofthe10-32×1.75in.screw.
Installthe10-32locknutngertight.RetightentheIntelliducerafterinstallationontheboat.
Step 2: Mount the Intelliducer
When selecting a transom-mount location, consider the following for optimal performance:
For your sonar to operate properly, the Intelliducer must be located in calm water.
Mount the Intelliducer as close to the center of the boat as possible.
DO NOT mount the Intelliducer in locations where it might be jarred when launching,
hauling, or storing.
DO NOT mount the Intelliducer in the path of the propeller on single-drive boats. The
Intelliducer can cause cavitation that can degrade the performance of the boat and damage
the propeller. On twin-drive boats, mount the Intelliducer between the drives, if possible.
NOTE: DO NOT mount the Intelliducer behind strakes, struts, ttings, water intake or discharge
ports, or anything that creates air bubbles or causes the water to become turbulent. The Intelliducer
must be in clean (non-turbulent) water for optimal performance.
•
•
•
•
Back of the IntelliducerBack of the Intelliducer
3Transom Mount Intelliducer Installation Instructions

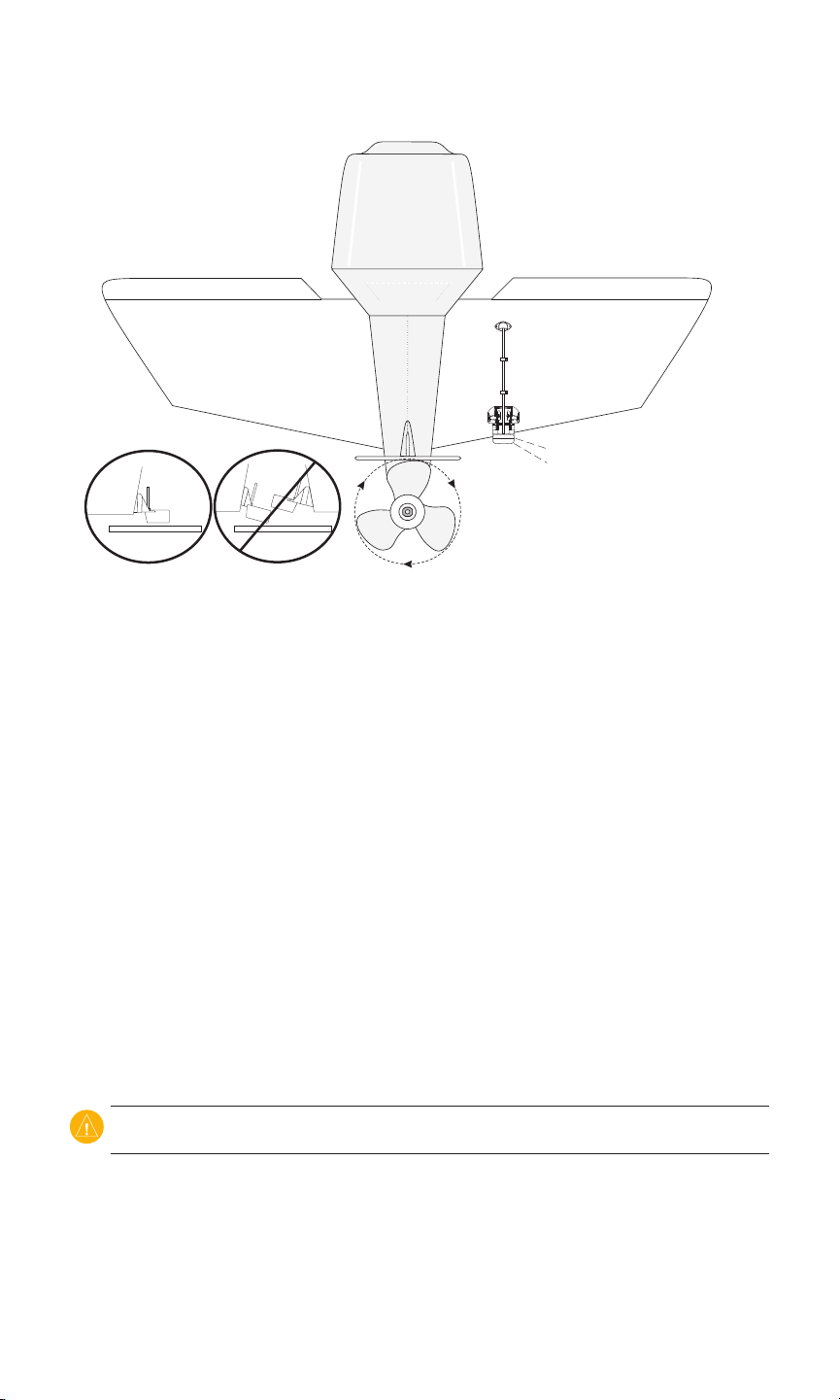

To mount the Intelliducer on a transom:
1.PositiontheIntelliducermountattheselectedtransomlocation.MakesuretheIntelliduceris
parallelwiththewaterline.MarkthecenterlocationsofeachholeontheIntelliducermount.
Apply marine sealant to all screw
threads to prevent water from
seeping into the transom.
Mount the Intelliducer
cable cover far above
the waterline.
Intelliducer should extend
1
/
8
in. (3.2 mm) below
a berglass hull or
3
/
8
in. (9.5 mm) below an
aluminum hull.
Ensure that the Intelliducer is
below water level when the boat
is on plane at high speed.
Do not mount the Intelliducer directly in the path of the
propeller. The Intelliducer can cause cavitation that may
degrade the boat performance and damage the propeller.
Mount the Intelliducer parallel
with the bottom.
2.Drill5/32in.(4mm)pilotholesapproximately1in.(25mm)deepatthemarkedlocations.To
avoiddrillingtheholestoodeep,wrapapieceoftapearoundthebitat1in.(25mm)from
thepointofthebit.
3.Applymarinesealanttothe5×30mmscrews.AttachtheIntelliducerassemblytothe
transomusingthe5×30mmscrews.AdjusttheIntelliducerassemblytoextendbeyondthe
bottomofthetransomapproximately1/8in.(3.2mm)onberglasshullsor3/8 in. (9.5 mm) on
aluminumhulls.AdjusttheIntelliducerassemblytobealignedparallelwiththewater.
4.Tightenthe10-32lockingnutuntilittouchesthemountingbracket,andthentighten1/4 turn
more.(Donotovertighten.)
5.PlacetherstcableclampontheIntelliducercable,approximatelyonethirdofthedistance
betweentheIntelliducerandthetopofthetransom.
6. Markthelocation.Drilla1/8 in.(3.2mm)pilotholeapproximately3/8 in. (9.5 mm) deep.
7.Attachthecableclampusingoneofthe4×12mmscrews.Coatthescrewwithmarine
sealantbeforeinstallation.Repeatsteps5and6usingtheothercableclamp.
8. RoutetheNMEA2000cabletothebackboneofyourexistingNMEA2000network.
OR
Routethepower/datacabletopowerandaNMEA0183-compliantdevice.
CAUTION: Avoid routing the cable close to electrical wires or other sources of electrical
interference.
4 Transom Mount Intelliducer Installation Instructions
Step 3 (NMEA 2000): Connect the Intelliducer to a NMEA 2000 Network
The Intelliducer is packaged with a NMEA 2000 T-connector. The Intelliducer has a built-in
NMEA 2000 drop cable. Use these two components to connect the Intelliducer to your existing
NMEA 2000 network. If you do not have an existing NMEA 2000 network, you will need to
install a NMEA 2000 network on your boat. For more information on NMEA 2000, visit
www.garmin.com.
To connect the Transom Mount Intelliducer to your existing NMEA 2000 network:
1. DetermineanappropriatelocationtoconnecttheIntelliducertoyourexistingNMEA2000
backbone.
2. DisconnectonesideofaNMEA2000T-connector,ordisconnectaterminatorfromthe
backbonenearesttothelocationwhereyouwanttoconnecttheIntelliducer.
IfyouneedtoextendtheNMEA2000backbone,connectanappropriateNMEA2000
backboneextensioncable(notincluded)totheT-connectororterminatoryoudisconnected.
3. ConnecttheincludedT-connectorfortheIntelliducerintheNMEA2000backbone.
4. Routethebuilt-indropcableontheIntelliducertothebottomoftheT-connectoryouadded
toyourNMEA2000network.

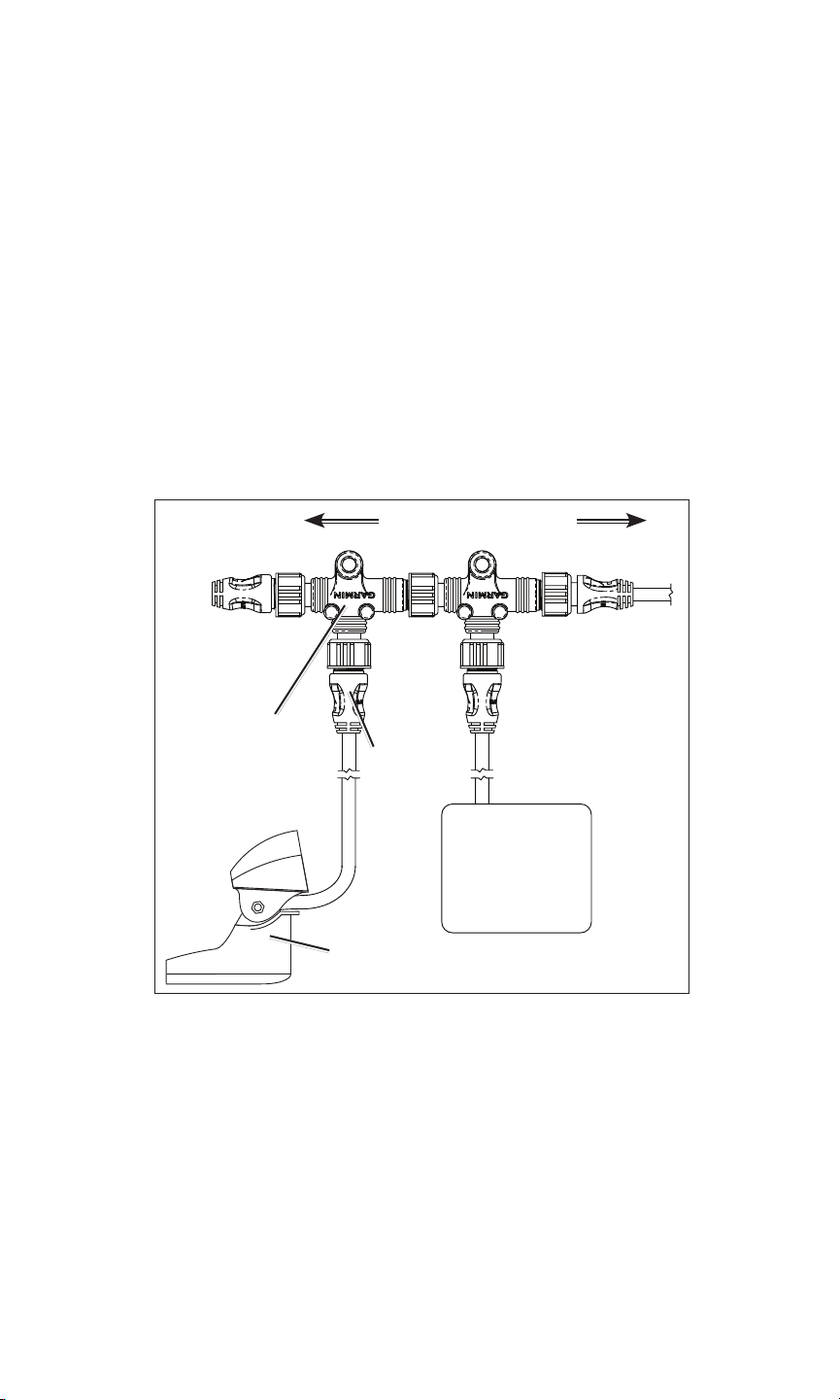

Connecting the Intelliducer to a NMEA 2000 Network
T-connector
(included) Drop cable
(built-in)
Transom mount Intelliducer
Existing NMEA 2000 network
(not included)
Additional
NMEA 2000
device
(not included)
5Transom Mount Intelliducer Installation Instructions
Step 3 (NMEA 0183): Connect the Intelliducer to Power and a NMEAConnect the Intelliducer to Power and a NMEA
0183-compliant Device
The Transom Mount NMEA 0183 Intelliducer must be connected to power. Use the diagrams to
correctly wire the Intelliducer. In the diagrams, Tx = transmit, and Rx = receive.
You can connect up to three NMEA 0183-compliant devices to receive data from one
Intelliducer.
>
>
>
>
Color
Red
Black
Orange
Gray
White/Red
White
White/
Orange
Function
Power
Ground
Acc. On
Tx A(+)
Tx B(-)
Spare
Spare
Fuse
2 A
Transom Mount NMEA 0183 Intelliducer Power/Data Cable
+
-
>
>
>
>
NMEA 0183-
Compliant
Device
Orange
Red
Black
Power
Ground
ACC On
NMEA 0183
Intelliducer
Gray
White/Red
Rx A(+)
Rx B(-)
Fuse
2 A
Battery
12 Vdc
Transom Mount NMEA 0183 Intelliducer Wired to a NMEA 0183-compliant Device
Exceptions:
IfyourNMEA0183-compliantdevicehasonlyonereceivingwire(Rx),connectitto
thegraywire(TxA)fromtheIntelliducer,andleavethewhite/redwire(TxB)fromthe
Intelliducer unconnected.
NOTE: The orange (accessory on) wire is used when wiring the Intelliducer to a Garmin
chartplotter or other NMEA 0183 device that has a dened accessory signal wire. If you are wiring
the Intelliducer to a device that does not have an accessory signal wire, the orange wire from the
Intelliducer should be connected to ground.
CAUTION: If you are wiring the Intelliducer to a device that does not have an accessory
signal wire, connect the Intelliducer power wire to the ignition or install an in-line switch. The
Intelliducer can drain the boat battery if it is not switched.
•
6 Transom Mount Intelliducer Installation Instructions
Step 4: Update Your Chartplotter: Update Your Chartplotter
If you are using the Intelliducer with an existing Garmin chartplotter, upgrade your Garmin
chartplotter with the latest software to ensure compatibility with the Intelliducer. For more
information, visit www.garmin.com.
Specications
Physical
Unit Dimensions: 2
5
/
8
in. (66 mm) W × 2
1
/
4
in. (70.4 mm) H ×
4
7
/
16
in. (113.2 mm) D
Weight: 22 oz. (624 g)
Cables: NMEA 2000: 19 ft. 8 in. (6 m)
NMEA 0183 power/data: 29 ft. 6 in. (9 m)
Temperature range: From -15°C to 33°C (From 5°F to 91°F)
Case Material: ASA Plastic
Power
Power input source: NMEA 2000 — 9–16 Vdc
NMEA 0183 — 9–33 Vdc
Fuse: 2 A
Main power usage: 2 W max
NMEA 2000 LEN: 4
Sonar
Power: 150 W (RMS), 1,200 W (peak-to-peak)
Frequency: 160 kHz
Depth: 900 ft. (275 m) (Depth capacity is dependent on water salinity, bottom
type, and other water conditions.)
NMEA 2000 PGN Information
The Transom Mount NMEA 2000 Intelliducer transmits the following PGN information across
your NMEA 2000 network:
059392 ISOAcknowledgement
060928 ISO Address Claim
126208 NMEA–Command/Request/AcknowledgeGroupFunction
126464 Transmit/ReceivePGNListGroupFunction
126996 ProductInformation
128267 WaterDepth
130312 Temperature
GarminIntelliducersareNMEA2000certied
NMEA 0183 Information
The Transom Mount NMEA 0183 Intelliducer communicates with NMEA 0183 devices using
the SDDPT, SDDBT, and SDMTW NMEA 0183 sentences.
7Transom Mount Intelliducer Installation Instructions
Software License Agreement
BY USING THE INTELLIDUCER, YOU AGREE TO BE BOUND BY THE TERMS AND CONDITIONS OF
THE FOLLOWING SOFTWARE LICENSE AGREEMENT. PLEASE READ THIS AGREEMENT CAREFULLY.
Garmin grants you a limited license to use the software embedded in this device (the “Software”) in binary
executable form in the normal operation of the product. Title, ownership rights, and intellectual property rights in and
to the Software remain in Garmin.
You acknowledge that the Software is the property of Garmin and is protected under the United States of America
copyright laws and international copyright treaties. You further acknowledge that the structure, organization, and
code of the Software are valuable trade secrets of Garmin and that the Software in source code form remains
a valuable trade secret of Garmin. You agree not to decompile, disassemble, modify, reverse assemble, reverse
engineer, or reduce to human readable form the Software or any part thereof or create any derivative works based on
the Software. You agree not to export or re-export the Software to any country in violation of the export control laws
of the United States of America.
Declaration of Conformity (DoC)
Hereby, Garmin, declares that this Intelliducer is in compliance with the essential requirements
and other relevant provisions of Directive 1999/5/EC.
To view the full Declaration of Conformity, see the Garmin Web site for your
Garmin product: www.garmin.com/products/intelliducer/. Click Manuals, and
then select the Declaration of Conformity link.
© Copyright 2008 Garmin Ltd. or its subsidiaries
Garmin International, Inc.
1200 E 151st Street, Olathe, Kansas 66062 USA
Tel. 913/397.8200
Fax. 913/397.8282
Garmin (Europe) Ltd
Liberty House, Hounsdown Business Park, Southampton, Hampshire, SO40 9RB UK.
Tel. 44/0870.8501241 (outside the UK.) or 0808 2380000 (UK only)
Fax. 44/0870.8501251
Garmin Corporation
No. 68, Jangshu 2nd Road, Shijr, Taipei County, Taiwan
Tel. 886/2.2642.9199
Fax. 886/2.2642.9099
Part Number 190-00889-01 Rev. B
© 2008 Garmin Ltd. or its subsidiaries
All rights reserved. Except as expressly provided herein, no part of this manual may be reproduced, copied,
transmitted, disseminated, downloaded or stored in any storage medium, for any purpose without the express prior
written consent of Garmin. Garmin hereby grants permission to download a single copy of this manual onto a hard
drive or other electronic storage medium to be viewed and to print one copy of this manual or of any revision hereto,
provided that such electronic or printed copy of this manual must contain the complete text of this copyright notice
and provided further that any unauthorized commercial distribution of this manual or any revision hereto is strictly
prohibited.
Information in this document is subject to change without notice. Garmin reserves the right to change or improve its
products and to make changes in the content without obligation to notify any person or organization of such changes
or improvements. Visit the Garmin Web site (www.garmin.com) for current updates and supplemental information
concerning the use and operation of this and other Garmin products.
Garmin
®
is a trademark of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. Intelliducer
™
is
a trademark of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of
Garmin.
Dieses Handbuch passt für folgende Modelle
2
Inhaltsverzeichnis
Andere Garmin Zubehör Handbücher
Garmin
Garmin GSC 10 - Speed Bedienungsanleitung
Garmin
Garmin GDL 90 Bedienungsanleitung
Garmin
Garmin GFS 10 - Fuel Sensor Referenzhandbuch
Garmin
Garmin nuvi 350 Bedienungsanleitung
Garmin
Garmin LIDAR-LITE V4 LED Gebrauchsanweisung
Garmin
Garmin GPS 17x Bedienungsanleitung
Garmin
Garmin GWS 10 Marine Wind Sensor Bedienungsanleitung
Garmin
Garmin STEADYCAST HEADING SENSOR Bedienungsanleitung
Garmin
Garmin GPSMAP 5012 - Marine GPS Receiver Konfigurationshandbuch
Garmin
Garmin GSC 10 Bedienungsanleitung
Garmin
Garmin GFS 10 - Fuel Sensor Bedienungsanleitung
Garmin
Garmin AMPS Rugged Mount Bedienungsanleitung
Garmin
Garmin GLO Glonass Bedienungsanleitung
Garmin
Garmin GTM 20 - TMC Module Referenzhandbuch
Garmin
Garmin TruSwing Gebrauchsanweisung
Garmin
Garmin Marine Network Cable Connector (RJ45, 2-pack Bedienungsanleitung
Garmin
Garmin GPSMAP 4208 - Marine GPS Receiver Betriebsanleitung
Garmin
Garmin GFS 10 - Fuel Sensor Bedienungsanleitung
Garmin
Garmin GSC 10 Bedienungsanleitung
Garmin
Garmin 190-00183-01 Betriebsanleitung
