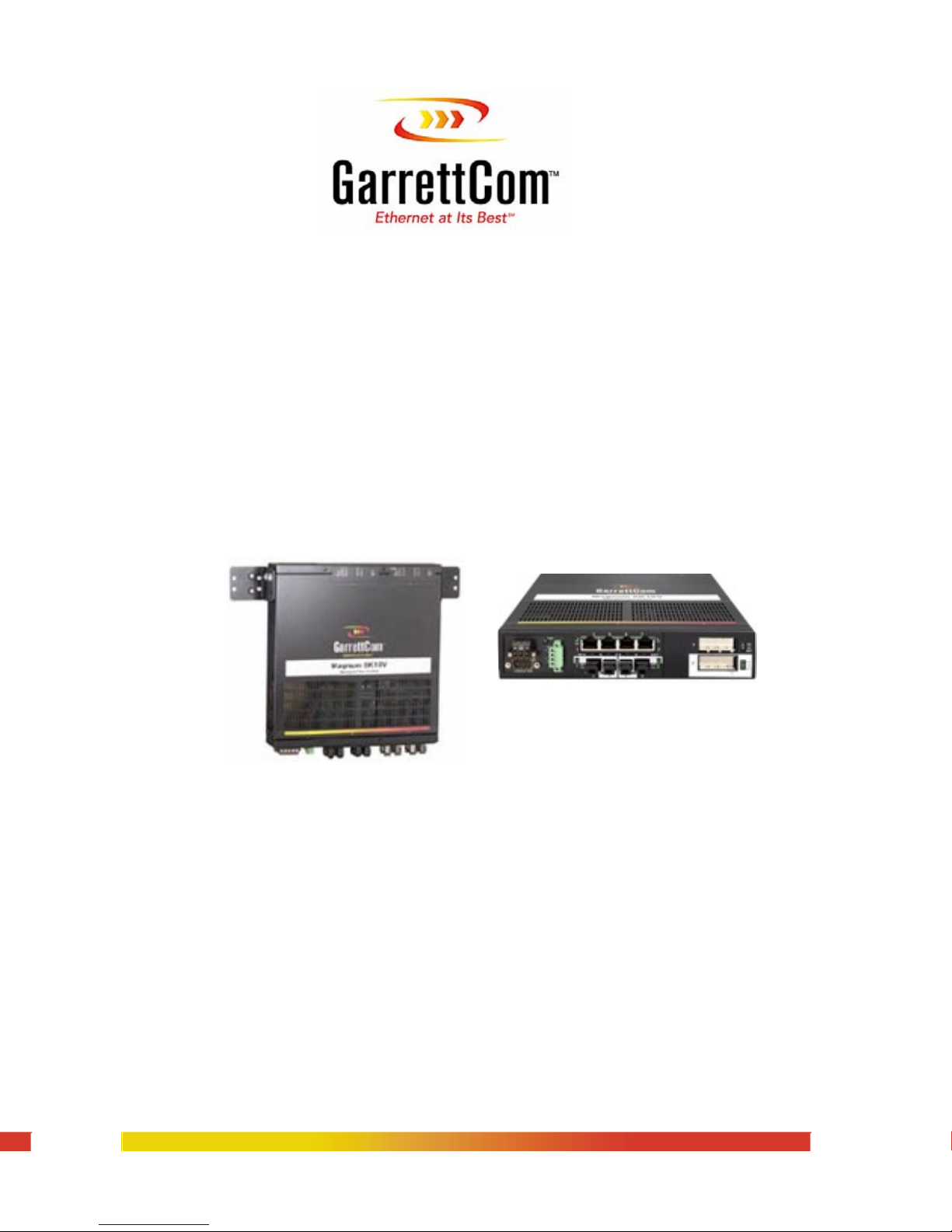

GarrettCom Magnum 6K16V Bedienungsanleitung

www GarrettCom com

Corporate Headquarters

GarrettCom, Inc.

213 Hammond Ave.

Fremont, CA 94539

Phone (510) 438-9071

Fax (510) 438-9072

Website: http://www.GarrettCom.com

email support@garrettcom.com

Magnum 6K16V

Managed Fiber Switch

Hardware

Installation and User Guide

Magnum 6K16V Managed Fiber Switch Installation and User Guide (06/04)

Magnum



6K16V

Managed Fiber Switch

Hardware

Installation and User Guide

Part #: 84-00125 (Rev. A)

Trademarks

Ethernet is a trademark of Xerox Corporation

NEBS is a trademark of Telcordia Technologies

UL is a registered trademark of Underwriters Laboratories

GarrettCom, Magnum and Personal Switch are trademarks and Personal Hub is a

registered trademark of GarrettCom, Inc.

Important: The Magnum 6K16V Managed Fiber Switch contains no user

serviceable parts. Attempted service by unauthorized personnel shall render all

warranties null and void. If problems are experienced with Magnum 6K16V

Switch products, consult Section 6, Troubleshooting, of this User Guide.

of this publication may be reproduced without prior written permission from

GarrettCom, Inc.

Printed in the United States of America.

www GarrettCom com

Magnum 6K16V Managed Fiber Switch Installation and User Guide (06/04)

Contacting GarrettCom, Inc

Please use the mailing address, phone and fax numbers and email address listed below:

GarrettCom, Inc.

213 Hammond Ave.

Fremont, CA 94539

Phone (510) 438-9071

Fax (510) 438-9072

Website: http://www.GarrettCom.com

email [email protected]

Federal Communications Commission

Radio Frequency Interference Statement

Warning: Changes or modifications to this unit not expressly approved by the party

responsible for compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a class

B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause harmful

interference in a residential installation. This equipment generates, uses, and can

radiate frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interfernce to radio communications. However, there

is no guarantee that interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures.

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into n outlet on a ccircuit different from that to

which the receiver is connected.

- Consult the dealer or an experienced radio TV technician for help.

Canadian Emission

This Class B digital apparatus meets all requirements of the Canadian

Interference-Causing Equipment Regulations.

Cet appareil respecte toutes les exigences du R

glement sur le mat

riel du

Canada. Cet appareil est Classe B.

www GarrettCom com

Magnum 6K16V Managed Fiber Switch Installation and User Guide (06/04)

Table of Contents................................................................................. Page

1.0 SPECIFICATIONS ............................................................................... 1

1.1 Technical Specifications ...................................................................... 1

1.2 Ordering Information........................................................................... 4

2.0 Introduction............................................................................................ 6

2.1 Inspecting the Package and Product .................................................... 6

2.2 Product Description - Magnum 6K16V Managed Fiber Switch.......... 7

2.2.1 Eight-port SFF fiber modules (6K8-MTRJ, 6K8-MLC), .................. 8

2.2.2 Eight-Port Copper Module, 6K8-RJ45 ........................................ 9

2.2.3 Six-Port “4 + 2” Combo Modules,............................................... 9

2.2.4 Four-Port 10 Mb and 100Mb mm Fiber ST Modules ............. 11

2.2.6 Gigabit (1000Mbps) port modules............................................. 11

2.2.6 Packet Prioritization, 802.1p QOS............................................. 12

2.2.7 Frame Buffering and Flow Control............................................ 12

2.2.8 Managed Network Software ( MNS-6K ) for Magnum 6K16V 13

2.3 Features and Benefits......................................................................... 14

2.4 Applications ....................................................................................... 15

3.0 Installation........................................................................................... 18

3.1 Locating Magnum 6K16V Switches.................................................. 18

3.2 Connecting Ethernet Media ............................................................... 18

3.2.1 Connecting Fiber Optic ST-type, “twist-lock”.......................... 19

3.2.2 Connecting Fiber Optic SC-type, "Snap-In".............................. 19

3.2.3 Connecting Single-Mode Fiber Optic ........................................ 19

3.2.4 Connecting Twisted Pair (RJ-45,CAT3, CAT5,)....................... 20

3.2.5 Connecting Twisted Pair (CAT5E or better,) ............................ 20

3.2.6 Connecting Gigabit Media Using GBICs .................................. 21

3.3 DIN-Rail Mounting............................................................................ 21

3.3.1 Mounting Dimensions for 6K16V with metal brackets ............. 22

3.4 Powering the Magnum 6K16V Managed Fiber Switch..................... 23

3.5 Alarm Contacts for monitoring internal power, and Software Traps.... 24

3.6 6K16V Port Module (6KPM) Installation ......................................... 25

3.6.1 Preparation for Installing and Removing 6KPMs............................ 25

3.6.2 Installing 6KPM Cards in the Magnum 6K16V ........................ 27

3.6.3 Removing 6KPM Cards ............................................................. 30

3.7 Connecting a Management Console Terminal to Magnum 6K16V... 31

3.7.1 RS-232 (DB-9) Console Com port (Serial port) pin. ................. 31

4.0 OPERATION....................................................................................... 32

4.1 Switching Functionality ..................................................................... 32

4.2 Status LEDs ....................................................................................... 33

4.3 Up-link Manual Switches set as (=) , for RJ-45 port only ................. 33

4.4 Auto-negotiation, for Fast Ethernet copper ports............................... 33

4.5 Flow-control, IEEE 802.3x standard ................................................. 35

www GarrettCom com

4.6 Power Budget Calculations for Magnum 6K16V PM’s .................... 35

iii

Magnum 6K16V Managed Fiber Switch Installation and User Guide (06/04)

5.0 Introduction - Magnum 6K16V Managed Fiber Switch PM........... 37

5.1 Inspecting the Package and Product .................................................. 37

5.2 6KPM Module Description................................................................ 37

5.2.1 6KP6-RJMST, Combo Module.................................................. 38

5.2.1a 6KP6-RJ10ST, Combo Module ................................................. 38

5.2.1b 6KP4-F10ST, 4@10Mb multi-mode FX-ST “twist lock” ....... 38

5.2.1c 6KP4-FLSTFX, 2 Module ......................................................... 39

5.2.2. 6KP6-RJMSC ............................................................................ 40

5.2.3 6KP6-RJSSC “snap-in” connector............................................ 40

5.2.4 6KP6-RJSSCL “snap-in” connector .......................................... 41

5.2.4a 6KP6-RJ10ST “twist-lock” connector ....................................... 41

5.2.5 6KP8-MTRJ,.............................................................................. 42

5.2.5a 6KP6-MT10ST, ST-Fiber port................................................... 42

5.2.6 6KP8-45MT, .............................................................................. 43

5.2.7 6KP8-MLC, ............................................................................... 43

5.2.8 6KP8-45LC, Combo Connector ............................................... 44

5.2.9 6KP8-RJ45 (Twisted Pair), 10/100Mb 8-Port .......................... 44

5.2.10 6KP8-45-2MT, MTRJ Small-Form-Factor................................ 45

5.2.10a 6KP8-45-2LC, LC Small-Form-Factor ..................................... 46

5.2.11 GBIC-SXSC Gigabit fiber(1000Mb), mm SC Connector ......... 46

5.2.11a GBIC-LXSC Gigabit fiber (1000Mb), mm SC Connector......... 47

5.2.12 6KM-BLNK............................................................................... 47

6.0 TROUBLESHOOTING...................................................................... 48

6.1 Before Calling for Assistance ............................................................ 48

6.2 When Calling for Assistance ............................................................. 49

6.3 Return Material Authorization (RMA) Procedure ............................. 49

6.4 Shipping and Packaging Information................................................. 50

APPENDIX A: WARRANTY INFORMATION......................................... 50

APPENDIX B : Internal DC Power Supply Options.................................... 51

APPENDIX C: Internal DC Dual-Source Power Option............................. 54

Revisions

06/04 : New port modules has been added and updated on Alarm contacts

01/04 : Added Section 3.5 (Alarm Contacts) and 3.7.1 (Console Port pins)

12/03: Updated Section 3.3 “DIN-Rail”, and Appendix B “DC Power”

10/03 : Initial Release with Rev A

www GarrettCom com

Magnum 6K16V Managed Fiber Switch Installation and User Guide (06/04)

THE MAGNUM LINE

Ethernet connectivity products

"Designed and Manufactured in the USA"

Overview

GARRETTCOM, INC. OFFERS THE PREMIUM-QUALITY MAGNUM

LINE OF ETHERNET LAN CONNECTIVITY PRODUCTS WITH

INDUSTRY-STANDARD FUNCTIONALITY AND BUILT-IN FIBER

CONFIGURABILITY. MAGNUM PRODUCTS ARE DESIGNED FOR USE

IN DEMANDING CARRIER CLASS, INDUSTRIAL GRADE AND OEM

APPLICATIONS WHERE RELIABILITY IS A PRIMARY

CONSIDERATION.

6K-SERIES MANAGED FIBER SWITCHES, GIGABIT, 100 AND 10

MBPS, FIBER AND COPPER PORTS, MIX-AND MATCH. FEATURES

SFF FIBER AND DC POWER IN 1U UNITS.

4K-SERIES SWITCHES, 100 AND 10 MBPS, COPPER PORTS WITH

OPTIONAL FIBER PORT, WITH AUTO-NEGOTIATING FULL

SWITCHING PERFORMANCE.

QUAD-SERIES FIBER SWITCHES, 100 & 10MBPS, FIBER AND

COPPER PORTS, MIXED-SPEED AND MIXED-MEDIA TYPES, FULL

SWITCHING PERFORMANCE.

“OUTDOOR” ETHERNET SWITCH, FOR TEMPERATURE

UNCONTROLLED LOCATIONS

6 10/100 AND 2 100MB FIBER PORTS, CAN BE CONNECTED IN

STRINGS

MIXED-MEDIA FIBER HUB, 16-PORT STACKABLE,10/100 AUTO-

SENSING

DUAL SPEED 8-PORT AND 16-PORT STACKABLES, 10/100 AUTO-

SENSING

STACKABLE HUBS, SNMP OPTIONAL

10MB SERIES AND 100MB SERIES, BOTH W/ OPTIONAL PORT

MODULES

PERSONAL SWITCHES, 10/100MB

8 PORT DUAL SPEED, AUTO-NEGOTIABLE WITH FIBER OPTION

PERSONAL HUBS, 100MB OR 10/100MB

8-PORT, WITH TWO SWITCHED PORTS (1 FIBER BUILT IN)

PERSONAL HUBS, 10MB SERIES

8-PORT + AUI, STACKABLE TO 5 HIGH, + OPTIONAL BNC OF FIBER

PORT

www GarrettCom com

Magnum 6K16V Managed Fiber Switch Installation and User Guide (06/04)

8 OR 9-PORT AND 4 OR 5-PORT PERSONAL HUBS, W/ MAN. UP-LINK

SW.

MEDIA CONVERTERS, 10MB AND 100MB SERIES

ALL MEDIA COMBINATIONS, INCL. FIBER ST, SC, MM., SINGLE

MODE

THE “X-LINE” OF CONFIGURABLE MIXED MEDIA PRODUCTS:

STACKABLE CONCENTRATORS, SNMP OPTIONAL, 13-PORTS

MINI-CONCENTRATORS, 7 PORTS, REPEATERS, 2-PORTS

REPEATER PORT MODULES (RPMS),6 TYPES FOR ETHERNET

MEDIA

BRIDGE PORT MODULES (BPMS), 4 TYPES, FOR SEGMENT

ISOLATION

TRANSCEIVERS, 10MB SERIES MINI-TRANSCEIVERS AND COAX

MODELS JUNE, 04

www GarrettCom com

Magnum 6K16V Managed Fiber Switch Installation and User Guide (06/04)

1.0 SPECIFICATIONS

1.1 Technical Specifications

Performance

Filtering / Forwarding Rate:

Ethernet:14,880 pps

Fast Ethernet: 148,800 pps

Gigabit Ethernet: 1, 488,000 pps

Switching Processing Type: Store and Forward with IEEE 802.3x full-

duplex flow -control, non-blocking

Data Rate: 10Mbps,100Mbps and 1000Mbps

Address Table Capacity: 4K node, self-learning with address aging

Packet buffer size : 240KB for 10/100 and 120KB for 1000Mb

Latency: 5 s + packet time (100 to 100Mbps)

15 s + packet time (10 to 10 Mbps, and 10 to 100Mbps)

Network Standards and Compliance, hardware

Ethernet V1.0/V2.0 IEEE 802.3: 10BASE-T,

IEEE 802.3u: 100Base-TX, 100BASE-FX

IEEE 802.3z: 1000BASE-TX Ethernet (Auto-Negotiation)

IEEE 802.3ab: 1000BASE-TX Ethernet

IEEE 802.1p: Priority protocol

IEEE 802.1d: Spanning tree protocol

IEEE 802.1q: VLAN Tagging

IEEE 802.3x: Flow Control

Maximum 10 Mbps Ethernet Segment Lengths

Unshielded twisted pair - 100 m (328 ft)

Shielded twisted pair - 150 m (492 ft)

10BASE-FL multi-mode fiber optic - 2 km (6,562 ft)

10BASE-FL single-mode fiber optic - 10 km (32,810 ft)

Maximum Standard Fast Ethernet Segment Lengths:

10BASE-T (CAT 3, 4, 5 UTP) - 100 m (328 ft)

100BASE-TX (CAT 5 UTP) - 100 m (328 ft)

Shielded twisted pair - 150 m (492 ft)

100BASE-FX, half-duplex, multi-mode - 412 m (1350 ft)

100BASE-FX, full-duplex, multi-mode - 2.0 km (6,562 ft)

100BASE-FX, half-duplex, single-mode - 412 m (1350 ft)

100BASE-FX, full-duplex, single-mode - 20.0 km (66K16V ft)

100BASE-FX, full-duplex, Long Reach - 40.0 km (122K ft)

Maximum Standard Gigabit Ethernet Segment Lengths:

1000BASE-T (CAT5e or higher is recommended) - 100 m (328 ft)

1000BASE-SX, full-duplex, multi-mode(62.5m cable) - 220m

1000BASE-SX, full-duplex, multi-mode(50m cable) - 550m

1000BASE-LX, full-duplex, single-mode(62.5m cable) -5Km

Fiber Multi-mode connector types supported:

Fiber Port, ST-type (twist-lock):Fiber multi-mode, 10Mb 10BASE-FL

Fiber Port, MTRJ-type (plug-in):SFF Fiber multi-mode100BASE-FX

Fiber Port, SC-type (snap-in):Fiber optic multi-mode, 100BASE-FX

Fiber Port, ST-type (twist-lock): Fiber optic m.-mode, 100BASE-FX

Fiber Port, 1000BASE-FX, GBIC modules

www GarrettCom com

Magnum 6K16V Managed Fiber Switch Installation and User Guide (06/04)

Fiber Single-mode connector types:

Fiber Port, SC-type: Fiber optic single-mode, 100BASE-FX

Fiber Port, LC-type Fiber SFF single-mode, 100BASE-FX

Fiber Port, 1000BASE-FX, GBIC modules

LEDs: Per Port (one set at the port, one set in top or front)

LK: Steady ON when media link is operational

ACT: ON with receiver port activity

FDX/HDX: ON = Full-Duplex Mode

OFF = Half-Duplex Mode

100/10: ON = 100Mbps speed

OFF = 10 Mbps

Operating Environment

Ambient Temperature:

-40to 140F (-40to 60C) for UL60950 and Component Parts rating

-60to 205F (-50to 95C) for IEC 60068 Type Test short term rating

Storage Temperature: -60to 210F (-50to 100C)

Ambient Relative Humidity: 5% to 95% (non-condensing)

Altitude: -200 to 13,000 ft. (-60 to 4000m)

Conformal Coating (humidity protection) option: Request quote

Alarm Relay Contacts

One NC indicating internal power, one NC software controllable

Packaging

Enclosure: Rugged High strength sheet metal. Suitable for vertical wall or

DIN-Rail mounting

Dimensions: 9.5 in. H x 8.75 in. W x 1.75 in. D

24.1 cm H x 22.2 cm W x 4.4 cm D

Cooling method: Convection, designed for vertical mounting, no fans

Weight: 4.21 lbs. (1.9 kg)

Management Console connector

DB-9 for RS-232 “ null-modem “ cable (sometimes called an X-modem cable)

Power Supply (Internal)

AC Power Connector: IEC-type, male recessed at rear of chassis,

Input Voltage: 100 to 240 VAC (auto-ranging)

Input Frequency: 47 to 63 Hz (auto-ranging)

Power Consumption:

50 watts typical (for a fully loaded fiber model)

30 watts typical (for a fully-loaded copper only model)

DC Power Supply (Options)

-48VDC Power Input Voltage : -36 to -70 VDC

24VDC Power Input Voltage : 20 to 36VDC

125VDC Power Input Voltage : 115 to 150VDC

5VDC Power Input Voltage : (+) or (-) 5%

Std. Terminal Block : “ -, GND, + ”

Power Consumption: same as for AC models, see above

www GarrettCom com

Magnum 6K16V Managed Fiber Switch Installation and User Guide (06/04)

For DC internal power supplies at –48VDC, 24VDC and 125VDC,

including Dual Source options (

for continuity of operation when either of the

DC input sources are interrupted)

, see Appendices B and C.

Per-port jumpers and switches

The copper daughter board has on internal switch for selecting MDI-MDIX

crossover on port # 1. Factory default setting is MDI, user port.

Other port-specific user settings ( such as FDX or HDX, copper 10/100 speed)

can be fixed using software commands.

Agency Approvals

UL listed (UL60950), cUL, CE, Emissions meet FCC Part 15, Class A

NEBS L3 and ETSI compliant

IEEE P1613 Environmental Standard for Electric Power Substations

IEC61850 EMC and Operating Conditions Class C for Power Substations

NEMA TS-2 and TEES for traffic control equipment.

Warranty: Three years, per UL 60950 temperature rating Made in USA

NEBS Test Classification: NEBS Compliant

[email protected]

for details.

www GarrettCom com
