Gefen DVI-148 Bedienungsanleitung
1x8 DVI DA
USER MANUAL
www.gefen.com
Technical Support:
Telephone (818) 772-9100
(800) 545-6900
Fax (818) 772-9120
Technical Support Hours:
8:00 AM to 5:00 PM Monday thru Friday.
Write To:
Gefen Inc.
C/O Customer Service
20600 Nordhoff St.
Chatsworth, CA 91311
www.gefen.com
Notice
Gefen Inc. reserves the right to make changes in the hardware, packaging and any
accompanying documentation without prior written notice.
1x8 DVI DA is a trademark of Gefen Inc.
© 2007 Gefen Inc., All Rights Reserved
ASKING FOR ASSISTANCE
TABLE OF CONTENTS
Introduction
Features
Panel Descriptions
Connecting and Operating the 1x8 DVI DA
Dip Switch Guide
Specifications
Warranty
1
2
3
4
5
6
7
Congratulations on your purchase of the Gefen 1x8 DVI Distribution Amplifier. Your
complete satisfaction is very important to us.
Gefen’s line of HDTV switches, extenders, and splitters are designed to make yourA/V
equipment use more comfortable, more productive and less expensive.
The 1x8 DVI DA allows one HDTV device to be outputted on up to eight HDTV displays.
All output displays will have mirrored images.
The Gefen line offers solutions for Home Theater, AV installation, data center, informa-
tion distribution, conference room presentation, school and corporate training environ-
ments.
Our Commitment
Gefen will always offer the finest quality product at the best possible price. Included in
that price is a lifetime support from a team of outstanding engineers.
The Gefen 1x8 DVI DA allows one HDTV DVI device to be distributed easily in to eight
HDTV DVI compatible monitors or projectors. Simply connect your HDTV displays to the
DA’s display outputs. The 1x8 DVI DA can also be placed at the end of a long DVI cable
to regenerate the DVI signal.
INTRODUCTION
1
FEATURES
Features
• Distributes easily up to eight DVI/HDMI displays
• Maintains 480i, 480p, 720p, 720i, and 1080i, 1080p resolutions
• Maintains highest DVI single link video resolution
• Maintains highest DVI digital audio signal
• Supports HDCP compliant devices
• DVI or DVI to HDMI cables are used to connect the inputs and switcher output
• Installs in seconds
Includes:
(1) 1x8 DVI DA
(1) 6’ DVI cables (M-M)
(1) 24VDC Power Supply
(1) Rack Ears
(1) Users Manual
2

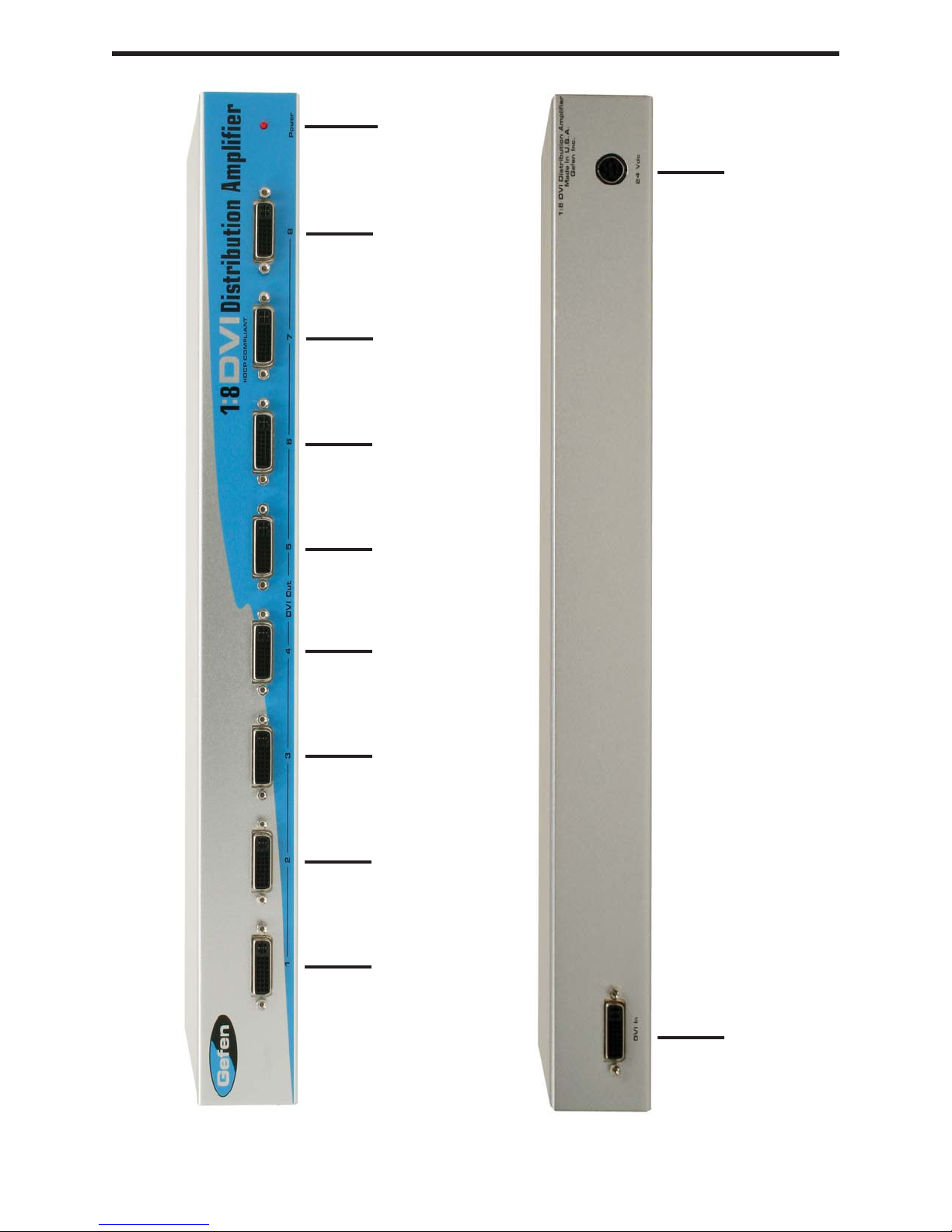

PANEL DESCRIPTIONS
Connects to
24VDC power
supply
3
DVI
In 1
DVI
Out 1 DVI
Out 2 Power LED
DVI
Out 3 DVI
Out 4 DVI
Out 5 DVI
Out 6 DVI
Out 7 DVI
Out 8
CONNECTING AND OPERATING THE 1X8 DVI DA
How to Connect the 1x8 DVI DA to your devices
1 Connect the supplied cable from the HDTV DVI source into the 1x8 DVI DA
input.
2Connect the cables from your displays (monitor or projector) into the DVI outs of the
1x8 DVI DA.
3 Plug the 24VDC power supply into the 1x8 DVI DA.
4
5

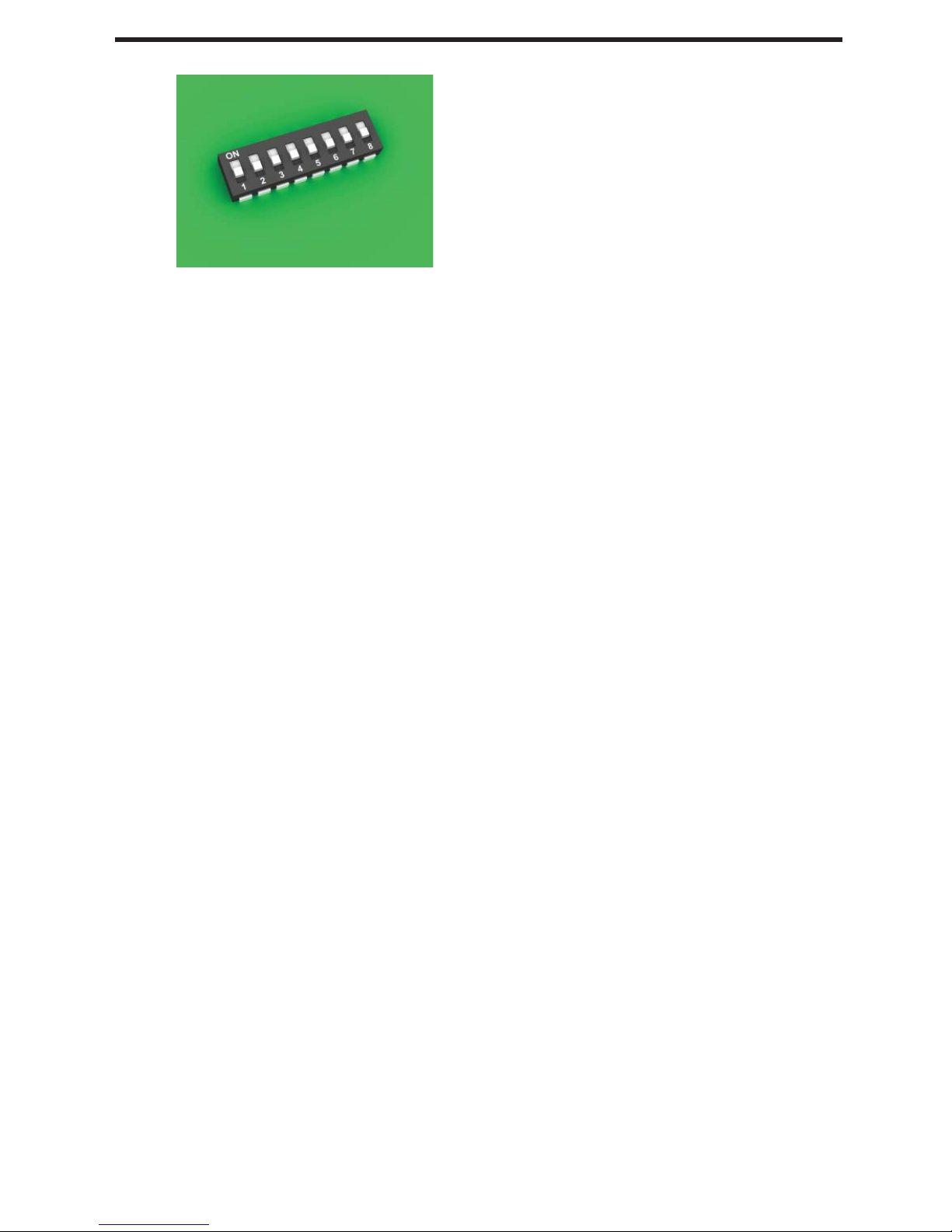

DIP SWITCH GUIDELINES
Extended display identification data (EDID) is a data structure provided by a display to
describe its capabilities to any source that asks for it. The EDID includes manufacturer
name, product type, timings supported by the display, display size, luminance data, (for
digital displays only) pixel mapping data, supported audio channels and formats. This
information is used by the source to cater its output to resolutions and audio formats
that are supported by the display.
Additional EDID modes are available and configured using a combination of dip
switches 1, 2, and 5. Please refer below for the different EDID modes.
To access the Dip Switches, remove all screws from the bottom and sides of the Gefen
unit. Remove the hex screw heads from each side of the rear DVI port. Carefully
slide the unit apart. The 8 Bank of Dip Switches are located on the main PCB. Once
adjustments are complete, slide the unit back together and replace all removed screws.
EDID Mode 0 (Switch 1=OFF Switch2=OFF Switch5=ON)
-EDID is copied from the first HDMI port
EDID Mode 1 (Switch 1=ON Switch2=OFF Switch5=ON)
-Same as Mode 0 and adds basic audio support
EDID Mode 2 (Switch 1=OFF Switch2=ON Switch5=ON)
-Same as Mode 0 and adds full audio support
EDID Mode 3 (Switch 1=ON Switch2=ON Switch5=OFF)
-EDID is generated based on the common video and audio features of all of the
connected devices
EDID Mode 4 (Switch 1=OFF Switch2=ON Switch5=OFF)
-Same as Mode 3 and adds basic audio support
EDID Mode 5 (Switch 1=ON Switch2=OFF Switch5=OFF)
-Same as Mode 3 and adds full audio support
EDID Mode 6 (Switch 1=OFF Switch2=OFF Switch5=OFF) DEFAULT
-EDID is generated based on the common video features of all of the connected
devices and the combined audio features of all of the connected devices
DIP SWITCH
EDID GUIDE
SPECIFICATIONS
6
Video Amplifier Bandwidth ..................................................................................1.65 GHz
Input Video Signal ..........................................................................................1.2 volts p-p
Input DDC Signal .....................................................................................5 volts p-p (TTL)
Single Link Range .............................................................................1080p / 1920 x 1200
Input Connector Type .............................................................................DVI (Digital Only)
Output Connector Type ..........................................................................DVI (Digital Only)
Power Consumption .................................................................................60 Watts (max.)
Power Supply ....................................................................................................12-24VDC
Dimensions ..................................................................................17”W x 1.75”H x 7.25”D
Shipping Weight ........................................................................................................8 Lbs
