Gefen EXT-DVI-1CAT6 Bedienungsanleitung
®
DVI Over One
CAT6 Extender
EXT-DVI-1CAT6
User Manual
www.gefen.com
Technical Support:
Telephone (818) 772-9100
(800) 545-6900
Fax (818) 772-9120
Technical Support Hours:
8:00 AM to 5:00 PM (PST) Monday thru Friday Pacific Time
Write To:
Gefen, LLC
c/o Customer Service
20600 Nordhoff St
Chatsworth, CA 91311
www.gefen.com
Notice
Gefen, LLC reserves the right to make changes in the hardware, packaging and
any accompanying documentation without prior written notice.
DVI over one CAT6 is a trademark of Gefen, LLC
© 2010 Gefen, LLC, All Rights Reserved
All trademarks are the property of their respective owners
ASKING FOR ASSISTANCE
Rev A9
CONTENTS
1 Introduction
2 Operation Notes
3 Features
4 Sender Panel Layout
5 Sender Panel Descriptions
6 Receiver Panel Layout
7 Receiver Panel Descriptions
8 Connecting And Operating The DVI Over One CAT6
8 How to Connect the DVI over One CAT6
9 Adjusting the Signal Quality
10 DIP Switch Configuration
10 DIP Switch Location
11 DIP Switch Configuration
12 Network Cable Wiring Diagram
13 Specifications
14 Warranty
1
Congratulations on your purchase of the DVI over one CAT6 Extender. Your
complete satisfaction is very important to us.
Gefen
Gefen delivers innovative, progressive computer and electronics add-on solutions
that harness integration, extension, distribution and conversion technologies.
Gefen’s reliable, plug-and-play products supplement cross-platform computer
systems, professional audio/video environments and HDTV systems of all sizes
with hard-working solutions that are easy to implement and simple to operate.
The Gefen DVI over one CAT6 Extender
The Gefen DVI over one CAT6 Extender will send a 1920x1200@60Hz DVI-D
signal over a single CAT-6a cable to distances of up to 200 feet (60m). Extension
of high resolution computer video can now be simplified with the use of only a
single CAT-6a cable. Previous solutions used 2 cables to accomplish this.
The DVI over one CAT6 extender’s pure digital transmission method insures
100% signal integrity over this single cable extension solution.
How It Works
The Gefen DVI over one CAT6 Extender system consists of two devices, a
sender and a receiver. The single-link DVI source (set-top box, DVD player, or
computer video card output) connects to the sender unit with the supplied 6-foot
DVI cable. The receiver unit connects to a DVI-compliant display. One CAT-
6a cable links the sender and receiver together at distances of up to 200 feet.
Power is applied to both the sender and receiver with the included 5V DC power
supplies. A perfect image is now displayed on the remote DVI display.
INTRODUCTION
READ THESE NOTES BEFORE INSTALLING OR
OPERATING THE DVI OVER ONE CAT6 EXTENDER
• The DVI over one CAT6 Extender was designed for use with high quality
CAT-6a (augmented) cabling. This unit will either not perform to specification
or refuse to operate completely if cabling other than CAT-6a is used.
• When field terminating CAT-6a cabling please adhere to the TIA/EIA-568-B
specification shown on page 12 for your convenience.
• The DVI over one CAT6 has a maximum distance rating based on the
bandwidth (i.e. resolution and color) of the video being transmitted. When
used with high quality CAT-6a cabling, you may expect a maximum
extension range of 200 feet (60 meters) at 1920x1200 or 1080p resolution at
up to a 60Hz refresh rate. Lower quality cabling or older standards such as
CAT5 cables will shorten the maximum achievable extension distance.
• For CAT5e cables, the maximum distance is 150ft at 1080p or 1920x1200.
• This product features HDCP pass-through.
2
OPERATION NOTES
3
Features
• Flexible extension of single-link DVI-D thanks to inexpensive and widely-
available CAT6 cable
• Video is transmitted digitally over the CAT6 cable for zero signal loss
• Single Link Range (Maximum resolution): 1920x1200@60 Hz
• Compliant with HDCP 1.1 and DVI 1.1 standards
• Equalizes the DVI signal and retransmits it with optimal quality regardless of
incoming signal quality
• Eliminates equipment noise in the viewing environment
• Improved compensation for CAT6 cable skew
Package Includes
(1) DVI over one CAT6 Sender
(1) DVI over one CAT6 Receiver
(1) 6 ft. DVI Cable (M-M)
(2) 5V DC Power Supply
(1) User’s Manual
FEATURES
4

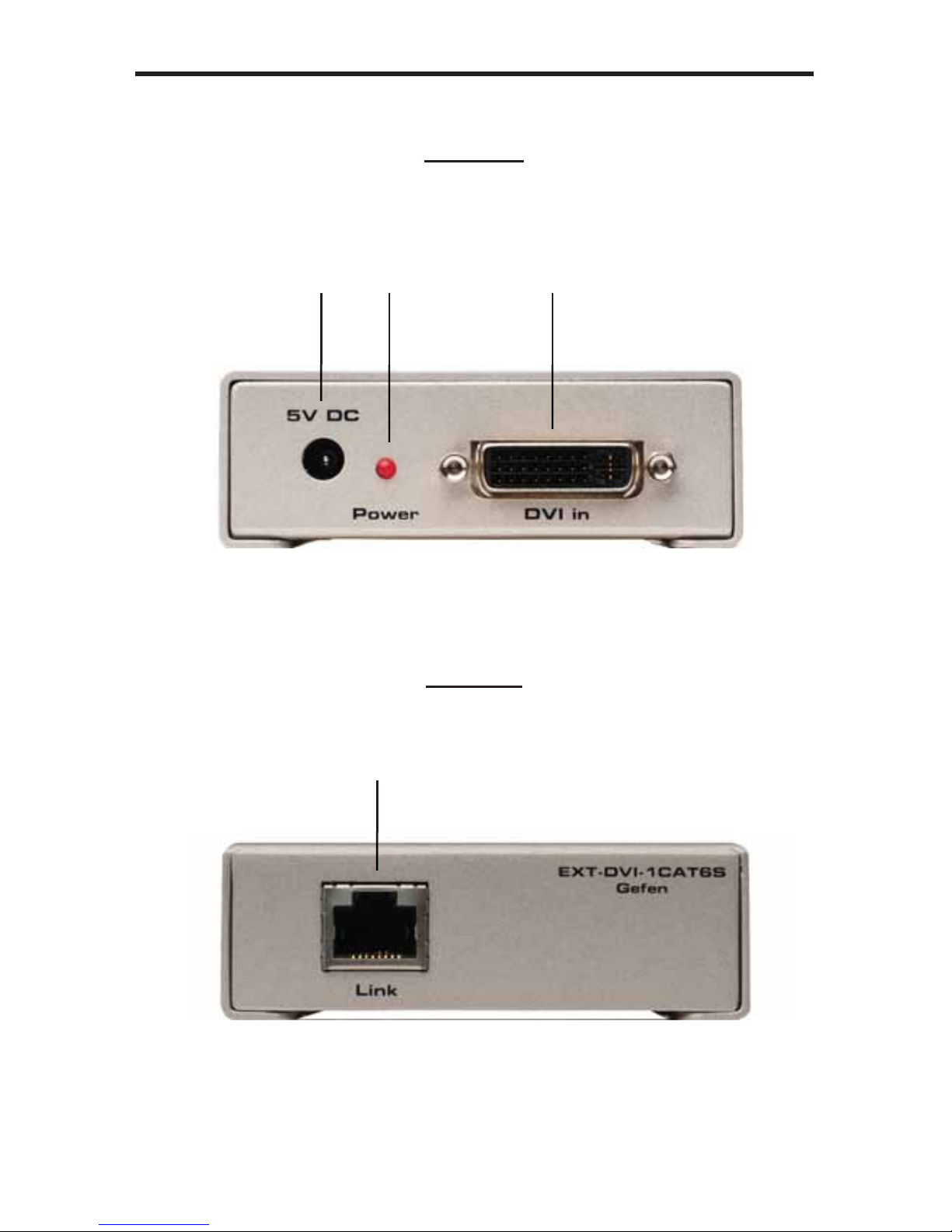

Front Panel
Back Panel
SENDER PANEL LAYOUT
4
123
5
1 5V DC Power Receptacle
Connect the included 5V DC power supply between this input and an open wall
power socket.
2 Power LED Indicator
This LED will become active once the included 5V DC power supply is properly
connected between the unit and an open wall power socket.
3 DVI Input Connector
This input will accept a single DVI-D (digital only) source for extension.Attach
the cable coming from your DVI source here.
4 Link RJ-45 Port
This port is used to connect the sending and receiving units together using a
CAT-6a cable.
SENDER PANEL DESCRIPTIONS
6
Front Panel
Back Panel
RECEIVER PANEL LAYOUT
4
5
13
2
7
1 Equalization Adjustment (Trim Pot Control)
The EQ adjustment or Trim Pot is used to equalize the signal to compensate for
the extension distance and the quality/skew variances that are found in different
CAT6a cabling brands.
2 DVI Output Connector This connector hooks up the Receiver to a DVI-D
compliant monitor at the remote destination.
3 5V DC Power Receptacle
Connect the included 5V DC power supply between this input and an open wall
power socket.
4 Power LED Indicator
The LED power indicator will become active once the included 5V DC power
supply is properly connected beten the unit and an open wall power socket.
5 RJ-45 Link Port
This port is used to connect the DVI Extender Sender and Receiver units
together using a CAT6a cable.
RECEIVER PANEL DESCRIPTIONS
