Thank you for purchasing the new ex•tend•it VGA RS232 Extender by Gefen, Inc.
The ex•tend•it VGARS232 Extender by Gefen allows users the benefits of extending VGA
and RS232 signals beyond the desktop. The VGA RS232 Extender series can be used
to extend a VGA and RS232 signal to cover the distance of 330 feet. Industry standard
Category 5 (CAT-5) cable is used for the extension.
CONTENTS
The VGA RS232 Extender system consists of:
(1) VGA RS232 Extender sender unit
(1) VGA RS232 Extender receiver unit
(2) 5 VDC power supply
(1) VGA M-F cables (6FT)
(1) Serial Cable
(1) User Manual
HOW IT WORKS
Initsmostbasicapplication,theVGARS232Extendersenderresidesnexttothecomputer.
With the supplied VGA and Serial cable, the VGA RS232 Extender sender is connected
to the computer. The VGA RS232 Extender receiver is then placed next to the monitor or
projector and RS232 device. Industry standard Category 5 (CAT-5) cable is used to link
the VGA RS232 Extender sender and VGA RS232 Extender receiver together.
INTRODUCTION
1
READ THESE NOTES BEFORE INSTALLING
OR OPERATING THE VGA RS232 EXTENDER SYSTEM
• Use industry standard Category-5 (CAT-5) cable to operate the VGA RS232 Extender
system. CAT-5 E cable is preferred.
• Please connect all the cables between the computer and the VGA RS232 Extender
before powering up the VGA RS232 Extender unit.
• The VGA RS232 Extender units are housed in a metal box for better RF shielding.
OPERATION NOTES
2
PANEL DESCRIPTIONS
3
Connect the VGA RS232 Extender sender unit to the VGA and RS232 output on
the back of your computer. The six foot RS232 and M-F VGA cables connect the
CPU and sender unit together.
Connect the VGA RS232 Extender receiver unit to your monitor with the VGA cable
that is attached to your monitor.
Connect the VGA RS232 Extender receiver unit to your RS232 device.
Connect the CAT5 cable between the VGA RS232 Extender sender and receiver’s
CAT5 input.
Plug the 5 volt power supplies into both the sender and receiver unit.
NOTE: The Brightness trim pod “B” can be adjusted to change the brightness of
the picture.
INSTALLATION INSTRUCTIONS
1.
2.
3.
4.
5.
4
HOW TO ADJUST THE PICTURE
5

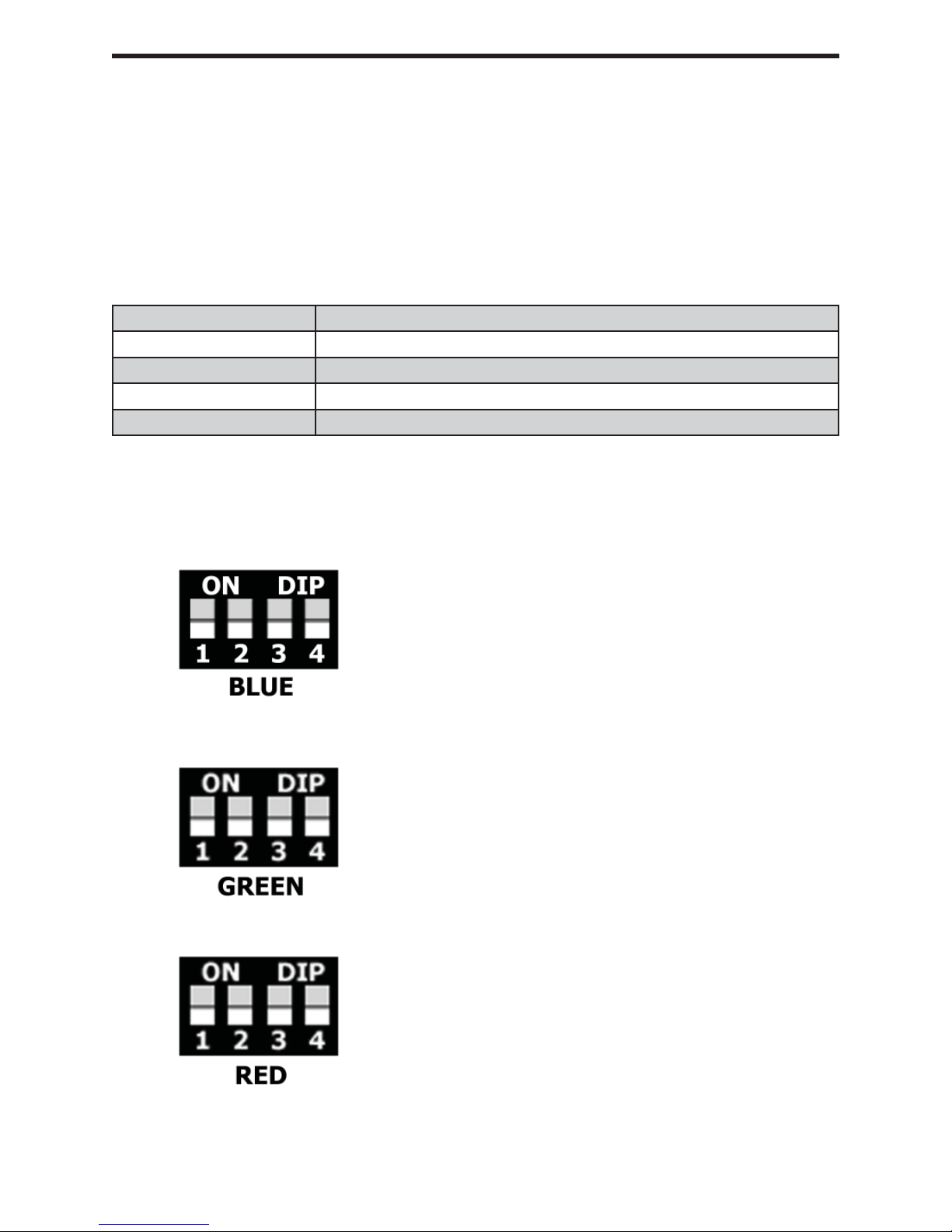

The first step in adjusting the video quality is to display text and a graphic on your monitor
(i.e. desktop icons). Then set your computer to the resolution that you will be using most
frequently. The dip switches are used to set the focus and sharpness of the picture to the
best possible setting. Set the dip switches to the settings that are recommended for the
different lengths of CAT5 cable (see chart below). Verify that the picture quality is to your
satisfaction. If the recommended setting does not produce a great quality picture, try using
a different dip switch setting. The trim pod next to the VGA connector on the VGA RS232
Extender-R allows brightness adjustments for video.
0-25 Feet All dip switches OFF for all colors.
26-100 Feet Set dip switch #1 ON all colors. 1,2,3 remain OFF.
101-200 Feet Set dip switch #2 ON all colors. 1,2,4 remain OFF.
201-300 Feet Set dip switch #3 ON all colors. 1,3,4 remain OFF.
301 Feet and Up Set dip switch #4 ON all colors. 2,3,4 remain OFF.
NOTE: The dip switches are set to the OFF position when the switch is closest to the
number or in the down position.
White/Orange
Orange
White/Green
Blue
White/Blue
Green
White/Brown
Brown
RJ-45 Jack RJ-45 Jack
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
1818
CAT5 WIRING DIAGRAM
6
Video Amplifier Bandwidth .................................................................................. 350 MHz
Actual Bandwidth ................................................................................................ 120 MHz
Input Video Signal ......................................................................................... 1.2 Volts p-p
Horizontal Frequency Range ............................................................................15-70 KHz
Vertical Frequency Range ................................................................................ 30-170 Hz
Video In .......................................................................................................... HD-15 Male
Video Out .................................................................................................. HD-15 Female
Serial In ........................................................................................................9-Pin Female
Serial Out ..........................................................................................................9-Pin Male
Link Connector ........................................................................................................ RJ-45
Power Consumption ................................................................................... 5 Watts (max)
Power Supply .......................................................................................... 5VDC (External)
Dimensions ........................................................................................ 1.25”H x 4”W x 3”D
Shipping Weight ....................................................................................................... 3 Lbs
SPECIFICATIONS
7
