S Series Datasheet 1Update: Feb./9/2007

GV-DVR SYSTEM (S Series)

GV-2016S/2008S/1480S/1240S/1120S

•Recovery DVD in case of system failure

•Operates on Windows XP Embedded

•GV-Keyboard and GV-IR Remote Control included

•Latest surveillance software preinstalled and upgradeable

•User-friendly software interface

•Built-in 4 Inputs and 4 Outputs

•Available in 14 languages

•Compatible with GeoVision optional products

•Complete product information and testing reference

•Global warranty

•FCC/CE/RoHS/WEEE certification

S Series Datasheet 2Update: Feb./9/2007

The GV-DVR is a 4U rackmount DVR system equipped with GeoVision’s video software & hardware

capture card, Windows XP Embedded and surveillance S/W within the robust chassis. It is well

equipped with HDD of a maximum size 3000GB with 4 silent CPU cooling fans. The mighty networking

enables remote access and control of the system, while GeoVision high profile video compression

technology allows superior transmission and video quality. The GV-DVR System features 8 or 16 audio

and video channels with max. 480 FPS (NTSC) / 400 FPS (PAL) display rate. Max. Resolutions can

reach full D1 on the model of GV-2008S or GV-2016S to fulfill high-profile security environment needs.

Flexible combinations of specifications and accessories are provided to meet any installation need, e.g.

enterprise, industry, retail, bank, government, casino, public utility, or even budget!

Package

•GV-DVR unit x 1

•D-Type Video Cables x 2 (1-8 Cams Black Cable x 1, 9-16 Cams Blue Cable x 1) *

•D-Type Audio Cables x 2 (1-8 Channels Red Cable x 1, 9-16 Channels Red Cable x 1) *

•D-Type Video and Audio Cable x 2 **

•AC Power Cord x 1

•RJ-11 to DB-9 Cable x 1

•Lock Key x 2

•GV-Keyboard Package x 1

•GV-IR Remote Control Package x 1

•Self-Stick Rubber Pad x 4

•Recovery DVD x 1

•Nero Express CD x 1

•Surveillance System Software CD x 1

•GV-DVR System User’s Manual x 1

•GV-DVR Quick Start Guide x 1

•Surveillance System New Feature Guide x 1

•Surveillance System Installation Guide x 1

Note : * Not supplied with GV-2008S / 2016S

** Only supplied with GV-2008S /2016S (Quantity depends on model purchased)

GV-Keyboard

GV-IR Remote Control

S Series Datasheet 3Update: Feb./9/2007

Models

GV-2016S

•Sixteen-channel digital video recorder

•Records up to 480 (NTSC) / 400 (PAL) fps at D1 resolution

•1600 GB / 2000 GB / 3000 GB storage

GV-2008S

•Eight-channel digital video recorder

•Records up to 240 (NTSC) / 200 (PAL) fps at D1 resolution

•1200 GB / 1600 GB / 2000 GB storage

GV-1480S

•Sixteen-channel digital video recorder

•Records up to 480 (NTSC) / 400 (PAL) fps at CIF resolution

•900 GB / 1200 GB / 1600 GB storage

GV-1240S

•Eight-channel or Sixteen-channel digital video recorder

•Records up to 240 (NTSC) / 200 (PAL) fps at CIF resolution

•600 GB / 1200 GB / 1600 GB storage

GV-1120S

•Sixteen-channel digital video recorder

•Records up to 120 (NTSC) / 100 (PAL) fps at CIF resolution

•300 GB / 600 GB / 1200 GB storage

S Series Datasheet 4Update: Feb./9/2007

Front View

1 2 3 4

56789

1 5.25” Hard Disk Compartment 6 Power Switch

2 Power LED 7 Reset Button

3 Hard Drive Activity LED 8 Key Lock

4 DVD ±RW Drive 9 USB Port x 2

5 Fan x 2

S Series Datasheet 5Update: Feb./9/2007

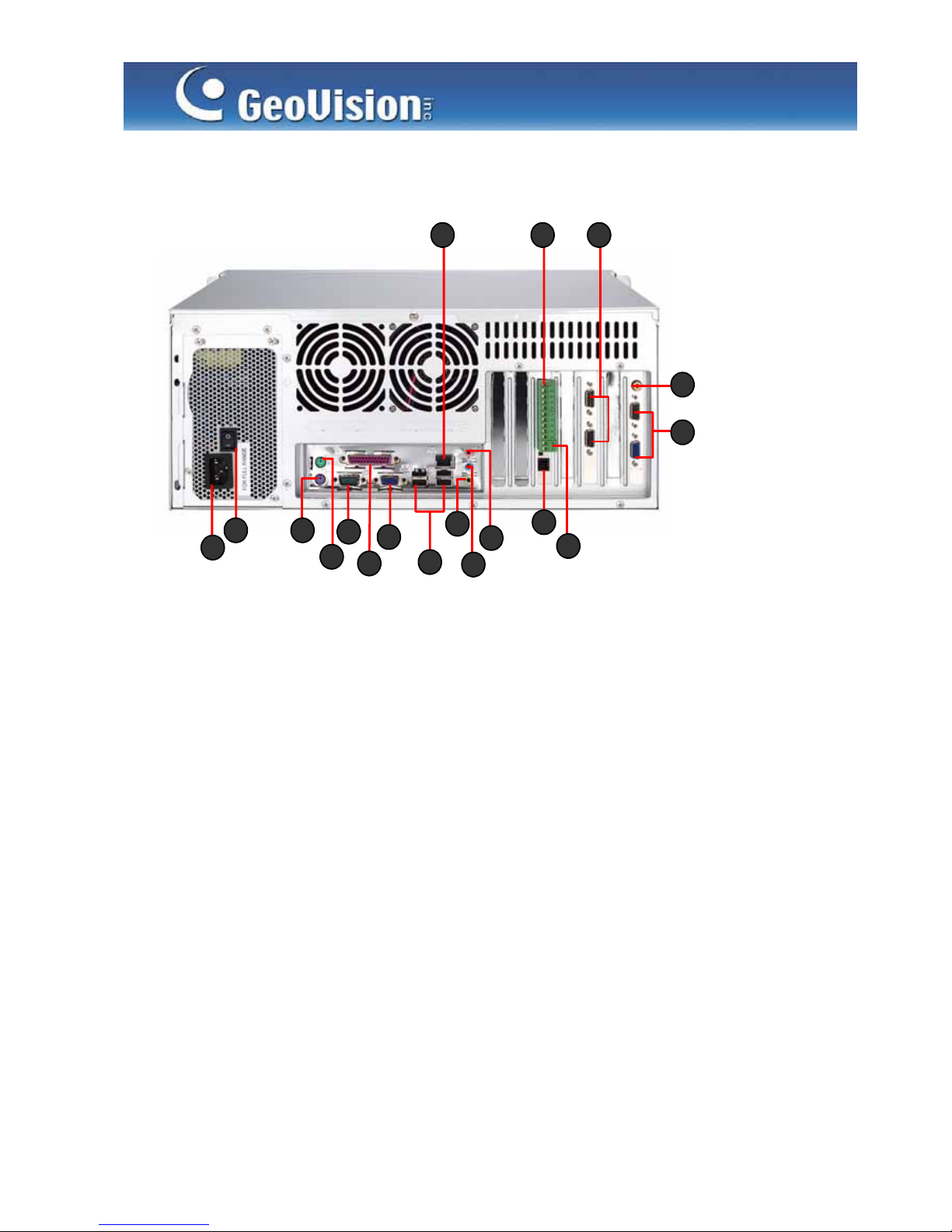

Rear View

GV-1480S/1240S/1120S

1 Ethernet Port 7 RJ-11 Port 13 LPT Parallel Printer Port

2 Alarm Output x 4,

Sensor Input x 4

8 Audio Microphone In Port 14 DB-9 Serial Input

3 D-Type Audio Port x 2 9 Audio Line In Port 15 PS/2 Mouse Input

4 RCA TV Output 10 Audio Speaker Out Port 16 PS/2 Keyboard Input

5 D-Type Video Port x 2 11 USB Port x 4 17 AC Power Switch

6 RS-485± for PTZ Control 12 VGA Monitor Output 18 AC Power Input (110-230V)

S Series Datasheet 6Update: Feb./9/2007

3 2 5 6

GV-2008S

1 Alarm Output x 4, Sensor Input x 4 4 RCA TV Output

2 RS-485±for PTZ Control 5 D-Type Audio and Video Cable 1-4

3 RJ-11 Port 6 D-Type Audio and Video Cable 5-8

37 8

5 6

GV-2016S

1 Alarm Output x 4, Sensor Input x 4 6 D-Type Audio and Video Cable 5-8

2 RS-485±for PTZ Control 7 D-Type Audio and Video Cable 9-12

3 RJ-11 Port 8 D-Type Audio and Video Cable 13-16

4 RCA TV Output (1) ＊Not functional

5 D-Type Audio and Video Cable 1-4

Note:

Owing to the installation of different GV Video Capture Cards, the rear panel may vary from model to model of

GV-DVR series. The only difference between these models is the slot arrangement.

S Series Datasheet 7Update: Feb./9/2007

Basic System Specifications

Note:

* The above specifications are default model for purchase.

** Quotation is decided by the size of HDD.

*** Please see P16 for the list of optional products, and contact your dealer or sales representative for further

information.

Model GV-2016S GV-2008S GV-1480S GV-1240S GV-1120S

Motherboard Intel 945G Chipset or above

CPU Intel Pentium 4 3.0GHz, 800MHz FSB or above

RAM 2GB

Dual Channel

1GB

Dual Channel

512MB

Dual Channel

1600GB 1200GB 900GB 600GB 300GB

2000GB 1600GB 1200GB 1200GB 600GB

HDD *

3000GB 2000GB 1600GB 1600GB 1200GB

OS Microsoft Windows XP Embedded OEM

VGA Intel GMA 950 or above

DirectX 9.0c

DVD (±) RW 16X

Fan Front: 3 fans, Rear: 1 fans

Power 450 W, 110-230 V, 60-50 Hz

S Series Datasheet 8Update: Feb./9/2007

Video

Audio

Model GV-2016S GV-2008S GV-1480S GV-1240S GV-1120S

Video Standard NTSC, PAL

Video Input 16 channels 8 channels 16 channels 8/16 channels 16 channels

Input Level 1.0 Vp-p (±10%) composite, 75 Ω

TV Output 1.0 Vp-p composite

S/W: Geo MPEG4 / Geo Mpeg4

(ASP) / Geo H264

Compression

H/W: MPEG-2 / MPEG-4

Geo MPEG4 / Geo Mpeg4 (ASP) /

Geo H264

NTSC 480 FPSDisplay Frame

(Max) PAL 400 FPS

NTSC

360 x 240 /

720 x 480 /

720 x 480 De-interlace

320 x 240 /

640 x 480 / 640 x 480 De-interlace /

720 x 480 / 720 x 480 De-interlace

Display

Resolution

PAL

360 x 288 /

720 x 576 /

720 x 576 De-interlace

320 x 240 /

640 x 480 / 640 x 480 De-interlace /

720 x 576 / 720 x 576 De-interlace

Camera Name Max. 32 characters

Screen Split Control 1x1 / 2x2 / 1+5 / 1+7 / 3x3 / 2+8 / 1+12 / 1+16 / 4x4

Screen Rotate Control 1 ~ 10 sec.

Image Control Contrast / Brightness / Saturation / Hue

Model GV-2016S GV-2008S GV-1480S GV-1240S GV-1120S

Audio Input 16 channels 8 channels 16 channels 8/16 channels 16 channels

Input Level 0.5 ~ 1 Vp-p composite

Compression ADPCM / G.723

S Series Datasheet 9Update: Feb./9/2007

Recording

Model GV-2016S GV-2008S GV-1480S GV-1240S GV-1120S

NTSC H/W:

480 (D1)

H/W:

240 (D1)

S/W:

480 (CIF)

S/W:

240 (CIF)

S/W:

120 (CIF)

Recording

Frame

PAL H/W:

400 (D1)

H/W:

200 (D1)

S/W:

400 (CIF)

S/W:

200 (CIF)

S/W:

100 (CIF)

NTSC 720x480 / 720x480 De-interlace 720x480 / 720x480 De-interlace / 640x480 /

640x480 De-interlace / 320x240


Compression

Dimensions PAL 720x576 / 720x576 De-interlace 720x576 / 720x576 De-interlace / 640x480 /

640x480 De-interlace / 320x240

Recording Mode Round the Clock / Motion Detection / Sensor Detection / Pre & Post Recording /

Schedule Recording

Schedule 96 groups per day by 15 min.

Instant Playback 10 sec. / 30 sec. / 1 min. / 5 min.

Pre Recording 1~ 90 sec. (1 FPS)

Water Marking Support

Searching and Playback

Search Method Date / Time

Date / Time / Event

Search Selectable on the tree list and calendar

Log Search Through the log data to find the video event / time

Backup Type DVD+R (DL) / DVD-R (DL) / DVD+R / DVD+RW / DVD-R / DVD-RW / CD-R /

CD-RW

Remote Client Software

Monitoring Environment

WebCam / Twin Server / CenterV2 / VSM / Control Center / Remote Playback

Server / Remote View / IP Multicast / GView for PDA / MSView for Microsoft

Smartphone / SSView Version 2 for Symbian Smartphone / SSView Version 3 for

Nokia S60 2nd / 3G Mobile Phone

WebCam Live View Max. 16 channels transmission (Max. 200 channels accessible)

Remote Search WebCam’s Remote Playback / Remote Playback Server

S Series Datasheet 10 Update: Feb./9/2007

System Monitoring and Recovery

Power Restoration Power restored after AC power loss

Monitoring Two independent Watchdogs (Hardware Watchdog + Software Watchdog)

Recovery DVD Automatic system rebuild

Alarm

Standard 4 inputs

GV-IO 12-In Card (Optional) 16 inputs

Sensor Input

GV-IO Box (Optional) 8 ~ 72 inputs

Standard 4 outputs

GV-IO 12-Out Card (Optional) 16 outputs

Alarm Output

GV-IO Box (Optional) 16 ~ 144 outputs

Motion Detection 16 channels

Connector

Video Input BNC 8 / 16 ports

Video Loop Output

(Optional) BNC 16 ports

Audio Input RCA 8 / 16 ports

Audio Microphone In Mini stereo jack

Audio Output Mini stereo jack

TV Output RCA

RS±485 for PTZ

Control 2-pin terminal

Ethernet RJ-45, 10/100/1000 Mbps

USB 2.0 Front: 2 ports, Rear: 4 ports

VGA Output 15-pin female D Sub

Remote Access TCP/IP
