GeoVision GV-EBL110-2F Bedienungsanleitung

Hardware Manual

GV-IPCam H.264

Before attempting to connect or operate this product,

please read these instructions carefully and save this manual for future use.

Bullet Camera

Ultra Bullet Camera

Target Bullet Camera

ICH264TG2V10

Under the copyright laws, this manual may not be copied, in whole or in

part, without the written consent of GeoVision.

Every effort has been made to ensure that the information in this manual is

accurate. GeoVision, Inc. makes no expressed or implied warranty of any

kind and assumes no responsibility for errors or omissions. No liability is

assumed for incidental or consequential damages arising from the use of

the information or products contained herein. Features and specifications

are subject to change without notice. Note: no memory card slot or local

storage function for Argentina.

GeoVision, Inc.

9F, No. 246, Sec. 1, Neihu Rd.,

Neihu District, Taipei, Taiwan

Tel: +886-2-8797-8377

Fax: +886-2-8797-8335

http://www.geovision.com.tw

Trademarks used in this manual: GeoVision, the GeoVision logo and GV

series products are trademarks of GeoVision, Inc. Windows and Windows

XP are registered trademarks of Microsoft Corporation.

September 2015

Bullet Camera (Part I)

Contents

Options ...............................................................................3

Note for Adjusting Focus and Zoom................................4

Note for Installing Camera Outdoor.................................5

Note for Closing the Bullet Camera Cover......................6

Note for Recording ............................................................

Note for Waterproofing Failures.......................................

Chapter 1 Bullet Camera (Part I)......................................

1.1 Packing List............................................................................

1.2 Features.................................................................................

1.3 Overview ................................................................................

1.4 Installation..............................................................................

1.4.1 Connecting the Camera.............................................

1.4.2 Adjusting the Angles ..................................................

1.4.3 Adjusting Lens and Inserting a Memory Card.............

1.4.4 Installing the Sun-Shield Cover..................................

1.5 Loading Factory Default..........................................................

Chapter 2 Bullet Camera (Part II)...................................

2.1 Packing List............................................................................

2.2 Features.................................................................................

2.3 Overview ................................................................................

2.4 Installation..............................................................................

2.5 Connecting the Camera..........................................................

Chapter 3 Ultra Bullet Camera.......................................

3.1 Packing List............................................................................51

3.2 Features.................................................................................

3.3 Overview ................................................................................

3.4 Installation..............................................................................

3.4.1 Waterproofing the Cable ............................................

3.4.2 Connecting the Camera.............................................

3.5 Loading Factory Default..........................................................

Chapter 4 Target Bullet Camera....................................

4.1 Packing List............................................................................

4.2 Features.................................................................................

4.3 Overview ................................................................................

4.4 Installation..............................................................................

4.5 Connecting the Camera..........................................................

4.5.1 Wire Definition ...........................................................

4.5.2 Power Connection......................................................

4.6 Loading Factory Default..........................................................

Bullet Camera (Part I)

Options

Optional devices can expand your camera’s capabilities and versatility.

Contact your dealer for more information.

Device Description

Power Adapter

The power adapter is available for all Bullet Camera,

Ultra Bullet Camera (except GV-BL2511-E / 5311-E),

and Target Bullet Camera. Contact your sales

representative for the countries and areas supported.

GV-PA191 PoE

Adapter

The GV-PA191 PoE adapter is designed to provide

power and network connection to the cameras over a

single Ethernet cable.

GV-Relay V2

The GV-Relay V2 is designed to expand the voltage

load of GV IP devices. It provides 4 relay outputs, and

each can be set as normally open (NO) or normally

closed (NC) independently as per your requirement.

GV-POE Switch

The GV-POE Switch is designed to provide power

along with network connection for IP devices. The

GV-POE Switch is available in various models with

different numbers and types of ports.

GV-Mount

Accessories

The GV-Mount Accessories provide a comprehensive

lineup of accessories for installation on ceiling, wall

corner and pole. For details, see GV-Mount

Accessories Installation Guide on the Software DVD.

Note for Adjusting Focus and Zoom

When adjusting the Focus and Zoom Screws on Bullet Camera, do not

over tighten the Focus and Zoom screws. The screws only need to be as

tight as your finger can do it. It is not necessary to use any tools to get

them tighter. Doing so can damage the structure of lens.

For example,

Zoom Screw

Focus Screw

Bullet Camera

The maximum torque value for all the zoom and focus screws is 0.049 N.m

Bullet Camera (Part I)

Note for Installing Camera Outdoor

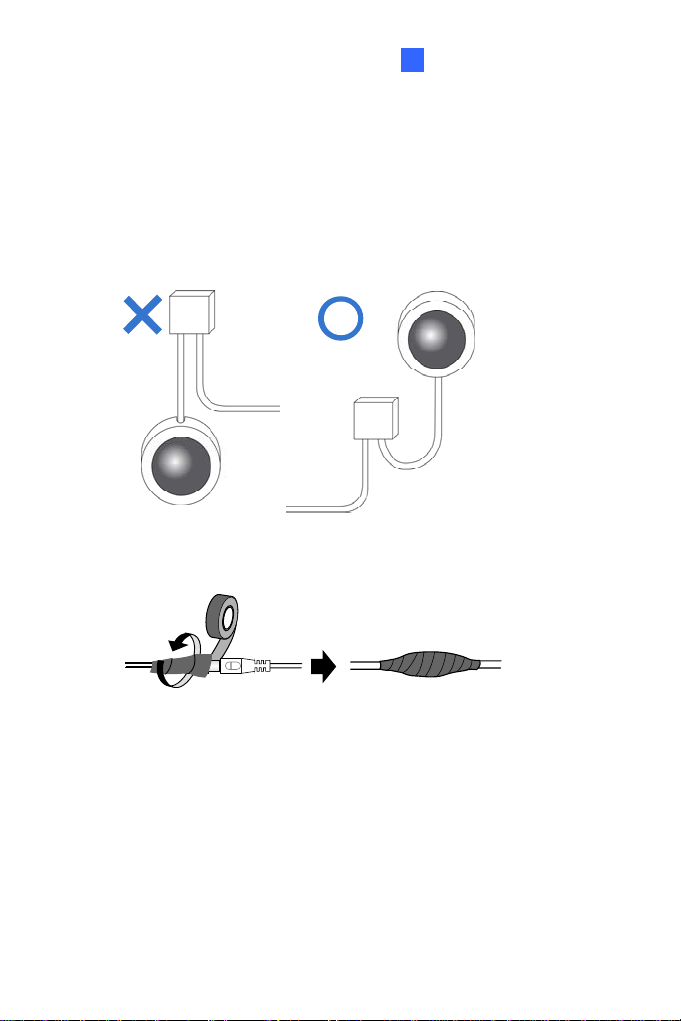

When installing the cameras outdoor, be sure that:

1. The camera is set up above the junction box to prevent water from

entering the camera along the cables.

2. Any PoE, power, audio and I/O cables are waterproofed using

waterproof silicon rubber or the like.

3. The silica gel bag loses its effectiveness when the dry camera is

opened. To prevent the lens from fogging up, replace the silica gel

bag every time you open the camera, and conceal the gel bag in

camera within 2 minutes of exposing to open air.

Note for Closing the Bullet Camera

Cover

To ensure that the camera performs its full capacity against water and dust,

tightly close and lock the camera cover as indicated below.

Bullet Camera (Part I)

Note for Recording

1 By default, the images are recorded to the memory card inserted in

the GV-IP Camera H.264 (except GV-IR Arctic Box Camera and

Target Series, which are not equipped with a memory card slot).

Make sure the Write recording data into local storage option (see

4.1.1 Video Settings, GV-IPCam H.264 Firmware Manual) is enabled.

If this option is disabled, the camera will stop recording to the memory

card while the live view is accessed through Web browsers or other

applications.

2 Mind the following when using a memory card for recording:

Recorded data on the memory card can be damaged or lost if

the data are accessed while the camera is under physical shock,

power interruption, memory card detachment or when the

memory card reaches the end of its lifespan. No guarantee is

provided for such causes.

The stored data can be lost if the memory card is not accessed

for a long period of time. Back up your data periodically if you

seldom access the memory card.

Memory cards are expendable and their durability varies

according to the conditions of the installed site and how they are

used. Back up your data regularly and replace the memory card

annually.

Replace the memory card when its read/write speed is lower

than 6 MB/s or when the memory card is frequently undetected

by the camera.

3 It is recommended to use memory cards of the following setting and

specifications:

Apply a battery backup (UPS) to avoid power outage.

Use Micro SD card of MLC NAND flash, Class 10 for better

performance.

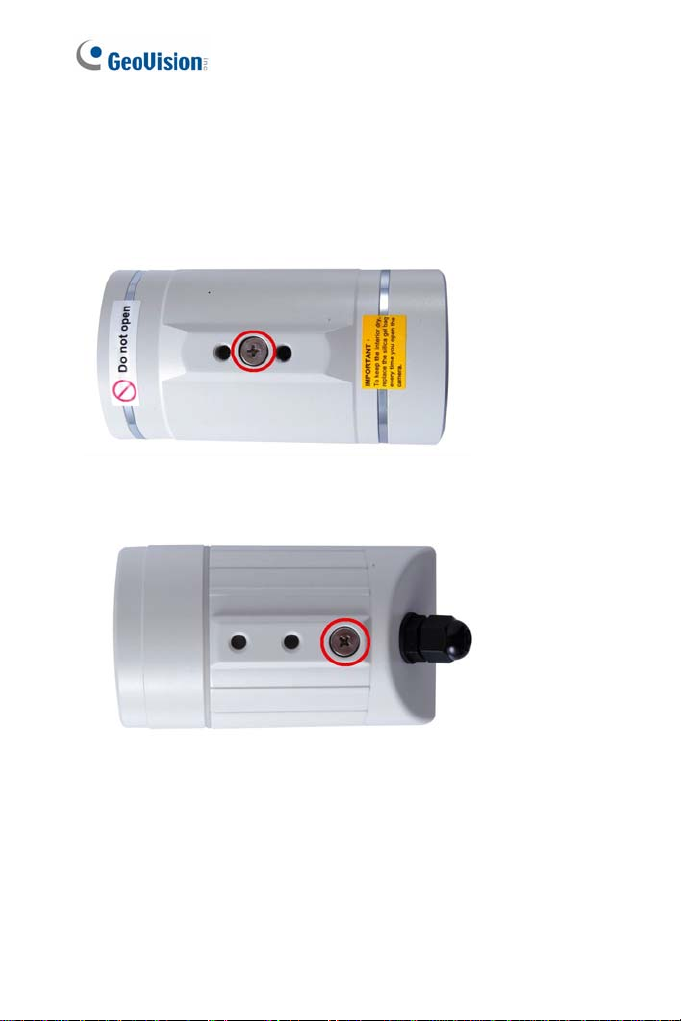

Note for Waterproofing Failures

To avoid waterproofing failures, do not open the screw on the camera body.

1. The screw on Ultra Bullet Camera

2. The screw on Target Bullet Camera
