Before attempting to connect or operate this product,

please read these instructions carefully and save this manual for future use. ISD2722IR-QG-B

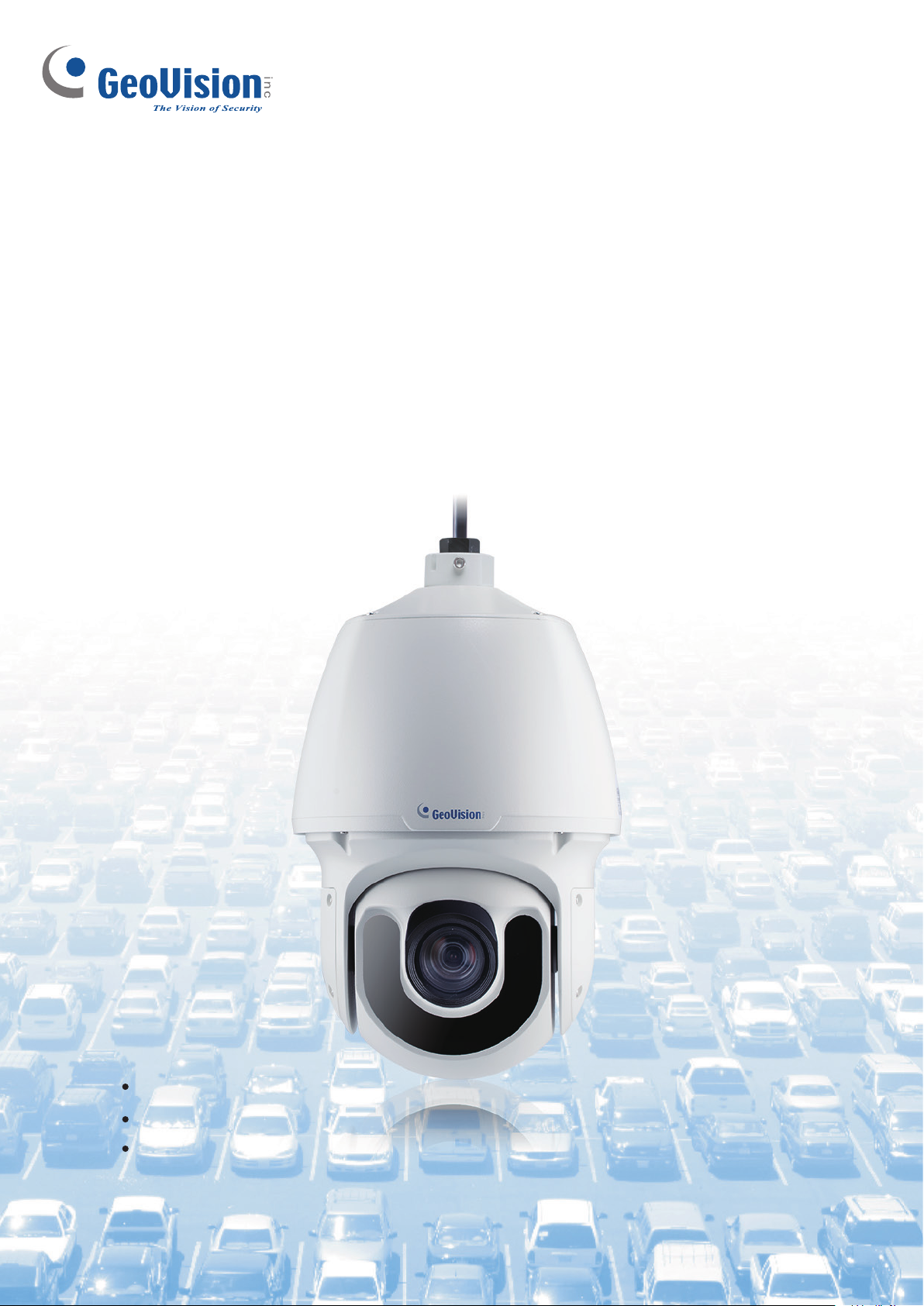

Quick Start Guide

GV-IP Speed Dome

GV-SD2322-IR

GV-SD2722-IR

GV-SD3732-IR

Under the copyright laws, this manual may not be copied, inwhole or inpart,

without the written consent of GeoVision.

Every effort has been made to ensure that the information in this manual is

accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind

and assumes no responsibility for errors or omissions. No liability is assumed

for incidental or consequential damages arising from the use of the information

or products contained herein. Features and specifications are subject to

change without notice.

Note: No memory card slot or local storage function for Argentina.

GeoVision, Inc.

9F, No. 246, Sec. 1, Neihu Rd.,

Neihu District, Taipei, Taiwan

Tel: +886-2-8797-8377

Fax: +886-2-8797-8335

http://www.geovision.com.tw

Trademarks used in this manual: GeoVision, the GeoVision logo and GV

series products are trademarks of GeoVision, Inc.

June 2020

Contents



Note for Connecting to GV-VMS / DVR / NVR......................................ii

Note for Recording...............................................................................iii

Note for Installing Camera Outdoor....................................................iv

1. Introduction ....................................................................................1

1.1 Packing List........................................................................................................... 1

1.2 Optional Accessories............................................................................................. 2

1.3 Overview................................................................................................................ 2

2. Installation ......................................................................................3

3. Connecting the Camera .................................................................7

4. Accessing the Camera...................................................................9

4.1 Web Browser......................................................................................................... 9

4.2 Looking Up the Dynamic IP Address.....................................................................10

4.3 Configuring the IP Address...................................................................................11

5. The Web Interface.........................................................................12

5.1 PTZ Control Panel................................................................................................15

6. Upgrading System Firmware.......................................................18

7. Restoring to Factory Default........................................................19

7.1 Using the Web Interface .......................................................................................19

7.2 Directly on the Camera.........................................................................................20

Note for Connecting to GV-VMS / DVR / NVR

The GV-IP Speed Dome is designed to work with GV-VMS / DVR / NVR, a video management

system. Note the following when the camera is connected to GV-VMS / DVR / NVR:

Once the camera is connected to the GV-VMS / DVR / NVR, the resolution set on the

GV-VMS / DVR / NVR will override the resolution set on the camera’s Web interface. You can

only change the resolution settings through the Web interface when the connection to the

GV-VMS / DVR / NVR is interrupted.

iii

Note for Recording

Mind the following when using a memory card for recording:

Recorded data on the memory card can be damaged or lost if the data are accessed

while the camera is under physical shock, power interruption, memory card detachment

or when the memory card reaches the end of its lifespan. No guarantee is provided for

such causes.

The stored data can be lost if the memory card is not accessed for a long period of time.

Back up your data periodically if you seldom access the memory card.

Memory cards are expendable and their durability varies according to the conditions of

the installed site and how they are used. Back up your data regularly and replace the

memory card annually.

To avoid power outage, it is highly recommended to apply a battery backup (UPS).

For better performance, it is highly recommended to use Micro SD card of MLC NAND

flash, Class 10.

Replace the memory card when its read/write speed is lower than 6 MB/s or when the

memory card is frequently undetected by the camera.

Note for Installing Camera Outdoor

When installing the camera outdoor, be sure that:

1. The camera is set up above the junction box to prevent water from entering the camera

along the cables.

2. Any power, audio and I/O cables are waterproofed using waterproof silicon rubber or the

like.

3. The screws are tightened and the cover is in place after opening the camera cover.

Introduction

1. Introduction

Welcome to the GV-IP Speed Dome Quick Start Guide. In the following sections, you will

learn the basic installations and configurations. For a detailed user manual, see the GV-IP

Speed Dome User’s Manual on the company website.

1.1 Packing List

IR IP Speed Dome

24V AC Power Adapter

M4 Hex Key

Waterproof Rubber Set

Waterproof Guidelines

Download Guide

Warranty Card

1.2 Optional Accessories

Optional devices can expand the capabilities and versatility of your camera. Contact your

dealer for more information.

Name Details

GV-Mount Accessories The GV-Mount Accessories provide a comprehensive lineup

of accessories for installation on ceiling, wall and pole. For

details, see GV-Mount Accessories Installation Guide.

1.3 Overview

No. Name Function

1. Default Button Resets all configurations to default factory settings. See 7.

Restoring to Factory Default.

2. Micro SD Card Slot Inserts a micro SD card (SDHC/SDXC, Class 10) to store

recording data.

Installation

2. Installation

You can separately purchase optional mounting accessories to mount your GV-IP Speed

Dome on a wall, ceiling or pole. Make sure the wall is strong enough to support the camera

and the mount. For details, see GV-Mount Accessories Installation Guide.

Required Items

GV-Mount210 (purchased required)

Wall screws x 4 (user-prepared)

Note: GV-SD2722-IR / SD3732-IR supports a series of Intelligent functions, which work best

when the installation abides by specific requirements. See 4.6.1 Recommended Scenario,

Chapter 4, GV-IP Speed Dome User’s Manual for details.

1. Unscrew the back cover of the camera.

2. Insert the micro SD card into the slot, and secure the back cover of the camera.

Note: Be sure to format the memory card on the camera’s Web interface (Setup > Storage

> Storage).

3. Place the pendant tube on the wall, and mark the position of the screw holes.

4. Drill holes on the wall, and secure the pendant tube to the wall with 4 self-prepared screws.

5. Attach the safety lock of the camera to the pendant tube.
