Giantec 2000 Bedienungsanleitung

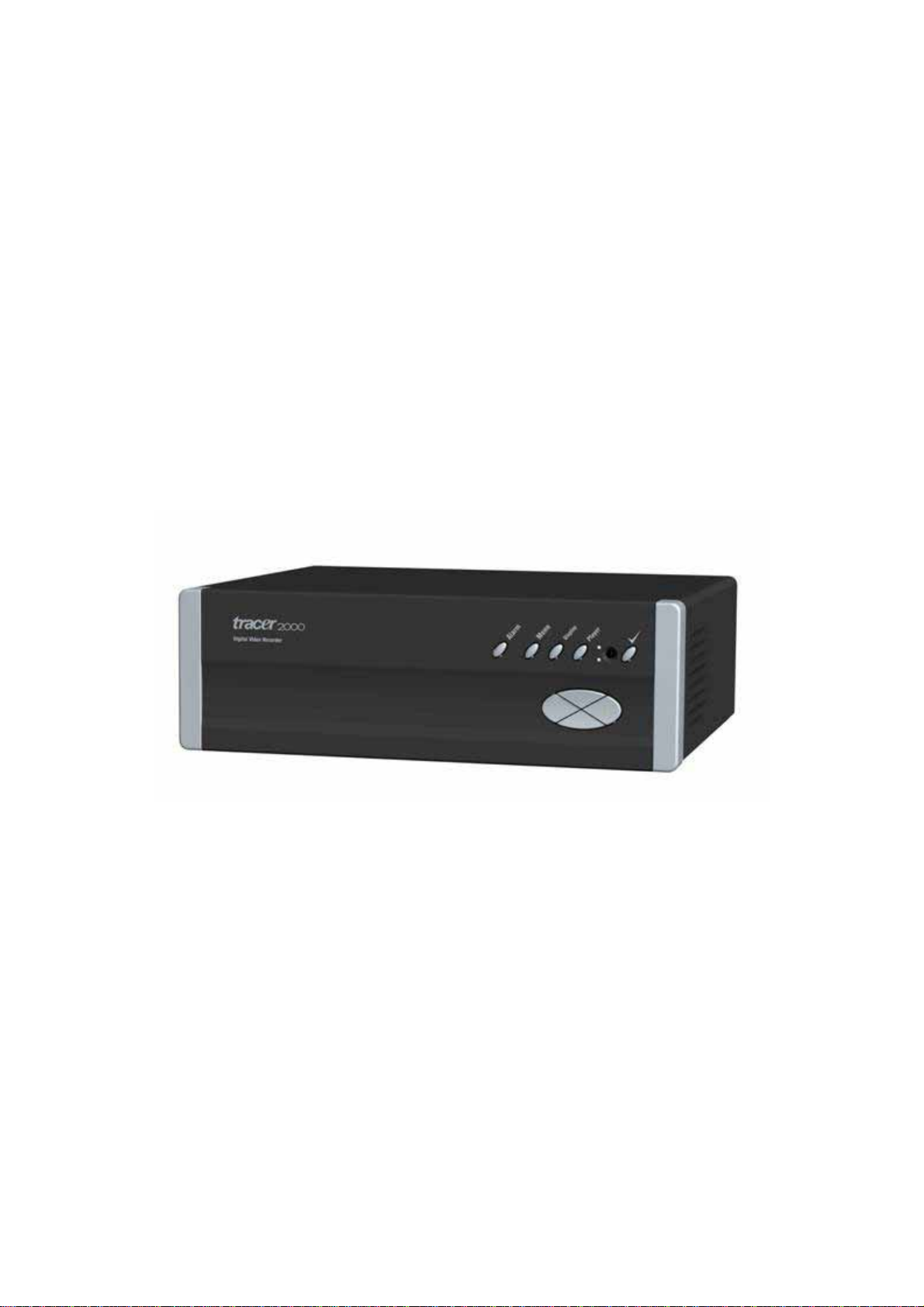

Tracer 2000 Digital Video Recorder

User’s Manual

Tracer 2000 DVR user manual

Version 3.0 Page 2of 36

Contents

CHAPTER I INTRODUCTION...............................................................................................................5

LIMITED WARRANTY ...............................................................................................................................5

FUNCTION INTRODUCTION....................................................................................................................5

FEATURE......................................................................................................................................................6

CHAPTER II PACKAGE...........................................................................................................................7

PACKING LIST .................................................................................................................................................7

CHAPTER III INSTALLATION ............................................................................................................8

FRONT PANEL VIEW..................................................................................................................................8

REAR PANEL VIEW....................................................................................................................................8

1 INDICATOR...............................................................................................................................................9

2 CABLE CONNECTION ............................................................................................................................9

2.1. Connect VGA Monitor ........................................................................................................................9

2.2. Connect Camera Cable to BNC connector.......................................................................................10

2.3. Connect to LAN connector: Plug RJ-45 connector to LAN Port......................................................10

3. POWER CONNECTOR..........................................................................................................................12

3.1. Connect power cord (110V~240V auto switch) into the power socket.............................................12

CHAPTER IV PIN ASSIGNMENT......................................................................................................13

INTERNAL JUMPERS AND CONNECTORS.........................................................................................................13

EXTERNAL CONNECTOR................................................................................................................................19

CRT DISPLAY CONNECTOR (VGA)...............................................................................................................19

Audio Input connector:............................................................................................................................19

GPIO CONNECTOR:.......................................................................................................................................19

USB connector:........................................................................................................................................19

COM 1 CONNECTOR.....................................................................................................................................20

RS-232 Connector (COM1) .....................................................................................................................20

COM2 Connector.....................................................................................................................................20

Connectors...............................................................................................................................................21

P/T/Z Setting ............................................................................................................................................22

CHAPTER V CMOS SETTING..............................................................................................................23

INTRODUCTION .............................................................................................................................................23

SETUP PAGES.................................................................................................................................................23

Tracer 2000 DVR user manual

Version 3.0 Page 3of 36

1. Standard CMOS Features....................................................................................................................24

2. Advanced BIOS Features.....................................................................................................................25

3. Advanced Chipset Features..................................................................................................................26

4. Integrated Peripherals.........................................................................................................................27

5. Power Management Setup ...................................................................................................................28

6. PnP / PCI Configuration .....................................................................................................................29

7. PC Health Status..................................................................................................................................30

8. Frequency/Voltage Control..................................................................................................................30

9. Load Optimized Defaults .....................................................................................................................31

10. Supervisor / User Password...............................................................................................................31

11. Save & Exit Setup...............................................................................................................................31

12. Exit Without Save...............................................................................................................................31

CHAPTER VI SYSTEM HDD INSTALLATION GUIDE.................................................................32

FOLLOW THE STEP TO SETUP HDD DRAWING BOX.........................................................................................32

1. Remove the screws on the case. (marked in while circles)..................................................................32

2. Take off the upper cover and remove the screws..................................................................................33

3. Remove HDD Tray, and install HDD properly....................................................................................34

4. Insert the assembled HDD tray into TRACER2000, and connect both Power and HDD cables........35

5. Assemble the upper cover and the screws............................................................................................36

Tracer 2000 DVR user manual

Version 3.0 Page 4of 36

This document may not, in whole or in part, be reproduced or transmitted in

any form or by means, electronic, mechanical, or optical, including

photocopying, recording, or storing in a retrieval system, or translated into

any language in any form without the prior written content of us.

Warranties

We make no warranties with respect to this documentation and disclaim any

implied warranties of merchantability and fitness for a particular purpose. We

shall not be liable for any error or for incidental or consequential damages in

connection with the furnishing, performance, or use of this documentation or

the examples herein.

The information in this documentation is subject to change without notice.

Trademarks

All other product namesmentioned in this documentation are for identification

purposes only and remain the sole property of their respective owners.

Tracer 2000 DVR user manual

Version 3.0 Page 5of 36

CHAPTER I INTRODUCTION

Thank you for purchasing Tracer 2000 DVR; this manual will guide you through the setup,

installation, and use of all our DVR systems.

Before proceeding, please read this manual thoroughly!

If you have any questions or concerns that cannot be solved by following this manual, please

visit our web site at http://www.giantec.net

LIMITED WARRANTY

Giantec Inc. warrants this product to be in compliance with its own plans and specifications.

Moreover, to be free from defects in materials and workmanship under normal use and service

for all parts (1) one year after the original purchase date. During this period Giantec Inc. will

replace parts at no charge, however, labor cost will be laid after one (1) year. Please contact

your dealer/distributor for details.

This warranty excludes damages due to misuse or neglect.Also this warranty does not cover

damages beyond DVR’s control. In no event shall Giantec Inc. be liable for any direct, indirect

or consequential damages; loss of anticipated profits, loss of time or any other losses incurred

by the buyer in connection with the purchase, installation, operation or failure of this product.

For more details on the limitation of this warranty, contact your distributor.

FUNCTION INTRODUCTION

Thank you for using TRACER 2000 video surveillance system. TRACER can be used to

transfer captured video signal from analog to digital using the compression format for record

and play. They can also capture videos of up to 4 / 8 /16 cameras for model TRACER-2404,

TRACER-2408, and TRACER-2416(4 /8/16 BNC inputs) with 4 audio sources at the same time.

The built-in video player makes it easy to play back captured video files. The system also

provides several control modes like motion detection, schedule record, P/T/Z control and

remote surveillance applications.

Tracer 2000 DVR user manual

Version 3.0 Page 6of 36

FEATURE

The TRACER2000 comes with the following hardware devices:

Control panel with IR receiver

One10/100Mbps RJ-45 Ethernet Port

One RS 232 and one RS232/422/485 selectable interface

One VGA Connector

One speaker out

Two USB Ports

Two 3.5” HDD Supported

Four Audio-in Ports

Eight GPIO Ports

Remote Commander

Working temperature: 0 ~ 45 °C

Storage temperature: -10 ~ 65 °C

Relative humidity: Maximum 85%, non-condensing

Power requirement: AC 100 ~ 240V, 50 / 60 Hz, 150W maximum

Dimension: 265 mm (D) x 321mm (W) x 103mm (H)

Weight: 5Kg

Tracer 2000 DVR user manual

Version 3.0 Page 7of 36

CHAPTER II PACKAGE

Packing List

Check the accessories accompany with the system you purchase as listed below.

With newer package release, the accessories are compacted into an accessory box.

Please check the items and Contact to your dealer you bought from if any of them is

missing

 TRACER2000 System

 Power Cord

 Screws Pack

 Remote Commander

 Battery (AAA) X 2

 User’s Manual

 Installation CD-ROM

Please keep the packaging materials. You may need them for the use of further service.

Tracer 2000 DVR user manual

Version 3.0 Page 8of 36

CHAPTER III INSTALLATION

FRONT PANEL VIEW

REAR PANEL VIEW

CH2

CH1 CH7

CH3 CH4 CH5 CH6 CH8

CH16

CH15

CH14CH13CH12

CH11

CH10

CH9

ALARM IN

ALARM OUT4231

MIC4

MIC2 MIC3

MIC1

Power supply Parallel port BNC connectorGPIO

VGA USB Ports x 2 10/100 Ethernet

MIC and Speaker

Alarm Menu Display Playback Confirm

Removable Air

Filter Bracket

Removable Air

Filter Bracket

※Remove and clean up Air Filters monthly is essential.

LEFT RIGHT

DOWN

COM1 COM2

Audio

Tracer 2000 DVR user manual

Version 3.0 Page 9of 36

1 INDICATOR

Power LED: Green light shows power is on.

Status LED: Green light continuous on means

working properly.

Green light blinking shows status of recording

Red light continuous on means no signal (This

may implies HDD damaged, No Power, or Access

Error.)

Red light blinking shows status of recycling. (HDD

space less than 1 Gigabyte)

2 CABLE CONNECTION

Following is the basic device must be prepared before to start installation complete system.

1. Tracer 2000

2. CCD cameras

3. VGA monitor

Please follow the procedure to connect the cable.

2.1. Connect VGA Monitor

Power LED

Status LED

Tracer 2000 DVR user manual

Version 3.0 Page 10 of 36

2.2. Connect Camera Cable to BNC connector

2.3. Connect to LAN connector: Plug RJ-45 connector to LAN Port

2.5.1 Insert RJ-45 cable to network LAN socket on the rear.

2.5.2 Connect Serial port modem to serial connector (COM1) and through

Dial-in function to connect to Internet.
