412 –S2 STARTING BLOCK
CUSTOMER INSTRUCTIONS
Designed for high level
competition. Constructed of
aircraft quality aluminum.
Pedals feature four angle
adjustments.
Includes ½” pyramid spikes for
synthetic tracks.
Copyright © 2020 by Gill Athletics. All rights reserved.
GILL ATH
07/24/2020
INST412
Pedals adjust easily
along the length of
the rail.
Ruled decal makes
repeatable pedal
set-ups quick and
easy.
Pedals feature
four angle
adjustments.
45°55°65°75°
www.gillathletics.com
800-637-3090
412 –S2 STARTING BLOCK
CUSTOMER INSTRUCTIONS
Copyright © 2020 by Gill Athletics. All rights reserved.
GILL ATH
07/24/2020
INST412

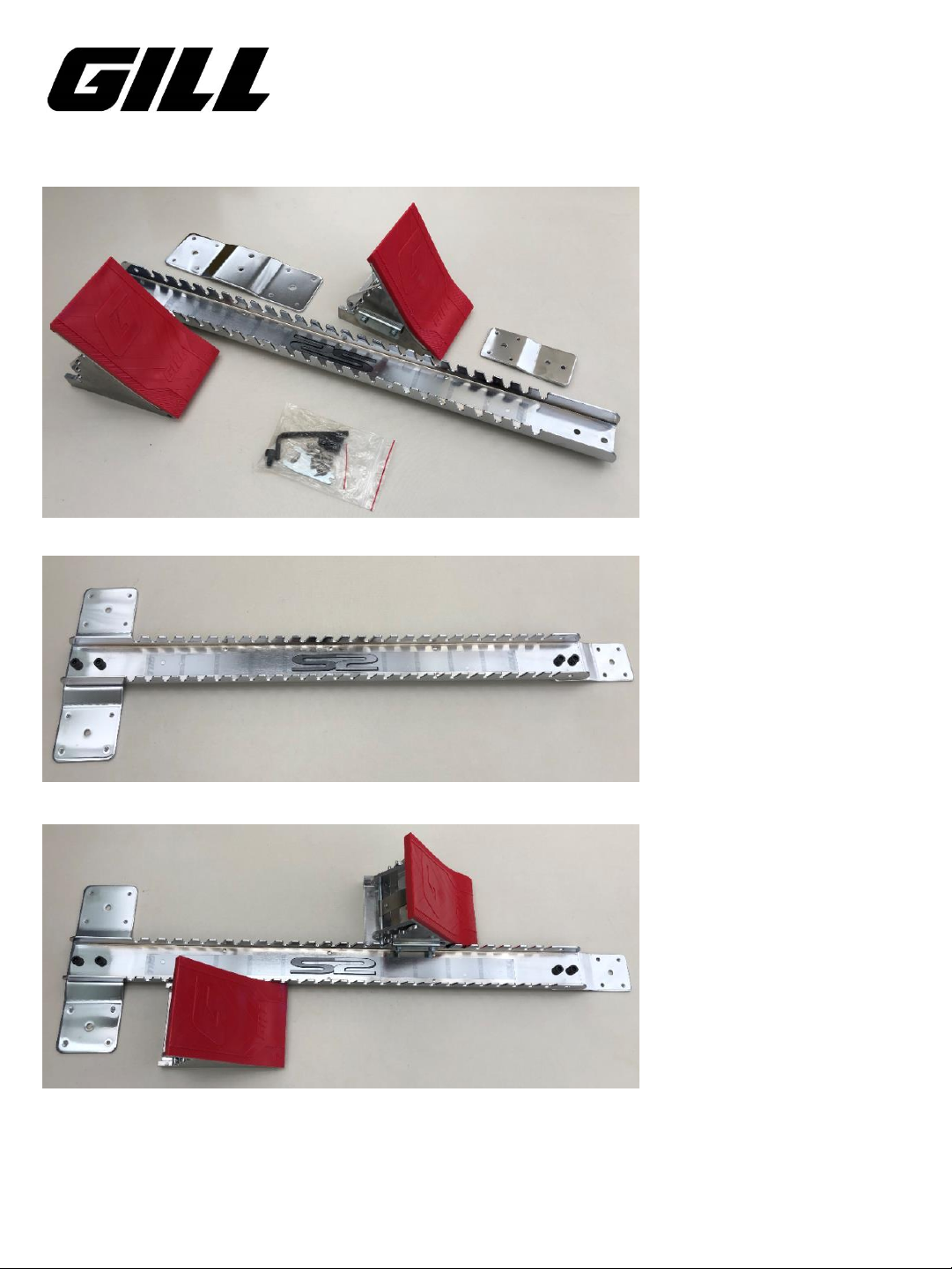

The 412 S2 Starting Block consists
of the following:
1x Rail (41210)
1x Front Stake Plate (P41204)
1x Rear Stake Plate (P41205)
1x Right Pedal (41220)
1x Left Pedal (41220)
4x Stake Plate Screw (P41211)
12x Pyramid Spikes ½” (P41001)
1x Allen Wrench
1x Spike Wrench
Using the four screws and
provided Allen wrench,
fasten the front and rear
stake plates to the rail.
The front stake plate should
be at the end of the
rail with the “10” marking.
The rear stake plate
should be at the end of the
rail with the “55”.
Turn the starting block back over
and place the pedals on the rail so
that they engage the “teeth” of
the rail. The pedals should face
the front of the rail, towards the
“10” marking. Adjust the angle of
the pedals as needed.
www.gillathletics.com
800-637-3090
412 –S2 STARTING BLOCK
CUSTOMER INSTRUCTIONS
Copyright © 2020 by Gill Athletics. All rights reserved.
GILL ATH
07/24/2020
INST412
P41402
Anchor Pin (bag of 3)
Sold Separate
41220
Left & Right Pedal Block (without pads)
41210
S2 Rail
41040C02
Blue Pad 41040C03
Red Pad
41040C12
Black Pad
P41214
Pedal Bracket + Hardware
P41211
Stake Plate Screw, 5/16”-18 x 1/2”
Socket cap (single screw)
P41213
Adjustment Spring and Rod
P41006
M6 x 25mm Set Screw
P41205
Rear Stake Plate
P41204
Front Stake Plate
P41215
5mm x 20mm Spring Pin
P41001
Pyramid Spikes (bag of 12)
