gofanco HDBaseT-HD20 Bedienungsanleitung
HDBaseT HDMI 2.0
Extender with Loopout
User's Guide
G4-0066A
P/N: HDBaseT-HD20
2
Thank you for purchasing from gofanco. Our
products aim to meet all your connectivity needs
wherever you go. For optimum performance
and safety, please read the instructions carefully
and keep this User’s Guide for future reference.
If you need more information about our
products, please visit www.gofanco.com. For
technical support, please email us at
download, please go to www.gofanco.com/
download.
Important Safety Notices
Please read safety instructions carefully before
installation and operation.
• Please pay close attention to all warnings
and hints for this device
• Do not expose this unit to rain, heavy
moisture, or liquid
• Do not repair the device or open the
enclosure without professional guidance
to avoid electric shocks. Doing so may void
your warranty
• Keep the product in a well-ventilated
location to avoid damage from overheating
3
• Shut off power and make sure environment
is safe before installation
• Do not plug the HDMI cables and IR cables
in/out when the device is in use to avoid
cable damage. Make sure they are plugged
into the correct ports
• Use the included DC24V power adapter
only. Make sure the specification matches
if using 3rd-party DC power adapters
Introduction
The HDBaseT HDMI 2.0 Extender with Loopout
extends Ultra High Definition 4K HDR HDMI
signals from a source device to a display device
up to 40 meters over a single CAT5e/6 cable.
Features
• TransmitsHDMIsignalsfromsourcedevice
to display device up to 40 meters using
economical CAT5e/6 cabling
• Supports bi-directional IR remote control
function to control the source device or
display device from long distances
4
• Supports Power over Cable (PoC)
technology,powersboththetransmitterunit
and receiver unit using only one power
adapter connected to either unit
• The Transmitter's HDMI loopout allows for
a local display and monitoring of the
extended display
PackageContents
• HDBaseTHDMI 2.0 Extender with Loopout
(1 Transmitter & 1 Receiver)
• 1x IR Blaster Extension cable and 1x IR
Receiver Extension cable
• 1x Power adapter (24VDC/1A)
• User's guide
Installation Requirements
1. HDMI source device (computer, DVD
player, XBOX, PS3, etc)
2. HDMI display device (SDTV/Monitor,
HDTV/Monitor, projector, etc.)
3. UTP/STP CAT5e/6 cable following
IEEE-568B wiring standard
5
Product Layout

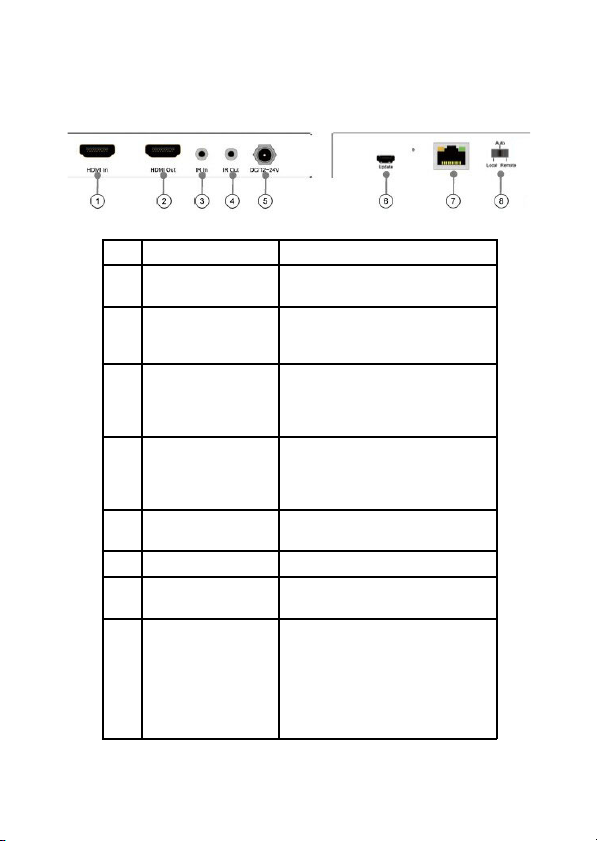

Transmitter TX Front and Rear Panel
No. Name Description
1 HDMI In Connects to your HDMI source
device
2HDMIOut
Connects to an HDMI display for
local monitoring of the remote
display device
3IRIn
Connects to the included IR
Receiver Extension cable to
control the remote display device
from the HDMI source location
4IROut
Connects to the included IR
Blaster Extension cable to control
the HDMI source device from the
remote display location
5 Power Adapter Jack Connects to the included power
adapter
6 Update USB port for firmware update
7RJ45Out Connects to the Receiver's RJ45
In using a CAT5e/6 cable
8EDID
Auto: 4K@60Hz (default)
Local: Copies the EDID from the
display connected to the
Transmitter's HDMI Out
Remote: Copies the EDID from the
remote display connected to the
Receiver's HDMI Out
6
Receiver RX Front and Rear Panel
No. Name Description
1 HDMI Out Connects to an HDMI display
2IROut
Connects to the included IR
Blaster Extension cable to control
the remote display device from
the HDMI source location
3IRIn
Connects to the included IR
Receiver Extension cable to
control the HDMI source device
from the remote display location
4 Power Adapter Jack Connects to the included power
adapter
5 Update USB port for firmware update
6 RJ45 In Connects to the Transmitter's
RJ45 Out using a CAT5e/6 cable
7
Hardware Installation
1. Power off all devices including your HDMI
source and HDMI display(s).
2. Connect your HDMI source device to the
Transmitter's HDMI In connector with an
HDMI cable (HDMI cable not included).
3. Optional: Connect an HDMI display to the
Transmitter's HDMI Out connector with an
HDMI cable (HDMI cable not included) for
local monitoring of the HDMI signal.
4. Optional: Connect the IR Extension cable to
the Transmitter's IR port. Face the IR eye
towards your HDMI device's IR window.
This connection is needed only if you need
to control your HDMI device from the
remote location. See the application
diagram on page 9 for proper cable
connection.
5. Plug your CAT5e/6 cable between the
Transmitter's RJ45 Out and Receiver's RJ45
In.
6. Connect your HDMI display to the
Receiver's HDMI Out connector with an
HDMI cable (HDMI cable not included).
8
7. Optional: Connect the IR Extension cable to
the Receiver's IR port. This connection is
needed only if you need to control your
HDMI device from the remote location. See
theapplication diagram on page 9 forproper
cable connection.
8. Plug the included power adapter into either
the Transmitter's or Receiver's power jack,
then plug power adapter into a reliable
power source. One power adapter will
power both the Transmitter and Receiver.
9. Power on all connected devices.
10. The HDMI extender is ready for use.
9
Application
Transmitter (TX)
Receiver (RX)
10
Specifications
