Gofanco HDbitTv2 Bedienungsanleitung

HDMI HDbitT CAT5e/6

Extender with IR - 120m

User's Guide

G4-0104A 1

P/N: HDbitTv2

Thank you for purchasing from gofanco. Our

products aim to meet all your connectivity needs

wherever you go. For optimum performance

and safety, please read the instructions carefully

and keep this User’s Guide for future reference. If

you need more information about our products,

please visit www.gofanco.com. For technical

support, pleaseemail usat [email protected].

For drivers/manuals download, please go to

http://www.gofanco.com/downloads.

Important Safety Notices

Please read safety instructions carefully before

installation and operation.

• Please pay close attention to all warnings

and hints for this device

• Do not expose this unit to rain, heavy

moisture, or liquid

• Do not repair the device or open the

enclosure without professional guidance to

avoid electric shocks. Doing so may void

your warranty

• Keep the product in a well-ventilated

location to avoid damage from overheating

• Shut off power and make sure environment

is safe before installation

• Do not plug the HDMI cables and IR cables

in/out when the device is in use to avoid

cable damage. Make sure they are plugged

into the correct ports

• Use the included DC5V power adapters

only. Make sure the specification matches if

using 3rd-party DC power adapters

Introduction

HDMI HDbitT CAT5e/6 Extender with IR -

120m extends high definition 1080P HDMI signals

from a source device to a display device up to 120

meters using one economical CAT5e/6 cable

with with IR support.

Package Contents

• HDMI HDbitT CAT5e/6 Extender with IR

- 120m (1 TX & 1 RX)

• IR Blaster and IR Receiver cables (1 each)

• Power adapter (2pcs)

• User guide

Features

• Extends HDMI audio/video signals up to

394ft (120m) over a single CAT5e/6 cable

• Supports resolutions up to 1080p@60Hz

• Direct one-to-one connection or one-to-

multiple over your Gigabit Ethernet switch

- additional RXs, part number HDbitTv2-

RX, sold separately

• Supports IR signal extension - control a

media player from a remote location with

the included IR Blaster and IR Receiver

cables

• Includes 2 power adapters to ensure a steady

flow of power and data transmission

Installation Requirements

1. HDMI source device (computer, DVD

player, XBOX, PS3, etc)

2. HDMI display device (SDTV/Monitor,

HDTV/Monitor, projector, etc.)

3. UTP/STP CAT5e/6 cable following

IEEE-T568B wiring standard

Product Layout

Figure 1: Transmitter (TX)

1. Reset: Press to reset the Transmitter

2. HDMI In: Connects to your HDMI source

with an HDMI cable (cable not included)

3. IR Out: Connects to the IR Blaster cable

4. Power Jack: Connects to the included power

adapter

5. Power LED: On when the Transmitter is

powered

6. RJ45 Out: Connects to the RJ45 of the

Receiver using a Cat cable

7. Data LED: Blinks during data transmission

8. Link LED: On when Cat cable is connected/

linked properly to Transmitter's and

Receiver's RJ45

Figure 2: Receiver (RX)

1. Reset: Press to reset the Receiver

2. HDMI Out: Connects to your HDMI display

with an HDMI cable (cable not included)

3. IR In: Connects to the IR Receiver cable

4. Power Jack: Connects to the included power

adapter

5. Power LED: On when the Receiver is

powered

6. RJ45 In: Connects to the RJ45 of the

Transmitter using a Cat cable

7. Data LED: Blinks during data transmission

8. Link LED: On when Cat cable is connected/

linked properly to Transmitter's and

Receiver's RJ45

Hardware Installation

1. Power off all devices including your HDMI

source and HDMI display(s).

2. Connect your HDMI source device to the

Transmitter's HDMI Input connector with

an HDMI cable (HDMI cable not included).

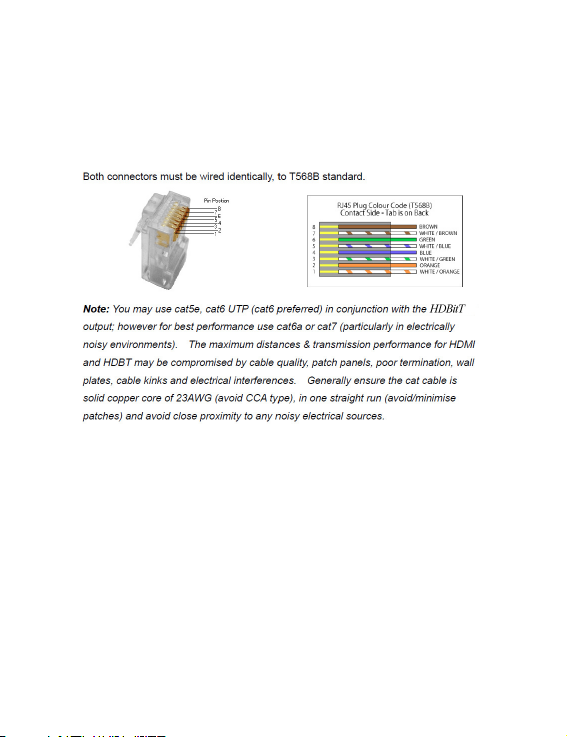

CAT Cable Wiring

We suggest both RJ45 connectors be wired

identically using T568B wiring standard for the

best performance and compatibility.

3. Optional: Connect the IR Blaster cable to

the Transmitter's IR Output port. Face the

eye towards your HDMI source device's IR

window. This connection is needed only if

you need to control your HDMI source

from the remote location.

4. Plug your CAT5e/6 cable between the

Transmitter's RJ45 Output and Receiver's

RJ45 Input.

5. Connect your HDMI display to the

Receiver's HDMI Output connector with a

HDMI cable (HDMI cable not included).

6. Optional: Connect the IR Receiver cable to

the Receiver's IR Input port. This connection

is needed only if you need to control your

HDMI source device from the remote

location.

7. Plug the included power adapters into the

Transmitter's and Receiver's power jacks,

thenplug bothpower adaptersinto areliable

power source.

8. Power on all connected devices.

9. The HDMI extender is ready for use.

Application

1-to-1 Connection

Direct connection between the TX and RX or

through a Gigabit LAN via a Dedicated Gigabit

Switch. If deployed within an existing network,

create a VLAN to segregate our devices (TX and

RX) from the rest of the network devices.

1-to-1 LAN Connection

1-to-1 Direct Connection

1-to-Many Connection

A Dedicated Gigabit Switch is recommended. If

deployed within an existing network, create a

VLAN to segregate our devices (TX and RX's)

from the rest of the network devices.

Notes:

- Many-to-Many Connection: A Smart Switch is

required. Create a separate VLAN for each TX

and its corresponding RX's. Each VLAN can

only have 1 TX.

- Additional RXs, part number HDbitTv2-RX,

sold separately.
