Gofanco HDExt Bedienungsanleitung

50m HDMI Extender over Single Cat5e/6

with 3D Support

U er Manual

P/N: HDExt

G4-0032A

Thank you for purchasin from ofanco. Our products aim to meet all your

connectivity needs wherever you o. For optimum performance and safety, please

read the instructions carefully and keep this User's Guide for future reference. If you

need more information about our products, please visit www. ofanco.com. For

technical support, please email us at support@ ofanco.com. For drivers/manuals

download, please o to http://www. ofanco.com/download.

IMPORTANT SAFETY NOTICES

Please read safety instructions carefully before installation and operation.

Please pay close attention to all warnin s and hints for this device

Do not expose this unit to rain, heavy moisture, or liquid

Do not put any items into the device or attempt to modify its operation

Do not repair the device or open the enclosure without professional

uidance to avoid electric shocks. Doin so may void your warranty

Keep the product well-ventilated to avoid dama e from overheatin

Shut off power and make sure environment is safe before installation

Do not insert or remove the HDMI cables when the device is in use to

avoid cable dama e. Make sure they are plu ed into the correct

ports.

Use the included power adapters only. Make sure the specifications

match if usin 3rd-party DC power adapters

TABLE OF CONTENTS

Introduction .......................................................……....... 4

Features............................................................……….... 4

Packa e Contents..............................................………… 5

Installation Requirements..............................………........ 5

Product Description............................................………… 6

Hardware Installation ........................................……….... 8

Connection Dia ram .........................................………… 9

Specifications ............................................…………….... 10

PACKAGE CONTENTS

The followin items are necessary for the correct setup, use, and

maintenance of your HDMI extender:

●HDMI Transmitter (1 piece)

●HDMI Receiver (1 piece)

●Power adapters (2 pieces)

●User’s Manual (1 piece, this document)

●Mountin ears (4) & screws (8)

If any of the e item i mi ing, plea e contact either

gofanco or your vendor.

INSTALLATION REQUIREMENTS

1) HDMI source device (computer, DVD player, ame console,

etc. . .)

2) HDMI display device (SDTV/Monitor, HDTV/Monitor,

projector, etc. . .)

3) CAT5e/6 cable terminated at both ends with an RJ45

connector

PRODUCT DESCRIPTION

Transmitter Unit

1) Statu LED: Indicates the state of the si nal connection

2) HDMI input port: Receives the HDMI si nal to be

transmitted

3) EDID copy button: Retrieves the EDID information from

the display

4) CAT-5e/6 output: Connect one end of the Cat5e/6 cable to

this port

5) Power input: This is where the transmitter receives power

from the 5V DC power supply

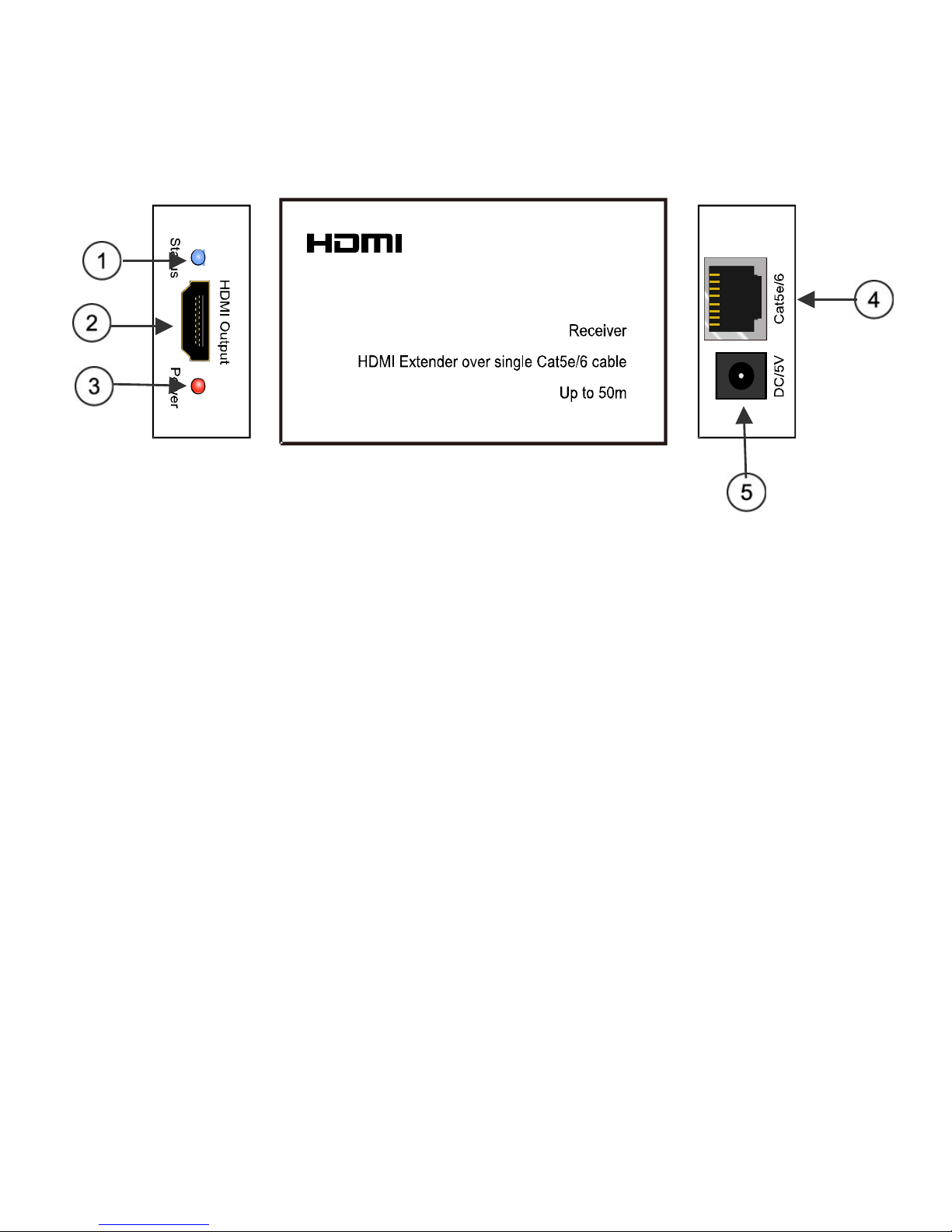

Receiver Unit

1) Statu LED: This LED li hts when the receiver is

connected to the transmitter via the Cat5e/6 cable

2) HDMI output port: Recreates the ori inal HDMI si nal

3) Power LED: Indicates whether the receiver is powered on

4) CAT-5E/6 input: Connect one end of the Cat5e/6 cable to

this port

5) Power input: This is where the receiver is supplied power

from the 5V DC power supply

HARDWARE INSTALLATION

1) Power off all devices includin your HDMI source and HDMI

display.

2) Connect your HDMI source device to the Transmitter's

HDMI Input connector with an HDMI cable (HDMI cable not

included).

3) Plu your CAT5e/6 cable between the Transmitter's RJ45

Output and the Receiver's RJ45 Input.

4) Connect your HDMI display to the Receiver's HDMI ouput

connector with an HDMI cable (HDMI cable not included).

5) Plu the included power adapters into the Transmitter's and

Receiver's power jacks (labeled “DC/5V”), then plu both

power adapters into a reliable electrical socket.

6) Power on the HDMI source and display devices.

7) The HDMI extender is ready for use.

ATTENTION: Insert and remove cables ently. When insertin

the Cat5e or Cat6 cable, stop insertin when you hear the “click”

sound. To unplu the Cat5e or Cat6 cable, press down on the

lockin tab and pull the cable out.

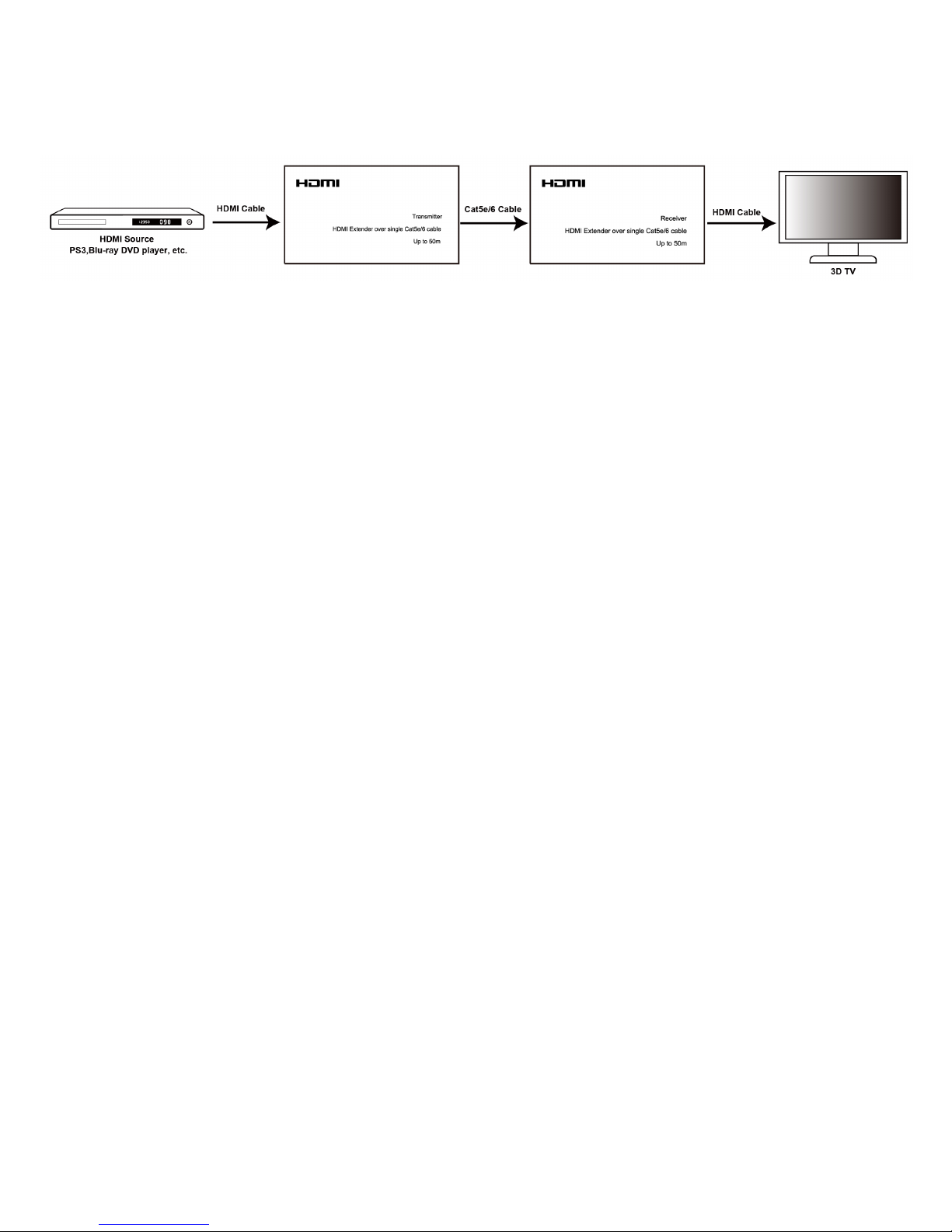

CONNECTION DIAGRAM

*Note: If the sink (e. . HD TV) can’t display any si nal, try this.

Connect the TV/display directly to the Transmitter’s HDMI Input,

plu in the Transmitter’s power adapter, then press the

transmitter’s “EDID” button. The “Status” li ht will then flash,

which indicates that the EDID data has been copied from the

display device successfully. Holdin down the “EDID” button for 3

seconds will reset the EDID on the transmitter back to its default.

SPECIFICATIONS

Operatin Temperature Ran e -5℃ to +35℃ (+23℉ to +95℉)

Operatin Humidity Ran e

5 to 90%RH (Non-Condensin )

Input Video Si nal

0.5-1.0 Volts P-P

Input DDC Si nal

5 volts p-p(TTL)

Support Video Formats

576i, 480P, 576P, 720P, 1080i, 1080P

3D video①

Video Output

HDMI

Support Audio Format DTS-HDTM Master Audio, Dolby TrueHDTM

Transmission Distance 50m (Maximum) for 1080P over a sin le

Cat5e or Cat6 cable with solid 24AWG wire

Power consumption

5 watts (Maximum)

Dimension (L×W×H) Both the Transmitter and Receiver are

83x48x25mm

Net Wei ht

250 (Pair)

①Sink mu t upport 3D video when the ource i a 3D device
