gofanco HDbitT4K Bedienungsanleitung
HDMI HDbitT CAT5e/6
Extender 4K - 120m
User's Guide
G4-0053A
P/N:HDbitT4K
2
Thank you for purchasing from gofanco. Our products
aim to meet all your connectivity needs wherever you
go. For optimum performance and safety, please read
the instructions carefully and keep this User's Guide for
future reference. If you need more information about
our products, please visit www.gofanco.com. For
For drivers/manuals download, please go to
http://www.gofanco.com/download.
Important Safety Notices
Pleasereadsafetyinstructionscarefullybeforeinstallation
and operation.
• Please pay close attention to all warnings and hints
for this device
• Do not expose this unit to rain, heavy moisture, or
liquid
• Do not put any items into the device or attempt to
modify its operation
• Do not repair the device or open the enclosure
without professional guidance to avoid electric
shocks. Doing so may void your warranty
• Keep the product in a well-ventilated location to
avoid damage from overheating
• Shut off power and make sure environment is safe
before installation
• Do not plug the HDMI cables and IR cables
in/out when the device is in use to avoid cable
damage. Make sure they are plugged into the
correct ports
• Use the included power adapters only. Make sure
the specification matches if using 3rd-party DC
power adapters
3
Introduction
TheHDMI HDbitT CAT5e/6 Extender 4K- 120m extends
4K HDMI signals over one Cat5e/6 cable up to 120m
(394ft) with IR support.
Features
•HDMI 2.0 and HDCP 2.2 compliant
•Extends HDMI signal up to 120 meters over a single
Cat5e/6 cable
•Supports One-to-One, One-to-Many, and Cascade
configurations
•Additional Receivers (part # HDbitT4K-RX) sold
separately
•Supports IR remote control function to control the
source device from long distances

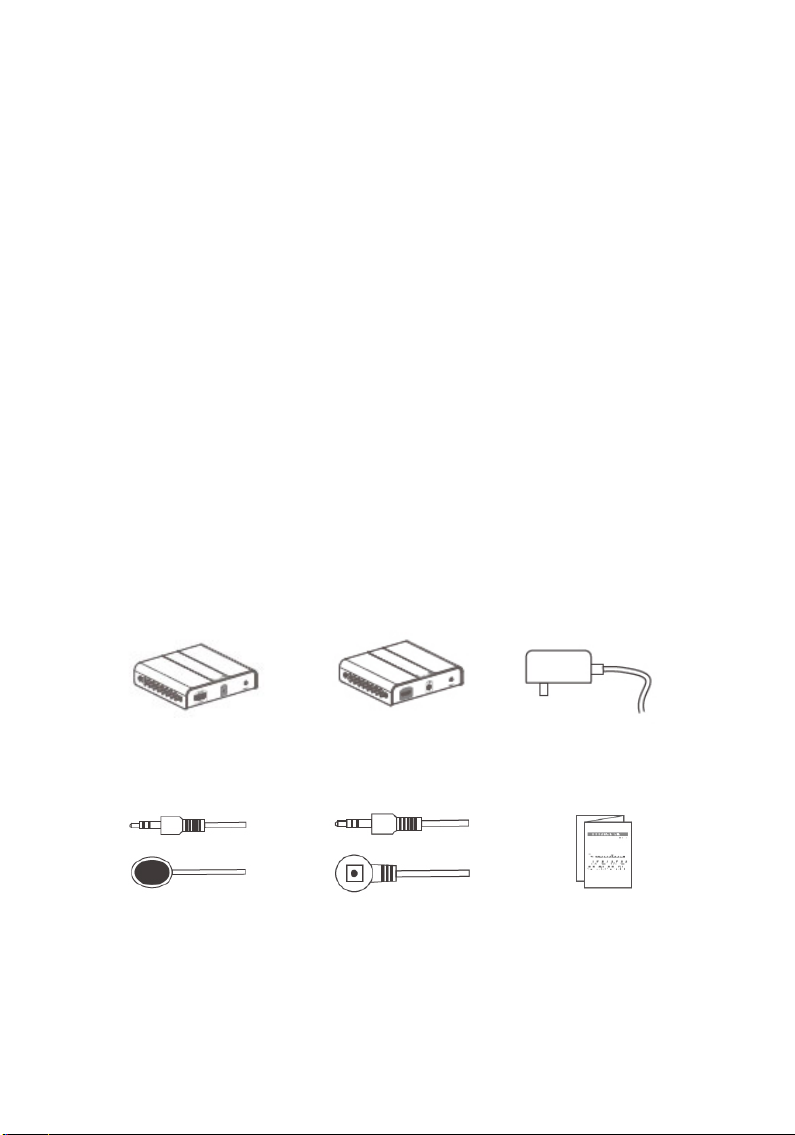

PackageContents
Transmitter (1pc) Power Adapter
5VDC/3A (2pcs)
IR Blaster Extension
Cable (1pc)
User's Guide (1pc)
Receiver (1pc)
IR Receiver Extension
Cable (1pc)
4
Product Layout
Figure 1: Transmitter (TX)
1HDMI In: Connect your HDMI source here with an
HDMI cable (cable not included)
2IR Out: Infrared 3.5mm socket. Plug IR Blaster
Extension Cable here. See instructions on page 6.
3Reset: Press to reset if HDMI Extender doesn't work
properly
4Power LED: On when the Transmitter is powered
5Power Jack: Connect the included power adapter
here
6Activity LED: Blinks during data transmission
7Link LED:On when theCat5e/6 cable is connected/
linked properly to Transmitter's and Receiver's RJ45
8RJ45 Out: Link to Receiver's RJ45 In using a
Cat5e/6 cable
5
Figure 2: Receiver (RX)
1HDMI Out: Connect your HDMI display here with
an HDMI cable (cable not included)
2IR In: Infrared 3.5mm socket. Plug IR Receiver
Extension Cable here. See instructions on page 6.
3Reset: Press to reset if HDMI Extender doesn't work
properly
4Power LED: On when the Receiver is powered
5Power Jack: Connect the included power adapter
here
6Activity LED: Blinks during data transmission
7Link LED:On when theCat5e/6 cable is connected/
linked properly to Transmitter's and Receiver's RJ45
8RJ45 In: Link to the Transmitter's RJ45 Out via a
Cat5e/6 cable
Installation Requirements
1. HDMI source device (DVD player, set top box, PC,
etc.)
2. HDMI display device (SDTV/Monitor, HDTV/
Monitor, projector, etc.)
3. HDMI cables (not included)
4. UTP/STP CAT5e/6/6A/7 cable, following
IEEE-568B wiring standard
6
Hardware Installation
To achieve optimal performance, Cat6 cable is
recommended.
1. Power off all devices including your HDMI source
and HDMI display.
2. Connect your HDMI source to the Transmitter's
HDMI In connector.
3. Optional: Connect the IR Blaster Extension Cable
to the Transmitter's IR Out port. Face the eye
towards your HDMI source device's IR window.
This connection is needed only if you need to
control your HDMI source from the remote
location.
4. Connect your Cat5e/6 cable between the
Transmitter's RJ45 Out and Receiver's RJ45 In.
5. Connect your HDMI display to the Receiver's
HDMI Out connector with an HDMI cable (HDMI
cable not included).
6. Optional: Connect the IR Receiver Extension Cable
to the Receiver's IR In port. This connection is
needed only if you need to control your HDMI
source device from the remote location.
7. Plug the included power adapters into the
Transmitter's and Receiver's Power Jacks, then
plug both power adapters into reliable power
outlets.
8. Power on your HDMI source device and HDMI
displays. The extender is ready for use.
7
Connection Diagram
1. One-to-One:ExtendsHDMIsignals up to120meters
over a single Cat5e/6 cable.
2. One-to-Many: Extend and split using dedicated
network router/switch.
- One Transmitter (TX) to several Receivers (RX).
- Additional Receivers (part # HDbitT4K-RX) sold
separately.
Transmitter
Transmitter
Receiver
Receiver
Receiver
Receiver
8
3. Cascade: Unlimited extension with dedicated
network router/switch.
9
FAQ & Solutions
Q1: The TV displays "Waiting for connection..." on the
bottom-right corner:
A: 1. Check whether the power adapter of Transmitter
(TX) and Receiver (RX) or Network Router/Switch
(if used) is connected.
2. Make sure the network cable (Cat5e/6) is firmly
connected between the TX and RX.
Q2: The TV displays "Please check the TX input signal":
A: 1. Make sure the HDMI source device is connected
to the Transmitter (TX) and powered on.
2. Use other HDMI cables to connect.
3. If still doesn't work, connect the HDMI source
device to the TV directly to see if there's a signal.
Q3: The HDMI extender isn't working properly:
A: 1. Please check the cable lengths are within below:
- HDMI cables: 2 meters
- Network cable (Cat5e/6): 120 meters
2. Press the "Reset" button on the TX and RX and
reconnect.
10
Specifications
Item Specification
Compliance HDMI 2.0, HDCP 2.2
Transmission protocol HDbitT
Latency <200ms
HDMI input resolution
480i@60Hz, 480p@60Hz, 576i@50Hz,
576p@50Hz, 720p@50/60Hz,
1080i@50/60Hz, 1080p@50/60Hz,
4Kx2K@24/25/30/60Hz
HDMI output resolution 1080p@60Hz, 4Kx2K@30/60Hz
Transmission distance Up to 120m (394ft)
IR signal 20KHz - 60KHz
Operating temperature 32 - 121 F (0 - 50 C)
Power adapter 5VDC / 3A
Power consumption TX: <8W; RX: <10W
Dimensions 4.1" (L) x 3.8" (W) x 0.98" (H)
Weight TX & RX: 0.53 lbs (each)
