MX-5004MZ2E-CF

4x2 HDMI 2.0a Quad-View Video Processor with 4K2K60

4:4:4 & USB-C 4K Video Capture Function

User Manual

rev: 210521

Made in Taiwan

TABLE OF CONTENTS

INTRODUCTION ................................................................................................................1

FEATURES.........................................................................................................................1

SPECIFICATIONS..............................................................................................................2

PACKAGE CONTENTS......................................................................................................3

PANEL DESCRIPTIONS ....................................................................................................3

CONNECTION DIAGRAM ..................................................................................................4

HARDWARE INSTALLATION.............................................................................................4

OPERATION APPROACH..................................................................................................5

USB PIN DEFINITION ......................................................................................................20

WARRANTY.....................................................................................................................21

-1-

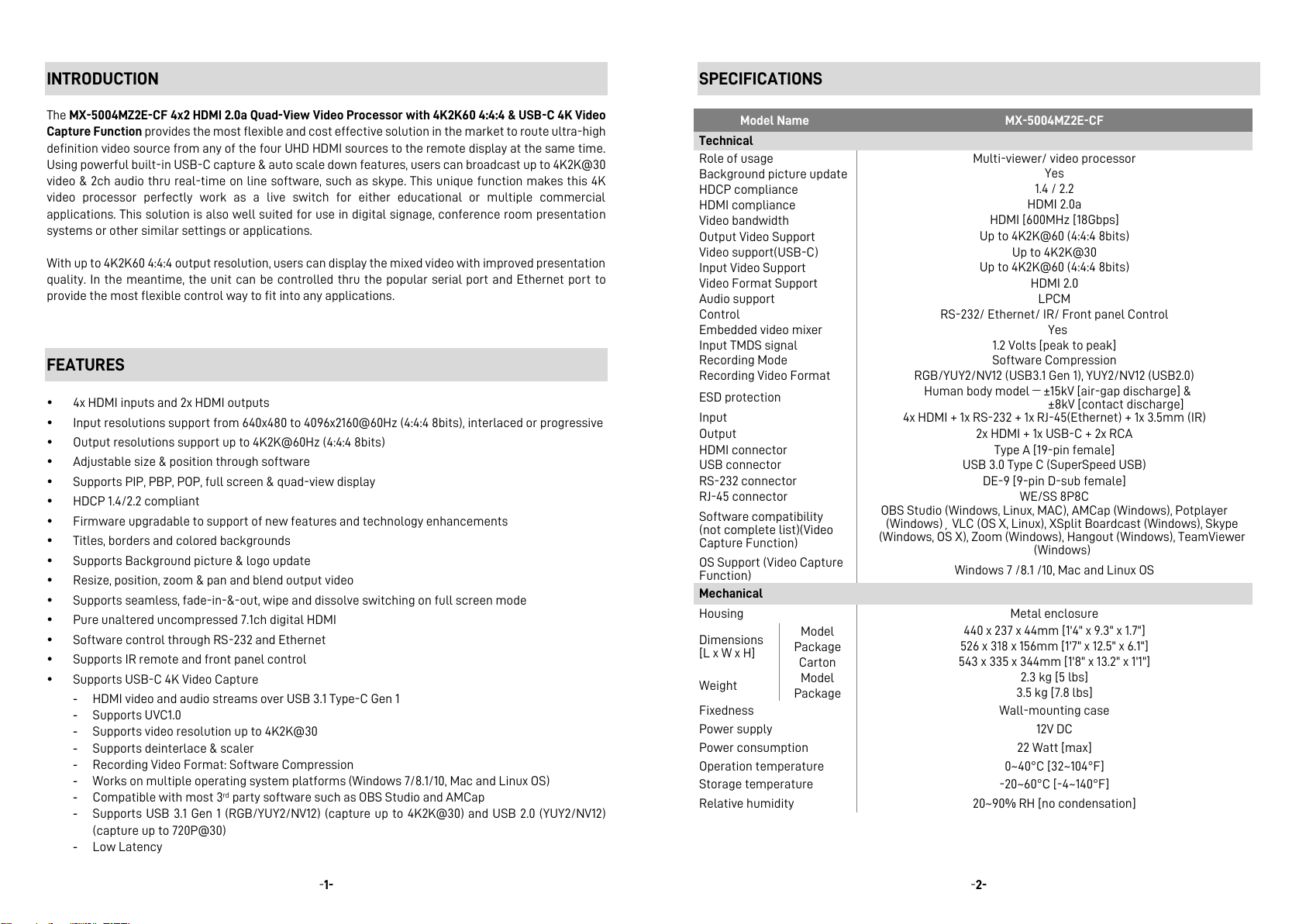

INTRODUCTION

The MX-5004MZ2E-CF 4x2 HDMI 2.0a Quad-View Video Processor with 4K2K60 4:4:4 & USB-C 4K Video

Capture Function provides the most flexible and cost effective solution in the market to route ultra-high

definition video source from any of the four UHD HDMI sources to the remote display at the same time.

Using powerful built-in USB-C capture & auto scale down features, users can broadcast up to 4K2K@30

video & 2ch audio thru real-time on line software, such as skype. This unique function makes this 4K

video processor perfectly work as a live switch for either educational or multiple commercial

applications. This solution is also well suited for use in digital signage, conference room presentation

systems or other similar settings or applications.

With up to 4K2K60 4:4:4 output resolution, users can display the mixed video with improved presentation

quality. In the meantime, the unit can be controlled thru the popular serial port and Ethernet port to

provide the most flexible control way to fit into any applications.

FEATURES

4x HDMI inputs and 2x HDMI outputs

Input resolutions support from 640x480 to 4096x2160@60Hz (4:4:4 8bits), interlaced or progressive

Output resolutions support up to 4K2K@60Hz (4:4:4 8bits)

Adjustable size & position through software

Supports PIP, PBP, POP, full screen & quad-view display

HDCP 1.4/2.2 compliant

Firmware upgradable to support of new features and technology enhancements

Titles, borders and colored backgrounds

Supports Background picture & logo update

Resize, position, zoom & pan and blend output video

Supports seamless, fade-in-&-out, wipe and dissolve switching on full screen mode

Pure unaltered uncompressed 7.1ch digital HDMI

Software control through RS-232 and Ethernet

Supports IR remote and front panel control

Supports USB-C 4K Video Capture

- HDMI video and audio streams over USB 3.1 Type-C Gen 1

- Supports UVC1.0

- Supports video resolution up to 4K2K@30

- Supports deinterlace & scaler

- Recording Video Format: Software Compression

- Works on multiple operating system platforms (Windows 7/8.1/10, Mac and Linux OS)

- Compatible with most 3rd party software such as OBS Studio and AMCap

- Supports USB 3.1 Gen 1 (RGB/YUY2/NV12) (capture up to 4K2K@30) and USB 2.0 (YUY2/NV12)

(capture up to 720P@30)

- Low Latency

-2-

SPECIFICATIONS

Model Name

MX-5004MZ2E-CF

Technical

Role of usage

Multi-viewer/ video processor

Background picture update

Yes

HDCP compliance

1.4 / 2.2

HDMI compliance

HDMI 2.0a

Video bandwidth

HDMI [600MHz [18Gbps]

Output Video Support

Up to 4K2K@60 (4:4:4 8bits)

Video support(USB-C)

Up to 4K2K@30

Input Video Support

Up to 4K2K@60 (4:4:4 8bits)

Video Format Support

HDMI 2.0

Audio support

LPCM

Control

RS-232/ Ethernet/ IR/ Front panel Control

Embedded video mixer

Yes

Input TMDS signal

1.2 Volts [peak to peak]

Recording Mode

Software Compression

Recording Video Format

RGB/YUY2/NV12 (USB3.1 Gen 1), YUY2/NV12 (USB2.0)

ESD protection

Human body model —±15kV [air-gap discharge] &

±8kV [contact discharge]

Input

4x HDMI + 1x RS-232 + 1x RJ-45(Ethernet) + 1x 3.5mm (IR)

Output

2x HDMI + 1x USB-C + 2x RCA

HDMI connector

Type A [19-pin female]

USB connector

USB 3.0 Type C (SuperSpeed USB)

RS-232 connector

DE-9 [9-pin D-sub female]

RJ-45 connector

WE/SS 8P8C

Software compatibility

(not complete list)(Video

Capture Function)

OBS Studio (Windows, Linux, MAC), AMCap (Windows), Potplayer

(Windows)¸ VLC (OS X, Linux), XSplit Boardcast (Windows), Skype

(Windows, OS X), Zoom (Windows), Hangout (Windows), TeamViewer

(Windows)

OS Support (Video Capture

Function)

Windows 7 /8.1 /10, Mac and Linux OS

Mechanical

Housing

Metal enclosure

Dimensions

[L x W x H]

Model

440 x 237 x 44mm [1'4" x 9.3" x 1.7"]

Package

526 x 318 x 156mm [1'7" x 12.5" x 6.1"]

Carton

543 x 335 x 344mm [1'8" x 13.2" x 1'1"]

Weight

Model

2.3 kg [5 lbs]

Package

3.5 kg [7.8 lbs]

Fixedness

Wall-mounting case

Power supply

12V DC

Power consumption

22 Watt [max]

Operation temperature

0~40°C [32~104°F]

Storage temperature

-20~60°C [-4~140°F]

Relative humidity

20~90% RH [no condensation]

-3-

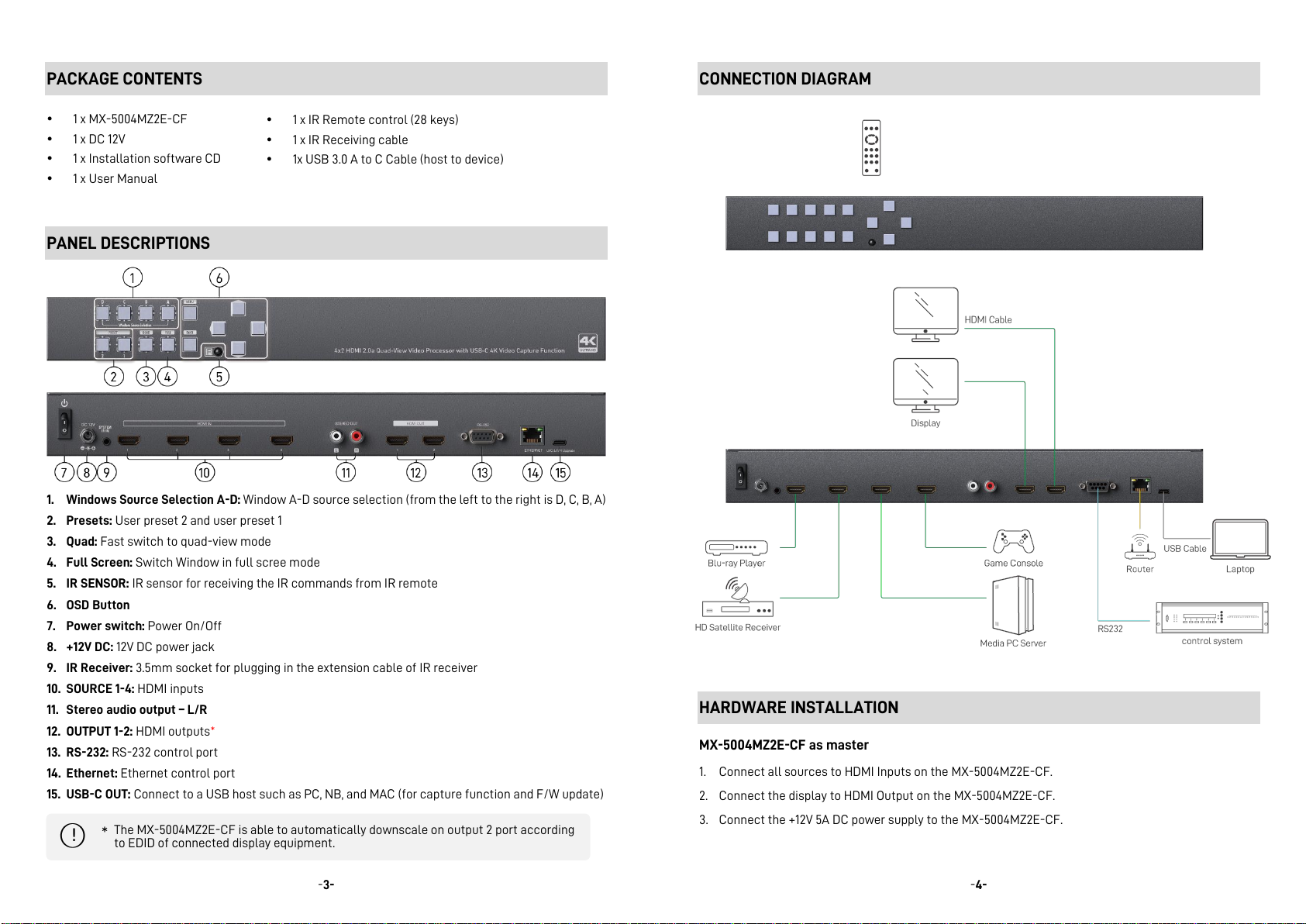

PACKAGE CONTENTS

1 x MX-5004MZ2E-CF

1 x DC 12V

1 x Installation software CD

1 x User Manual

PANEL DESCRIPTIONS

1. Windows Source Selection A-D: Window A-D source selection (from the left to the right is D, C, B, A)

2. Presets: User preset 2 and user preset 1

3. Quad: Fast switch to quad-view mode

4. Full Screen: Switch Window in full scree mode

5. IR SENSOR: IR sensor for receiving the IR commands from IR remote

6. OSD Button

7. Power switch: Power On/Off

8. +12V DC: 12V DC power jack

9. IR Receiver: 3.5mm socket for plugging in the extension cable of IR receiver

10. SOURCE 1-4: HDMI inputs

11. Stereo audio output –L/R

12. OUTPUT 1-2: HDMI outputs*

13. RS-232: RS-232 control port

14. Ethernet: Ethernet control port

15. USB-C OUT: Connect to a USB host such as PC, NB, and MAC (for capture function and F/W update)

The MX-5004MZ2E-CF is able to automatically downscale on output 2 port according

to EDID of connected display equipment.

1 x IR Remote control (28 keys)

1 x IR Receiving cable

1x USB 3.0 A to C Cable (host to device)

-4-

CONNECTION DIAGRAM

HARDWARE INSTALLATION

MX-5004MZ2E-CF as master

1. Connect all sources to HDMI Inputs on the MX-5004MZ2E-CF.

2. Connect the display to HDMI Output on the MX-5004MZ2E-CF.

3. Connect the +12V 5A DC power supply to the MX-5004MZ2E-CF.

-5-

OPERATION APPROACH

Method A: IR Remote Control

Button

Function

POWER

Power on/off the device

LOCK

Lock/unlock the device

▲

Arrow button (up)

OSD menu

AUDIO

Select audio sources

Arrow button (right)

Trigger the setting

Arrow button (left)

MUTE

Turn off the audio

BACK

Back to previous page of OSD menu

▼

Arrow button (down)

EXIT

Exit from the menus

Reserved

720P

Switch output resolution to 720p 60Hz

1080P

Switch output resolution to 1080p 60Hz

4K2K

Switch output resolution to 4K2K 60Hz

QUAD

Fast switch to quad-view mode

FULL

Fast switch to full screen mode

Background

To set up the background picture of window

LABEL

Window label ON/OFF

Select source D to be the input source

Select source C to be the input source

Select source B to be the input source

Select source A to be the input source

User preset 4

User preset 3

User preset 2

User preset 1

▲

-6-

Method B: Software Control through Micro-USB port

1. System Requirement

(1) OS Information: MS Win XP/7/8/10

(2) Baud rates: 115200

(3) Software size: 10 MB

(4) Minimum RAM requirement: 256 MB

2. Control Interface

When clicking on the executable file, the following dialog will pop-up (under Microsoft Windows 7,

please run as administrator)

RS-232 serial Mode: Use RS-232 to connect the port on device and computer. Select correct COM

port and click the OK button.

Ethernet Mode: Enter the IP address of the device and click the OK button.

After the software control setting is accomplished, it will enter directly to control interface.

-7-

Control Interface

1. Connection Status:

Show the connect information and status. If users use RS-232 serial Mode to connect device, the

graph is . In contrast, the graph of Ethernet is . In addition, if users would link to change

the control method, uses can click on the button to change.

-8-

2. Output Settings

In this section, users can set up the coordinate for inputs, the source of window A~D, output

resolution, layout setting (PAP or full screen) and switch mode.

(1) Source Selection

For each display window, you can assign arbitrary video source here.

(2) Quick Selection

We provide 9 default modes, 8 custom modes and 4 switching effects (Seamless, Fade in/out,

Dissolve, Wipe) for user to select.

(3) Output Resolution

Set the output resolution.

-9-

(4) Save Layout

We provide 8 custom layout space for users to save the frequently used scenarios into the flash

memory.

(5) Display Panel

In the left part of control interface, user can customize the display mode thru control. The

different colors of frame represent the different input windows. The information of coordinate

shows the position of input source screen. In addition, we provide display ratio for users to set

the display panel sizes. If you want to change window layer, please drag window icon in Layer

Control section.

-10-

3. Advanced Setting

(1) Label Text

In here, users can input the texts to be shown with the video.

(2) Sound

To set up the audio source of the output and R/L channels.

Audio Mode

Fixed: The audio source of the output and R/L channels will fix to be selected source

Follow Full-Screen: The audio source of output and R/L channels will follow selected full

screen. (This function only can be enabled on full screen mode)

-11-

(3) Window Label

In this function, users can determine if the window’s label/border is turned on or off.

(4) Background

To set up the background of window. We provide 4 empty space for user to upload background

pictures. User can click File button to load the picture which you want to use and click Start

button to write this picture into the device.

(5) HDR Control

To Enable/ Disable HDR

-12-

4. Crop Setting

* If users want to use Crop mode, remember to set the window A-D to the same video source in the

Source Selection of the Connection Status page.

(1) Visible Window Control

Users can customize the display mode thru control. First, select the input windows to be

displayed on output1 and output2 on the right. Then adjust the range of the window in the Display

Panel on the left. The different colors of frame represent the different input windows.

-13-

(2) Corp Area & Crop Area Control

User can customize the range to crop video source and display it on window A-D. Define the area

range by entering parameters or adjusting the frame in the crop area. After setting the crop range,

please click the “Enable Crop” and the “OK” button.

(3) To get the width & height of source information

Users can get the width & height of source 1-4 information as a reference for the cutting range.

* The image below shows an example of using Crop mode.

-14-

5. EDID (Extended display identification data)

Learn EDID from Default or Display

Select EDID

Select Input

Click button to learn EDID.

-15-

6. Net Setting

(1) IP Configure

User also can use the WEB to control the mixer. Please setup the Ethernet for the unit as below

example shows. After the step of IP configuration, please click the button.

The default IP: 192.168.1.46

IP Configure-DHCP mode

Select DHCP and click button to automatically get the IP address

IP Configure-Static mode

Select Static and then key in the “IP”, “MASK”, “GATEWAY” information. After the step of IP

configuration, please click the button. The setup of Ethernet for the unit as

below example shows.

-16-

(2) MAC address

MAC

Read the device’s MAC address information.

-17-

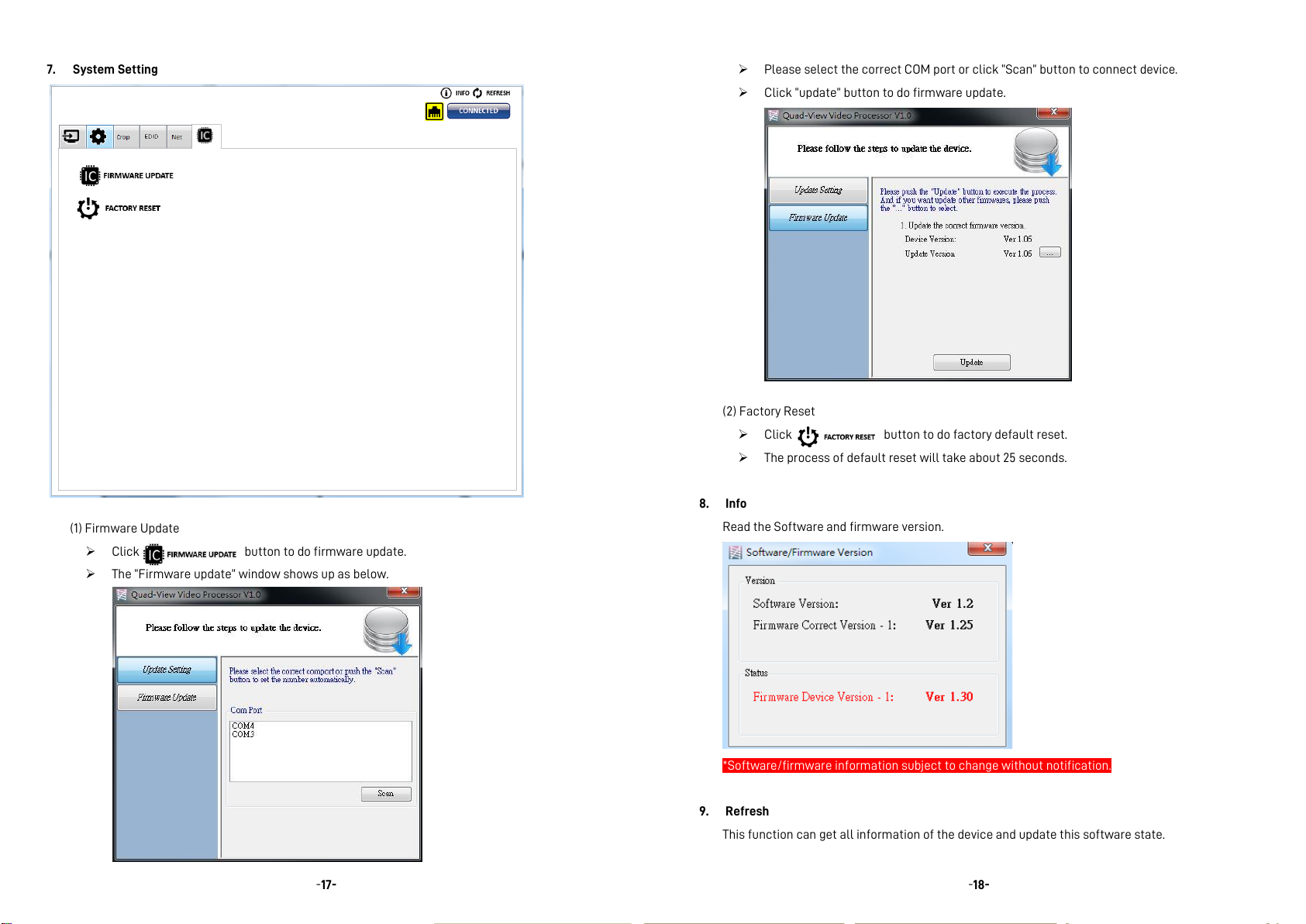

7. System Setting

(1) Firmware Update

Click button to do firmware update.

The “Firmware update” window shows up as below.

-18-

Please select the correct COM port or click “Scan” button to connect device.

Click “update” button to do firmware update.

(2) Factory Reset

Click button to do factory default reset.

The process of default reset will take about 25 seconds.

8. Info

Read the Software and firmware version.

*Software/firmware information subject to change without notification.

9. Refresh

This function can get all information of the device and update this software state.

Inhaltsverzeichnis

Andere GoMax Electronics Medienkonverter Handbücher

GoMax Electronics

GoMax Electronics CV-523 Bedienungsanleitung

GoMax Electronics

GoMax Electronics MX-5022 Bedienungsanleitung

GoMax Electronics

GoMax Electronics CV-511 Bedienungsanleitung

GoMax Electronics

GoMax Electronics SP-5008PZQ Bedienungsanleitung

GoMax Electronics

GoMax Electronics MX-3004 Bedienungsanleitung

GoMax Electronics

GoMax Electronics CV-105S Bedienungsanleitung

GoMax Electronics

GoMax Electronics MT-503A Bedienungsanleitung

GoMax Electronics

GoMax Electronics CV-513ZK-BI Bedienungsanleitung

GoMax Electronics

GoMax Electronics VW-1404ZH-G Bedienungsanleitung

GoMax Electronics

GoMax Electronics VW-1312P Bedienungsanleitung

GoMax Electronics

GoMax Electronics CV-900S Bedienungsanleitung

GoMax Electronics

GoMax Electronics MX-5004MZ2-UF Bedienungsanleitung

GoMax Electronics

GoMax Electronics CV-503M Bedienungsanleitung

GoMax Electronics

GoMax Electronics MX-5004MZ2F Bedienungsanleitung

GoMax Electronics

GoMax Electronics SP-2003 Bedienungsanleitung

GoMax Electronics

GoMax Electronics SP-9112 Bedienungsanleitung

GoMax Electronics

GoMax Electronics CV-503MLR Bedienungsanleitung

GoMax Electronics

GoMax Electronics MX-1004PF Bedienungsanleitung

GoMax Electronics

GoMax Electronics CV-35AK Bedienungsanleitung

GoMax Electronics

GoMax Electronics CV-C03S Bedienungsanleitung

GoMax Electronics

GoMax Electronics SP-5008PZ Bedienungsanleitung

GoMax Electronics

GoMax Electronics CV-910S Bedienungsanleitung

GoMax Electronics

GoMax Electronics CV-305MLR Bedienungsanleitung

GoMax Electronics

GoMax Electronics MX-1010 Bedienungsanleitung

Beliebte Medienkonverter Handbücher anderer Marken

SoundTraxx

SoundTraxx Blunami BLU-2200 Bedienungsanleitung

SPROLINK

SPROLINK VA1 Bedienungsanleitung

Acclaim Lighting

Acclaim Lighting DDC-1-AC Bedienungsanleitung

Nikon

Nikon AF-S TC-20E III Bedienungsanleitung

Axis

Axis AXIS Q7406 Bedienungsanleitung

Omega

Omega TAC80B-J Bedienungsanleitung

Zoom

Zoom Thunderbolt TAC-2R Bedienungsanleitung

OST

OST iConverter 10/100M Bedienungsanleitung

Vertiv

Vertiv Netsure Bedienungsanleitung

birddog

birddog MINI Bedienungsanleitung

Roland

Roland GI-10 Bedienungsanleitung

Wallenstein

Wallenstein WX310 Bedienungsanleitung

Pace

Pace MSS 200-1 Bedienungsanleitung

Solar Converters

Solar Converters EQ 12/24-50 Bedienungsanleitung

CYP

CYP EL-7400V Bedienungsanleitung

TIE

TIE MIDI 1i1o Bedienungsanleitung

DCS

DCS Vivaldi Upsampler Bedienungsanleitung

Westermo

Westermo MCW-211 SERIES Bedienungsanleitung
