GoMax Electronics CV-523 Bedienungsanleitung

CV-523

HDMI 1.3 to 3G/HD/SD-SDI

Mini Converter

User Manual

~ 1 ~

Made in Taiwan

Safety and Notice

The CV-523 HDMI 1.3 to 3G/HD/SD-SDI Mini Converter has been tested for conformance to safety

regulations and requirements, and has been certified for international use. However, like all electronic equipments,

the CV-523 should be used with care. Please read and follow the safety instructions to protect yourself from

possible injury and to minimize the risk of damage to the unit.

zFollow all instructions and warnings marked on this unit.

zDo not attempt to service this unit yourself, except where explained in this manual.

zProvide proper ventilation and air circulation and do not use near water.

zKeep away the objects that might damage the device and assure that the placement of this unit is on a stable

surface.

zUse only the power adapter, power cords and connection cables designed for this unit.

zDo not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before

cleaning.

~ 2 ~

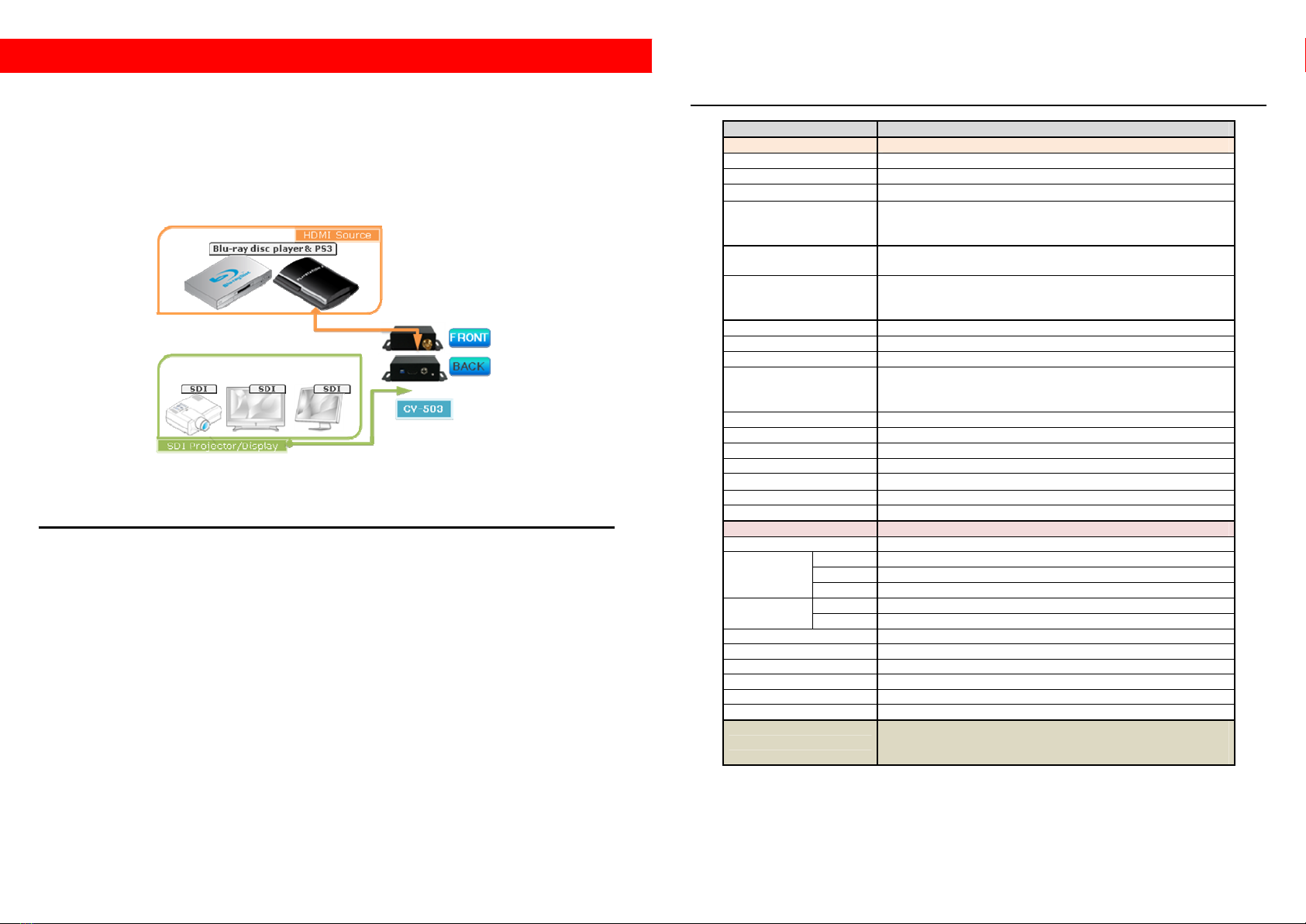

The CV-523 Mini HDMI 1.3 to 3G/HD/SD-SDI Converter provides a professional way to convert HDMI to

3G/HD/SD-SDI in real time. The conversion between SDI and HDMI is pure digital and guarantees no loss

transformation for both audio and video. Plus, with up to 8 channels audio support, 7.1 channel or 5.1 channel

audio becomes available. The CV-523 offers low jitter SDI output for daisy chain. With the use of CV-523, the

most popular uncompressed video interface in the consumer world is readily available for professional SDI

equipments!

Features

zSupported formats:

NTSC [email protected], PAL 625@50, 720p@50,720p@59.94, 720p@60, 1080i@50, [email protected], 1080i@60,

[email protected], 1080p@24, 1080p@25, [email protected], 1080p@30, 1080p@50, [email protected]4, 1080p@60

Bit Rate: 2.97 Gbps, 2.967 Gbps, 1.485 Gbps, 1.4835 Gbps, 270 Mbps

zAuto 3G/HD/SD-SDI detection

zHDMI 1.3c supported

zSDI compliant outputs

zExternal DIP Switch Configuration

Introduction

~ 3 ~

Specifications & Package Contents

Model Name CV-523

Technical

SDI standards SD-SDI, HD-SDI & 3G-SDI

Auto 3G/HD/SD-SDI detection Yes

Video bandwidth [2.97Gpbs & 2.97

1.001Gbps]

Video support

[3G] 1080p50/59.94/60 (4:2:2)

[HD] 720p50/59.94/60, 1080p24/30 , 1080i50/59.94/60

[SD] [email protected], PAL@50Hz

Input signal HDMI 1.3c compliant

Output signal

[SD-SDI] SMPTE 259M

[HD-SDI] SMPTE 292M, 296M

[3G-SDI] SMPTE-424M

Output impedance 75Ω

Synchronization mode Internal synchronization or external synchronization

Eye pattern characteristics Extra low alignment jitter 0.05UI at HD

Cable equalization

[3G-SDI] up to 90m (300ft)

[HD-SDI] up to 150m (500ft)

[SD-SDI] up to 300m (1000ft)

Audio support Yes (up to 7.1ch)

PCB stack-up 6-layer board [impedance control

—

differential 100Ω; single 50Ω]

Input 1x HDMI

Output 1x BNC [SDI]

BNC connector 75Ωinter-locked socket

HDMI connector Type A [19-pin female]

DIP switch 2-pin [EDID video format / EDID audio format ]

Mechanical

Housing Metal enclosure

Dimensions

(L x W x H)

Model 107 x 74 x 25mm [2.9”x4.2”x1”]

Package 200 x 140 x 75mm [7.9”x5.5”x3”]

Carton

Weight Model 220g [7.7oz]

Package 500g [19.4oz]

Fixedness Inter-locked power supply

Power supply 5V 4A DC

Power consumption 3 Watts [max]

Operation temperature 0~40°C [32~104°F]

Storage temperature -20~60°C [-4~140°F]

Relative humidity 20~90% RH [no condensation]

Package Contents

1x CV-523

1x 5V power supply unit

1x User Manual

~ 4 ~

3G-SDI Output

1080p @ 50/ 59.94 / 60Hz SMPTE 424M, SMPTE 425M

HD-SDI Output

720p @ 50Hz SMPTE 296M -3

720p @ 60 / 59.94Hz SMPTE 296M -1, -2

1080i @ 50Hz SMPTE 274M -6

1080i @ 60 / 59.94Hz SMPTE 274M -4, -5

1080p @ 24 / 23.98Hz SMPTE 274M -10, -11

1080p @ 25Hz SMPTE 274M -9

1080p @ 30 / 29.97Hz SMPTE 274M -7, -8

SD-SDI Output

NTSC

PAL B,D,G,H,I

Supported Resolutions

~ 5 ~

3G/HD/SD-SDI OUTPUT

HDMI INPUT

SWITCH

Front Panel

1. DIP Switch

2. HDMI input

3. Interlocked +5V power jack

4. Signal LED

Rear Panel

5. 3G/HD/SD-SDI output

DIP Switch

A 2-pin DIP switch is used for user interface, and users can access this switch from the bottom of the unit.

Pin OFF (©): PinON(ª):

Pin #1 Pin #2 EDID feature

OFF (©) OFF (©) 3G/HD/SD-SDI with multi-channel audio except DTS-HD & Dolby True HD

OFF (©) ON (ª) 3G/HD/SD-SDI With stereo PCM audio

ON (ª) OFF (©) HD/SD-SDI With stereo PCM audio

ON (ª) ON (ª)

DID Learning Mode

Panel Description

132

~ 6 ~

1. Factory default: Off-Off [Å-Å]

2. The CV-523 supports audio sample frequency at 48kHz only.

3. Only support audio group 1 & 2

4. Signal LED Indication:

Green light Orange light No light

Indication 3G-SDI HD/SD-SDI Not supported format or no signal

1. Please make sure the DIP switch is at On-On [ª-ª].

2. Connect the HDMI display to the HDMI port of CV-523.

3. Power on CV-523.

4. After LED turns to light, the EDID Learning procedure is completed.

5. Please DO NOT change the DIP switch, otherwise the built-in EDID Learning information will be lost.

Notice

DID Learning

~ 7 ~

The SELLER warrants the CV-523 HDMI 1.3 to 3G/HD/SD-SDI Mini Converter to be free from defects in the

material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should

this product fail to be in good working order within 1 year warranty period, The SELLER, at its option, repair or

replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any unauthorized

modifications including static discharge and power surge. This warranty is offered by the SELLER for its BUYER

with direct transaction only. This warranty is void if the warranty seal on the metal housing is broken.

Unit that fails under conditions other than those covered will be repaired at the current price of parts and

labor in effect at the time of repair. Such repairs are warranted for 90 days from the day of reshipment to the

BUYER. If the unit is delivered by mail, customers agree to insure the unit or assume the risk of loss or damage in

transit. Under no circumstances will a unit be accepted without a return authorization number.

The warranty is in lieu of all other warranties expressed or implied, including without limitations, any other

implied warranty or fitness or merchantability for any particular purpose, all of which are expressly disclaimed.

Proof of sale may be required in order to claim warranty. Customers outside Taiwan are responsible for

shipping charges to and from the SELLER. Cables and power adapters are limited to a 30 day warranty and must

be free from any markings, scratches, and neatly coiled.

The content of this manual has been carefully checked and is believed to be accurate. However, The SELLER

assumes no responsibility for any inaccuracies that may be contained in this manual. The SELLER will NOT be

liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in

this manual, even if advised of the possibility of such damages. Also, the technical information contained herein

regarding the CV-523 features and specifications is subject to change without further notice.
