GoMax Electronics CV-503M Bedienungsanleitung

HDMI to 3G/HD/SD-SDI

Converter

User Manual

rev: 140509

Made in Taiwan

V-

-5

The CV-503M HDMI to 3G/HD/SD-SDI Converter has been tested for conformance to safety

regulations and requirements, and has been certified for international use. However, like all

electronic equipments, the CV-503M should be used with care. Please read and follow the safety

instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.

●Do not attempt to service this unit yourself, except where explained in this manual.

●Provide proper ventilation and air circulation and do not use near water.

●Keep objects that might damage the device and assure that the placement of this unit is on a

stable surface.

●Use only the power adapter and power cords and connection cables designed for this unit.

●Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device

before cleaning.

TABLE OF CONTENTS

INTRODUCTION .....................................................................................................................1

FEATURES..............................................................................................................................1

PACKAGE CONTENTS...........................................................................................................1

SPECIFICATIONS...................................................................................................................2

SUPPORTED RESOLUTIONS ...............................................................................................3

PANEL DESCRIPTIONS.........................................................................................................4

DIP SWITCH............................................................................................................................5

EDID LEARNING.....................................................................................................................5

WARRANTY ............................................................................................................................6

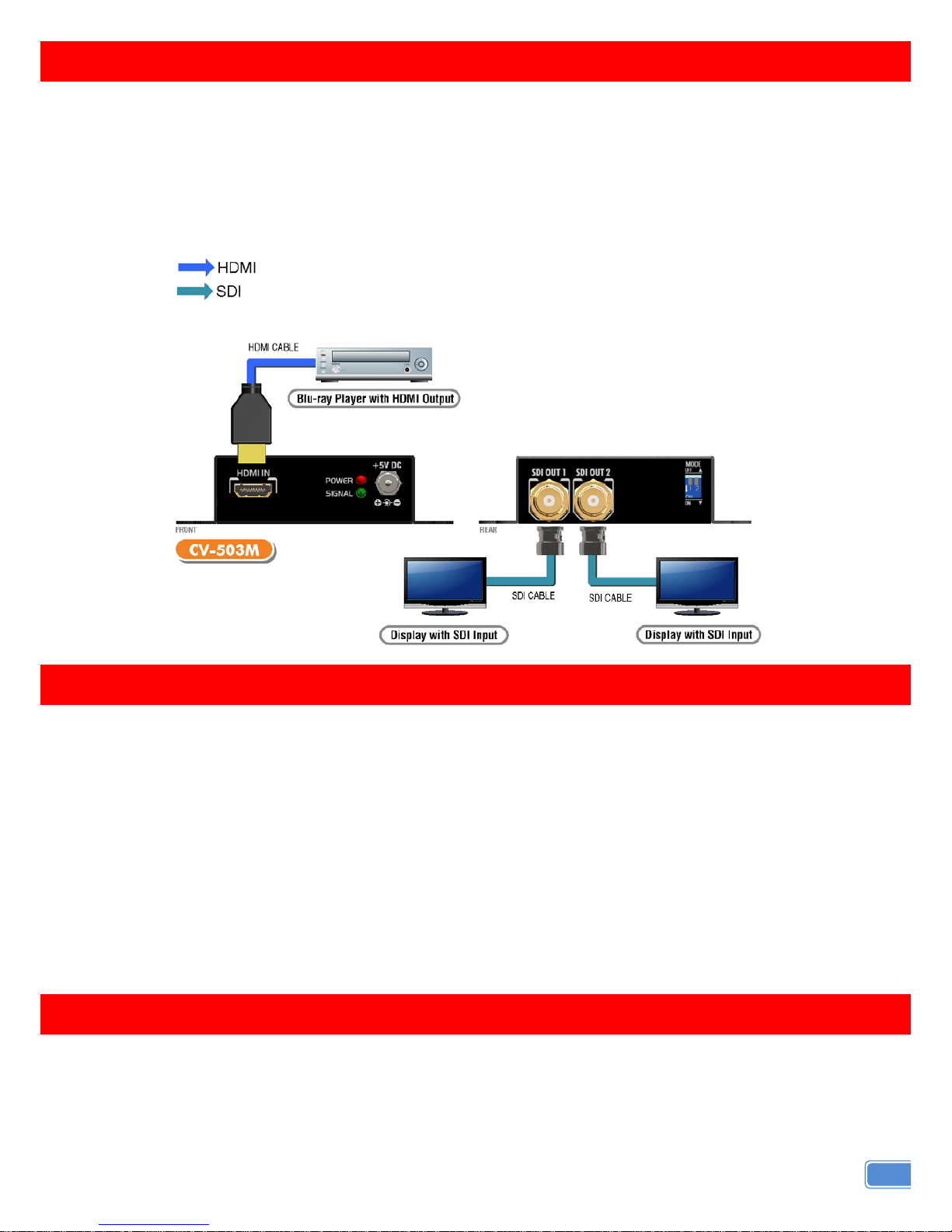

INTRODUCTION

The CV-503M HDMI to 3G/HD/SD-SDI Converter provides a professional way to convert HDMI to

3G/HD/SD SDI in real time. The conversion between SDI and HDMI is pure digital and guarantees no

loss transformation for both audio and video. Plus, with up to 8 channels audio support, 7.1 channel or 5.1

channel audio becomes available. The CV-503M also provides 2 low jitter SDI outputs for daisy chain or

multiple monitors. With the use of CV-503M, the most popular uncompressed video interface in the

consumer world is readily available for professional SDI equipments!

FEATURES

●Supported high-definition (HD) formats:

NTSC 525@59.94, PAL 625@50, 720p@50,[email protected], 720p@60, 1080i@50, [email protected],

1080i@60, [email protected], 1080p@24, 1080p@25, [email protected], 1080p@30, 1080p@50,

[email protected], 1080p@60

Bit Rate: 2.97 Gbps, 2.967 Gbps, 1.485 Gbps, 1.4835 Gbps, 270 Mbps

●Auto 3G/HD/SD-SDI detection

●Support HDMI Deep Color

●Two SDI compliant outputs

●External DIP Switch Configuration

PACKAGE CONTENTS

●1x CV-503M

●1x 5V/2A power adapter

●1x User Manual

SPECIFICATIONS

Model Name

CV-503M

Technical

SDI standards

3G-SDI & HD-SDI & SD-SDI

Auto 3G/HD/SD-SDI

detection

Yes

Video bandwidth

[2.97Gpbs & 2.975/1.001Gbps]

Video support

[3G] 1080p50/59.94/60 (4:2:2)

[HD] – 720p @50/59.94/60Hz,1080i @50/59.94/60Hz,

1080p @23.98/24/25/29.97/30Hz

[SD] – NTSC @59.94Hz, PAL @50Hz

Input signal

HDMI

Output signal

SDI

Output impedance

75Ω

Synchronization mode

Internal synchronization or external synchronization

Eye pattern

characteristics

Extra low alignment jitter 0.05UI at HD

Cable equalization

[3G-SDI] up to 90m (300ft)

[HD-SDI] up to 150m (500ft)

[SD-SDI] up to 300m (1000ft)

Audio support

Yes

PCB stack-up

6-layer board [impedance control — differential 100Ω; single 50Ω]

Input

1x HDMI

Output

2x BNC [SDI]

BNC connector

75Ωinter-locked socket

HDMI connector

Type A [19-pin female]

DIP switch

2-pin [for EDID use]

Mechanical

Housing

Metal enclosure

Dimensions

[L x W x H]

Model

79 x 84 x 27mm [3.1” x 3.3” x 1.2”]

Package

140 x 200 x 75mm [5.5” x 7.9” x 3”]

Carton

420 x 400 x 300mm [1’8” x 1’4” x 11.8”]

Weight

Model

[TX] – 250g [8.8oz]

Package

780g [1.7 lbs]

Fixedness

Inter-locked power supply

Power supply

5V 2A DC

Power consumption

3 Watts [max]

Operation temperature

0~40°C [32~104°F]

Storage temperature

-20~60°C [-4~140°F]

Relative humidity

20~90% RH [no condensation]

SUPPORTED RESOLUTIONS

3G-SDI Output

1080p @ 50/ 59.94 / 60Hz SMPTE 424M, SMPTE 425M

HD-SDI Output

720p @ 50Hz SMPTE 296M -3

720p @ 60 / 59.94Hz SMPTE 296M -1, -2

1080i @ 50Hz SMPTE 274M -6

1080i @ 60 / 59.94Hz SMPTE 274M -4, -5

1080p @ 24 / 23.98Hz SMPTE 274M -10, -11

1080p @ 25Hz SMPTE 274M -9

1080p @ 30 / 29.97Hz SMPTE 274M -7, -8

SD-SDI Output

NTSC

PAL B,D,G,H,I

PANEL DESCRIPTIONS

Front Panel

1. HDMI IN: Connects to a HDMI source with a HDMI male-male cable

2. Signal LED:

<green> Both power and signal active.

<rde> Only power active.

3. +5V DC: Connect to a 5V DC power supply

Rear Panel

4. SDI OUT 1: 3G/HD/SD-SDI output #1

5. SDI OUT 2: 3G/HD/SD-SDI output #2

6. DIP switch: Setup the RS-232 mode for serial communication channel

DIP SWITCH

A 2-pin DIP switch is used for user interface, and users can access this switch from the bottom of

the unit.

Pin#1 Pin#2 EDID feature

OFF [] OFF [] 3G/HD/SD-SDI with multi-channel audio except DTS-HD & Dolby True HD

OFF [] ON [] 3G/HD/SD-SDI With stereo PCM audio

ON [] OFF [] HD/SD-SDI With stereo PCM audio

ON [] ON [] EDID Learning Mode

EDID LEARNING

1. Please make sure the Pin#1-Pin#2 of DIP switch is at On-On [-].

2. Connect the HDMI display to the HDMI port of TX.

3. Power on TX.

4. After LED turns to light, the EDID Learning procedure is completed.

5. Please DO NOT change the DIP switch, otherwise the built-in EDID Learning information

will be lost.

WARRANTY

The SELLER warrants the CV-503M HDMI to 3G/HD/SD-SDI Converter to be free from

defects in the material and workmanship for 1 year from the date of purchase from the SELLER

or an authorized dealer. Should this product fail to be in good working order within 1 year

warranty period, The SELLER, at its option, repair or replace the unit, provided that the unit has

not been subjected to accident, disaster, abuse or any unauthorized modifications including

static discharge and power surges.

Unit that fails under conditions other than those covered will be repaired at the current price

of parts and labor in effect at the time of repair. Such repairs are warranted for 90 days from the

day of reshipment to the BUYER. If the unit is delivered by mail, customers agree to insure the

unit or assume the risk of loss or damage in transit. Under no circumstances will a unit be

accepted without a return authorization number.

The warranty is in lieu of all other warranties expressed or implied, including without

limitations, any other implied warranty or fitness or merchantability for any particular purpose, all

of which are expressly disclaimed.

Proof of sale may be required in order to claim warranty. Customers outside Taiwan are

responsible for shipping charges to and from the SELLER. Cables are limited to a 30 day

warranty and cable must be free from any markings, scratches, and neatly coiled.

The content of this manual has been carefully checked and is believed to be accurate.

However, The SELLER assumes no responsibility for any inaccuracies that may be contained in

this manual. The SELLER will NOT be liable for direct, indirect, incidental, special, or

consequential damages resulting from any defect or omission in this manual, even if advised of

the possibility of such damages. Also, the technical information contained herein regarding

the CV-503M features and specifications is subject to change without further notice.
