Grundig GRH-K1004A Bedienungsanleitung

GRH-K1004A.34.1.01.12.2011

Owner's Manual

ital Recordin

stems

GRH-K1004A 4 Channel H.264 HD-SDI Recorder with DVD-RW Drive

GRH-K2108A 8 Channel H.264 HD-SDI Recorder with DVD-RW Drive

Content:

1. Introduction 1

1. Available Versions 2

2. Key Features of your DVR 2

2. Important Safety Instructions 3

3. Package Contents 4

4. Installation 5

1. Part Names and Functions 5

2. Installation and Connection 8

3. Running the OSD menu 10

4. Connecting and Configuring Ports 18

5. Menu Use 30

1. Menu Structure 30

2. Function Menu 30

3. Factory Reset 31

6. Monitoring 36

1. Basic Screen 36

2. Single Full Screen Mode 36

3. Multi Screen Mode 36

4. Screen Description 36

5. Sequence Mode 3

6. Event Screen 37

7. Zoom Screen Mode 38

8. Pause Live Screen 38

9. PTZ Control 39

7. Playback 41

1. Playback Mode 41

2. Search Mode 42

3. Copy 45

8. Configuration 49

1. System Setup 49

2. Network 60

3. Device Setup 63

4. Event Setup 68

5. Recording Setup 75

9. GRUNDIG Web Viewer 79

1. System Requirements 79

2. Login 79

3. User Setup 80

4. Available Browser 81

5. Monitor 81

6. Playback 86

7. Java based Web Viewer 90

10. GRUNDIG Live Mobile Viewer 91

1. Log-In Page 91

2. Monitoring Page 92

1. Introduction

Thank you for purchasing a GRUNDIG digital video recorder for HD-SDI signals. This manual is for GRH-K2108A

and GRH-K1004A.

Based on the Television Standard for FullHD Television, HDcctv products feature up to 2 Megapixel (1920x1080)

pictures in real-time (30fps) transmitted over coax cabling.

Get the advantages of IP technology without their drawbacks: 16:9 megapixel pictures without network

configuration, bandwidth problems and network security risks. Use existing coax cables and only exchange the

cameras and recorders. Get a “real” live picture and see the things that happen in the now, not a few seconds

ago. Connect a monitor directly to a camera using only a HDcctv-to-HDMI converter.

HDcctv is easy to handle, easy to install and produces amazing high quality pictures.

Before product installation and operation, please become thoroughly familiar with this user manual and other

manuals referenced by this manual.

This user manual, the software and the hardware described here are protected by copyright law. With the

exception of copying for general use within fair use, copying and reprinting the user manual, either partially or in

entirety, or translating it into another language without the consent of ASP AG is strictly prohibited.

This specification may change without prior notice for improvement of product performance.

English

Product Warranty and Limits of Responsibility

The manufacturer does not assume any responsibility concerning the sale of this product and does not delegate

any right to any third party to take any responsibility on its behalf. No warranty is offered for any attachments or

parts not supplied by the manufacturer. The product warranty does not cover cases of accidents, negligence,

alteration, misuse or abuse, for example:

- Malfunctions due to negligence by the user

- Deliberate disassembly and replacement by the user

- Connection of a power source other than a properly rated power source

- Malfunctions caused by natural disasters (fire, flood, tidal wave, etc.)

- Replacement of expendable parts (HDD, FAN, etc.)

- The warranty period for the HDD and Fan is one year after purchase.

This product is not for exclusive use of crime prevention but also for assistance in cases of fire. We take no

responsibility for damage from any incident.

Caution:

This equipment underwent EMC registration and is suitable for business purposes. Distributors and users are

aware of this point.

Warning:

This is a class A product. In a domestic environment this product may cause radio interference, in which case the

user may be required to take adequate measures.

Warning:

1. In case of changing the built-in lithium battery, it should be replaced with the same or a kindred one to prevent

danger of explosion. Since old batteries could be a factor of environment contamination, be cautious how you

treat them.

2. Do not throw the batteries into fire or other heat. Short circuit or disassembly is prohibited.

3. Do not charge the batteries provided with the remote control.

1.1. Available Versions

These instructions apply to the following products. For the different properties of the products please refer to the

table.

1.2. Key Features of your DVR

HD-SDI

These products can transfer HD (High-Definition) signal images using the HD-SDI technology via a coax cable.

Please note that this product does not accept SD signals.

The supported resolutions are as follows:

- SMPTE 296M : 1280x720p 30/60Hz

- SMPTE 274M : 1920x1080p 30Hz

Monitoring Screens

These products support real live video with high resolution for each channel and with variable display modes.

- Various monitoring modes (Single, 4 screen division, 9 screen division)

- Auto Switching (AUTO)

- Coverting channels for users

English

Audio Recording

These products support real-time audio input and recording.

- Simultaneous 4ch audio input & recording available

- Input : 4ch RCA, Output : 1ch(Rear)

- Simultaneous audio recording and playback available

Recording

These products support max. 120fps (GRH-K1004A) or 240fps (GRH-R2108A) recording in high-quality HD-SDI

video and it is possible to record max. 5 seconds before an event is triggered.

- HD-SDI video recording

GRH-K2108A : 1920 x 1080 (1080P) : 60ips

GRH-K2108A : 1920 x 1080 (1080P) : 120ips

GRH-K2108A : 1280 x 720 (720P) : 120ips

GRH-K2108A : 1280 x 720 (720P) : 240ips

- Supports manual, continuous, schedule & event recording

- Video loss detection

- Supports archiving an event list (Sensor, Video loss, Motion detection, Text)

Search / Playback

These products support variable and convenient functions for search & playback.

- Search for Events (Motion, Video Loss, Text & Relays)

- Search for Dates (Calendar & Date input method)

- Smart Search for Motion Detection

- All Search methods can be used via DVR, remote control & USB mouse

Backup devices

You can back up to DVD-R, CD-R & USB (Fat32 formatted)

- Supports various backup devices : DVD-R, CD-R, USB

- eSATA port for external recording HDDs

Network

These products support networks like LAN, XDSL and can be easily controlled from remote site using the

GRUNDIG Control Center Software.

- E-mail and or Twitter notification

- Access Live and playback with many Web browsers. Backup with the Internet Explorer

- Access Live, playback, search, backup and DVR management with the GRUNDIG Control Center Software

- Record, search & playback over a network

- 10/100Mbps Ethernet/xDSL connection

ETC

- User friendly GUI with mouse function

- Easy and simple ﬁrmware upgrade over USB or the network

- PTZ Control (several protocols), PRESET function

- Control of up to 16 DVRs with one remote controller

- 10/100/1000Mbps connection for the external storage device GDS-R04A

- Advanced user management with coverting function

2. Important Safety Instructions

1. Do not place heavy objects on the top of the product.

English

2. This Product is for indoor use. It is not weatherproof. Please use the product considering its environmental

specifications (Temperature & Humidity). To clean the product, gently wipe the outside with a clean dry cloth.

3. This Product uses AC power of 110V ~ 240V. Be cautious not to cause electric damages to the product.

4. Be careful not to drop the product. Physical shocks may harm the product including the internal HDD. In

addition, be sure the product is secured after installation.

5. This Product is made of metal. Therefore you can hurt human beings if you throw it to them or hit it on them.

When installing the product, be cautious to locate it in safe places where children cannot reach it.

6. If the product does not operate properly, please contact the closest GRUNDIG distributor for after sales

service. Tampering or disassembling the product will cause expiration of the warranty.

7. Security surveillance laws may differ for each country. Therefore, please contact the local region first to avoid

any surveillance law violations.

8. Experience and technical skills are needed for the installation of this product as an improper installation may

cause fire, electric shocks, or defects. Any installation job should be performed by the vendor you purchased this

product from.

The content of this manual can differ according to firmware or software upgrading. The standard and appearance

of the products may be changed for the improvement of quality without an advance notice.

3. Package Contents

These parts are included:

English

4. Installation

4.1. Part Names and Functions

Front view of GRH-K1004A & GRH-K2108A:

English

Rear view of GRH-K2108A & GRH-K2108A:

English

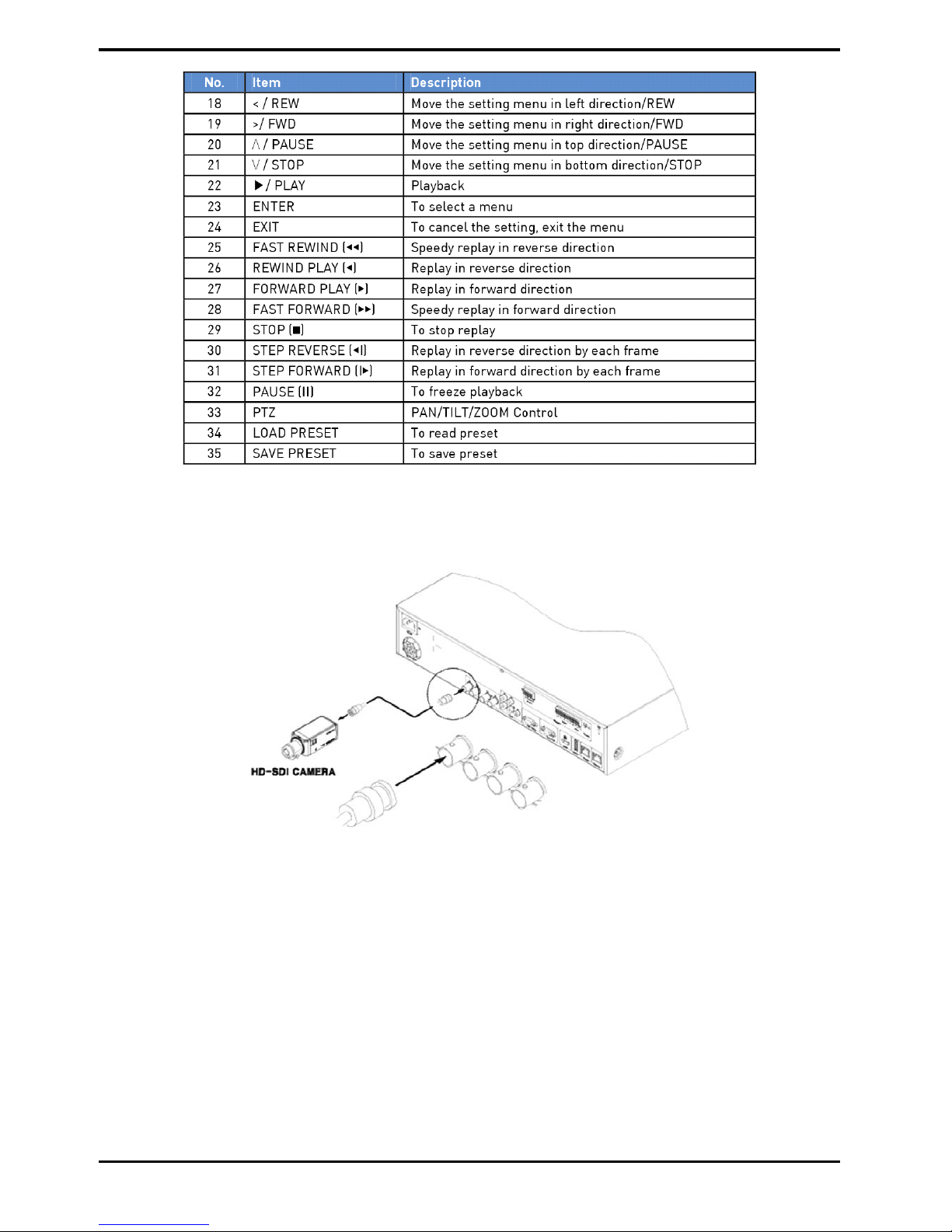

Remote Control:

It is possible to use all functions of the DVR with the remote control,. If several DVRs are set with unique ID

numbers, they can be controlled with one remote control. To use the remote control, it is necessary to set first

the ID which you want to use. Keep pressing the ID button repeatedly (up to max. 16 times) and use it for

matching DVR & ID.

English

4.2. Installation and Connection

Connecting the camera:

Connect the CCTV camera to the DVR using the BNC cable as shown below:

Please make sure that all connected cameras fulfil the SMPTE standards 296M or 274M, or a compatible one. The

DVR will recognise the camera automatically. If you do not get a video, please check the connections first and

then make sure the distance is not too far for HDcctv signal:

RG59 cable: ca. 100-120m

RG6 cable: ca. 200m

For bigger distances, please use the GTH-L0011E extender from GRUNDIG.

English
