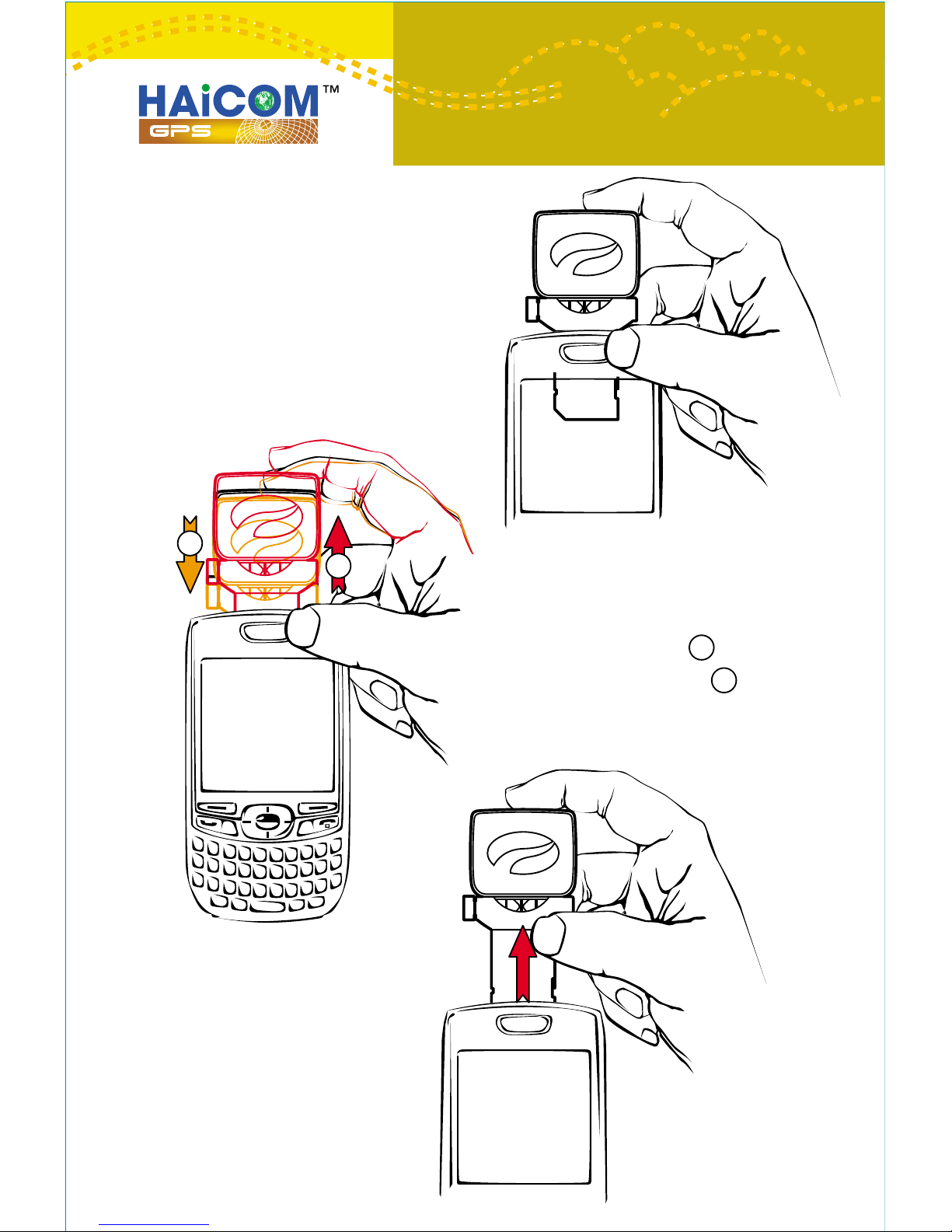

To insert in:

Push down to the end and hear a

“click” sound

Take out the device

To take it out:

Push down to the end and

HI-505SD will spring up

HI-505SD Bluetooth®GPS receiver

with SD (Security Digital) interface

Introduction:

HI-505SD is a standard Bluetooth®GPS receiver with standard

miniSD™ to SD adaptor. HI-505SD equipped with the most

recent 20 channel ultra high sensitive SiRF StarIII GPS chipsets

and wireless Bluetooth®module. Simply plug HI-505SD into

any devices equipped with the standard SD slot, user can

instantly enjoy the state of the art wireless GPS navigation. The

basic concept of the HI-505SD is that the Bluetooth®/GPS

section only taking power from the host device (like PDA,

UMPC, tabletPC, laptopPC, etc.) via the miniSD™ to SD adaptor.

In the meantime, users can still using the miniSD™ memory

card without worry about the SD slot was occupied.

HI-505SD advantages:

1.Simply plug in the HI-505SD into any SD slot from the

standard mobile device with Bluetooth®features, the device

become the all-in-one GPS navigator. HI-505SD provides the

flexibility for GPS enable in different devices and different

occasion usages.

2.Unlike other SD GPS receivers occupied the SD slot,

 HI-505SD allow user to use any memory size miniSD™ card

while using the HI-505SD simultaneously.

3.Unlike most SD GPS receivers with fixed build-in memory,

HI-505SD provide the flexibility for using any separate

memory size miniSD™ card depend on how big the memory

size needed.

4.Unlike regular SDIO GPS receiver require complicated

software and driver installation, user can easily use

 HI-505SD and enjoy the GPS navigation simply set up the

standard Bluetooth®connection between the devices.

5.As soon as plug in HI-505SD, user can start using the

wireless GPS navigation without worry about the Bluetooth®

GPS receiver battery life.

6. Equipped with the 20 channel ultra high sensitive SiRF

StarIII GPS module, HI-505SD can get 3D fixed in any

outdoor locations and without using the external antenna.

7. Unlike normal Bluetooth®GPS receiver moving around

dashboard while driving, HI-505SD fixed on the mobile

device and not to worry about where to place the unit.

8. HI-505SD module concept allow HI-505SD become a wired

GPS receiver. By connecting with different optional cables via

the adapting box, HI-505SD can also be used as a regular

GPS mouse. HI-505SD can not only be wireless Bluetooth

GPS receiver and also be the wired GPS receivers, like, USB

GPS receiver, RS232 GPS receiver, PDA GPS receiver, etc.

Accessories:

Standard Accessories:

2 3

Model Name

HI-505SD Bluetooth®GPS receiver unit

Tool CD

User Manual

model #

HI-505SD

CDR-01

MAU-505

Optional Accessories:

Adapting box

MMCX External antenna

PDA charging cable (plug on the adapting box)

HI-505SD Bluetooth®GPS receiver installed on cigarette

lighter outlet

LED off

LED flashing

LED stay on

Bluetooth®switch off

Bluetooth®searching

Bluetooth®connected

LED Indicator (Blue)

LED off

LED flashing

LED stay on

Receiver switch off

GPS Position Fixed

GPS Signal searching

LED Indicator (Red)

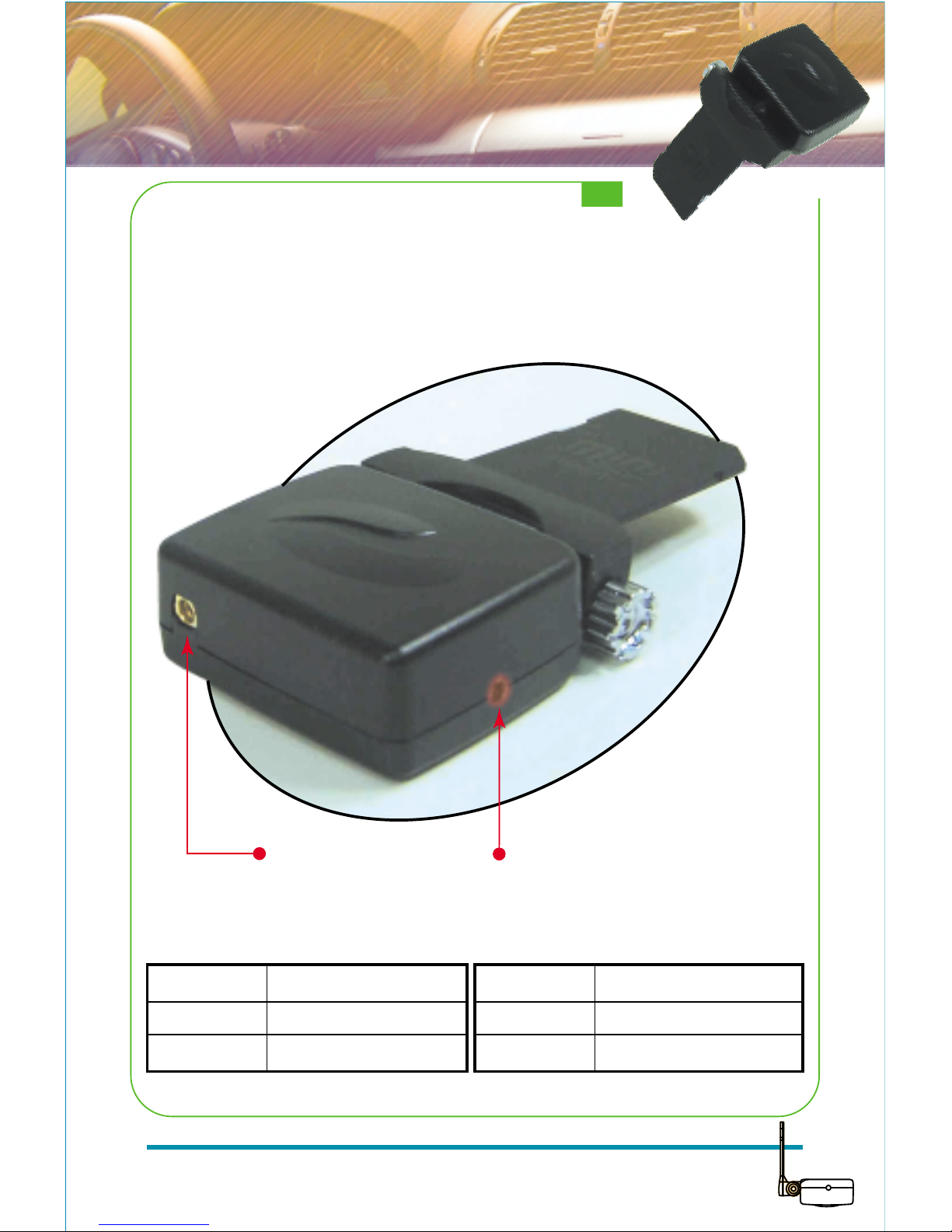

MMCX external

antenna plug

Bluetooth®/ GPS

status LED

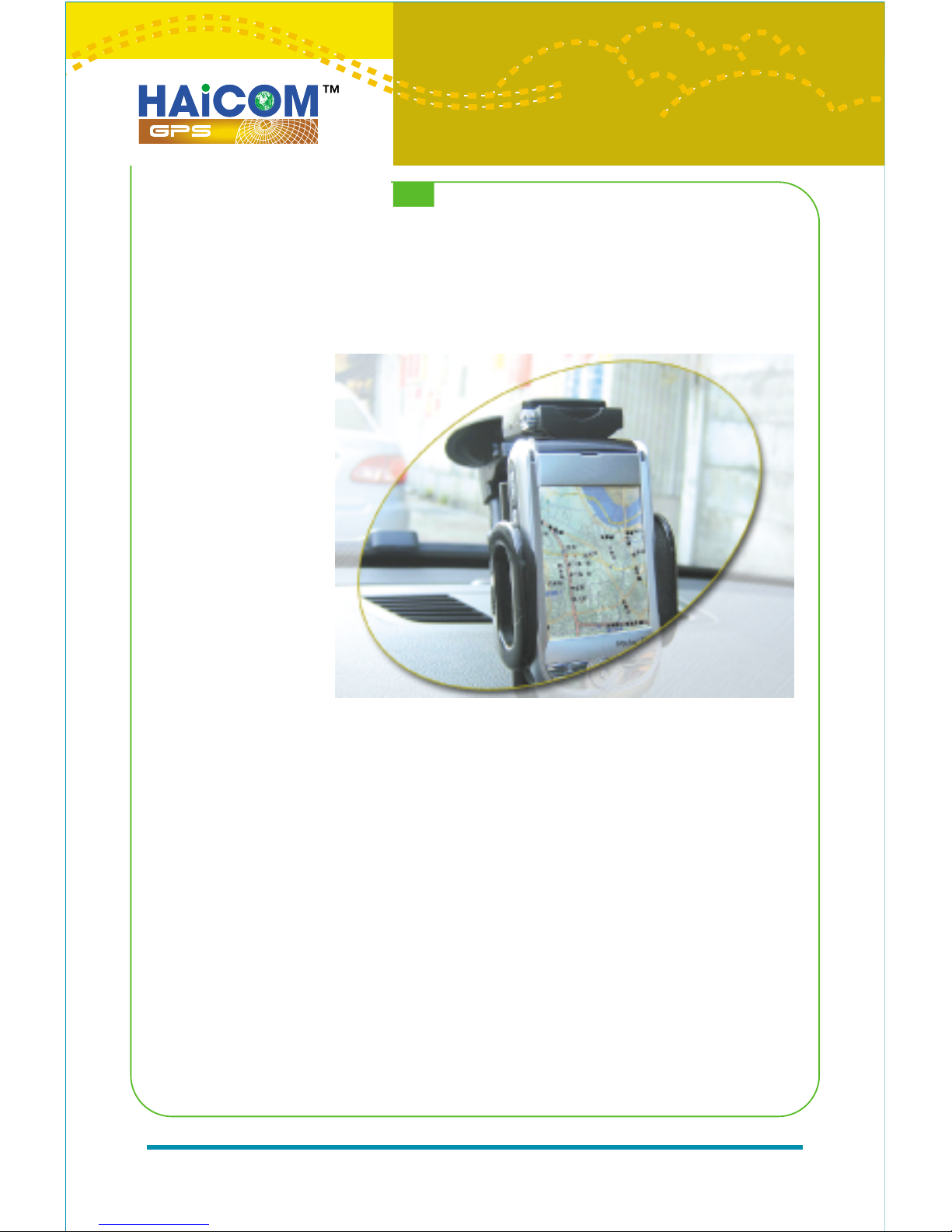

HI-505SD on a PDA:

A complete

all-in-one GPS

navigator

HI-505SD + PDA with horizontal mapping software

HI-505SD with PDA phone as a all-in-one GPS navigator

HI-505SD with laptop PC with SD Slot

HI-505SD + PDA as a portable navigator
