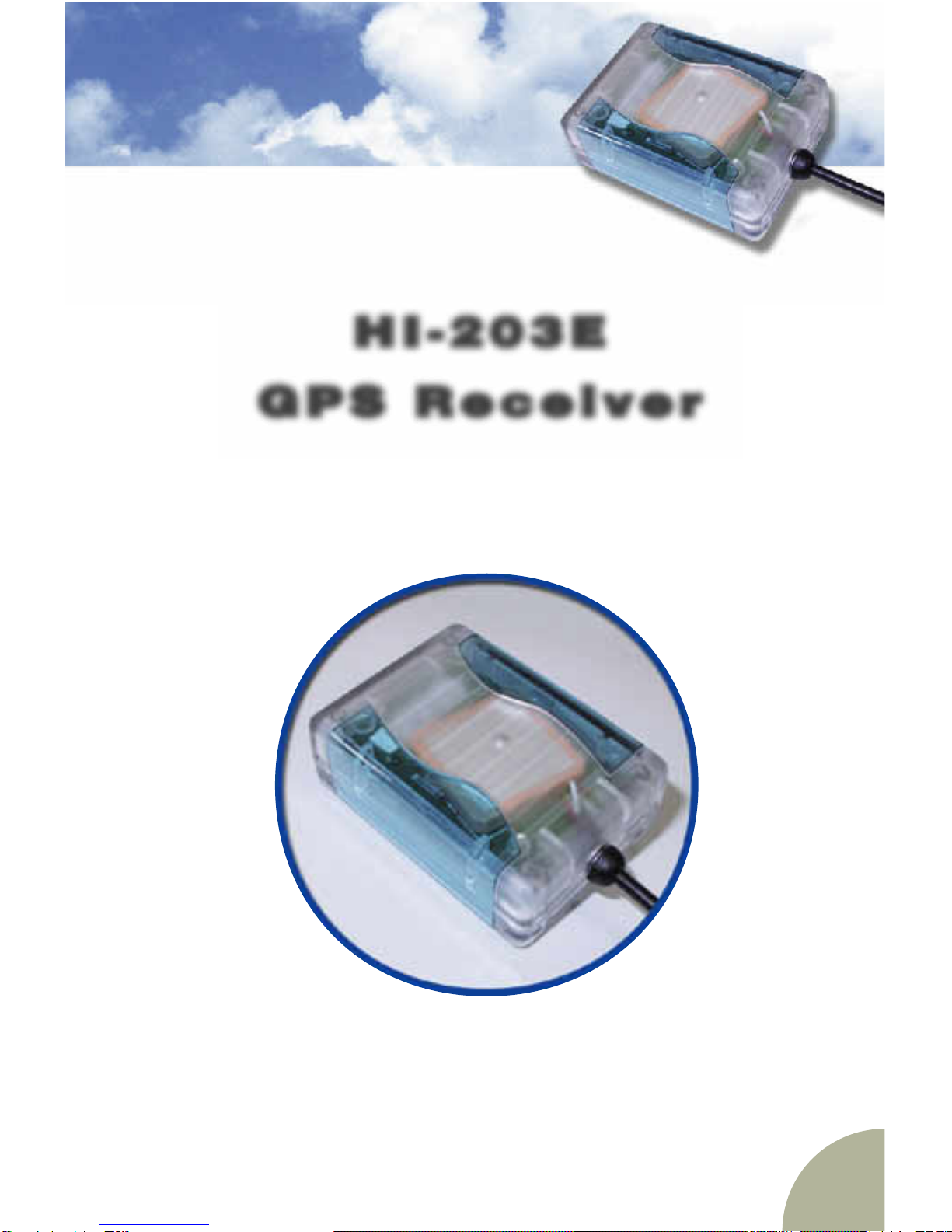

Haicom HI-203E Bedienungsanleitung
User Manual
HI-203E
Mini-DIN
GPS Receiver
HI-203E
Mini-DIN
GPS Receiver
1
HI-203E
GPS Receiver
HI-203E
GPS Receiver
2
General description of what
GPS is and how it works.
GPS (Global Positioning System) is the only system today
able to show you your exact position on the Earth anytime,
in any weather, anywhere. GPS satellites, 24 in all, orbit at
11,000 nautical miles above the Earth. They are
continuously monitored by ground stations located
worldwide. The satellites transmit signals that can be
detected by anyone with a GPS receiver. Using the receiver,
you can determine your location with great precision.
The satellites are positioned so that we can receive signals
from six of them nearly 100 percent of the time at any point
on Earth. You need that many signals to get the best
position information. Satellites are equipped with very
precise clocks that keep accurate time to within three
nanoseconds- that's 0.000000003, or three billionths of a
second. This precision timing is important because the
receiver must determine exactly how long it take s for
signals to travel from each GPS satellite. The receiver uses
this information to calculate its position.
3
Although GPS was designed for military use, many
thousands of civi lians make use of it.The satellites actually
broadcast two signals, one is only formilitary use, and the
ther can be used by both military and civilians. Since GPS is
passive (you only need to receive the signal), there are no
restrictions on who can use the signal available to civilians.
GPS technology can be used in a variety of fields besides
providing navigation for vehicles on the sea, in the air and
on the ground. GPS applications also include keeping track
of where a fleet of trucks, trains, ships or planes are and
how fast they are moving; directin gemergency vehicles to
the scene of an accident; mapping where a city's assets are
located ; and providing precise timing for endeavors that
require large-scale coordination.
4
PS/2Connector
Color Function CN1
Green TX 5
White RX 4
Red VCC 2
Black GND 1
1 3 5
2 4 6
1
1
2
2
1800±30mm
GLOBAL POSITIONING SYSTEM
HI-203E GPS RECEIVER
Pin Assignment
Connectors
Mini Din: 6 pin male
connector
Wire: 3.6 ± 0.1mm
5
Pocket PC
HI-203E PS/II GPS receiver Can Connecting to a female
PS/II Connector. One end from the female Connector is
+12V car charger (charging PDA and GPS receiver
simultaneously) the other end form the female PS/II
connector is the PDA connector for
connecting your PDA.
For notebook PC use:
HI-203E PS/II can also
connect with a PS/II to DB9
PS-232 serial cable or USB
connector.
6
1. HI-203E Series Introductions
HI-203E is a GPS receiver with PS/II mini-DIN interfaces
and built-in active antenna for high sensitivity to tracking
signal. HI-203E is well suited to system integration and
users who use any kinds of mobile devices, such as, PDA,
notebook PC, Tablet PC, etc. It satisfies a wide variety of
applications for car navigation, personal navigation or
touring devices, tracking and marine navigation purpose.
Users can simply plug it into a PDA or other type of
handheld PC running with suitable mapping and routing
software for navigation.
1.1 Standard Package
Before you start up, make sure that your package includes
the following items. If any items are missing or damaged,
contact your dealer immediately.
• HI-203E GPS Receiver unit
• Suction CUP
• User Manual CD (including
User Manual, HaiTest Testing
Program, Driver for PCMCIA card slot of Notebook PC)
7
Optional Accessories:
• PS/II to PDA connector and car charger
• PS/II to DB9 adapting cable
• PS/II to USB adapting cable
HI-203E-XXXX
(Pocket PC Plug) HI-203E-DB9
HI-203E-USB
8
SECTION 1
INTRODUCTION
1.1 OVERVIEW
12 Channel GPS Sensor Module
The HI-203E is an all-in-one GPS receiver module
specifically designed for handheld device market. It features
small size, low power consumption, and ease of use.
The HI-203E is optimized for good performance and low
cost. Its 12 parallel channels and 4000 time/frequency
search bins provide very fast signal lock-on and rapid time
to first fix. Having much faster satellite signal acquisition and
re-acquisition speed than the conventional 48 correlator
design, the HI-203E offers good navigation performance
even in difficult environments.
Both LVTTL-level and RS232-level serial interface are
provided on the interface connector.
9
1.2 Features
• 12 parallel channel GPS receiver
• 4000 simultaneous time-frequency search bins
• Better than -135dBm sensitivity
• < 10 second hot start
• < 45 second cold start
• 5m CEP accuracy
