Hakko Electronics FX-950 Bedienungsanleitung
Soldering iron
•
Analog type of HAKKO FX-951
•
Lock key enables temperature control even on this analog type unit
•
Supports the N
2
system.
Model No. FX950
Power consumption 75W
Temperature range 200-450ºC
Temperature stability
±5ºC at idle temperature
・Station
Output voltage
24V
Dimensions 80(W)×118(H)×138(D)mm
Weight 1.2kg
・Soldering Iron
Power consumption 70W (24V)
Tip to ground resistance
<2Ω
Tip to ground potential
<2mV
Heating element Composit heater
Length of cord 1.2m
Total length 188mm (with 2.4D tip)
Weight 30g (with 2.4D tip)
* Length and weight (w/o cord)
Model No. Packing List
No.FX950 Soldering Station(FX-950), Soldering Iron(FM-
2028), Lock Key, Heat-Resistant Pad, Iron Holder
(FH-101, with cleaning sponge), Instruction
Manual
Note
:
A soldering tip is not included in this product. The tips of desired shape
should be purchased separately.
Compact High-Power Analog-Type Lead-Free Soldering Iron
(Compatible with T15 Series Soldering Tips)
Excellent Thermal Recovery
The excellent thermal recovery allows setting lower preset temperatures.
It is also useful for lead-free soldering which requires higher melting
temperatures.
Thermal Recovery Graph (Comparison of HAKKO products)
・Composite tip The composite tip is a ceramic soldering tip with
integrated heating element and sensor. Despite its
highly compact design, the tip offers superior
thermal responsivity and greatly improved thermal recovery.
Uses lock-type Sleeve Assembly soldering iron.
HAKKO FM-2028
-Click sound ensures easy and secure tip insertions.
-Four-color lineup of sleeves allows you to distinguish the various tips easily.
85 Variations of Tips
85 variations of HAKKO tips are available for
various types of soldering from IC modifications
to soldering of power sections.
T15 Series for EU
Temperature control function using a lock key
-The lock key can lock the present temperature.
-Digital offset makes temperature correction easy.
Compact Design
The compact design is well-suited to cell
production.
80mm (W) × 118mm (H) × 138mm (D)
Smart design for optimized work.
Soldering iron holder can be set to any angle safely.
LED lamp to indicate errors
Optional functions
Equipped with sleep function*: If optional Iron Holder
(FH200-01 or FH200-02) and Connection Cable
(B3253) are connected, sleep function can be used.
* Sleep function: When the handpiece is placed on the Iron Holder (FH200-
01/FH200-02), the sleep function operates and decreases the unused tip
temperature up to approximately 200°C , preventing the tip from being
oxidized. In addition, this function can relieve the loads applied to the tip due
to the high-temperature settings required for lead-free soldering.
Combination of optional handpiece (such as FM-2026) allows use of N
2
system.
N
2
system enhances solderbility by Preventing
Oxidation and Preheating Effect, featuring space-
saving design.
163(W)×280(H)×138(D)mm
*Reference dimensions
Name Figure Remarks
HAKKO
FX-950
1
Station
With Iron holder,
Control card, Heat
resistant pad and
Power cord
(Not necessary to
purchase this unit if
you have it.)
HAKKO
FM-2026
2
N
2
Soldering
Iron
Tip and nozzle assemblies are optional
parts.
With Nitrogen
guard(B2998)
No nitrogen guard for
the iron holder of FX-
950
3
Soldering
Tip &
Nozzle
Assembly
T13 Series
Select the soldering
tip appropriate for
work.
HAKKO
FX-780
4
N
2
Generator
With Racks for
Station Air tube Outer
diameter: 6mm It can
be placed
perpendicularly or
horizontally.
HAKKO
FX-791
5
N
2
Flow
Meter
6
The
others
Air tube Outer diameter: 6mm
* The others are not
provided by HAKKO
Used in combination with a smoke absorber
Can be used in combination with the HAKKO 490 smoke cleaner
HAKKO 490

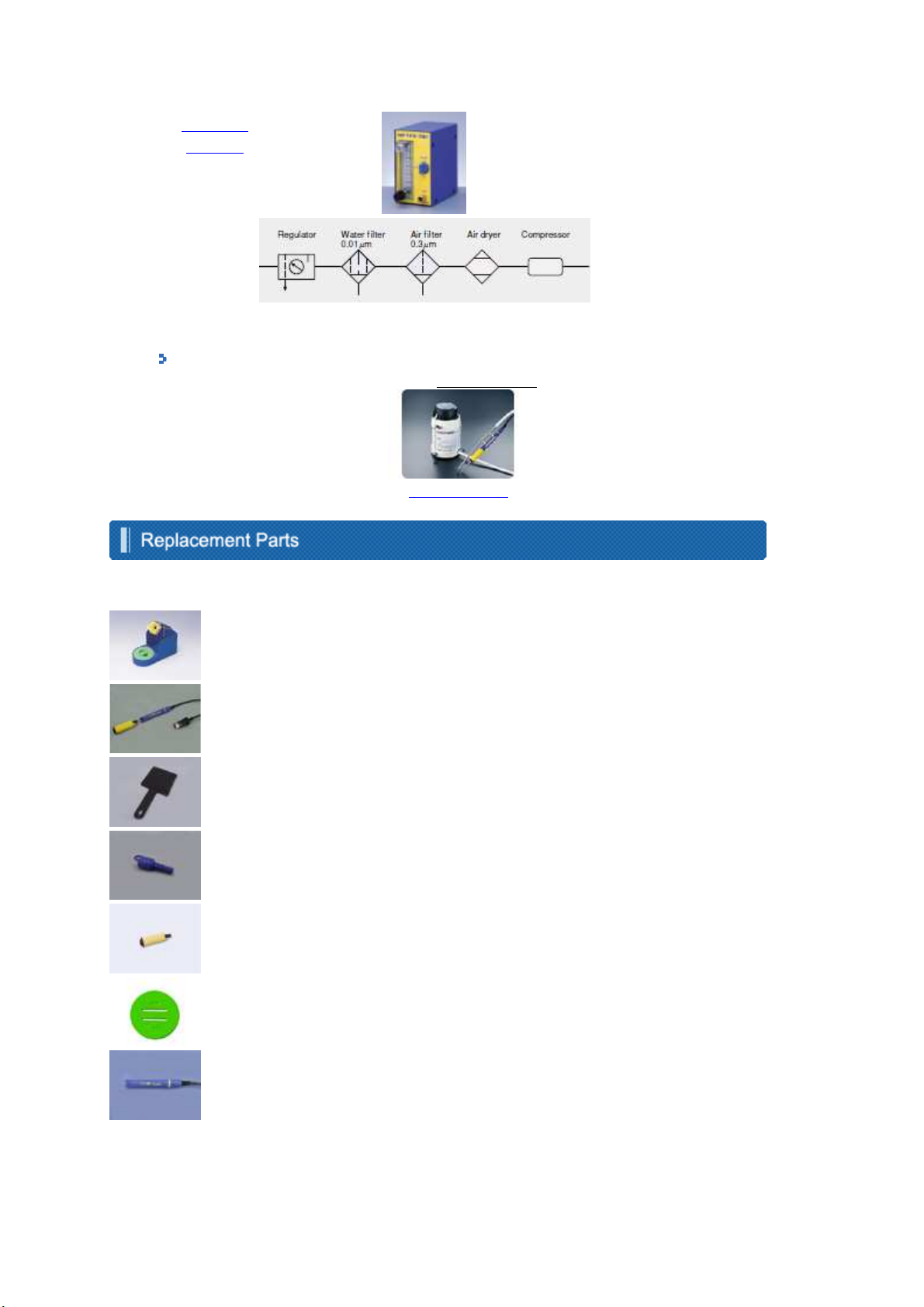

Part No. Name Specifications
FH101-02 Iron holder
FM2028-01
Soldering iron FM-
2028
70W (24V)
B2300 Heating resistant pad
B3308 Lock key
B3216 Sleeve assembly yellow
A1536 Cleaning sponge green
FM2028-03
Connector assembly
B3220 Connector cover
Part No. Name Specifications
FH200-02 Iron holder w/ power-save function
FH200-01 Iron holder w/ power-save function
FM2028-02 Soldering iron FM-2028 70W (24V)
B3253 Connecting cable
A1519 Cleaning sponge yellow
B3217 Sleeve assembly orange
B3218 Sleeve assembly blue
B3219 Sleeve assembly green
599B-01 HAKKO 599B tip cleaner
B2756 Tip tray
Equipped with sleep function
* Sleep function: If an optional Iron holder (No.FH200-01 or FH200-
02) is connected to
the FX-950 station via a Connection cable (No.B3253), and the FM-2028 iron is placed
on the Iron holder, the sleep function will operate after 6 minutes and the tip
temperature will be reduced to below 200°C (400°F). This function relieves the load
applied to the tip and prevents the tip from being oxidized.
*The sleep function starting time cannot be changed. (Fixed at 6 minutes)
T15 széria
Shape BCM/CM
This type differs from Shape BC by the addition of a hollow to its cut face, providing high
solder retention capability.
It is used for drag soldering and correction of bridging.
* Shape BCM/CM are not available for sale or use in the U.S.A.
T15-BCM2 Shape-2BC Bevel with indent
T15-BCM3 Shape-3BC Bevel with indent
Shape BC/C
This type has a shape like a cone or column cut at a slant, which allows users to select the cut
surface size depending on the workpiece.
It is used for drag soldering and pre-tinning of lead wires.
T15-BC12 Shape-1.2BC
•
T15-BC15 Shape-1.5BC
•
T15-BC28 Shape-2.8BC
•
T15-BC1 Shape-1BC
•
T15-BC2 Shape-2BC
•
T15-BC3 Shape-3BC
•
T15-BCF1 Shape-1BC
Tinned cut surface only
•
T15-BCF2 Shape-2BC
Tinned cut surface only
•
T15-BCF3 Shape-3BC
Tinned cut surface only
•
T15-C1 Shape-1C
•
T15-C4 Shape-4C
•
T15-CF2 Shape-2C
•
T15-CF3 Shape-3C
•
T15-CF4 Shape-4C
Tinned cut surface only
•
T15-SBC04 Shape-0.4SBC
Shape B
All-round type which can be used from any direction and is easy to hold at any position.
Possible to solder any surface from small to large.
T15-B Shape-B
•
T15-B2 Shape-0.5B
