Hanil Smart 13 Bedienungsanleitung
Operation Manual
Smart 13
Micro Centrifuge
Date of purchase
Serial No.
Research Use Only
Copyrightⓒ 2018 Hanil Scientic Inc. All rights reserved.
Contact Us
If you have any questions, contactHanil Scientic Inc. or place of purchase.
Doc.No. : OMM4PDEN1801
www.ihanil.com
2/20
Index
1. General Considerations -------------------------------------------------------- 4
1.1 Safety - 4
1.2 Transport & Storage - 5
1.3 Safety label - 5
1.4 Electric safety information - 5
2. Product Description ------------------------------------------------------------- 6
2.1 Appearance - 6
2.2 Delivery Package - 6
2.3 Technical Specications - 7
3. Installation ------------------------------------------------------------------------- 8
3.1 Packing Inspection - 8
3.2 Installation - 8
3.3 Connect Power - 9
3.4 Opeing/Closing the lid - 9
3.5 Loading and Removal of the Rotor - 10
3.6 Loading Tubes - 11
4. Operation -------------------------------------------------------------------------- 12
4.1 Control Panel - 12
4.2 Setting RPM - 13
4.3 Setting Run Time - 13
4.4 Starting/End the Centrifugation - 13
4.5 Pulse - 13
5. Maintenance ----------------------------------------------------------------------- 14
6. Troubleshooting - 15
6.1 General Errors - 15
7. Rotors and Accessories --------------------------------------------------------- 16
www.ihanil.com
4/18
1. General Considerations
Follow precautions and all the safety requirements described on this user manual to prevent any
damages, failure of equipment and loss of lives.
1. The centrifuge should be installed on at surface to maintain level.
Abnormal vibration is caused when the device is installed on an inclined surface.
2. Check the voltage to be used, before connecting the centrifuge to the power source.
3. Only use rotors, parts, and accessories provided by Hanil Scientic Inc. Hanil Scientic Inc. is not responsible
for damages of the device and accidents caused by using parts and accessories
not recommended.
4. Do not exceed the maximum rated speed of the rotor or buckets or accessories in use.
5. Make sure to prepare necessary safety measures before using samples that are toxic or radioactive samples
or pathogenic or samples or infectious blood.
6. If the centrifuge is contaminated by toxic or radioactive samples or infectious blood samples, remove
contaminants completeyly and take needful actions such as ventilation or isolation of centrifuge.
7. Substances that may generate volatile or explosive vapor can not be centrifuged.
8. The balancing work of samples shoud be done in advance before operation.
9. Before operation, rotor and chamber should be dry.
10. Do not attempt to slow or stop the spinning rotor by hand.
11. Only centrifuge with rotor and rotor lid rmly tightened.
12. Do not block vents.
13. Do not insert foreign objects into the holes of the device.
14. Repairs must be carried out by a technologist authorized by Hanil scientic Inc.
15. According to IEC61010-2-020 maintain a 30cm“clearance envelope”around the centrifuge while
the rotor is spinning.
16. Please contact the place of purchase or Hanil Scientic Inc. ([email protected]om/[email protected])
for product repairs.
17. Turn the power switch o after using the device.
18. Unplug the power plug before cleaning or left unused for a long period of time.
1.1 Safety
1. General Considerations
1.4 Electric safety information
1. Use a power cord only provided with the device.
2. Use sockets with a protective earth conductor and suitable power cord.
3. Do not use an extension cord.
4. Do not place anything on the power cable
5. Do not block vents.
6. If you have the following emergencies, shut o the power supply and unplug the power cord from outlet
and contact your place of purchase or Hanil Scientic Inc.
- Unusual noises or smell from the device.
- Damage or wear of a power cord.
- Breakdown of circuit breaker, fuse or safety device.
- If you spill liquid on the device.
- If Some of device has been damaged.
1.2 Transport & Storage
Storage
Ambient temperature 5℃ ~ 35℃
Maximum relative humidity 30% ~ 85%
Air pressure 500 ~ 1060 hpa
Transport
Ambient temperature -10℃ ~ 40℃
Maximum relative humidity 10% ~ 90%
Air pressure 500 ~ 1060 hpa
1.3 Safety label
Risk of electric shock Do not open lid until rotor
makes a complete stop. Rotation direction of the rotor.
!
WARNING
Do not open the lid
unntil rotor makes
a complete stop.
www.ihanil.com
6/18
2. Product Description
2.1 Appearance
① Lid : Lid protects the inside of the chamber.
② Rotor locking screw: Screw connects the rotor to the motor shaft.
③ Rotor :Rotor holds the tubes.
④ Lid sensor : Lid sensor detects whether lid is cloesd
⑤ Lid open button : Press the button to open lid.
⑥ Control Panel : Keys and knobs for operating the centrifuge.
⑦ Power socket : Socket is where the power cable connected.
⑧ Power switch : Switch allows the device to be turned on or o
⑨ Absorbent rubber : Rubber x the device on the laboratory bench.
① Standard oering
- Smart 13 main body(incl. :A2.0-12)
- Powercable(300/500V,6A)
- Usermanual
② Optional products [ See. 7. Rotors & Acc.]
- PCR tube & strip rotor
- 0.5 ml tube adaptor
- 0.2 ml tube adaptor
①
②
⑥
⑤ ⑦
⑧
⑨
③
④
④
2.2 Delivery Package
2. Product Description
2.3 Technical Specications
※ RPM, RCF values are for A2.0-12
※ This device does not provide automatic recognition of the rotor.
So do not exceed 6,000 rpm when using the PCR rotor.
Max. RPM 13,500 RPM
Max. RCF 12,032 xg
Time ≤ 15 min, Pulse
Acc. time to max. speed ≤15 sec
Dec. time from max. speed ≤8 sec
Tube Capacity 1.5/2.0ml x 12
Power supply AC110/220V, 50/60Hz
Dimension (W x D x H, mm) 189.7 x 202 x 129
Weight (kg) 1.5
Cat.No. SM-13
※ RCF Table
* Rcf value was calculated based on the bottom of the rotor hole.
RPM
A2.0-12
RPM
A0.2-32 A5.0-6
0.2ml 0.5ml 1.5/2.0ml 0.2 ml
Inner line
0.2 ml
Outer line 5 ml
3,000 443 545 594 3,000 313 ~ 443 464 ~ 560 654
6,000 1,773 2,191 2,377 5,000 870 ~ 1,231 1,289 ~ 1,556 1,817
8,000 3,151 3,877 4,226
6,000
[ Max.]
1,253 ~ 1,773
1,857 ~ 2,241 2,616
10,000 4,924 6,058 6,603
12,000 7,090 8,724 9,508
13,500 8,973 11,042 12,032
www.ihanil.com
8/18
3. Installation
3.1 Packing Inspection
3.2 Installation
· You can get contact details on packing box or back of the manual.
· Check packing conditions very carefully before unpacking.
· Contact Hanil Scientic Inc. immediately if damages found.
· Check the delivery for completeness.
Installation on hard and at ground.
• Centrifuge should be installed on hard and at place.
• If the centrifuge is installed in an inclined place, the shaft may be bent due to
the weight of the rotor.
Good ventailation.
• For air circulation and safety, maintain a 30cm“clearance envelope”around
the centrifuge while the rotor is spinning.
Constant temperature/humidity
• Centrifuge equipped with the sensitive electronic software which is fragile with
humidity and temperature.
• Must avoid direct ray or heater and be put in the ambience of controlled temp. and
air.
Avoid the corrosive gas
• Install the centrifuge in a place where corrosive gas is not generated.
• Sulfur dioxide gas and chlorine gas may cause corrosion.
Leveling
• The shaft should be put exactly vertical on the hotizontaliy at ground by
the leveling tool.
3. Installation
3.3 Connect Power
3.4 Opeing/Closing the lid
· Connect the device to voltage sources which correspond to the electrical
requirements on the label attached to the device.
· Use sockets with a protective earth conductor and provided power cord.
Press the lid down until it clicks.
When lid is not closed completely, the device does not operate.
(O) (X)
1. Connect the power cable to the power socket on the back side of the device and
plug the cord into the power outlet.
2. Switch the centrifuge on using the power switch on the back side of the device.
1. Press the lid button to open the lid.
▶
Closing the lid : Press the lid down until it clicks.
www.ihanil.com
10/18
3. Installation

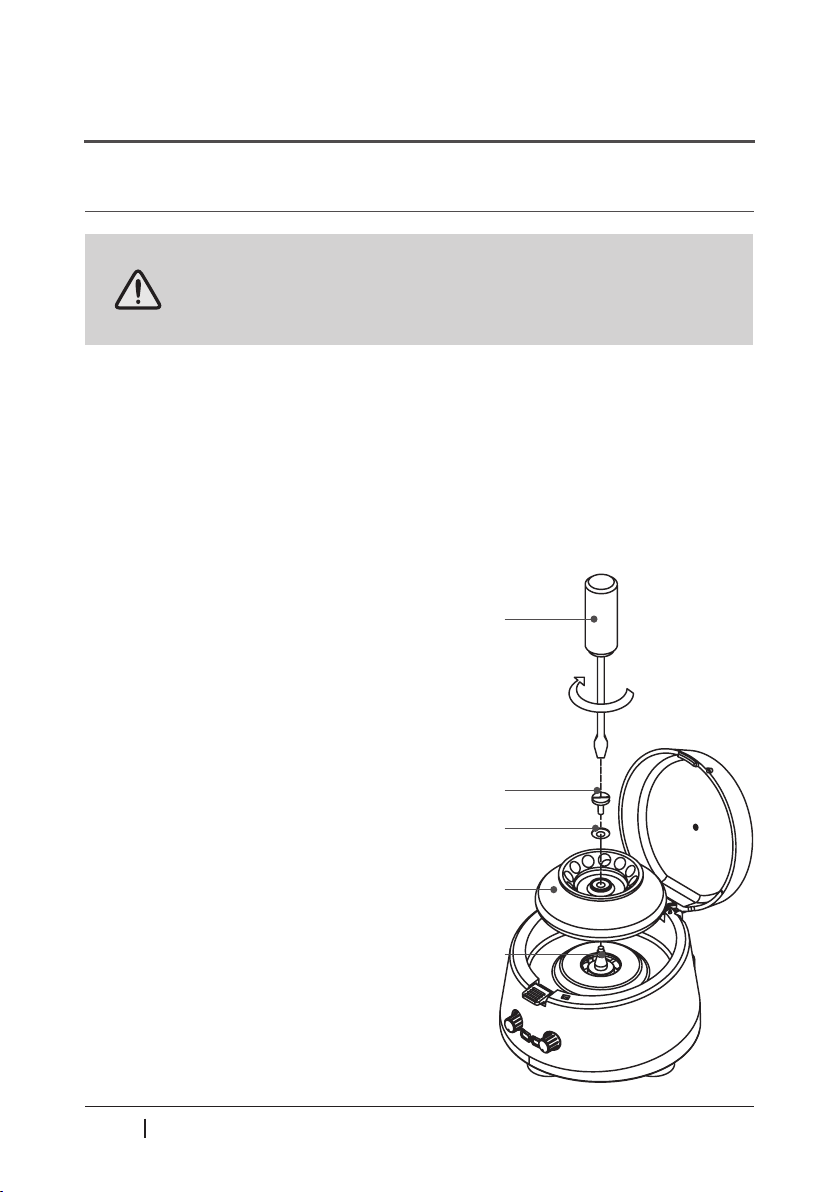

3.5 Loading and Removal of the Rotor
· This device is equipped withthe rotor .
· Only use rotors, parts, and accessories provided by Hanil Scientic Inc .
· Do not use a defective rotor.
1. Using a at head screwdriver, turn the rotor locking screw counterclockwise and pull
it completely out with the washer under the screw.
2. Lift up the rotor from the motor shaft.
3. Load the rotor into the motor shaft.
4. Align the washer with the hole at the top of the rotor.
5. Insert the rotor lock screw into the screw hole in the center of the rotor and turn it
clockwise using a at head screwdriver to completely lock it.
6. Check that the rotor is completely locked.
Follow the steps below to remove or replace the rotor.
Flat head screwdriver
Rotor lock screw
Washer
Rotor
Rotor Hub
