This package includes (Style of push button and chime may vary from illus-

trations):

•Wireless chime

•Wireless push button w/battery

•Hardware pack

You'll need to buy 3 "D" alkaline batteries for the chime (Clock chime

models require additional "AA" battery). In typical use, alkaline batteries

will last up to three years.

3. Test range. Temporarily posi-

tion chime and push button

where you want them mounted.

Press push button to verify

chime and push button work

properly. If chime does not

sound, see Troubleshooting.

6180 Series and 6280 Series

Decorative Wireless Chime

Case Style "A" (Shown

In Vertical Position)

2.Install 3 alkaline "D" batter-

ies. Make sure batteries are

oriented properly.

The base may be mounted in a

vertical or horizontal position.

The correct mounting position

will depend upon the specific

cover (model).

Cover

Mounting

Tabs

1.Install alkaline type A23 12 volt push button bat-

tery. Remove back of case by pushing in tab on

bottom with a small screwdriver. Make sure battery

is oriented properly (see page 4).

12345678

Battery

Chime

Volume

Jumpers

Case Style "B"

Jumpers

Chime

Volume

-2-

595-5506-09

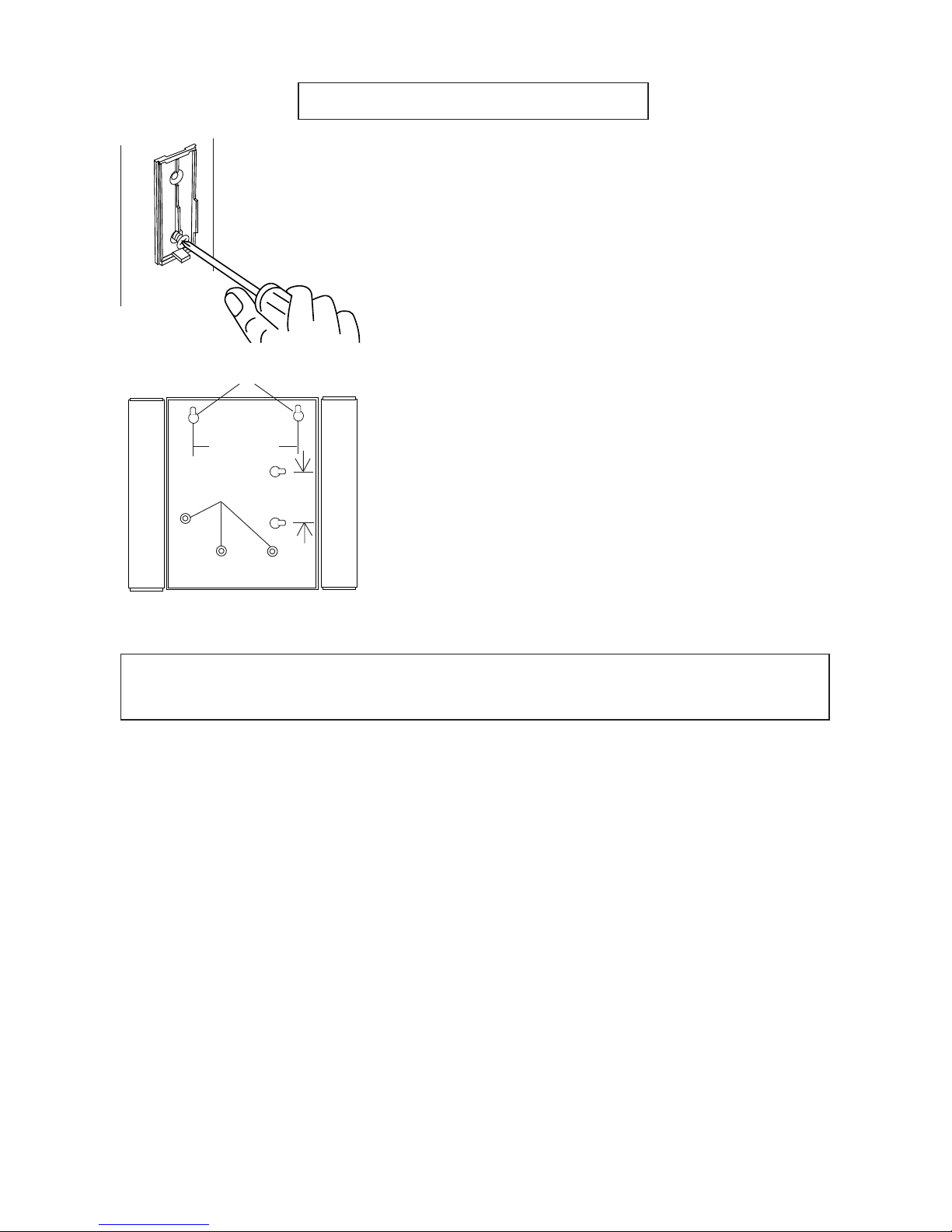

Use either screws or double sided tape to mount

push button.

To mount with screws, remove back of case by

pushing in tab on bottom with a small screwdriver.

Attach back of case to door jamb or wall. Snap

front of push button on.

When attaching push button using double sided

tape, make sure the surface of the door jamb or

wall is clean.

Case Style "A": Chime can be mounted by us-

ing 3 holes in the back of case, or by using 2

screws with keyholes.

Case Style "B": Chime can be mounted by us-

ing 1 large screw (provided) with saw-tooth

hanger. Securely fasten saw-tooth hanger to rear

of case using screws (or nails) provided (see il-

lustration on page 1). It can also be placed on a

flat surface.

Keyholes

Case Style "A"

Back

211⁄16 "

5.Slide chime cover onto top of chime. Use technique for the style case

you have. Mounting groove in cover will align with mounting tab(s) on base.

4. Mount push button and chime.

Holes

-3-

595-5506-09

Code and Tune Settings

Code Settings

Note: Most installations will not require you to change any jumpers on

your chime and push button.

The push button and chime communicate by using a code that can be changed

by removing and/or adding jumpers on both the push button and chime. The

code is factory set; however, there are 128 selectable codes that allow you

to expand your system and prevent outside interference. Other wireless prod-

ucts may cause interference and the system may not function properly. Fol-

low the instructions below for setting a new code.

1. Open the cases and locate the jumpers on both the push button and chime

(See illustration on page 4).

2. The push button and chime both have eight different jumper locations.

The jumper positions 1 through 7 are used for setting the code.

3. To change the code, add and/or remove jumpers as needed. It is recom-

mended to only change one jumper at a time and then check to see if

system is functioning properly. Note: Jumpers in positions 1 through 7

must be exactly the same for both the push button and chime for this

system to function.

Clock Chimes

Battery Installation and Setting Time

Note:This feature is only available on specific models.

1. Install battery into clock. Firmly grasp brass

ring and carefully pull forward to remove clock

assembly from front of chime. Gently pull off bat-

tery cover located on back of clock assembly. In-

stall "AA" battery according to polarity marks in-

side battery chamber. Replace battery cover.

2. Set time. With battery cover removed, turn

time setting dial on back of clock assembly until

time is correct. Replace battery cover. Replace

clock assembly into chime face by pressing as-

sembly gently into hole on chime face.

3. Install batteries into chime. Remove clock

chime back. Grasp cutouts on back of chime with fingers. Gently push back up

and pull lower part of back out to remove. Install 3 alkaline "D" batteries ac-

cording to polarity marks inside battery chamber. Replace back of chime by

following the above instructions in reverse (see illustration on page 1).

Time Setting

Dial

Battery

Cover

-4-

595-5506-09

eryBattery

BBattery

12345678

Push Button Battery Replacement

Install an alkaline type A23 12 Volt bat-

tery. See diagram inside push button for

correct battery orientation.

* Code Settings 1-7

Must Match Both

Push Button and

Chime

Inside Push

Button

Inside Chime

Note: Some models might require the use of

tweezers to remove and replace the jumpers.

Tune

Setting

Tune Setting

(Not used on

all models)

Tune Settings

Your Heath®/Zenith wireless chime has different selectable tunes: Ding (one

note), Ding-Dong (two note), or Westminster (eight note) (Available on se-

lected Heath®/Zenith chimes). The factory setting is for the Ding-Dong tune

(or Westminster, when available). This tune can be changed by following the

instructions below.

•Ding (one note tune)

Push Button: Add a jumper to location 8.

•Ding-Dong (two note tune)

Push Button: Remove jumper from location 8.

Chime: Remove jumper from location 8.

•Westminster (Eight note tune) (Available on selected Heath®/Zenith chimes)

Push Button: Remove jumper from location 8.

Chime: Add a jumper to location 8.

Note: All models have both front and back door tune capabilities. You may

purchase any Heath®/Zenith wireless push button for a second entrance. We

recommend the back door use the Ding tune and the front door use the

Ding-Dong tune (or Westminster tune, available on selected Heath®/Zenith

chimes). Models that include two push buttons will come factory set for front

and back doors. Decals on the rear of the push button will indicate its setting.

-5-

595-5506-09

Troubleshooting

Chime does not sound:

•Make sure push button and chime codes are the same (See pages 3 and 4).

•Check orientation of push button battery (See page 4).

•Check charge of push button and chime batteries, replace if necessary.

Batteries seem OK, but the chime does not work when installed:

•Do not mount chime or push button on metal or near metal studs. This

reduces the transmitter range. Use 1/4" to 1/2" (6 to 13 mm) wood shims

to move chime or push button off metal surface.

•Concrete floors may reduce range. Move chime away from floor.

•Try locating chime closer to push button.

The range of the wireless chime can vary with location, temperature and

battery condition.

Regulatory Information

This device (SL-6180-RX-A, WB-94A-TX, or WB-97-TX) complies with Part

15 of the FCC Rules and RSS-210 of Industry Canada. Operation is subject

to the following two conditions: (1) this device may not cause harmful inter-

ference, and (2) this device must accept any interference received, including

interference that may cause undesired operation.

The term “IC:” before the radio certification number only signifies that Industry Canada

technical specifications were met.

The user is cautioned that changes or modifications not expressly approved

by the party responsible for regulatory compliance could void the user’s au-

thority to operate the equipment.

Technical Service

(Do Not Send Products)

Ifyouexperienceaproblem,follow this guide. Youmay also want tovisit our Web

site at: www.desatech.com. If the problem persists, call* for assistance at 1-

800-858-8501, 7:30 AM to 4:30 PM CST (M-F). You may also write* to:

DESA Specialty Products™

P.O. Box 90004, Bowling Green, KY 42102-9004

ATTN: Technical Service Specialty Products

* If contacting Technical Service, please have the following information avail-

able: Model Number, Date of Purchase, and Place of Purchase.

No Service Parts Available for this Product

-6-

595-5506-09

DESA Specialty Products™ reserves the right to discontinue and to change

specifications at any time without notice without incurring any obligation to

incorporate new features in previously sold products.

LIMITED WARRANTY

This is a “Limited Warranty” which gives you specific legal rights. You may also

have other rights which vary from state to state or province to province.

For a specified period depending upon model (see chart below) from the date

of purchase, any malfunction caused by factory defective parts or workmanship

will be corrected at no charge to you. Batteries are not covered. To obtain a

refund or a replacement, return the product to the place of purchase.

Not Covered - Repair service, adjustment and calibration due to misuse, abuse

or negligence, light bulbs and other expendable items are not covered by this

warranty.Unauthorized service or modificationof the productorof any furnished

component will void this warranty in its entirety. This warranty does not include

reimbursement for inconvenience, installation, setup time, loss of use, or

unauthorized service.

This warranty covers only DESA Specialty Products™ assembled products and

is not extended to other equipment and components that a customer uses in

conjunction with our products.

THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES,

EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY, REPRESENTATION

ORCONDITIONOFMERCHANTABILITYORTHAT THE PRODUCTS ARE FIT

FOR ANY PARTICULAR PURPOSE OR USE, AND SPECIFICALLY IN LIEU OF

ALL SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES.

REPAIR OR REPLACEMENT SHALL BE THE SOLE REMEDY OF THE CUS-

TOMERANDTHERESHALLBENOLIABILITYONTHEPARTOFDESASPECIALTY

PRODUCTS™ FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUEN-

TIALDAMAGES,INCLUDINGBUTNOTLIMITEDTOANYLOSSOFBUSINESSOR

PROFITS, WHETHER OR NOT FORESEEABLE. Some states or provinces do not

allow the exclusion or limitation of incidental or consequential damages, so the above

limitation or exclusion may not apply to you. Retain receipt for warranty claims.

Model Warranty Period

6280, 6281, 6282 3 Years

6180 Series, 6283, 6284, 6285 5 Years

-7-

595-5506-09

Este paquete tiene (El estilo del pulsador y de la campana puede variar de la

ilustración):

•Campana Inalámbrica

•Pulsador inalámbrico con batería

•Paquete de ferretería

Usted deberá comprar 3 pilas alcalinas “D” para el timbre. (Los modelos

de campanilla de reloj requieren pilas adicionales “AA”). Con un uso normal,

las pilas alcalinas durarán hasta tres años.

3.Pruebe el alcance. Ponga

provisionalmente la campana y

el pulsador en la posición donde

los quiera instalar. Presione el

pulsador para verificar que la

campanay el pulsador

funcionen apropiadamente. Si

la campana no suena, vea

Análisis de Averías.

Serie 6180 y Serie 6280

Campanilla Decorativa Inalámbrica

Caja Estilo “A” (Mostradas

en posición vertical)

2.Coloque las 3 pilas alkalinas

“D”. Asegúrese de que estén

correcta-mente colocadas.

La base puede estar montada en

una posición vertical u horizon-

tal. La posición correcta de

montaje dependerá de la

cubierta específica (modelo).

Aletas de

montaje

de la

cubierta

1.Instalar pila alcalina de botón tipo A23 de 12

voltios. Extraer la parte posterior de la caja

presionando la aleta en el botón con un destornillador

pequeño. Asegurarse que la pila esté orientada

correctamente (ver la página 11).

Battery

Puentes

Caja Estilo “B”

Control del Volumen

de la Campana

12345678

Puentes

Control del

Volumen de

la Campana

-8-

595-5506-09

Use ya sean tornillos o cinta adhesiva por ambas

caras para instalar el pulsador.

Para montar con tornillos, quite la parte de atrás de

la caja empujando hacia adentro la lengüeta de abajo

con un destornillador pequeño y girando la cuchilla.

Coloque la parte de atrás de la caja contra la

jamba o la pared. Encaje a presión la parte fron-

tal del pulsador.

Cuando fije el pulsador usando cinta adhesiva por

ambas caras, asegúrese que la superficie de la

pared o la del batiente de la puerta estén limpias.

Caja Estilo“A”: La campana puede ser montada

usando los 3 huecos en la parte de atrás de la

caja o dos tornillos en los huecos.

Caja Estilo “B”: La campana puede ser montada

usando 1 tornillo largo (provisto) con colgador con

diente de sierra. Asegure bien este colgador en la

parte de atrás de la caja usando los tornillos (o clavos)

provistos (ver la ilustración en la página 7). Se puede

colocar también sobre una superficie plana.

Agujeros

Caja estilo “A”

Atrás

68 mm

5.Deslice la tapa de la campana por sobre la parte superior de la campana.

Use la técnica apropiada para el estilo de caja que tenga. La ranura de

montaje en la cubierta se alinea con la aleta(s) de montaje en la base.

4. Instale el pulsador y el timbre.

Agujeros

-9-

595-5506-09

Campanillas De Reloj

Instalación de la pila y graduación del tiempo

Nota: Esta característica está disponible solamente para modelos

específicos.

1. Instalar la pila en el reloj. Sujetar

firmemente el anillo de bronce y tirar

cuidadosamente hacia adelante para

extraer el conjunto del reloj de la parte

delantera de la campanilla. Hale y quite

suavemente la tapa de la pila ubicada en la

parte de atrás del conjunto del reloj. Instalar

la pila “AA” de acuerdo con las marcas de

polaridad dentro de la cámara de la pila.

Volver a colocar la cubierta de la pila.

2. Graduar la hora. Una vez quitada la

tapa de la pila, gire el dial fijador de la hora,

en la parte de atrás del reloj, hasta la hora

correcta. Ponga de nuevo la tapa de la pila.

Volver a colocar el conjunto del reloj dentro de la superficie de la campanilla

presionando suavemente dentro del orificio de la superficie de la campanilla.

3. Instalar las pilas dentro de la campanilla. Quite la parte de atrás de la

campana del reloj. Agarre con los dedos las partes removibles de la parte de

atrás de la campana. Empuje suavemente hacia arriba y hale la parte infe-

rior trasera para quitar. Instalar 3 pilas alcalinas “D” de acuerdo con las marcas

de polaridad dentro de la cámara de la pila. Ponga de nuevo la parte de

atrás de la campana siguiendo en reverso los pasos indicados arriba (ver la

ilustración en la página 7).

Cuadrante de

graduación de

hora

Placa de

cubierta de la pila

-10-

595-5506-09

Programaciones del código y del tono

Programaciones del código

Nota: En la mayoría de instalaciones no será necesario que cambie

ningún puente en su campana o en su pulsador.

El pulsador y la campana se comunican usando un código que puede ser

cambiado quitando y/o añadiendo puentes en el pulsador y la campana. El

código ha sido programado en fábrica; sin embargo, hay 128 códigos elegibles

que le permiten expandir su sistema y evitar interferencia externa. Otros

productos inalámbricos pueden causar interferencia y puede ser que el

sistema no funcione como es debido. Para programar un nuevo código siga

las siguientes indicaciones:

1. Abra las cajas y localice los puentes tanto en el pulsador como en la

campana (vea la ilustración en la página 11).

2. Tanto el pulsador como la campana tienen ocho posiciones diferentes de

los puentes. Las posiciones de puente del 1 al 7 se usan para programar

el código.

3. Para cambiar el código añade y/o quite los puentes, como sea necesario.

Se recomienda cambiar tan sólo un puente por vez y luego comprobar si

el sistema funciona correctamente. Nota: Para que funcione este sistema,

las posiciones de la 1 a la 7 de los puentes deben ser iguales tanto en el

pulsador como en la campana.

Programación del tono

Su campana inalámbrica Heath®/Zenith tiene tonos diferentes que pueden

seleccionarse: Tilín (una nota), Tilín-Talán (dos notas), o Westminster (ocho

notas) (Disponible en los timbres Heath®/Zenith seleccionados). La calibración

de fábrica es el tono Tilín-talán (o el tono Westminster cuando está disponible).

Este tono puede ser cambiado siguiendo las instrucciones que siguen.

Andere Handbücher für 6180 Series

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Heath Zenith Zubehör Handbücher

Heath Zenith

Heath Zenith Notifi elite Bedienungsanleitung

Heath Zenith

Heath Zenith Lighted Wireless Push Button Accessory Bedienungsanleitung

Heath Zenith

Heath Zenith Wireless Mechanical Battery Operated Chime... Bedienungsanleitung

Heath Zenith

Heath Zenith Replacement Motion Sensor SL-5407 Bedienungsanleitung

Heath Zenith

Heath Zenith DualBrite Replacement Sensor Head 2LBN3 Service-Handbuch

Heath Zenith

Heath Zenith SL-6200 Bedienungsanleitung

Heath Zenith

Heath Zenith Wireless Chime TR-0095-RX Bedienungsanleitung

Heath Zenith

Heath Zenith notifi alert Bedienungsanleitung

Heath Zenith

Heath Zenith 598-1215-01 Bedienungsanleitung

Heath Zenith

Heath Zenith Wireless Chime 598-1172-04 Bedienungsanleitung

Heath Zenith

Heath Zenith 598-1112-04 Bedienungsanleitung

Heath Zenith

Heath Zenith 7776 Bedienungsanleitung

Heath Zenith

Heath Zenith Wireless Dual Push Button Accessory SL-6200 Bedienungsanleitung

Heath Zenith

Heath Zenith Notifi Elite Bedienungsanleitung

Heath Zenith

Heath Zenith 5867 Service-Handbuch

Heath Zenith

Heath Zenith DualBrite 5716 Bedienungsanleitung

Heath Zenith

Heath Zenith Wireless Push Button Accessory 598-1151-02 Bedienungsanleitung

Heath Zenith

Heath Zenith 5316 Bedienungsanleitung

Heath Zenith

Heath Zenith 7309 Bedienungsanleitung

Heath Zenith

Heath Zenith Wireless Mechanical Chime 598-1123-02 Bedienungsanleitung

Heath Zenith

Heath Zenith SL-6153 Bedienungsanleitung

Heath Zenith

Heath Zenith Decorative Wireless Chime 598-1000-07 Bedienungsanleitung

Heath Zenith

Heath Zenith 598-1143-01 Bedienungsanleitung

Heath Zenith

Heath Zenith Wireless Push Button Accessory 598-1105-05 Bedienungsanleitung

Beliebte Zubehör Handbücher anderer Marken

Hillco

Hillco 2810 Bedienungsanleitung

Siemens

Siemens QSA2700D Bedienerhandbuch

Contours

Contours ZY024 Bedienungsanleitung

Saivod

Saivod VS621 Bedienungsanleitung

Virtuox

Virtuox VirtuCLEAN 2.0 Bedienungsanleitung

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Bedienungsanleitung

Z-Wave

Z-Wave HSD-200Z Bedienungsanleitung

turck

turck FMX-IM-2UPLI63FX Bedienungsanleitung

Decagon Devices

Decagon Devices 10HS Bedienungsanleitung

UPPAbaby

UPPAbaby Cup Holder Bedienungsanleitung

Elko

Elko SmartSensor Leakage Wireless Bedienungsanleitung

Grizzly

Grizzly H8371 Bedienungsanleitung

Panasonic

Panasonic HG-T Series Bedienungsanleitung

IFM Electronic

IFM Electronic Efector 250 Series Referenzhandbuch

DigiDesign

DigiDesign 888/24 I/O Bedienungsanleitung

PROZIS

PROZIS QUAY Bedienungsanleitung

patagonia

patagonia PSI Vest Bedienungsanleitung

SFC Energy

SFC Energy EFOY GO! Bedienungsanleitung
