Wireless

Door Sensor

Chime

Model SL-6168

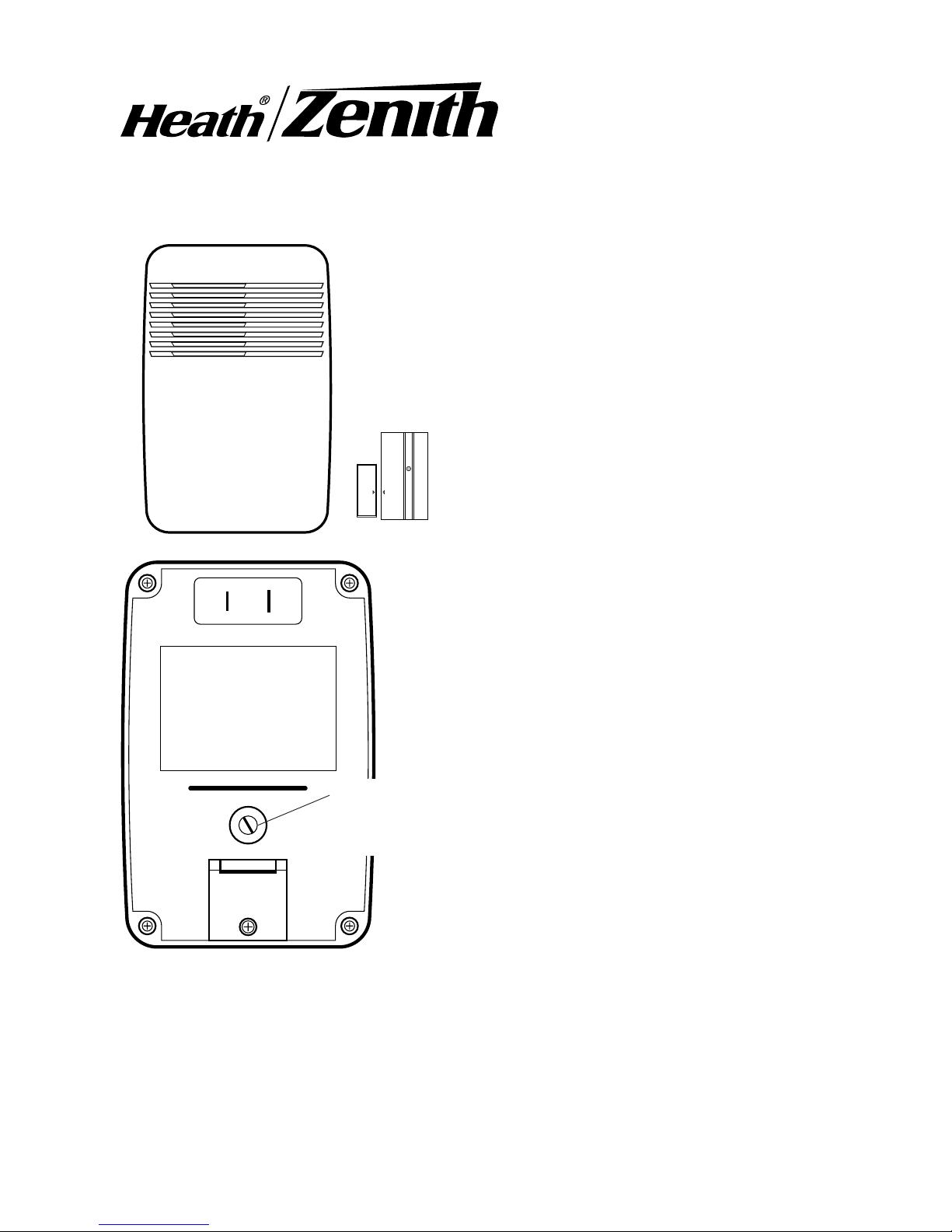

Your doorbell includes:

•Plug-in doorbell chime

•Door sensor/transmitter with

battery

•Door magnet

•Magnet spacer

•Hardware pack

To reduce the risk of electrical shock, this equipment has a polarized

plug (one blade is wider than the other). This plug will fit in a polarized

outlet only one way. If the plug does not fit fully in the outlet, reverse the

plug. If it still does not fit, contact a qualified electrician to install the

proper outlet. Do not change the plug in any way.

Chime

Volume

Control

1. Set the chime volume on the

back of the plug-in chime, if

desired.

2. Plug-in the doorbell chime.

-2-

595-5724-03

Use either screws or double-sided tape to mount the magnet

and transmitter.

Attach the back of the case to the door jamb or wall. Snap

the front of the transmitter and magnet back on.

When attaching the magnet or transmitter

using the double-sided tape, make sure the

surface is clean.

Installation

Important considerations: The sensor/transmitter must be mounted to the

door jamb. The magnet should be attached to the door. To prevent vandalism

and increase battery life, the sensor/transmitter should be installed inside.

Test the location of the sensor/transmitter. Hold

the transmitter on the door jamb with one hand,

and the magnet with the other as shown. Take

the magnet away, and the chime should sound.

Alignment Marks

To install the battery in the transmit-

ter remove the back of the case

by pushing in the tab on the bot-

tom with a small screwdriver

and rotating the blade.

Install an alkaline type A23 12 Volt battery. The positive terminal should be

positioned as shown.

The edge of the magnet must be within 2(13 mm) in. of the edge of the

transmitter, the alignment marks must be positioned as shown, and the front

surfaces of the magnet and transmitter should be as nearly flush with each

other as possible. It may be necessary to use the spacer under the magnet

to obtain the correct spacing.

-3-

595-5724-03

Code and Tune Settings

Code Settings

Note: Most installations will not require you to change any of the jump-

ers on your doorbell.

WARNING: Disconnect chime unit from power source before opening

code access door. Close door and replace screw before reconnecting

to power.

The transmitter and chime communicate by using a code that can be changed

by removing and/or adding jumpers on both the transmitter and chime. The

code is factory set; however, there are 128 selectable codes that allow you

to expand your system and prevent outside interference. Another wireless

doorbell system or other wireless products may cause interference and the

system may not function properly. Follow the instructions below for setting a

new code.

1. Disconnect the power to the transmitter and chime.

2. Open the cases and locate the jumpers on both the transmitter and chime

(See illustration).

3. The transmitter and chime both have eight different jumper locations. The

jumper positions 1 through 7 are used for setting the code.

4. To change the code, add and/or remove jumpers as needed. There are

128 different combinations. It is recommended to only change one jumper

at a time and then check to see if system is functioning properly. Note:

Jumpers in positions 1 through 7 must be exactly the same for both the

transmitter and chime for this system to function.

-4-

595-5724-03

12345678

Inside

Transmitter

Transmitter Battery Replacement

Install an alkaline type A23 12 Volt bat-

tery. See diagram inside push button for

correct battery orientation.

* Code Settings 1-7

Must Match Both

Transmitter and

Chime

Remove screw to

open access door

Back of

Chime

Tune Setting

(Not used on

all models)

Note: Some models might re-

quire the use of tweezers to re-

move and replace the jumpers.

Tune Settings

Your Heath®/Zenith wireless chime has different selectable tunes: Ding (one

note), Ding-Dong (two note), or Westminster (eight note) (Available on se-

lected Heath®/Zenith chimes). The factory setting is for the Ding-Dong tune

(or Westminster, when available). This tune can be changed by following the

instructions below.

•Ding (one note tune)

Transmitter: Add a jumper to location 8.

•Ding-Dong (two note tune)

Transmitter: Remove jumper from location 8.

Chime: Remove jumper from location 8.

•Westminster (Eight note tune) (Available on selected Heath®/Zenith

chimes)

Transmitter: Remove jumper from location 8.

Chime: Add a jumper to location 8.

Note: All models have both front and back door tune capabilities. You may

purchase any Heath®/Zenith wireless push button for a second entrance.

12345678

-5-

595-5724-03

Regulatory Information

This device (Models SL-6166-RX-A and SL-6168-TX) complies with Part 15

of the FCC Rules and RSS-210 of Industry Canada. Operation is subject to

the following two conditions: (1) this device may not cause harmful interfer-

ence, and (2) this device must accept any interference received, including

interference that may cause undesired operation.

The user is cautioned that changes or modifications not expressly approved

by the party responsible for regulatory compliance could void the user's au-

thority to operate the equipment.

No Service Parts Available for this Product

Technical Service

(Do Not Send Products)

Ifyouexperienceaproblem,followthisguide.YoumayalsowanttovisitourWeb

site at: www.desatech.com. If the problem persists, call* for assistance at 1-

800-858-8501, 7:30 AM to 4:30 PM CST (M-F). You may also write* to:

DESA Specialty Products™

P.O. Box 90004, Bowling Green, KY 42102-9004

ATTN: Technical Service Specialty Products

* If contacting Technical Service, please have the following information avail-

able: Model Number, Date of Purchase, and Place of Purchase.

Troubleshooting

Chime does not sound:

•Red light on the transmitter does not light. Check battery polarity. Replace

the transmitter battery.

•Red light on the transmitter does light. Make sure the transmitter and the

chime channels are the same (See page 4). Make sure the plug-in chime

has power going to it.

Battery seems OK, but the chime does not work when installed:

•Do not mount the transmitter on metal or near metal studs. This reduces

the transmitter range. Use 1/4" to 1/2" (6 to 13 mm) wood shims to move

the transmitter off the metal surface.

•Try different locations for the chime closer to the transmitter.

The range of the door sensor system depends on location, temperature, and

battery condition.

-6-

595-5724-03

DESA Specialty Products™ reserves the right to discontinue and to change

specifications at any time without notice without incurring any obligation to

incorporate new features in previously sold products.

FIVE YEAR LIMITED WARRANTY

This is a "Limited Warranty" which gives you specific legal rights. You may

also have other rights which vary from state to state or province to province.

For a period of five years from the date of purchase, any malfunction

caused by factory defective parts or workmanship will be corrected at no

charge to you. Batteries are not covered. To obtain a refund or a

replacement, return the product to the place of purchase.

Not Covered - Repair service, adjustment and calibration due to misuse,

abuse or negligence, light bulbs and other expendable items are not

covered by this warranty. Unauthorized service or modification of the

product or of any furnished component will void this warranty in its entirety.

This warranty does not include reimbursement for inconvenience, instal-

lation, setup time, loss of use, or unauthorized service.

This warranty covers only DESA Specialty Products™ assembled prod-

ucts and is not extended to other equipment and components that a

customer uses in conjunction with our products.

THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRAN-

TIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY,

REPRESENTATION OR CONDITION OF MERCHANT ABILITY OR

THAT THE PRODUCTS ARE FIT FOR ANY PARTICULAR PURPOSE

OR USE, AND SPECIFICALLY IN LIEU OF ALL SPECIAL, INDIRECT,

INCIDENTAL, OR CONSEQUENTIAL DAMAGES.

REPAIR OR REPLACEMENT SHALL BE THE SOLE REMEDY OF THE

CUSTOMER AND THERE SHALL BE NO LIABILITY ON THE PART OF

DESA SPECIALTY PRODUCTS™ FOR ANY SPECIAL, INDIRECT, INCI-

DENTAL, OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT

LIMITED TO ANY LOSS OF BUSINESS OR PROFITS, WHETHER OR

NOT FORESEEABLE. Some states or provinces do not allow the exclusion

or limitation of incidental or consequential damages, so the above limitation

or exclusion may not apply to you. Retain receipt for warranty claims.

-7-

595-5724-03

Modelo SL-6168

Control del

Volumen de la

Campana

Para reducir el riesgo de choque eléctrico, este equipo tiene un enchufe

polarizado (una patilla es más ancha que la otra). Este enchufe podrá

insertarse en un tomacorriente polarizado solamente de una manera. Si el

mismo no entra completamente en el tomacorriente, invierta el enchufe. Si

aún no encaja completamente, póngase en contacto con un electrista

competente para qua éste instale el tomacorriente correcto. No cambie el

enchufe de modo alguno.

Este paquete incluye:

•Enchufe la campana del

timbre

•Detector/transmisor de la

puerta con pila

•Imán para la puerta

•Espaciador del imán

•Paquete de accesorios

Campana

inalámbrica

para el detector

de puerta

1. Fije el volumen de el timbre

de campana.

2. Enchufe la campana en un

tomacorriente de pared.

-8-

595-5724-03

Use tornillos o cinta engomada en los dos lados para montar el imán y

el transmisor.

Fije la parte de atrás de la caja a la jamba de la puerta o a la pared.

Asiente de nuevo en su lugar el frente del transmisor y del imán.

Cuando fije el imán o el transmisor usando la cinta

engomada en los dos lados, asegúrese de que la

superficie esté limpia.

Instalación

Consideraciones importantes: El detector/transmisor debe ser montado

sobre la jamba de la puerta. El imán debe ser colocado en la puerta. Para

evitar el vandalismo y aumentar la vida de la pila, se debe instalar el detec-

tor/transmisor dentro de casa.

Pruebe la ubicación del detector/transmisor.

Sostenga el transmisor sobre la jamba de la

puerta con una mano y el imán con la otra, como

se muestra. Quite el imán y la campana debería

sonar.

Marcas de alineación

Para instalar la pila en el transmisor

quite la tapa de atrás empujando

la lengüeta de la parte de abajo

con un destornillador y

girándolo.

Ponga una pila alcalina tipo A23 de 12 voltios. El terminal positivo debe

estar colocado como se muestra.

El borde del imán debe estar dentro de 13 mm del borde del transmisor, las

marcas de alineación deben estar colocadas como se muestra en la figura y

el frente del imán y del transmisor deben estar a ras el uno del otro tanto

como sea posible. Puede ser necesario el uso del espaciador que se

encuentra en la parte inferior del imán para obtener el espacio correcto.

-9-

595-5724-03

Programaciones del código y del tono

Programaciones del código

Nota: La mayoría de las instalaciones no requerirán que usted cambie

ninguno de los puentes de su timbre de puerta.

ADVERTENCIA: Desconecte la unidad de la campana de la fuente de

alimentación antes de abrir la puerta de acceso de códigos. Cierre la

puerta y ponga los tornillos antes de reconectar la alimentación.

El transmisor y la campana se comunican usando un código al que se lo

puede cambiar sea quitando y/o añadiendo puentes tanto al transmisor como

a la campana. El código ha sido programado en fábrica; sin embargo, hay

128 códigos elegibles que le permiten expandir su sistema y evitar

interferencia externa. Otro sistema inalámbrico de timbre de puerta u otros

productos inalámbricos pueden causar interferencia y pueda ser que el

sistema no funcione correctamente. Para programar un nuevo código siga

las siguientes indicaciones:

1. Desconecte la alimentación al transmisor y a la campana.

2. Abra la caja y localice los puentes del transmisor y de la campana (vea la

ilustración).

3. El transmisor y la campana tienen ocho diferentes lugares para los puentes.

Las posiciones de puente del 1 al 7 se usan para programar el código.

4. Para cambiar el código añade y/o quite los puentes, como sea necesario.

Existen 128 combinaciones diferentes. Se recomienda cambiar tan sólo

un puente por vez y luego comprobar si el sistema funciona correctamente.

Nota: Los puentes en las posiciones 1 a la 7 deben ser exactamente

iguales en el transmisor y la campana para que este sistema funcione.

-10-

595-5724-03

12345678

* Las

configuraciones de

código del 1 al 7

deben ser iguales

para el transmisor

y la campana

Quite el tornillo para abrir

la puerta de acceso

Programación

del tono (No se

usa en todos

los modelos)

Parte de

atrás de la

campana

Cambio de pila del transmisor

Cámbiela con una pila alcalina tipo A23

de 12V. Vea el diagrama dentro del pulsador

para la orientación correcta de la pila.

Dentro del

transmisor

Nota: Algunos modelos podrían requerir

el uso de pinzas especiales para retirar

y colocar los puentes.

Programación

del tono

Programación del tono

Su campana inalámbrica Heath®/Zenith tiene tonos diferentes que pueden

seleccionarse: Tilín (una nota), Tilín-Talán (dos notas), o Westminster (ocho

notas) (Disponible en los timbres Heath®/Zenith seleccionados). La calibración

de fábrica es el tono Tilín-talán (o el tono Westminster cuando está disponible).

Este tono puede ser cambiado siguiendo las instrucciones que siguen.

•Tilín (tono de una nota)

Transmisor: aumente un puente al sitio 8.

•Tilín-talán (tono de dos notas)

Transmisor: Quite el puente del sitio 8.

Campana: Quite el puente del sitio 8.

•Westminster (tono de ocho notas) (Disponible en los timbres Heath®/

Zenith seleccionados)

Transmisor: Quite el puente del sitio 8.

Campana: Aumente un puente al sitio 8.

Nota: Todas las campanas tienen capacidad de tonos para las puertas fron-

tal y posterior. Usted puede comprar cualquier pulsador Heath®/Zenith

inalámbrico para una segunda puerta de entrada.

12345678

Inhaltsverzeichnis

Sprachen:

Andere Heath Zenith Zubehör Handbücher

Heath Zenith

Heath Zenith 5610 Bedienungsanleitung

Heath Zenith

Heath Zenith Wireless Mechanical Chime 598-1123-02 Bedienungsanleitung

Heath Zenith

Heath Zenith 121AC Bedienungsanleitung

Heath Zenith

Heath Zenith Hardwired Electronic Chime 598-1313-00 Bedienungsanleitung

Heath Zenith

Heath Zenith Wireless Mechanical Battery Operated Chime... Bedienungsanleitung

Heath Zenith

Heath Zenith DUAL BRITE SL-5597 Bedienungsanleitung

Heath Zenith

Heath Zenith Wireless Christmas Chime 598-1127-03 Bedienungsanleitung

Heath Zenith

Heath Zenith Replacement Motion Sensor SL-5407 Bedienungsanleitung

Heath Zenith

Heath Zenith Wireless Push Button Accessory SL-6190... Bedienungsanleitung

Heath Zenith

Heath Zenith SL-6155 Series Bedienungsanleitung

Heath Zenith

Heath Zenith 6168 Bedienungsanleitung

Heath Zenith

Heath Zenith Wireless Push Button Accessory 598-1151-02 Bedienungsanleitung

Heath Zenith

Heath Zenith 7311 Bedienungsanleitung

Heath Zenith

Heath Zenith Single Entrance Chime 23/M Bedienungsanleitung

Heath Zenith

Heath Zenith notifi alert Bedienungsanleitung

Heath Zenith

Heath Zenith Wireless Chime 6153/62/71/72 Bedienungsanleitung

Heath Zenith

Heath Zenith Wireless Chime TR-0095-RX Bedienungsanleitung

Heath Zenith

Heath Zenith 121AC Bedienungsanleitung

Heath Zenith

Heath Zenith Notif Bedienungsanleitung

Heath Zenith

Heath Zenith SL-6166 Bedienungsanleitung

Heath Zenith

Heath Zenith 7762 Bedienungsanleitung

Heath Zenith

Heath Zenith 7868 Bedienungsanleitung

Heath Zenith

Heath Zenith 598-1112-04 Bedienungsanleitung

Heath Zenith

Heath Zenith 7143 Bedienungsanleitung

Beliebte Zubehör Handbücher anderer Marken

Hillco

Hillco 2810 Bedienungsanleitung

Siemens

Siemens QSA2700D Bedienerhandbuch

Contours

Contours ZY024 Bedienungsanleitung

Saivod

Saivod VS621 Bedienungsanleitung

Virtuox

Virtuox VirtuCLEAN 2.0 Bedienungsanleitung

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Bedienungsanleitung

Z-Wave

Z-Wave HSD-200Z Bedienungsanleitung

turck

turck FMX-IM-2UPLI63FX Bedienungsanleitung

Decagon Devices

Decagon Devices 10HS Bedienungsanleitung

UPPAbaby

UPPAbaby Cup Holder Bedienungsanleitung

Elko

Elko SmartSensor Leakage Wireless Bedienungsanleitung

Grizzly

Grizzly H8371 Bedienungsanleitung

Panasonic

Panasonic HG-T Series Bedienungsanleitung

IFM Electronic

IFM Electronic Efector 250 Series Referenzhandbuch

DigiDesign

DigiDesign 888/24 I/O Bedienungsanleitung

PROZIS

PROZIS QUAY Bedienungsanleitung

patagonia

patagonia PSI Vest Bedienungsanleitung

SFC Energy

SFC Energy EFOY GO! Bedienungsanleitung
