Digital Video Recorder

Quick Operation Guide

UD.6L0202B1347A01

Quick Operation Guide of DS-7200-SH/SV/SL and DS-7300/8100-SH Series DVR

Thank you for purchasing our product. If there is any question or request, please do not hesitate to contact

dealer.

This manual is applicable to the following models:

Type Model

Network HDVR

DS-7204HFI-SH, DS-7208HFI-SH, DS-7216HFI-SH

DS-7204HWI-SH, DS-7208HWI-SH, DS-7216HWI-SH

DS-7204HVI-SV, DS-7208HVI-SV, DS-7216HVI-SV

DS-7208HWI-SL, DS-7216HWI-SL

DS-7304HFI-SH, DS-7308HFI-SH, DS-7316HFI-SH

DS-7304HWI-SH, DS-7308HWI-SH, DS-7316HWI-SH

Network DVR

DS-7204HVI-SH, DS-7208HVI-SH, DS-7216HVI-SH

DS-7204HWI-SV

DS-7224HVI-SH, DS-7232HVI-SH

DS-7224HWI-SH, DS-7232HWI-SH

DS-7324HFI-SH, DS-7332HFI-SH

DS-7324HWI-SH, DS-7332HWI-SH

DS-7324HI-SH, DS-7332HI-SH

DS-8124HCI-SH, DS-8132HCI-SH

DS-8124HFSI-SH, DS-8132HFSI-SH

DS-8124HWSI-SH, DS-8132HWSI-SH

DVR Pre-Installation

This Series DVR is highly advanced surveillance equipment that should be installed with care. Please take into

consideration the following precautionary steps before installation of the DVR.

1. Keep all liquids away from the DVR.

2. Install the DVR in a well-ventilated and dust-free area.

3. Ensure environmental conditions meet factory specifications.

4. Install a manufacturer recommended HDD.

DVR Installation

During the installation of the DVR:

1. Use brackets for rack mounting.

2. Ensure there is ample room for audio and video cables.

3. When installing cables, ensure that the bend radius of the cables are no less than five times than its diameter.

4. Connect both the alarm and RS-485 cable.

5. Allow at least 2cm (≈0.75-inch) of space between racks mounted devices.

6. Ensure the DVR is grounded.

7. Environmental temperature should be within the range of -10 ºC ~ 55 ºC, 14ºF ~ 131ºF.

8. Environmental humidity should be within the range of 10% ~ 90%.

Hard Disk Installation

Before you start:

Before installing a hard disk drive (HDD), please make sure the power is disconnected from the DVR. A factory

recommended HDD should be used for this installation.

Tools Required: Screwdriver.

Quick Operation Guide of DS-7200-SH/SV/SL and DS-7300/8100-SH Series DVR

Steps (for DS-7200-SH/SV/SL and DS-7300-SH):

1. Remove the cover from the DVR by unfastening the screws on the back and side.

2. Install the HDD in the HDD rack using the provided screws. Fasten the screws on the

bottom to fix the HDD.

3. Connect the HDD to the motherboard of the DVR with the included data cable.

4. Connect the power cable to the HDD.

5. Re-install the cover of the DVR and fasten screws.

Quick Operation Guide of DS-7200-SH/SV/SL and DS-7300/8100-SH Series DVR

Steps (for DS-8100-SH):

1. Remove the cover from the DVR by unfastening the screws on the back and side.

2. Install the HDD to the HDD rack using the provided screws, and then fasten the screws to fix the HDD.

3. Connect one end of the data cable to the motherboard of DVR and the other end to the HDD.

4. Connect the power cable to the HDD.

5. Re-install the cover of the DVR and fasten screws.

Quick Operation Guide of DS-7200-SH/SV/SL and DS-7300/8100-SH Series DVR

Front Panel

DS-7200-SH/SV/SL:

The front panel of DS-7200 series DVR is shown below:

Table 1 Description of Control Panel Buttons

No. Name Function Description

1POWER

POWER indicator turns green when DVR is powered up.

2STATUS

STATUS indicator lights in red when data is being read from or written to HDD.

3Tx/Rx

Tx/Rx indictor blinks green when network connection is functioning properly.

4USB Interface Connects USB mouse or USB flash memory devices.

5IR Receiver Receiver for IR remote.

DS-7300-SH:

The front panel of DS-7300-SH is shown below:

Table 2 Description of Control Panel Buttons

No. Name Function Description

1 POWER ON/OFF Power on/off switch.

2 IR Receiver Receiver for IR remote control.

3 USB Connect to USB mouse or USB flash memory devices.

4 DVD-R/W Slot for DVD-R/W.

POWER Power indicator lights in green when DVR is powered up.

READY Ready indicator is normally green, indicating that the DVR is functioning properly.

STATUS

Indicator turns green when DVR is controlled by an IR remote control with the

address from 1~254;

Indicator turns red when the SHIFT button is used;

Indicator does not light when the DVR is controlled by a keyboard or by the IR

remote control with the address of 255;

Indicator turns green when the DVR is controlled by IR remote control (with the

address from 1~254) and keyboard at the same time , and the SHIFT button is not

used;

Indicator turns orange : (a) when the DVR is controlled by IR remote control (with

the address from 1~254) and keyboard at the same time and the SHIFT button is used

as well; (b) when the DVR is controlled by IR remote control (with the address from

1~254) and the SHIFT button is used.

ALARM Alarm indicator turns red when a sensor alarm is detected.

HDD HDD indicator blinks in red when data is being read from or written to HDD.

Tx/Rx

TX/RX indictor blinks in green when network connection is functioning properly.

Quick Operation Guide of DS-7200-SH/SV/SL and DS-7300/8100-SH Series DVR

1/MENU

Enter numeral “1”;

Access the main menu interface.

2ABC/F1

Enter numeral “2”;

Enter letters “ABC”;

The F1 button can be used to select all items on the list;

In PTZ Control mode, the F1 button can be used to zoom out (zoom-) the PTZ

camera;

In live view or playback mode, the F1 button can be used to switch between main

and spot video output.

3DEF/F2

Enter numeral “3”;

Enter letters “DEF”;

In PTZ Control mode, the F1 button can be used to zoom in (zoom+) the PTZ

camera;

The F2 button can be used to cycle through tab pages.

4GHI/ESC

Enter numeral “4”;

Enter letters “GHI”;

Exit and back to the previous menu.

5JKL/EDIT

Enter numeral “5”;

Enter letters “JKL”;

Delete characters before cursor;

Select the checkbox and ON/OFF switch;

Start/stop record clipping in playback.

SHIFT

Switch of compound keys between the numeric/letter input and functional control.

6MNO/PLAY

Enter numeral “6”;

Enter letters “MNO”;

In Playback mode, it is used for direct access to playback interface.

7PQRS/REC

Enter numeral “7”;

Enter letters “PQRS”;

Manual record, for direct access to manual record interface; manually enable/disable

record.

8TUV/PTZ

Enter numeral “8”;

Enter letters “TUV”;

Access PTZ control interface.

9WXYZ/PREV

Enter numeral “9”;

Enter letters “WXYZ”;

Multi-camera display in live view;

In Playback mode or Menu



Playback



Tag playback interface, this button can be

used to delete the selected tag.

0/A

Enter numeral “0”;

Switch between input methods (upper and lowercase alphabet, symbols and numeric

input).

In Playback mode, this button can be used to add the default tag.

DIRECTION

The DIRECTION buttons are used to navigate between different fields and items in

menus.

In Playback mode, the Up and Down button is used to speed up and slow down

recorded video.

In All-day Playback mode, the Left/Right button can be used to select the recorded

video of next/previous day; in Playback by Normal Video Search, the Left/Right

button can be used to select the next/previous recorded file.

In Live View mode, the directional buttons can be used to cycle through channels.

In PTZ control mode, it can control the movement of the PTZ camera.

ENTER

Confirm selection in any of the menu modes. It can also be used to tick checkbox

fields.

In Playback mode, it can be used to play or pause the video.

In Single-frame Playback mode, pressing the ENTER button will advance the video

by a single frame.

In Auto-switch mode, it can be used to stop /start auto switch.

JOG SHUTTLE

Control

Move the active selection in a menu. The inner ring will move the selection up and

down; the outer ring will move it left and right.

In Playback mode, the inner ring is used to jump 30s forward/backward in video

files. The outer ring can be used to speed up/slow down the video.

In Live View mode, it can be used to cycle through different channels.

In PTZ control mode, in can control the movement of the PTZ camera.

Quick Operation Guide of DS-7200-SH/SV/SL and DS-7300/8100-SH Series DVR

DS-8100-SH:

The front panel of DS-8100-SH is shown below:

Table 3 Description of Control Panel Buttons

No. Name Function Description

1 POWER ON/OFF Power on/off switch.

2 IR Receiver Receiver for IR remote control.

3 USB Connect to USB mouse or USB flash memory devices.

4 DVD-R/W Slot for DVD-R/W.

ALARM Alarm indicator turns red when a sensor alarm is detected.

READY Ready indicator is normally blue, indicating that the DVR is functioning properly.

STATUS

Indicator turns blue when DVR is controlled by an IR remote.

Indicator turns red when controlled by a keyboard and orange when IR remote and

keyboard is used at the same time.

Indicator does not light when the DVR is controlled by the IR remote control with

the address of 255.

HDD HDD indicator blinks in red when data is being read from or written to HDD.

Tx/Rx Tx/Rx indictor blinks in blue when network connection is functioning properly.

GUARD

Indicator turns blue when the device is armed;

Indicator does not light when the device is disarmed;

The arm/disarm state can be initiated by pressing and holding on the ESC button

for more than 3 seconds in live view mode.

Channel Status

LED Indicators

The button lights in blue when the corresponding channel is recording; it is red

when the channel is in network transmission status; it is pink when the channel is

recording and transmitting.

Alphanumeric

Buttons

Switch to the corresponding channel in Live View or PTZ Control mode.

Input numbers and characters in Edit mode.

Switch between different channels in All-day Playback mode.

ESC

Exit and back to the previous menu.

Arm/disarm the DVR in live view mode.

REC/SHOT

Enter the Manual Record interface.

Turn audio on/off in Playback mode;

In PTZ control mode, pressing the REC/SHOT button and a Numeric button will

call a PTZ preset.

PLAY/AUTO

Enter the Playback menu;

Auto scan in the PTZ Control mode.

ZOOM+ Button

In PTZ control mode, the ZOOM+ button is used to zoom in the PTZ camera.

A/FOCUS+

Adjust focus in the PTZ Control mode.

Switch between input methods (upper and lowercase alphabet, symbols and

numeric input).

EDIT/IRIS+

Edit text fields. When editing text fields, it will also function as a Backspace button

to delete the character in front of the cursor.

On checkbox fields, pressing the button will tick the checkbox.

In PTZ Control mode, the button adjusts the iris of the camera.

Quick Operation Guide of DS-7200-SH/SV/SL and DS-7300/8100-SH Series DVR

In Playback mode, it can be used to generate video clips for backup.

MENU/WIPER

Return to the Main menu (after successful login);

Turn off audible key beeper by pressing and holding the button for 5 seconds;

Start wiper (if applicable) in PTZ Control mode.

F1/LIGHT

The F1/LIGHT button when used in a list field will select all items on the list.

In PTZ Control mode, it will turn on/off PTZ light.

F2/AUX

The F2/AUX button is used to cycle through tab pages.

MAIN/SPOT/ZO

OM-

Switch to the control of spot output;

In PTZ Control mode, it can be used to zoom out the PTZ camera.

PREV/FOCUS-

Switch between single screen and multi-screen mode.

In PTZ Control mode, it is used to adjust the focus in conjunction with the

A/FOCUS+ button.

PTZ/IRIS-

Enter the PTZ Control mode.

In PTZ Control mode, it is used to close the iris of the PTZ camera.

DIRECTION

The DIRECTION buttons are used to navigate between different fields and items

in menus.

In Playback mode, the Up and Down button is used to speed up and slow down

recorded video.

In All-day Playback mode, the Left/Right button can be used to select the recorded

video of next/previous day; in Playback by Normal Video Search, the Left/Right

button can be used to select the next/previous recorded file.

In Live View mode, the directional buttons can be used to cycle through channels.

In PTZ control mode, it can control the movement of the PTZ camera.

ENTER

Confirm selection in any of the menu modes. It can also be used to tick checkbox

fields.

In Playback mode, it can be used to play or pause the video.

In Single-frame Playback mode, pressing the ENTER button will advance the

video by a single frame.

In Auto-switch mode, it can be used to stop /start auto switch.

JOG SHUTTLE

Control

Move the active selection in a menu. The inner ring will move the selection up and

down; the outer ring will move it left and right.

In Playback mode, the inner ring is used to jump 30s forward/backward in video

files. The outer ring can be used to speed up/slow down the video.

In Live View mode, it can be used to cycle through different channels.

In PTZ control mode, in can control the movement of the PTZ camera.

Quick Operation Guide of DS-7200-SH/SV/SL and DS-7300/8100-SH Series DVR

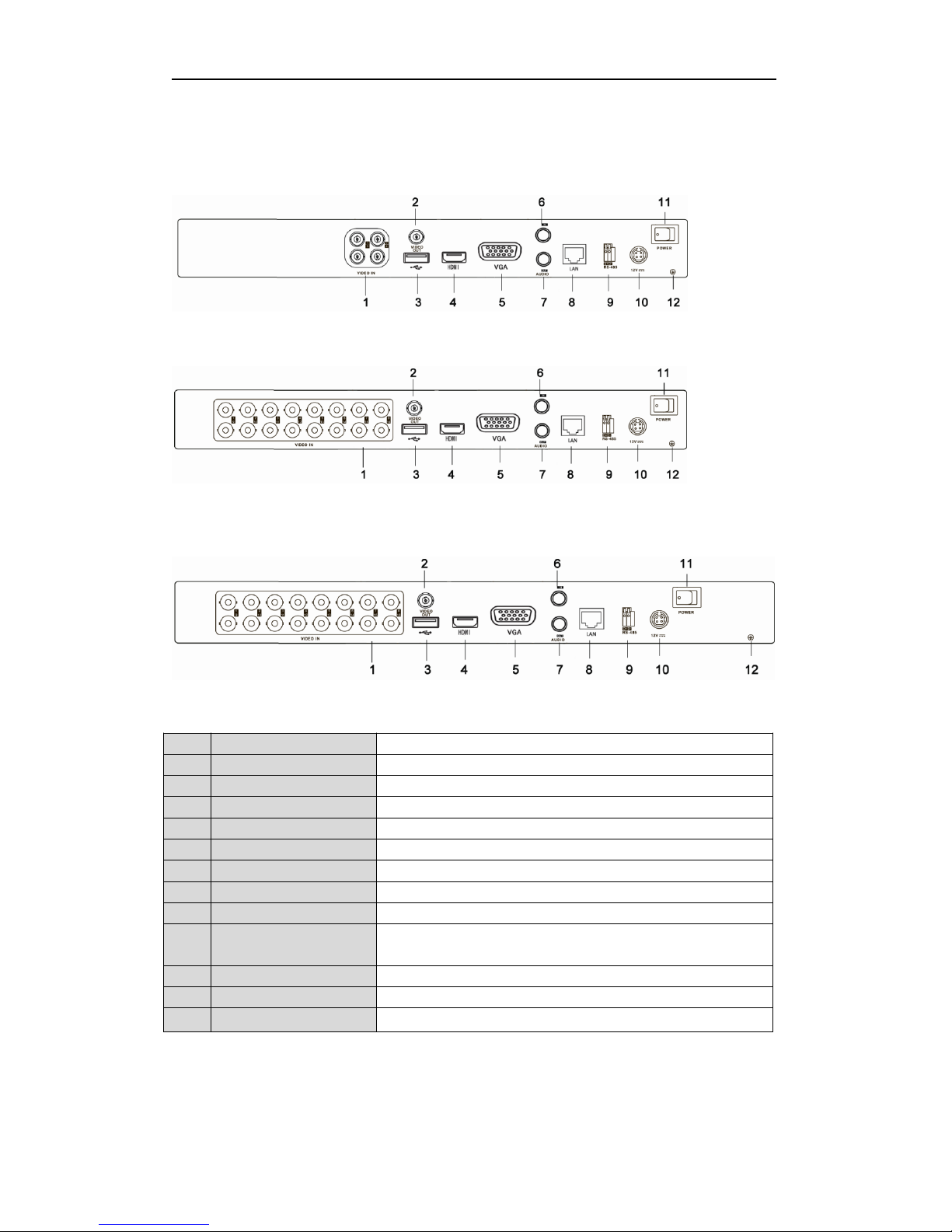

Rear Panel

DS-7204HVI/HFI/HWI-SH, DS-7204HVI-SV and DS-7204HWI-SV:

DS-7216HVI-SH, DS-7216HVI-SV and DS-7216HWI-SL:

Note: The rear panel of DS-7208HVI-SH/DS-7208HVI-SV/DS-7208HWI-SL provides 8 video input interfaces.

DS-7216HFI-SH and DS-7216HWI-SH:

Note: The rear panel of DS-7208HFI-SH/DS-7208HWI-SH provides 8 video input interfaces.

Table 4 Description of Rear Panel

No. Item Description

1 VIDEO IN BNC connector for analog video input.

2 VIDEO OUT

BNC connector for video output.

3 USB Interface

Connects USB mouse or USB flash memory devices.

4 HDMI HDMI video output.

5 VGA DB15 connector for VGA output. Display local video output and menu.

6 AUDIO IN RCA connector for audio input.

7 AUDIO OUT RCA connector for audio output.

8 LAN Interface RJ45 10M / 100M Ethernet interface.

9 RS-485 Interface Connector for RS-485 devices. Connect the D+ and D- terminals to R+

and R- terminals of PTZ receiver respectively.

10 12V 12VDC power supply.

11 POWER Switch for turning on/off the device.

GND Ground(needs to be connected when DVR starts up)

Quick Operation Guide of DS-7200-SH/SV/SL and DS-7300/8100-SH Series DVR

DS-7232HVI-SH and DS-7232HWI-SH:

Note: The rear panel of DS-7224HVI-SH/DS-7224HWI-SH provides 24 video input interfaces.

Table 5 Description of Rear Panel

No. Item Description

1 VIDEO IN BNC connector for analog video input.

VIDEO OUT

BNC connector for video output.

3 USB Interface Connects USB mouse or USB flash memory devices.

4 HDMI HDMI video output.

5 VGA DB15 connector for VGA output. Display local video output and menu.

6 AUDIO IN RCA connector for audio input.

7 AUDIO OUT RCA connector for audio output.

8 Alarm In/Out Connector for alarm input/output.

9 LAN Interface RJ45 10M / 100M / 1000M Ethernet interface.

10 RS-485 Interface

Connector for RS-485 devices. Connect the D+ and D- terminals to R+ and

R- terminals of PTZ receiver respectively.

11 12V 12VDC power supply.

12 POWER Switch for turning on/off the device.

13 GND Ground(needs to be connected when DVR starts up)

DS-7316HFI-SH and DS-7316HWI-SH:

Note: The rear panel of DS-7304HFI-SH/DS-7304HWI-SH provides 4 video input interfaces, and the rear panel

of DS-7308HFI-SH/DS-7308HWI-SH provides 8 video input interfaces.

Table 6 Description of Rear Panel

No. Item Description

1 VIDEO IN BNC connector for analog video input.

MAIN VIDEO OUT BNC connector for video output.

SPOT VIDEO OUT BNC connector for spot video output.

3 HDMI HDMI video output.

4 USB Interface Connects USB mouse or USB flash memory devices.

5 RS-232 Connector for RS-232 devices.

6 VGA DB15 connector for VGA output. Display local video output and menu.

7 AUDIO IN RCA connector for audio input.

8 AUDIO OUT RCA connector for audio output.

9 LAN Interface RJ45 10M / 100M / 1000M Ethernet interface.

10 RS-485 Interface Connector for RS-485 devices. Connect the D+ and D- terminals to R+ and

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere HIK VISION DVR Handbücher

HIK VISION

HIK VISION DS-9104HFI-ST series Benutzerhandbuch

HIK VISION

HIK VISION DS-7204HI series Bedienungsanleitung

HIK VISION

HIK VISION Ds-7604ni-e1, ds-7608ni-e1 Bedienungsanleitung

HIK VISION

HIK VISION DS-7104HGHI-F1/N Bedienungsanleitung

HIK VISION

HIK VISION DS-9000 Series Bedienungsanleitung

HIK VISION

HIK VISION iVMS-4200 Bedienungsanleitung

HIK VISION

HIK VISION DS-8000 Series Bedienungsanleitung

HIK VISION

HIK VISION iDS-6700NXI-I/BA Series Bedienungsanleitung

HIK VISION

HIK VISION DS-96 NI-ST Series Bedienungsanleitung

HIK VISION

HIK VISION DS-2CE16D8T-IT3 Bedienungsanleitung

HIK VISION

HIK VISION DS-7100HWI-SL Series Bedienungsanleitung

HIK VISION

HIK VISION ERI-Q104-P4 Bedienungsanleitung

HIK VISION

HIK VISION DS-72xx Series Bedienungsanleitung

HIK VISION

HIK VISION DS-7200HVI-ST/SE Series Bedienungsanleitung

HIK VISION

HIK VISION DS-7100HGHI-F1/N Bedienungsanleitung

HIK VISION

HIK VISION DS-9000HFI-ST Bedienungsanleitung

HIK VISION

HIK VISION DS-8000HCI-S series Bedienungsanleitung

HIK VISION

HIK VISION DS-7100HWI Bedienungsanleitung

HIK VISION

HIK VISION DS-9104HFI-ST series Benutzerhandbuch

HIK VISION

HIK VISION DS-7200HVI-SN Series Bedienungsanleitung

HIK VISION

HIK VISION UD.6L0202D1962A01 Bedienungsanleitung

HIK VISION

HIK VISION Digital Video Recorder Benutzerhandbuch

HIK VISION

HIK VISION DS-7104HGHI-SH Bedienungsanleitung

HIK VISION

HIK VISION DS-8000HTI-S Series Bedienungsanleitung

Beliebte DVR Handbücher anderer Marken

FLIR

FLIR M3100E Series Bedienungsanleitung

VTRACKPRO

VTRACKPRO FPRO300 Bedienungsanleitung

Swann

Swann NVR-7085 models Bedienungsanleitung

XtendLan

XtendLan DVR-1670C Bedienungsanleitung

urmet domus

urmet domus 1093/004AHD Bedienungsanleitung

Holux

Holux M1 Bedienungsanleitung

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Bedienungsanleitung

Whistler

Whistler D16VRS Bedienungsanleitung

Defender Security

Defender Security 82-20235 Bedienungsanleitung

MISUMI

MISUMI MP-WF100M Bedienungsanleitung

Speco

Speco D8HU Bedienungsanleitung

UST

UST DDR-E04AA Gebrauchsanweisung

Consolidated

Consolidated Digital Video Recorder Bedienungsanleitung

Mace

Mace DVR0404RW Kurzanleitung

RCA

RCA RTD315W Bedienungsanleitung

FSM

FSM Colibri Grande PRO Bedienungsanleitung

Hauppauge

Hauppauge HD PVR 2 Bedienungsanleitung

Identivision

Identivision ICR-PH161i PIONEER Bedienungsanleitung
