HIK VISION DS-7604 Series Bedienungsanleitung

DS-7604 Series

DVR USER’S MANUAL

Version 1.2.0

User Manual of DS-7604 Series DVR

Hikvision® Network Digital Video Recorder User‟s Manual

This manual, as well as the software described in it, is furnished under license and may be used or copied only in accordance with

the terms of such license. The content of this manual is furnished for informational use only, is subject to change without notice,

and should not be construed as a commitment by Hikvision Digital Technology Co., Ltd. (Hikvision). Hikvision assumes no

responsibility or liability for any errors or inaccuracies that may appear in the book.

Except as permitted by such license, no part of this publication may be reproduced, stored in a retrieval system, or transmitted, in

any form or by any means, electronic, mechanical, recording, or otherwise, without the prior written permission of Hikvision.

HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION THE IMPLIED

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, REGARDING THE

HIKVISION SOFTWARE. HIKVISION DOES NOT WARRANT, GUARANTEE, OR MAKE ANY REPRESENTATIONS

REGARDING THE USE OR THE RESULTS OF THE USE OF THE HIKVISION SOFTWARE IN TERMS OF ITS

CORRECTNESS, ACCURACY, RELIABILITY, CURRENTNESS, OR OTHERWISE. THE ENTIRE RISK AS TO THE

RESULTS AND PERFORMANCE OF THE HIKVISION SOFTWARE IS ASSUMED BY YOU. THE EXCLUSION OF

IMPLIED WARRANTIES IS NOT PERMITTED BY SOME STATES. THE ABOVE EXCLUSION MAY NOT APPLY TO

YOU.

IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR

ANY CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES (INCLUDING DAMAGES FOR LOSS OF

BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, AND THE LIKE) ARISING

OUT OF THE USE OR INABILITY TO USE THE HIKVISION SOFTWARE EVEN IF HIKVISION HAS BEEN ADVISED

OF THE POSSIBILITY OF SUCH DAMAGES. BECAUSE SOME STATES DO NOT ALLOW THE EXCLUSION OR

LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATIONS MAY

NOT APPLY TO YOU.

User Manual of DS-7604 Series DVR

Preventive and Cautionary Tips

Before connecting and operating your DVR, please be advised of the following tips:

• Ensure unit is installed in a well-ventilated, dust-free environment.

• Unit is designed for indoor use only.

• Keep all liquids away from the DVR.

• Ensure environmental conditions meet factory specifications.

• Ensure unit is properly secured to a rack or shelf. Major shocks or jolts to the unit as a result of dropping it may cause damage

to the sensitive electronics within the unit.

• Use the DVR in conjunction with an UPS if possible.

• Power down the unit before connecting and disconnecting accessories and peripherals.

• A factory recommended HDD should be used for this device.

• Improper use or replacement of the battery may result in hazard of explosion. Replace with the same or equivalent type only.

Dispose of used batteries according to the instructions provided by the battery manufacturer.

User Manual of DS-7604 Series DVR

CONTENTS

C H A P T E R 1 Introduction...................................................................................................................7

Overview...................................................................................................................................................8

Product Features....................................................................................................................................8

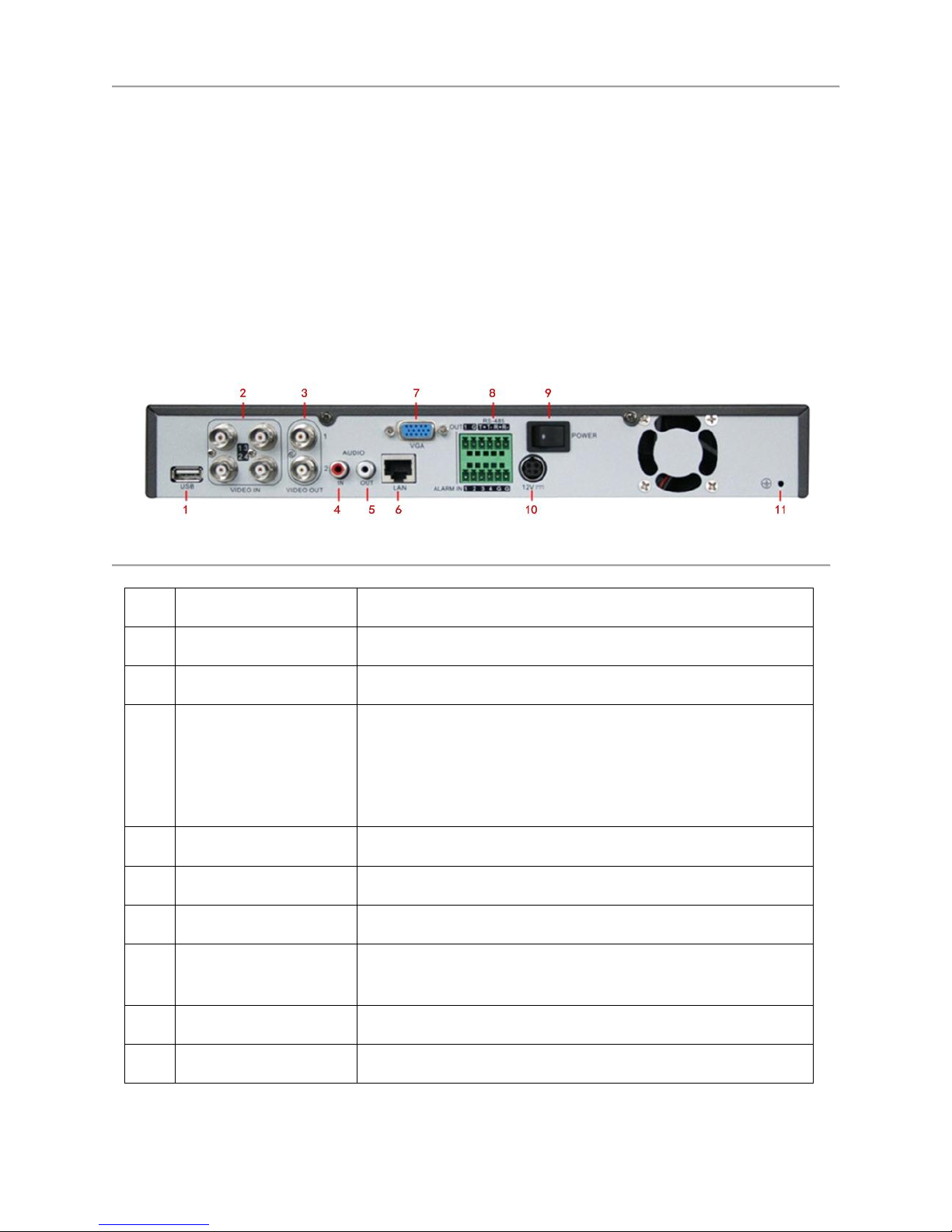

Rear Panel...........................................................................................................................................10

Product Application Diagram .............................................................................................................11

Operating Your DVR..............................................................................................................................11

Using the Front Panel Controls...........................................................................................................11

IR Remote Control..............................................................................................................................12

Using a USB Mouse............................................................................................................................14

Using the Soft Keyboard.....................................................................................................................15

C H A P T E R 2 Getting Started.............................................................................................................16

Starting and Shutting Down Your DVR.................................................................................................17

Startup Your DVR: .............................................................................................................................17

Shutting down Your DVR: .................................................................................................................17

Rebooting Your DVR .........................................................................................................................18

Locking Your DVR.............................................................................................................................18

Setting Date & Time...............................................................................................................................18

Checking the Status of Your DVR..........................................................................................................20

C H A P T E R 3 Live Feed ......................................................................................................................22

Watching a Live Feed.............................................................................................................................23

Understanding Live Feed Icons ..........................................................................................................23

Operating the Live Feed......................................................................................................................23

Using Display Menu...............................................................................................................................26

Configuring Live Feed Displays.............................................................................................................28

Setting Camera Order .............................................................................................................................29

C H A P T E R 4 Record Settings............................................................................................................30

Configuring Settings for Recording........................................................................................................31

Configuring Recording Settings..........................................................................................................31

Configuring a Quick Recording Schedule..........................................................................................32

Configuring an Advanced Recording Schedule..................................................................................33

C H A P T E R 5 Playback.......................................................................................................................36

User Manual of DS-7604 Series DVR

Playing Back a Recording.......................................................................................................................37

Understanding the Playback Interface ................................................................................................37

Searching for Recorded Files..................................................................................................................37

Playing Back Recorded Files..................................................................................................................38

Playing Back Multiple Channels ............................................................................................................39

C H A P T E R 6 Backup..........................................................................................................................40

Backing up Video Clips..........................................................................................................................41

Selecting Video Clips .........................................................................................................................41

Backing up Video Clips..........................................................................................................................42

Backing up Recorded Files.....................................................................................................................43

C H A P T E R 7 System Configuration..................................................................................................45

Configuring Network Settings................................................................................................................46

Managing User Accounts........................................................................................................................47

Adding a New Remote/Local User.....................................................................................................47

Deleting a User ...................................................................................................................................48

Editing a User .....................................................................................................................................48

Switch User.........................................................................................................................................49

Configuring PTZ Cameras......................................................................................................................49

Configuring Basic PTZ Settings.........................................................................................................49

Customizing PTZ Presets, Patterns and Patrols..................................................................................51

Configuring Alarms and Exceptions.......................................................................................................52

Setting up Motion Detection...............................................................................................................52

Configuring Alarm Inputs...................................................................................................................53

Configuring Exceptions ......................................................................................................................55

Configuring E-mail Settings ...............................................................................................................56

C H A P T E R 8 Camera Management..................................................................................................58

Configuring Cameras..............................................................................................................................59

Adding and Removing IP Cameras.....................................................................................................59

Adding and Removing Analog Cameras ............................................................................................60

Configuring Video Tampering Detection...............................................................................................61

Configuring Video Loss Detection.........................................................................................................62

Configuring OSD Settings......................................................................................................................63

User Manual of DS-7604 Series DVR

C H A P T E R 9 Disk Management........................................................................................................65

Managing Disks......................................................................................................................................66

Checking Disk Status..........................................................................................................................66

Setting Network HDD.............................................................................................................................66

Formatting Disk......................................................................................................................................66

Enabling Disk Overwrite ....................................................................................................................67

Managing Files........................................................................................................................................68

Searching for Recorded Files..............................................................................................................68

Searching for Event Files....................................................................................................................69

Locking and Unlocking Recorded Files..................................................................................................70

C H A P T E R 1 0 DVR Management....................................................................................................71

Managing System....................................................................................................................................72

Upgrading the System Firmware ........................................................................................................72

Restoring Default Settings..................................................................................................................72

Exporting & Importing Configuration....................................................................................................73

Viewing System Logs.............................................................................................................................73

Locking and Unlocking System Menus..................................................................................................75

Index...........................................................................................................................................................77

User Manual of DS-7604 Series DVR

C H A P T E R 1

Introduction

User Manual of DS-7604 Series DVR

Overview

Thank you for your purchase of DS-7604 Series Digital Video Recorder (DVR). To get detailed

information about the DVR, please read through the Installation‟s Manual and this User‟s Manual

thoroughly.

The DS-7604 series DVR is a new generation product developed by HIKVISION. Built on an embedded

platform and combining the latest advanced H.264 video encoding and decoding technologies, the DS-

7604 series DVR contains the perfect combination of rock-solid reliability and high performance.

Figure 1. DS-7604 Series DVR

Product Features

Compression

DS-7604HI-S can be connected with analog camera, network camera and IP speed dome.

Dual stream compression and up to 720P/1080P/UXGA/2560x1290 resolution supported by each IP

camera.

Up to 4CIF resolution supported by each analog camera connected to DS-7604HI-S.

Resolution, frame rate, bit rate and image quality settings programmable per individual camera.

Scheduled and event recording parameters configurable per individual camera.

Encoding for both audio/video composite stream and video stream; audio and video synchronization

during composite stream encoding.

Local Monitoring

DS-7604HI-S supports 1/4/9/16-division video live view, with adjustable cameras order for display.

Group switch, manual switch and automatic cycle modes selectable for video live view, with the auto

cycle period configurable.

Digital zooming in live view mode.

Shield of assigned channel for live view.

Motion detection, video loss detection, video tampering detection and video input exception

detection configurable.

Privacy masking capability.

Multiple PTZ protocols supported.

Configuration and call up of presets, patrols and patterns.

Zoom in by clicking the mouse and tracing by dragging mouse in PTZ control.

HDD Management

Connection to 1 SATA hard disks supported, with up to 2TB storage capacity for each disk.

S.M.A.R.T technology.

HDD standby function.

HDD management in groups.

User Manual of DS-7604 Series DVR

HDD file system is compatible with Windows. Use pre-allocating hard disk management technology,

and no disk fragments.

Record & Playback

Cycle and non-cycle recording mode.

Supports normal and event video encoding parameters.

Eight recording time periods with separate recording types.

Pre-record and Post-record time for alarm and motion detection, and pre-record time for schedule

and manual recording.

Lock and unlock of video files.

Video data search and playback by channel number, recording type, time etc.

Supports pause, play fast, play slow, skip forward, and skip backward when playback, locating in

progress bar by dragging the mouse.

4-channel synchronous playback.

Backup

Record files backed up via USB device or SATA CD-RW.

Bunch backup by file or by time.

Record files edited for backup in playback.

Management and maintenance for backup devices.

Alarm & Exception

Unified management of alarm in/out of DVR and IP cameras.

Unified management of video tempering alarm, motion and video loss alarm of DVR and IP cameras.

Configurable arming time of alarm in/out.

Various alarm types supported: alarms for video loss, motion detection, video tempering, hard disk

error and hard disk full , network failure, IP conflict, illegal login, bad video signal, video output

standard mismatch recording exception,.

Various alarm response actions supported: sound audio warning, notify surveillance center, send

Email, and trigger alarm output.

Auto recovery from exceptions.

Other Local Functions

Control of DVR via front panel keys, mouse, IR control and special keyboard.

Three-level user management, each user with individual operating permission for DVR and IP

camera.

Powerful record and search for log of operation, alarm and exceptions information.

Import/export of device configuration files.

Network

10/100M adaptive network interface.

TCP/IP protocol suites, PPPoE, DHCP, DNS, DDNS, NTP, SADP protocols, etc.

Unicast and multicast supported; TCP, UDP, and RTP protocols applicable in unicast.

Remote search, playback and download, lock/unlock of video files; support breakpoint resume.

Remote access and configuration of parameters; remote import/export of device configuration

parameters.

Remote access of device running status, system log and alarm status.

Remote control of DVR via button operation.

Remote lock/unlock of panel buttons and mouse.

Remote formatting of hard disk, upgrade, reboot/shutdown and other system maintenance operations.

User Manual of DS-7604 Series DVR

RS -485 transparent channel transmission.

Event alarm and exceptions upload to remote management host.

Remote manual recording.

Remote video image capture in JPEG format.

Remote PTZ control.

Voice talk and broadcast.

Built-in WEB Server.

Development Support

Provision of SDK in Windows and Linux operating systems.

Application software source code of Demo.

Support and training service for application system development.

Rear Panel

Figure 2. Rear Panel of DS-7604HI-S

No.

Item

Description

USB Interface

Connector for USB devices

VIDEO IN

BNC connectors for video input

VIDEO OUT

BNC connector for video output. If VGA output has been

connected, then the VIDEO OUT port provides no output.

VIDEO OUT1 is main video out, and VIDEO OUT2 is spot

video out.

AUDIO IN

RCA connectors for analog audio input

AUDIO OUT

RCA connector for audio output

LAN

Connector for LAN (Local Area Network)

VGA

DB15 connector for VGA output. Display local video output

and menu

RS-485 Interface

Connector for RS-485 devices. T+, T- pin connects to PTZ

ALARM IN

Connector for alarm input (up to 4 alarm inputs)

Andere Handbücher für DS-7604 Series

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere HIK VISION DVR Handbücher

HIK VISION

HIK VISION DS-7300HI-ST Series Bedienungsanleitung

HIK VISION

HIK VISION DS-9100HWI-ST Series Bedienungsanleitung

HIK VISION

HIK VISION iDS-7204HUHI Bedienungsanleitung

HIK VISION

HIK VISION DS-7108NI-Q1 Bedienungsanleitung

HIK VISION

HIK VISION DS-8104AHQLI-K4 Bedienungsanleitung

HIK VISION

HIK VISION DS-7300HWI-SH Series Bedienungsanleitung

HIK VISION

HIK VISION DS-7304HUI-K4 Bedienungsanleitung

HIK VISION

HIK VISION iDS-7200AHQHI-M Series Bedienungsanleitung

HIK VISION

HIK VISION DS-7100HWI-SL Series Bedienungsanleitung

HIK VISION

HIK VISION DS-MP3516-RS/GW Bedienungsanleitung

HIK VISION

HIK VISION AE-MD5043-SD Bedienungsanleitung

HIK VISION

HIK VISION DS-7100HGHI-F1/N Bedienungsanleitung

HIK VISION

HIK VISION DS-9000 Series Bedienungsanleitung

HIK VISION

HIK VISION DS-7200HWI-SH Series DVR Bedienungsanleitung

HIK VISION

HIK VISION DS-6301DI Bedienungsanleitung

HIK VISION

HIK VISION DS-77 NI-SP Series Bedienungsanleitung

HIK VISION

HIK VISION HI-DS-7316HUHI-F4N Bedienungsanleitung

HIK VISION

HIK VISION iDS-6700NXI-I/BA Series Bedienungsanleitung

HIK VISION

HIK VISION DS-7000HI Series Bedienungsanleitung

HIK VISION

HIK VISION DS-1002HMI-S Bedienungsanleitung

HIK VISION

HIK VISION DS-6701HFI Benutzerhandbuch

HIK VISION

HIK VISION MD5043SD Bedienungsanleitung

HIK VISION

HIK VISION DS-90 HUHI-F8/N Series Bedienungsanleitung

HIK VISION

HIK VISION DS7324HUHI-K4 Bedienungsanleitung

Beliebte DVR Handbücher anderer Marken

FLIR

FLIR M3100E Series Bedienungsanleitung

VTRACKPRO

VTRACKPRO FPRO300 Bedienungsanleitung

Swann

Swann NVR-7085 models Bedienungsanleitung

XtendLan

XtendLan DVR-1670C Bedienungsanleitung

urmet domus

urmet domus 1093/004AHD Bedienungsanleitung

Holux

Holux M1 Bedienungsanleitung

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Bedienungsanleitung

Whistler

Whistler D16VRS Bedienungsanleitung

Defender Security

Defender Security 82-20235 Bedienungsanleitung

MISUMI

MISUMI MP-WF100M Bedienungsanleitung

Speco

Speco D8HU Bedienungsanleitung

UST

UST DDR-E04AA Gebrauchsanweisung

Consolidated

Consolidated Digital Video Recorder Bedienungsanleitung

Mace

Mace DVR0404RW Kurzanleitung

RCA

RCA RTD315W Bedienungsanleitung

FSM

FSM Colibri Grande PRO Bedienungsanleitung

Hauppauge

Hauppauge HD PVR 2 Bedienungsanleitung

Identivision

Identivision ICR-PH161i PIONEER Bedienungsanleitung
