Hikvision Technical Manual

DS-8000HSI-S Series Net DVR

Technical Manual

Hikvision Technical Manual

Notices

The information in this documentation is subject to change without notice and does

not represent any commitment on behalf of HIKVISION. HIKVISION disclaims any

liability whatsoever for incorrect data that may appear in this documentation. The

product(s) described in this documentation are furnished subject to a license and

may only be used in accordance with the terms and conditions of such license.

This documentation is issued in strict confidence and is to be used only for

the purposes for which it is supplied. It may not be reproduced in whole or in

part, in any form, or by any means or be used for any other purpose without prior

written consent of HIKVISION and then only on the condition that this notice is

included in any such reproduction. No information as to the contents or subject

matter of this documentation, or any part thereof, or arising directly or indirectly

therefrom, shall be given orally or in writing or shall be communicated in any

manner whatsoever to any third party being an individual, firm, or company or any

employee thereof without the prior written consent of HIKVISION. Use of this

product is subject to acceptance of the HIKVISION agreement required to use this

product. HIKVISION reserves the right to make changes to its products as

circumstances may warrant, without notice.

This documentation is provided “as-is,” without warranty of any kind.

Please send any comments regarding the documentation to:

overseabusiness@hikvision.com

Find out more about HIKVISION at www.hikvision.com

Hikvision Technical Manual

Contents

1. Overview

2. Model Description

3. Features

4. Specifications

Hikvision Technical Manual

1.Overview

DS-8000HSI-S series Network Digital video Recorder is an excellent digital

surveillance product adopts embedded MCU (Microprocessor Control Unit) and an

embedded Real-Time Operating System (RTOS), along with the most advanced

technology in the Information technology Industry such as video encoding/decoding,

hard disk recording and TCP/IP transmission. The firmware is burned into the flash,

making it more stable and reliable than software programs running from a standard

disk drive.

DS-8000HSI-S series combines the advantages of Digital Video Recorder (DVR)

and Digital Video Server (DVS). It is widely applied as a stand-alone unit or a part of

a powerful surveillance system.

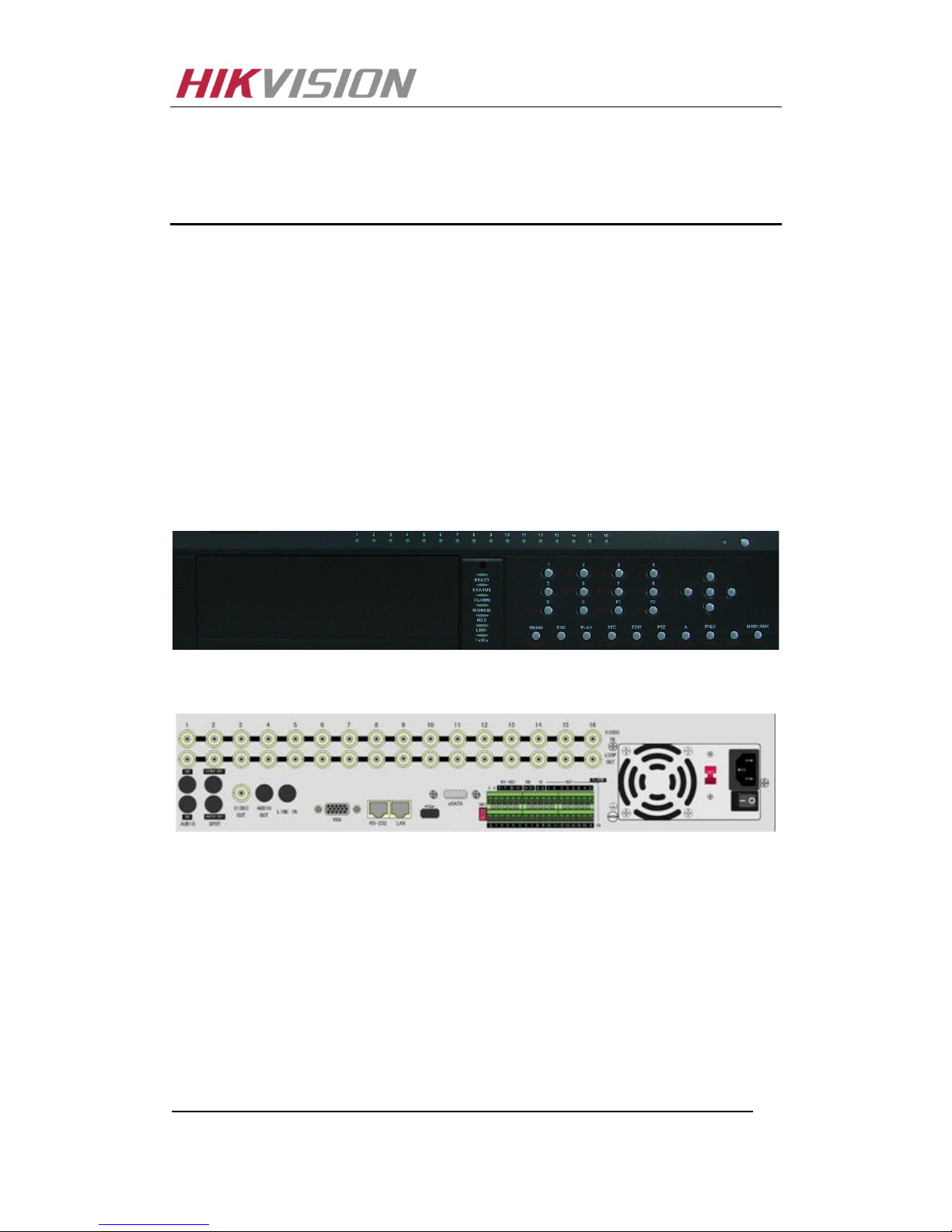

DS-8000HSI-S Front Panel

DS-8016HSI-S Rear Panel

Hikvision Technical Manual

2.Model Description

DS-8004HSI-S: 4-ch video input. Each camera can max support 4CIF preview

resolution real time. 4 SATA interfaces. 4-ch video loop output.

DS-8008HSI-S: 8-ch video input. Each camera can max support 4CIF preview

resolution real time. 8 SATA interfaces. 8-ch video loop output.

DS-8016HSI-S: 16-ch video input. Each camera can max support 4CIF

preview resolution real time. 8 SATA interfaces. 16-ch video loop output.

Note: The default DVRs are without HDD or CD-R/W.

Hikvision Technical Manual

3.Features

3.1 Compression:

Supports up to 16 video channels (NTSC/PAL). Each channel is independent

with H.264 hardware compression in real time (NTSC 30FPS, PAL 25FPS).

Supports both variable bit rate and constant bit rate

Supports 4CIF, DCIF, 2CIF, CIF and QCIF resolution.

Supports multi-area motion detection

Supports OSD and changeable OSD position

Supports LOGO and changeable LOGO position

3.2 Local functions:

3.2.1 Recording:

Supports multiple recording types, including real-time, manual recording,

motion detection, external alarm, motion & alarm and motion | alarm, etc.

Supports 8 HDDs. Each HDD can support 2000GB maximum.

Supports FAT32 file system

Supports NAS Recording.

Supports Event Recording Para. Setup.

Supports HDD S.M.A.R.T technology

Supports continuous (overwrite) and linear (stop when full) record modes

Supports backup recorded files and video clips with USB memory stick

(thumb drive), USB HDD, USB CD-R/W, USB DVD-R/W or SATA HDD.

3.2.2 Preview and playback:

Supports BNC analog monitor and VGA output for main output

Supports multiple live view modes

Supports video loop output.

Supports Privacy Mask (blank portions of camera views)

Supports camera block alert.

Supports video signal loss alert.

Support play forward, backward, pause, frame-by-frame, etc

Supports play back by files or by time/date

Displays local record status

3.2.3 PTZ:

Supports multiple PTZ protocols

Supports preset, sequence and pattern

Hikvision Technical Manual

3.2.4 Alarms:

Supports exception alarm, motion detection alarm, external alarm, etc

3.3 Miscellaneous:

Supports IR Remote control

Supports RS-485 keyboard

Support multi-level user management

Supports Mouse Operation Menu.

Supports multiple upgrade modes, including FTP, USB and CD.

Supports writing player when burning CD.

3.4 Network:

Supports Advanced Network Function: NTP, DDNS and E-mail.

Supports TCP, UDP, RTP, Multicast for network viewing

Support PPPoE for broad band dialup

Supports PSTN for standard dialup

Supports remote parameters setup

Alarm information can be sent to remote center

Network control PTZ

Network download and playback recorded files from the DVR

RS-232 supports transparent channel function so that the remote PC can

control serial devices through DVR.

Supports advanced IE plug-in to preview and configure DVR via browser.

Supports SADP protocol that enables modification of IP address, mask and

port via SADP Client.

Supports activity log.

3.5 Development support:

Provide network SDK (Software Development Kit)

Provide client demo source code

Hikvision Technical Manual

4.Specifications

Model name

DS-8004HSI-S

DS-8008HSI-S

DS-8016HSI-S

Video standard

H.264

Preview resolution

4CIF real-time (PAL: 704*576, NTSC: 704*480)

Playback resolution

(PAL/NTSC)

QCIF/CIF real-time

2CIF 15/16 FPS per

channel

DCIF 12/13 FPS per

channel

4CIF 8/9 FPS per

channel

QCIF/CIF real-time

2CIF 8/9 FPS per channel

Video input

BNC (1.0Vp-p, 75Ω)

Video loop output

Composite video output

1 channel, BNC (1.0Vp-p, 75Ω)

Aux video output

Audio input

Composite audio output

Aux audio output

Frame rate

PAL: 1/16~25FPS, NTSC: 1/16~30FPS

Stream type

Video

Max bit rate

32Kbps~2Mbps, self-define

Dual stream

Voice talk

Network port

1 RJ45 10M/100M UTP port

RS-232

1 RJ45 RS-232 port

PTZ control

1 RS-485 port (T+, T-, R+, R-)

Keyboard interface

2 RJ45 ports

1 port (D+, D-)

SATA interface

E-SATA (optional)

1st internal SATAinterface can be extended to be E-SATA

USB interface

1 USB 1.1 port

VGA interface

1 VGA interface, support resolution: 800x600/60Hz, 1024x768/60Hz,

1280×1024/60Hz

External alarm in

Relay output

Power supply

100~240VAC, 6.3A, 50~60Hz

Hikvision Technical Manual

Power consumption

20 -- 42W (without HDD and CD-R/W)

Working temperature

-10°C to +55°C

Working humidity

10% to 90%

Size

19” Standard (450mm*450mm*95mm)

Weight

≤8Kg (without HDD and CD-R/W)

PAL: 176×144(QCIF), 352×288(CIF), 704×288(2CIF), 528×384(DCIF), 704×576(4CIF);

NTSC: 176×120(QCIF), 352×240(CIF), 704×240(2CIF), 528×320(DCIF), 704×480(4CIF).
