HIK VISION DS-9000 Series Bedienungsanleitung

Quick Start Guide

Hybrid DVR

DS-9000 Series Hybrid DVR

DS-7600 Series Hybrid DVR

NVR

DS-9600 Series NVR

Analog DVR

DS-9100 Series

DS-8100 Series

DS-7300 Series

DS-7200 Series

NOTE: For more detailed information, refer to the Users Manual on

the CD-ROM. You must use your PC or MAC to access the files.

First Choice For Security Professionals

www.hikvisionusa.com

Quick Start

NOTE: Connect VGA monitor and mouse before starting.

1. Overview

2. Connection

3. Start Up/Shutdown

4. Formatting a Disk

5. Setting Date & Time

6. Recording

7. Playback

8. Backup

9. Configure IP Cameras

NOTE: For more detailed information, refer to the Users Manual on

the CD-ROM. You must use your PC or MAC to access the files.

(Only for DS-9000 Series Hybrid DVR, DS-7600 Series Hybrid DVR

and DS-9600 Series NVR)

First Choice For Security Professionals

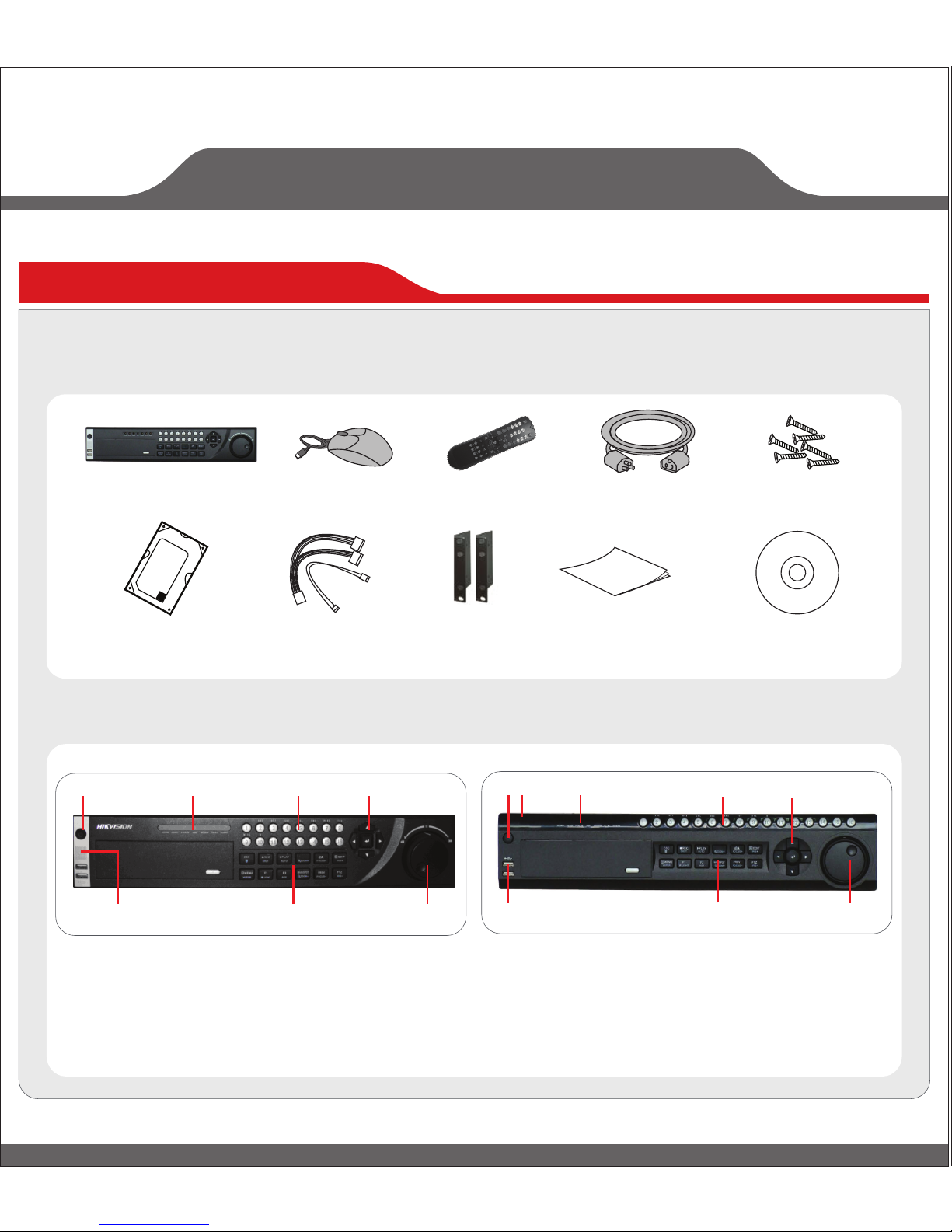

Check that your package includes the following:

Front Panel Description:

1. Overview

BEFORE STARTING: Connect VGA monitor and mouse (mouse supplied).

Hybrid/Analog DVR Mouse IR Remote Power Cord Screws

Hard Drive (PreInstalled)

1. Power Button

2. IR Receiver

3. USB Ports

4. Status Indicators

5. Alphanumeric Buttons

6. Control Buttons

7. Direction/Enter Button

8. Jog Shuttle Control

HDD Cables Rack Mount Ears Quick Start Guide Manual/Software CD

623

754

457

**Please note DS-9000 Series Hybrid DVR shown above** **Please note DS-9100 Series Analog DVR shown above**

HYBRID DVR/NVR/ANALOG

To startup your DVR:

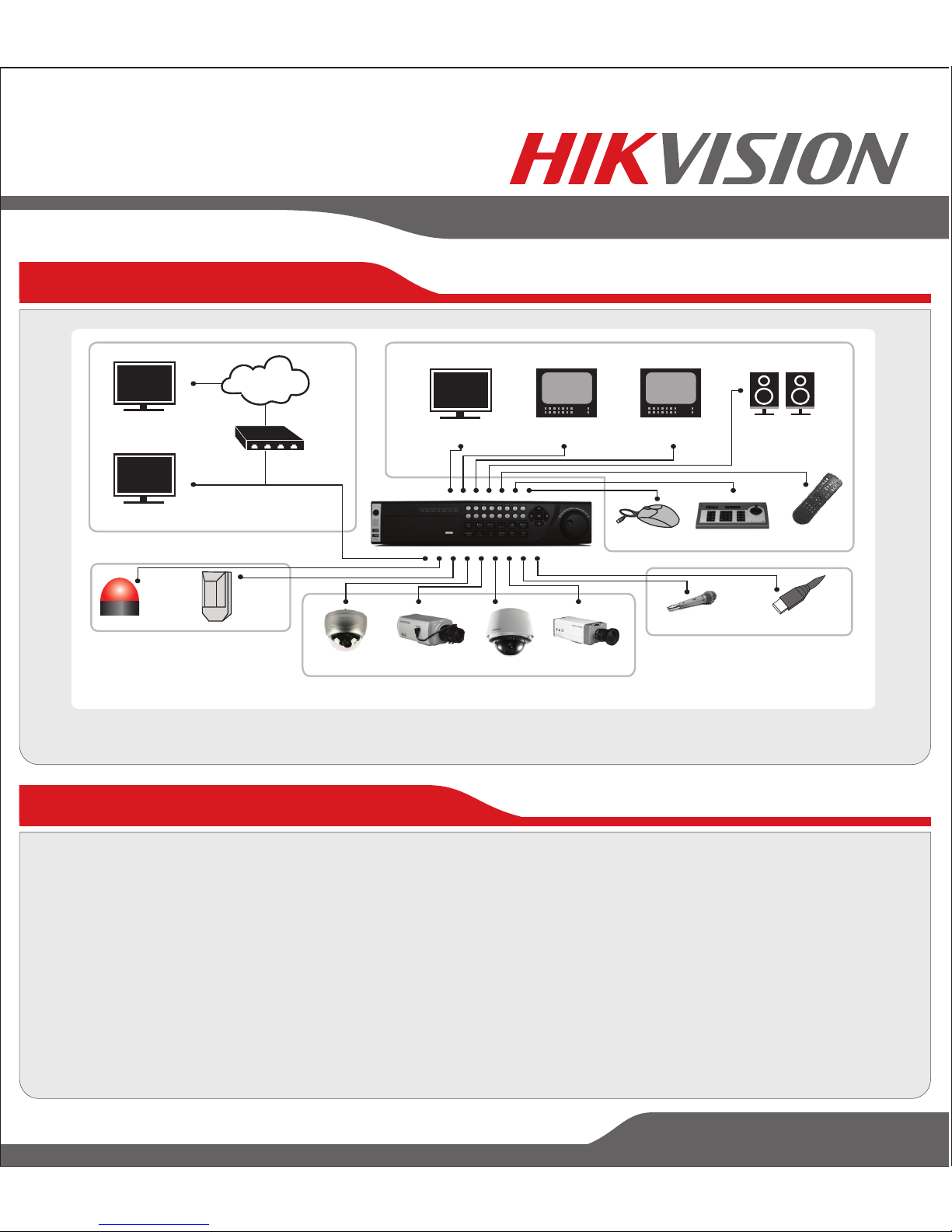

2. Connection

3. Startup and Shutdown

1. Plug power cord into DVR and electrical outlet. It is HIGHLY recommended to use a surge

protector. The Power indicator LED on the front panel will turn red.

2. Connect a VGA monitor and mouse into the DVR. NOTE: Monitor and mouse need to be

plugged in before starting.

3. Switch the POWER button on the back rear panel. The Power indicator LED will turn blue.

The unit will begin to start.

NOTE: Each HDD will start separately to conserve power

NOTE: Default password is 12345

NOTE: The DVR’s Menu is only shown on VGA monitor

Internet

Router

Ethernet

VGA Monitor Main Monitor Aux/Spot Monitor Speaker

Alarm

Output

Alarm

Input

Audio Input USB Device

USB Mouse

Note: DS-9000 Series Hybrid DVR and DS-7600 Series Hybrid DVR support both Analog and IP cameras.

DS-9600 Series NVR supports only IP cameras

Keyboard IR Remote

Analog Dome Analog Camera IP Dome IP Camera

First Choice For Security Professionals

www.hikvisionusa.com

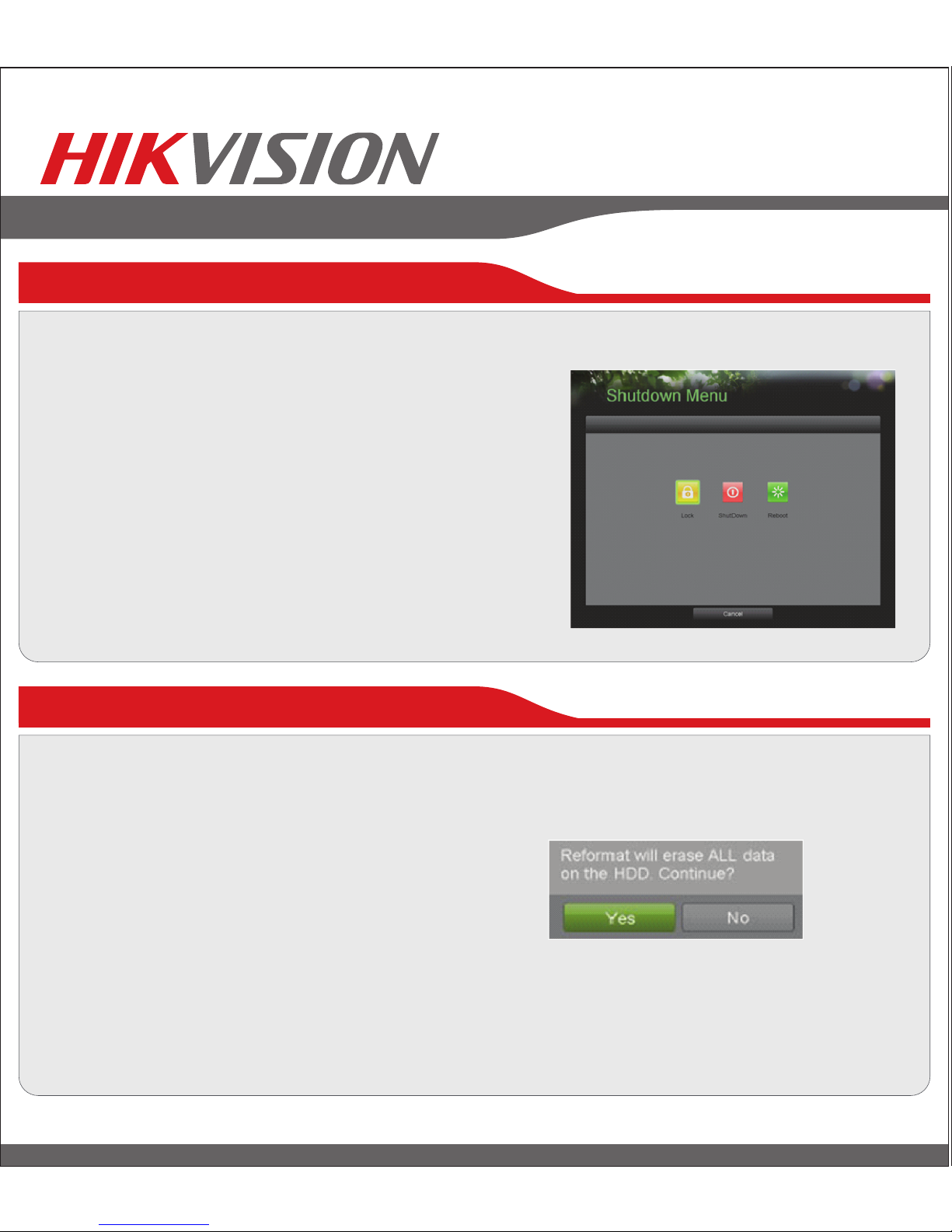

3. Startup and Shutdown (cont.)

To shutdown your DVR:

OPTION 1: Standard Shutdown

1. Enter the Shutdown menu by going to Main Menu >

Maintenance > Shutdown.

2. Select the Shutdown button.

3. Click the Yes button.

OPTION 2: Manual Shutdown

1. Press and hold the POWER button for 3 seconds.

2. Enter the administrator's username and password

in the dialog box for authentication.

3. Click the Yes button.

NOTE: Do not press the POWER button again

when the system is shutting down.

4. Formatting a Disk

A newly installed hard disk drive (HDD) must be formatted first before it can be used with your DVR.

NOTE: Formatting the disk will erase all data on it.

To format a new disk:

1. Enter the Disk Management menu by going to Main Menu > System Configuration

> Disk Management.

2. Select a disk to format. A disk that has not been formatted will show Error Detected as its status.

If the disk is one that is newly installed, the status of the drive will show up as Non-Active and the

Reformat button will change to the Add button.

NOTE: One hard disk drive (HDD) is already installed and formatted in this DVR.

First Choice For Security Professionals

4. Formatting a Disk (cont.)

3. Click the Add button.

4. A confirmation message will appear on the screen.

Click the Yes button to continue formatting process.

5. A format progress bar will be shown on the menu.

After the disk has been formatted, the status of the

disk will change to Active.

6. Click the Done button to exit out of Disk Management.

5. Setting Date & Time

1. Enter the Time/Date menu by going to Main Menu

> System Configuration > Time/Date.

2. Enter the correct date and time.

3. Click the Save button to save the setting.

To setup date and time:

HYBRID DVR/NVR/ANALOG

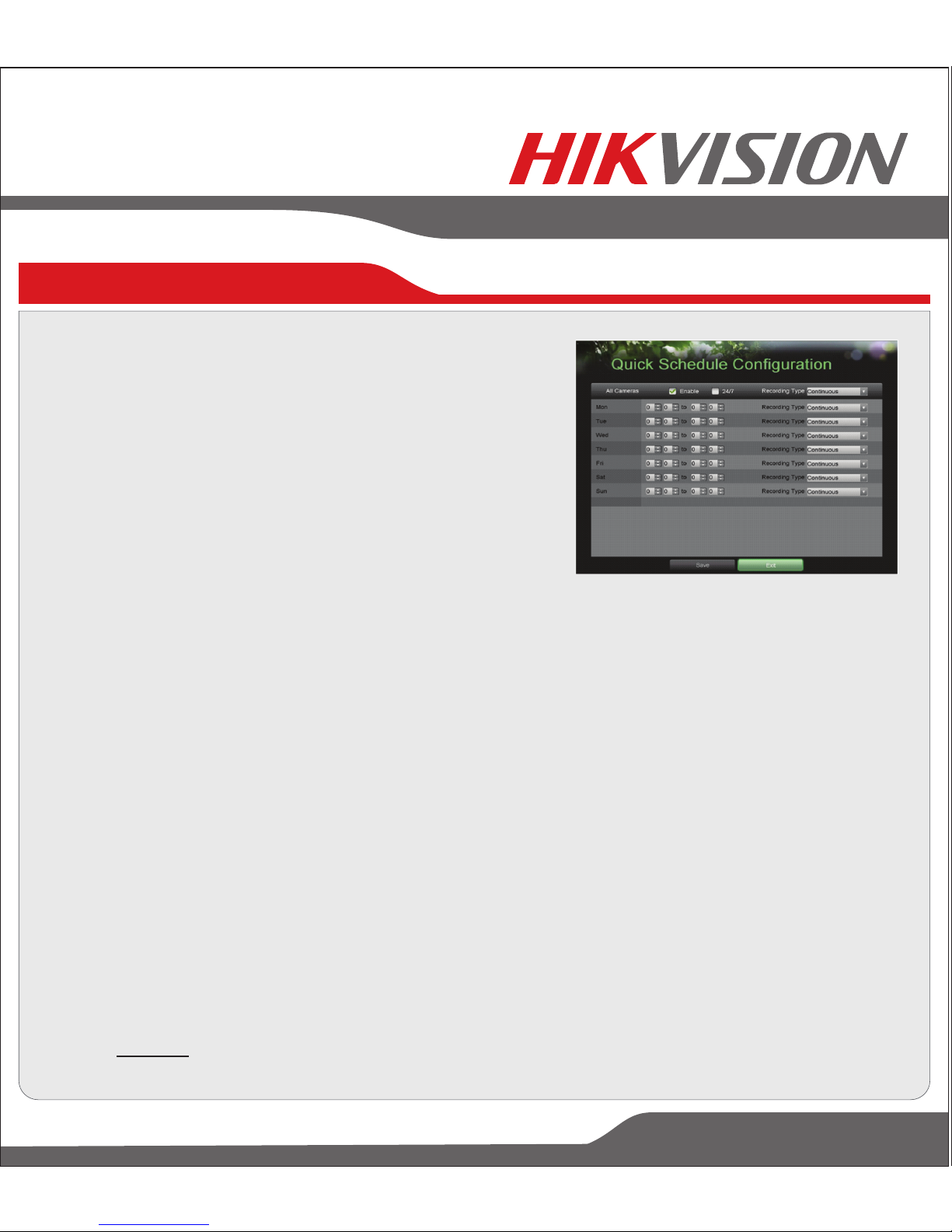

To setup quick recording schedule:

6. Recording

1. Enter the Quick Schedule Configuration menu by

going to Main Menu > Recording Configuration

> Quick Schedule Configuration.

2. Select the camera to configure from the camera

drop down menu. If all the cameras are to be configured

with the same settings, select All Cameras from the list.

3. Check the Enable checkbox to enable the recording

schedule. If the checkbox is unchecked, the recording

schedule will be disabled.

4. Check the 24/7 checkbox if you would like to record continuously or on event for 24 hours a

day, 7 days a week. If you wish to schedule different time frames for Monday through Sunday,

leave the 24/7 checkbox unchecked and skip to step 6.

5. Select Recording Type for 24/7 recording and move on to step 8. Recording type includes

Continuous for continuous recording or On Event for recording when an event is triggered

(i.e. from detected motion).

6. Select the start and stop time for each day of the week. The start and stop time are listed

using a 24 hr cycle (i.e. 18:00 is equivalent to 6:00pm).

7. Select Recording Type for each day of the week. Recording type includes Continuous for

continuous recording or On Event for recording when an event is triggered (i.e. from detected

motion) for the selected time period.

8. Check the Enable Audio checkbox if you would like to enable audio recording along with the

video. Audio can only be recorded if an amplified audio source is connected to the DVR.

9. Select the Save button to save the schedule settings and select Exit to return to the previous

menu. Selecting the Exit button without clicking Save will quit out of the menu without saving

settings.

Note: On Event recordings are recordings that are triggered from motion detection and/or from

an external alarm See ”Configuring Alarms and Exceptions” on page 61 of the user manual.

First Choice For Security Professionals

www.hikvisionusa.com

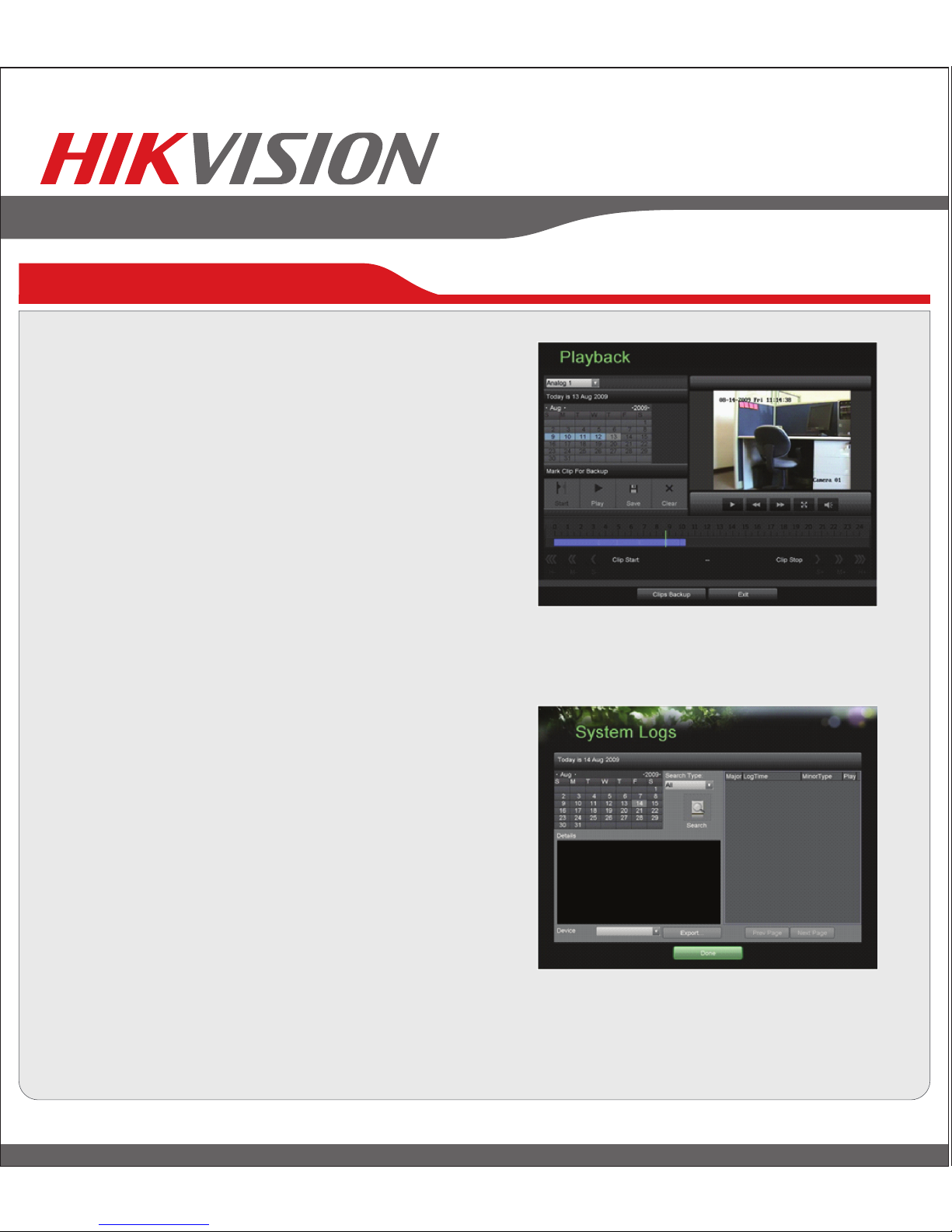

7. Playback

Playback from Search:

1. Enter the Playback menu by going to

Main Menu > Playback.

2. Set the search parameters by selecting

cameras to search and date to search on.

3. The search results will be shown on the timeline

with blue bars designating recorded files.

4. Select file and click the Play button to begin playback.

Playback from System Log:

1. Enter the System Logs menu by going to

Main Menu > Maintenance > System Logs.

2. Select date from the Calendar to search for system

logs in.

3. Select Search Type.

4. Click the Search button.

5. A list of results with your search criteria will be

displayed. If applicable, select the video log to

playback and click Play.

6. The recording will begin to play in the Playback

interface.

First Choice For Security Professionals

8. Backup

Backup recorded files (Export):

1. Enter the File Management menu by going to

Main Menu > System Configuration > File

Management

2. Select desired parameters to search for files to

backup.

3. Select the files to backup. You may also click the Play

button to verify that these files are indeed the ones

you would like to backup. The total size of the files will

also be shown on this menu.

4. Click the Files Backup button to access the Files

Backup Menu.

5. Select device to backup to from drop-down list (USB

Flash Drive, USB HDD, DVD Writer). If backup device

is not recognized:

• Click the Refresh button.

• Reconnect device.

• Check for compatibility from vendor.

6. The total available free space will be shown. If the

free space is not sufficient, delete files from the

storage device or insert a device with more available

free space.

7. Click the Backup button to begin backup process.

After the backup has completed, click the OK button.

HYBRID DVR/NVR/ANALOG

Using Internet Explorer

All Hikvision products use the default IP address of 192.0.0.64

1. Connect a CAT5 or CAT6 cable from the DVR to a PC or Laptop computer.

Note your laptop or PC computers existing address, such as:

IP: 192.0.0.62

Subnet: 255.255.255.0

2. Open Internet Explorer.

3. In the address bar, type 192.0.0.64

If prompted, allow the installation of the Hikvision application.

It may be necessary to add this IP address as a Trusted Site with Low Security.

4. Login to the DVR:

Name: Admin

Password: 12345

Port: 8000

5. Go to the Config tab, then Remote Config,then [Network Parameters] Parameters Configuration.

6. Click on Network Settings.

7. Enter the IP address you wish the DVR to have, then SAVE, then Cancel to Exit.

8. Reset your laptop or PC to its original IP address, subnet and gateway.

9. Type the new address in Internet Explorer.

Using Hikvision iVMS 4000 software

If possible, check www.hikvisionusa.com/downloads.html for the latest version of the iVMS4000 software.

If internet access is not available, install the software from the CD.

Then follow the instructions included with the software.

Network Connection

9. DVR Network Connection

First Choice For Security Professionals
