Network Video Recorder Quick Start Guide

Applicable Model

This manual is applicable to the following models.

Table 1-1 Applicable Model

Series

Model

HWN-2100MH-W

HWN-2104MH-W

HWN-2108MH-W

HWN-2100MH-W(C)

HWN-2104MH-W(C)

HWN-2108MH-W(C)

Symbol Conventions

The symbols that may be found in this document are defined as follows.

Symbol

Description

Danger

Indicates a hazardous situation which, if not avoided, will or could

result in death or serious injury.

Caution

Indicates a potentially hazardous situation which, if not avoided,

could result in equipment damage, data loss, performance

degradation, or unexpected results.

Note

Provides additional information to emphasize or supplement

important points of the main text.

Network Video Recorder Quick Start Guide

Safety Instruction

●Proper configuration of all passwords and other security settings is the responsibility of the

installer and/or user.

●In the use of the product, you must be in strict compliance with the electrical safety regulations

of the nation and region. Please refer to technical specifications for detailed information.

●Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power

Source with 100 VAC to 240 VAC or 12 VDC according to the IEC60950-1 standard. Please refer

to technical specifications for detailed information.

●Do not connect several devices to one power adapter as adapter overload may cause over-

heating or a fire hazard.

●Please make sure that the plug is firmly connected to the power socket.

●If smoke, odor or noise rises from the device, turn off the power at once and unplug the power

cable, and then please contact the service center.

Preventive and Cautionary Tips

Before connecting and operating your device, please be advised of the following tips:

●Ensure recorder is installed in a well-ventilated, dust-free environment.

●Recorder is designed for indoor use only.

●Keep all liquids away from the device.

●Ensure environmental conditions meet factory specifications.

●Ensure recorder is properly secured to a rack or shelf. Major shocks or jolts to the recorder as a

result of dropping it may cause damage to the sensitive electronics within the recorder.

●Use the device in conjunction with an UPS if possible.

●Power down the recorder before connecting and disconnecting accessories and peripherals.

●A factory recommended HDD should be used for this device.

●Improper use or replacement of the battery may result in hazard of explosion. Replace with the

same or equivalent type only. Dispose of used batteries according to the instructions provided

by the battery manufacturer.

●When installing the device into a cabinet over 2U height, it is suggested to use rack shelf to bear

the weight. If the cabinet height is over 4U, it is suggested to use slide rails or rack shelf to bear

the weight.

Network Video Recorder Quick Start Guide
vi
TABLE OF CONTENTS
Chapter 1 Rear Panel Interfaces Description ...............................................................................7
Chapter 2 Installation and Connections ......................................................................................8
1 Device Installation.................................................................................................................8
2 HDD Installation ....................................................................................................................8
2.1 Fix-on-Bottom Installation.........................................................................................8
Chapter 3 Menu Operation.......................................................................................................10
1 Startup, Shutdown and Reboot ..........................................................................................10
2 Activate Your Device ...........................................................................................................10
3 Set Unlock Pattern...............................................................................................................11
4 User Login ............................................................................................................................12
5 Network Settings.................................................................................................................13
5.1 Configure General Settings ......................................................................................13
5.2 Configure Wi-Fi.........................................................................................................13
5.3 Configure Hik-Connect .............................................................................................15
6 Add Network Cameras ........................................................................................................16
6.1 Add Wi-Fi Cameras ...................................................................................................16
6.2 Add IP Cameras ........................................................................................................16
7 Live View..............................................................................................................................17
8 Playback...............................................................................................................................17
9 Access via Web Browser .....................................................................................................18


Chapter 1 Rear Panel Interfaces Description

The rear panel interfaces vary with different models. Refer to the following table for common

interfaces description.

Table 1-1 Common Interfaces Description of Rear Panel

Item

Description

Item

Description

AUDIO IN

RCA connector for audio

input.

AUDIO OUT

RCA connector for audio

output.

LINE IN

RCA connector for two-way

audio input.

USB

Universal Serial Bus (USB)

interface for additional device.

VGA

DB15 connector for local

video output and menu

display.

HDMI

HDMI interface for video

output.

RS-485

RS-485 serial interface for

pan/tilt unit, speed dome, etc.

RS-232

RS-232 interface for

parameter configuration, or

transparent channel.

LAN

RJ-45 self-adaptive Ethernet

interface.

eSATA

Storage and expansion

interface for record or backup.

ALARM

IN/OUT

Alarm input/output interface.

GND

Ground.

Power Switch

Switch for turning on/off the

device.

Power Supply

100 to 240 VAC, 48 VDC, or 12

VDC power supply, different

models vary.

Wi-Fi antenna interface.

Chapter 2 Installation and Connections

2.1 Device Installation

During the device installation:

●Use brackets for rack mounting.

●Ensure ample room for audio and video cables.

●When routing cables, ensure the bend radius of the cables are no less than five times of its

diameter.

●Allow at least 2 cm (≈0.75 inch) of space among racks mounted devices.

●Ensure the device is grounded.

●Environmental temperature should be within the range of -10 °C to 55 °C (14 °F to 131 °F).

●Environmental humidity should be within the range of 10% to 90%.

2.2 HDD Installation

Disconnect the power from the device before installing a hard disk drive (HDD). A factory

recommended HDD should be used for this installation.

Tools Required: Screwdriver.

2.2.1 Fix-on-Bottom Installation

Fix-on-bottom installation is applicable when you need to install and fix the HDD on the device

bottom.

Steps

1. Remove the cover from device by unfastening the screws on panels.

Figure 2-1 Remove Cover

2. Connect the data cable and power cable.

1) Connect one end of data cable to the device motherboard.

2) Connect the other end of data cable to HDD.

3) Connect one end of power cable to HDD.

4) Connect the other end of power cable to the device motherboard.

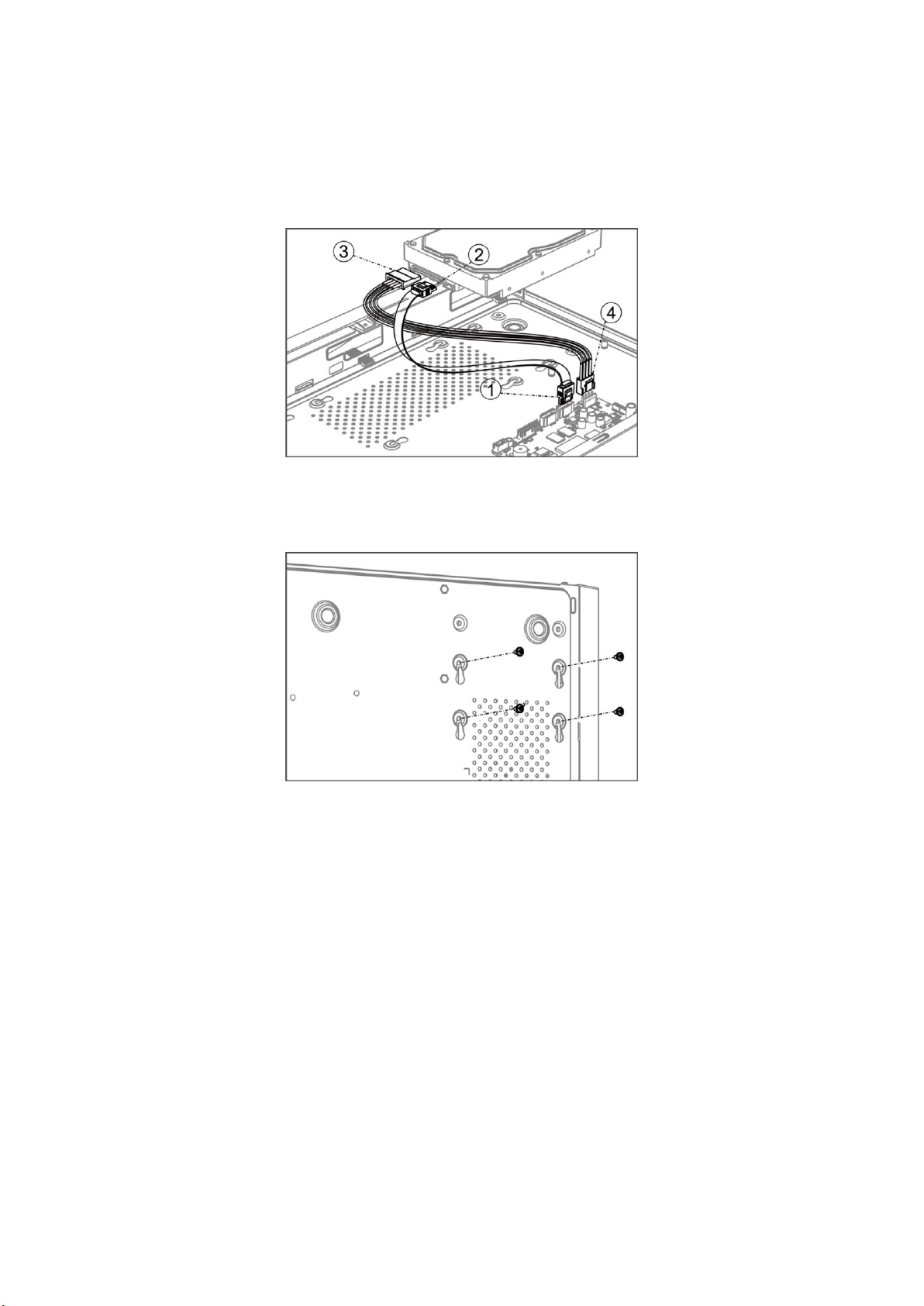

Figure 2-2 Connect Cables

3. Set the device up, match HDD screw threads with the reserved holes on the device bottom, and

fix HDD with screws.

Figure 2-3 Fix HDD to Device Bottom

4. Optional: Repeat the steps above to install other HDDs.

5. Reinstall the device cover and fasten screws.

Andere Handbücher für HiWatch Series

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere HIK VISION Netzwerk-Hardware Handbücher

HIK VISION

HIK VISION HiLook IK-6288TH-MH/P Bedienungsanleitung

HIK VISION

HIK VISION DS-7200HGHI-SH Series Bedienungsanleitung

HIK VISION

HIK VISION DS-E04NI-Q1 Bedienungsanleitung

HIK VISION

HIK VISION DS-96000NI-I16 Series Bedienungsanleitung

HIK VISION

HIK VISION iDS-9600NXI-I16/4F Series Bedienungsanleitung

HIK VISION

HIK VISION UD.6L0202B1986A01 Bedienungsanleitung

HIK VISION

HIK VISION HIK-7104NI Bedienungsanleitung

HIK VISION

HIK VISION DS-7700NXI-I/S Series Bedienungsanleitung

HIK VISION

HIK VISION DS-7100NI-Q1 Series Bedienungsanleitung

HIK VISION

HIK VISION iDS-9632NXI-I8/16S Bedienungsanleitung

HIK VISION

HIK VISION DS-9600NI-I16 DS-9616NI-I16 Bedienungsanleitung

HIK VISION

HIK VISION DS-7600NI-KI/W Series Bedienungsanleitung

HIK VISION

HIK VISION iDS-9664NXI-M8/X Bedienungsanleitung

HIK VISION

HIK VISION DS-9600NI-I8 Series Bedienungsanleitung

HIK VISION

HIK VISION DS-MP7608HN Series Bedienungsanleitung

HIK VISION

HIK VISION DS-7700NXI-I Series Bedienungsanleitung

HIK VISION

HIK VISION DS-9600NI-I8 Series Bedienungsanleitung

HIK VISION

HIK VISION DS-7604NI-Q1 Bedienungsanleitung

HIK VISION

HIK VISION DS-96128NI-E16 Benutzerhandbuch

HIK VISION

HIK VISION DS-7104NI-SL/W Benutzerhandbuch

HIK VISION

HIK VISION DS-8600 Series Bedienungsanleitung

HIK VISION

HIK VISION DS-8600NXI-I8/S Series Bedienungsanleitung

HIK VISION

HIK VISION DeepinMind Series Bedienungsanleitung

HIK VISION

HIK VISION Network Video Recorder Bedienungsanleitung

Beliebte Netzwerk-Hardware Handbücher anderer Marken

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Bedienungsanleitung

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Bedienungsanleitung

Yudor

Yudor YDS-16 Bedienungsanleitung

D-Link

D-Link ShareCenter DNS-320L Bedienungsanleitung

Samsung

Samsung ES1642dc Gebrauchsanweisung

Honeywell Home

Honeywell Home LTEM-PV Montageanleitung

evertz

evertz 7700 Series Bedienungsanleitung

D-Link

D-Link ShareCenter DNS-343 Bedienungsanleitung

Asante

Asante AsanteBridge 1012 Bedienungsanleitung

FireBrick

FireBrick FB2700 Bedienungsanleitung

Audiovox Electronics

Audiovox Electronics ARWH2T Bedienungsanleitung

ADC

ADC DSX-1 Handbuch

NetComm

NetComm NF2 Bedienungsanleitung

Alcatel-Lucent

Alcatel-Lucent 5620 Bedienungsanleitung

Dell EMC

Dell EMC XC6420 Series Bedienungsanleitung

Lanner

Lanner NCA-1020A Bedienungsanleitung

Allied Telesis

Allied Telesis AT-TN121-A Bedienungsanleitung

Arista

Arista CCA-ETM-Q12 Bedienungsanleitung
