HIK VISION DS-3WF03C Bedienungsanleitung

DS-3WF03C User Manual

DS-3WF03C

User Manual

DS-3WF03C User Manual

User Manual

Any and all information, including, among others, wordings, pictures, graphs are the properties of

Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be

“Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced,

changed, translated, or distributed, partially or wholly, by any means, without the prior written

permission of Hikvision. Unless otherwise stipulated, Hikvision does not make any warranties,

guarantees or representations, express or implied, regarding to the Manual.

About this Manual

This Manual is applicable to DS-3WF03C (Product Series).

The Manual includes instructions for using and managing the product. Pictures, charts, images and

all other information hereinafter are for description and explanation only. The information

contained in the Manual is subject to change, without notice, due to firmware updates or other

reasons. Please find the latest version in the company website

(http://overseas.hikvision.com/en/).

Please use this user manual under the guidance of professionals.

Trademarks Acknowledgement

and other Hikvision’s trademarks and logos are the properties of Hikvision in various

jurisdictions. Other trademarks and logos mentioned below are the properties of their respective

owners.

Legal Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS

HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND ERRORS,

AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION,

MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND

NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS,

EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR

INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS,

BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE

USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH

DAMAGES.

REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY

AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL

OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER

ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL

PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.

SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR

JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS

THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS

USED WITH ILLEGITIMATE PURPOSES.

IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER

PREVAILS.

DS-3WF03C User Manual

Regulatory Information

FCC Information

Please take attention that changes or modification not expressly approved by the party

responsible for compliance could void the user’s authority to operate the equipment.

FCC compliance: This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is likely to

cause harmful interference in which case the user will be required to correct the interference at

his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause

undesired operation.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and

comply therefore with the applicable harmonized European standards listed under the

EMC Directive 2014/30/EU, the LVD Directive 2014/35/EU, the RoHS Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of

as unsorted municipal waste in the European Union. For proper recycling, return this

product to your local supplier upon the purchase of equivalent new equipment, or

dispose of it at designated collection points. For more information see: www.recyclethis.info

2006/66/EC (battery directive): This product contains a battery that cannot be disposed

of as unsorted municipal waste in the European Union. See the product documentation

for specific battery information. The battery is marked with this symbol, which may

include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return

the battery to your supplier or to a designated collection point. For more information see:

www.recyclethis.info

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

DS-3WF03C User Manual

iii

Applicable Models

This manual is applicable to switches below: DS-3WF03C (product series).

Symbol Conventions

The symbols that may be found in this document are defined as follows.

During the installation and utilization of the device, please strictly conform to electrical safety

rules in different nations and regions.

You shall acknowledge that the use of the device with Internet access might be under network

security risks, please strengthen protection for your personal information and data security. If

you find the device might be under network security risks, please contact with us.

Symbol

Description

Provides additional information to emphasize or supplement

important points of the main text.

Indicates a potentially hazardous situation, which if not avoided,

could result in equipment damage, data loss, performance

degradation, or unexpected results.

Indicates a hazard with a high level of risk, which if not avoided, will

result in death or serious injury.

DS-3WF03C User Manual

Catalog

Chapter 1 Introduction ...............................................................................................................5

1.1 Overview ..................................................................................................................................5

1.2 Packing List...............................................................................................................................5

1.3 Appearance ..............................................................................................................................5

1.3.1 Front Panel ......................................................................................................................5

Chapter 2 Installation .................................................................................................................8

Chapter 3 Quick Configuration..................................................................................................10

3.1 Log in ......................................................................................................................................10

3.2 Wizard ....................................................................................................................................12

Chapter 4 Status.......................................................................................................................14

4.1 Status......................................................................................................................................14

4.2 Monitor ..................................................................................................................................16

Chapter 5 TDMA.......................................................................................................................17

Chapter 6 Wireless ...................................................................................................................18

Chapter 7 Network...................................................................................................................20

7.1 Bridge mode...........................................................................................................................20

7.2 Management..........................................................................................................................20

7.3 Firewall...................................................................................................................................20

7.4 IP Aliases Settings...................................................................................................................21

7.5 Static Routes...........................................................................................................................21

7.6 Traffic Shaping........................................................................................................................21

7.7 VLAN Settings.........................................................................................................................23

7.8 Bridge Network ......................................................................................................................23

Chapter 8 Advanced .................................................................................................................24

Chapter 9 System .....................................................................................................................26

Chapter 10 Tools.......................................................................................................................27

Chapter 11 Logout....................................................................................................................30

DS-3WF03C User Manual

Chapter 1 Introduction

1.1 Overview

DS-3WF03C wireless bridge can be applied in industries, such as wireless video surveillance, railway,

transportation, power and other industries, wireless video/data transmission, wireless coverage,

carrier wireless backbone network construction, Wi-Fi wireless coverage, rural information

construction, and wireless network coverage. The long-distance transmission of the device can

guarantee multi-channel HD video transmission.

1.2 Packing List

The packing list is shown as below. If any accessories are damaged or lost, keep the package intact

and contact your dealer for replacement.

Table 1-1 Packing List of DS-3WF03C

1.3 Appearance

1.3.1 Front Panel

Front panel of DS-3WF03C is shown as below.

Name

Item

Quantity

Device

DS-3WF03C

PoE Adapter

24 V, 0. 5 A

Power Cord

Hoop

Hoop for mounting device

Quick Start Guide

Instruction manual

DS-3WF03C User Manual

Front Panel of DS-3WF03C

Figure 1-1 DS-3WF03C Front Panel

Indicator

Indicators are used to monitor the status of the DS-3WF03C. See the following table for the

description of the indicators.

Figure 1-2 Indicators

DS-3WF03C User Manual

Table 1-2 Indicator Description

Indicator

Description

Power indicator.

If the green light is steady on, it indicates that the power is on.

LAN

Network connection light.

The light indicates there is one IPC or other network device

connects to the LAN port of PoE adapter.

Blinking means sending data.

WLAN

Wireless indicator light.

The light indicates that the wireless is enabled.

Blinking means sending data.

Signal strength indicator light.

Red light on, indicating that the signal is weak or no signal.

Yellow and red lights on, indicating signal level is medium.

Green, yellow and red lights on, indicating the wireless signal

level is strong

Physical Interface

The hardware interfaces of the DS-3WF03C are as follows.

Figure 1-3 Physical Interface

Table 1-3 Physical Interface

Physical Interface

Description

Reset

Restore default factory settings

LAN

Access to the camera, information distribution screen and other

equipment

POE

PoE port connection with PoE power supply

DS-3WF03C User Manual

Chapter 2 Installation

Step 1 Select the unobstructed high point around the device to ensure that the devices are aligned

and there is no obstruction in the middle. Fix the device as shown in the figure below. Attach the

back of the device to the pole, use the hoop to pass through the hoop hole on the back of the

device, tighten the hoop, and fix the device on the pole.

Figure 2-1 Install host

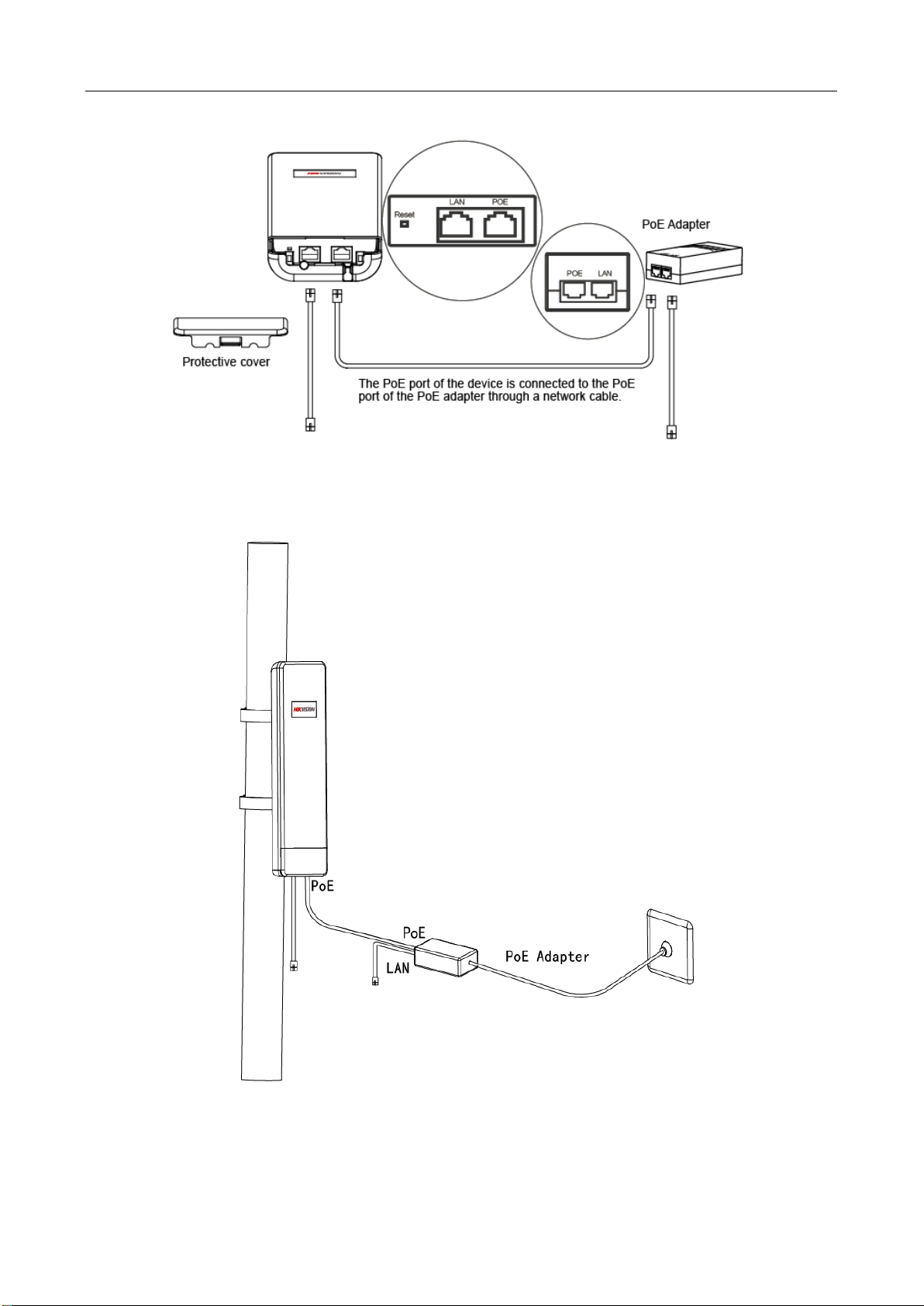

Step 2 Connect the PoE interface of the device to the PoE interface of the PoE power supply

through the network cable. The LAN interface of the device and the LAN interface of the PoE

power supply can be connected to the front-end network devices such as IPC through the network

cable, as shown in the following figure.

DS-3WF03C User Manual

Figure 2-2 Power on the device

Step 3 The schematic diagram of the installation of the device is as follows.

Figure 2-3 Finish installation

Andere Handbücher für DS-3WF03C

Inhaltsverzeichnis

Andere HIK VISION Netzwerk-Hardware Handbücher

HIK VISION

HIK VISION DS-96128NI-E16 Benutzerhandbuch

HIK VISION

HIK VISION DS-7604NI-E1/4P Bedienungsanleitung

HIK VISION

HIK VISION DS-96128NI-I16 Bedienungsanleitung

HIK VISION

HIK VISION DS-9600 Series Bedienungsanleitung

HIK VISION

HIK VISION DS-8600NI-8 Benutzerhandbuch

HIK VISION

HIK VISION DS-M5504HNI Series Bedienungsanleitung

HIK VISION

HIK VISION DS-9664NI-RH Series Bedienungsanleitung

HIK VISION

HIK VISION HiLook NVR-216MH-C/16P Bedienungsanleitung

HIK VISION

HIK VISION DS-3WF03C Bedienungsanleitung

HIK VISION

HIK VISION 7604NI-K1B Bedienungsanleitung

HIK VISION

HIK VISION DS-9504NI-S Bedienungsanleitung

HIK VISION

HIK VISION DeepinMind iDS-6700NXI Series Bedienungsanleitung

HIK VISION

HIK VISION HWN-2104H-4P Bedienungsanleitung

HIK VISION

HIK VISION DS-9608NI-I8 Bedienungsanleitung

HIK VISION

HIK VISION DS-76O4NI-K1 B Bedienungsanleitung

HIK VISION

HIK VISION DS-9616NI-I8 Bedienungsanleitung

HIK VISION

HIK VISION iDS-9600NXI-I16/4F Series Bedienungsanleitung

HIK VISION

HIK VISION DS-7608NI-L1/W Bedienungsanleitung

HIK VISION

HIK VISION DS-9616NI-I8 Bedienungsanleitung

HIK VISION

HIK VISION UD.6L0202B1986A01 Bedienungsanleitung

HIK VISION

HIK VISION DS-7700NXI-I Series Bedienungsanleitung

HIK VISION

HIK VISION DS-9600NI-M8 Series Bedienungsanleitung

HIK VISION

HIK VISION DeepinMind Series Bedienungsanleitung

HIK VISION

HIK VISION iDS-96000NXI-I16B Series Bedienungsanleitung

Beliebte Netzwerk-Hardware Handbücher anderer Marken

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Bedienungsanleitung

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Bedienungsanleitung

Yudor

Yudor YDS-16 Bedienungsanleitung

D-Link

D-Link ShareCenter DNS-320L Bedienungsanleitung

Samsung

Samsung ES1642dc Gebrauchsanweisung

Honeywell Home

Honeywell Home LTEM-PV Montageanleitung

evertz

evertz 7700 Series Bedienungsanleitung

D-Link

D-Link ShareCenter DNS-343 Bedienungsanleitung

Asante

Asante AsanteBridge 1012 Bedienungsanleitung

FireBrick

FireBrick FB2700 Bedienungsanleitung

Audiovox Electronics

Audiovox Electronics ARWH2T Bedienungsanleitung

ADC

ADC DSX-1 Handbuch

NetComm

NetComm NF2 Bedienungsanleitung

Alcatel-Lucent

Alcatel-Lucent 5620 Bedienungsanleitung

Dell EMC

Dell EMC XC6420 Series Bedienungsanleitung

Lanner

Lanner NCA-1020A Bedienungsanleitung

Allied Telesis

Allied Telesis AT-TN121-A Bedienungsanleitung

Arista

Arista CCA-ETM-Q12 Bedienungsanleitung
