Home Decorators Collection 44-CRD Bedienungsanleitung

Questions, problems, missing parts? Before returning to the store,

call Home Decorators Collection Customer Service

8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.

1-800-986-3460

HOMEDEPOT.COM/HOMEDECORATORS

THANK YOU

We appreciate the trust and condence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive

to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home

improvement needs. Thank you for choosing Home Decorators Collection!

Item #1001 415 524, 1001 415 523

Model #51543, 51549

UL Model #44-CRD

USE AND CARE GUIDE

TUXFORD 44-INCH CEILING FAN

To view an instructional video on how to install this product:

1. Go to www.homedepot.com and enter either the Item or Model number, found in the top

right corner of the cover of this instruction manual, in the search eld.

2. Click on your product from the list of search results and click on the video link in the

“Product Overview” section.

Table of Contents ................................................................2

Safety Information...............................................................2

Warranty ............................................................................... 3

Pre-Installation ....................................................................3

Installation............................................................................6

Assembly..............................................................................7

Operation ...........................................................................12

Care and Cleaning.............................................................14

Troubleshooting.................................................................14

1. To reduce the risk of electric shock, ensure the electricity has

been turned off at the circuit breaker or fuse box before you

begin.

2. All wiring must be in accordance with the National Electrical

Code ANSI/NFPA 70 and local electrical codes. Electrical

installation should be performed by a qualied licensed

electrician.

3. The outlet box and support structure must be securely mounted

and capable of reliably supporting a minimum of 35 lbs. (15.9

kg). Use only UL-listed outlet boxes marked “Acceptable for

Fan Support of 35 lbs. (15.9 kg) or less.”

4. The fan must be mounted with a minimum of 7 ft (2.1 m) of

clearance from the trailing edge of the blades to the oor.

5. Do not place objects in the path of the blades.

6. To avoid personal injury or damage to the fan and other items,

use caution when working around or cleaning the fan.

7. After making electrical connections, spliced conductors should

be turned upward and pushed carefully up into the outlet box.

The wires should be spread apart with the grounded conductor

and the equipment-grounding conductor on one side of the

outlet box.

8. All set screws must be checked and retightened where

necessary before installation.

WARNING: To reduce the risk of personal injury,

do not bend the blade brackets (also referred to as

anges) during assembly or after installation. Do

not insert objects in the path of the blades.

WARNING: To reduce the risk of re or electric

shock, do not use this fan with any solid-state speed

control device.

WARNING: Electrical diagrams are for reference

only. If you are using a light kit, refer to the light kit

instructions manual to make the electrical

connections. Optional use of any light kit shall be

UL-listed and marked suitable for use with this fan.

WARNING: To avoid possible electrical shock,

turn the electricity off at the main fuse box before

wiring. If you feel you do not have enough electrical

wiring knowledge or experience, contact a licensed

electrician.

Safety Information

Table of Contents

CAUTION: To reduce the risk of personal injury,

use only the screws provided with the outlet box.

WARNING: To reduce the risk of re, electric shock

or personal injury, mount to outlet box marked

“Acceptable for fan support of 35 lbs. (15.9 kg) or

less”, and use screws provided with the outlet box.

READ AND SAVE THESE INSTRUCTIONS.

WARNING: To reduce the risk of re or electric

shock, this fan should only be used with fan speed

control part no. MR140A, manufactured by Satellite

Electronic Co., LTD.

CAUTION: Do NOT use this fan with a dimmer switch

or wall control. Using a dimmer switch or wall control

will damage the fan.

CAUTION: Changes or modications not expressly

approved by the party responsible for compliance

could void the user’s authority to operate the

equipment.

WARNING: To reduce the risk of electric shock, this

fan must be installed with an isolating wall switch.

3HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Pre-Installation

Warranty

The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a

lifetime after the date of purchase by the original purchaser. The supplier also warrants that all other fan parts, excluding any glass or acrylic

blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the date

of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior

model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing

and reinstalling the product are your responsibility. Damage to any part such as by accident or misuse or improper installation or by afxing any

accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover any changes in brass nish,

including rusting, pitting, corroding, tarnishing, or peeling. Brass nishes of this type give their longest useful life when protected from varying

weather conditions. A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons

shall render the warranty invalid. There is no other express warranty. Home Decorators Collection hereby disclaims any and all warranties,

including but not limited to those of merchantability and tness for a particular purpose to the extent permitted by law. The duration of any

implied warranty which cannot be disclaimed is limited to the time period as specied in the express warranty. Some states do not allow a

limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall not be liable for incidental,

consequential, or special damages arising out of or in connection with product use or performance except as may otherwise be accorded by

law. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion or limitation may not apply to you.

This warranty gives specic legal rights, and you may also have other rights which vary from state to state. This warranty supersedes all prior

warranties. Shipping costs for any return of product as part of a claim on the warranty must be paid by the customer.

Contact the Customer Service Team at 1-800-986-3460 or visit www.HomeDepot.com/homedecorators.

SPECIFICATIONS

NOTE: These are approximate measures. They do not

include the Amps and Wattage used by the light kit.

Size Speed Amps Watts RPM CFM Net Weight Gross

Weight Cubic Feet

44 in.

Low 0.22 14 85 1793 16.76 lbs.

(7.6 kgs)

19.18 lbs.

(8.7 kgs) 1.74 cu.ft.Medium 0.37 37 150 3275

High 0.43 52 180 3975

Part Description Quantity

AA Blade attachment screws 16

BB Plastic wire connecting nut 3

Pre-Installation (continued)

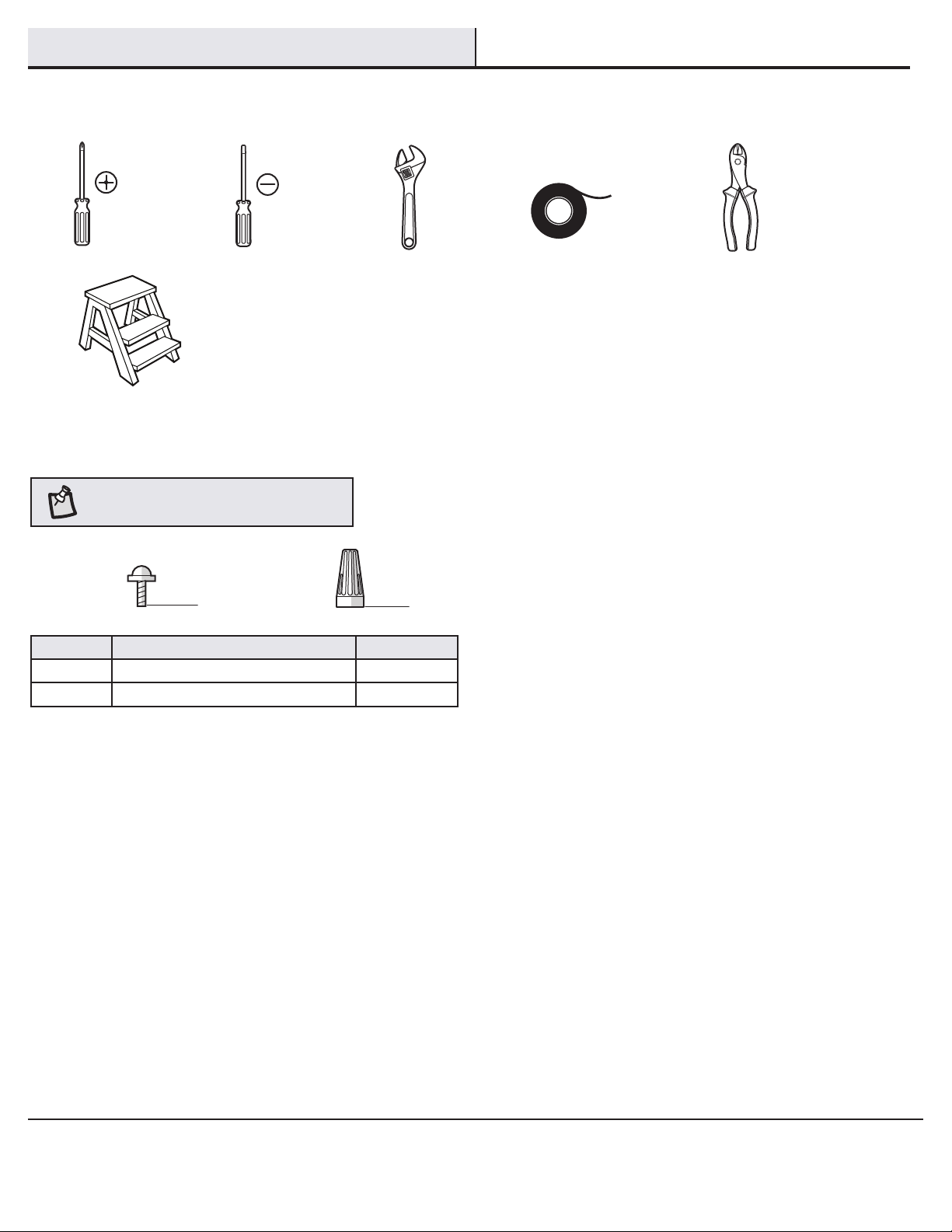

HARDWARE INCLUDED

NOTE: Hardware not shown to actual size.

AA BB

TOOLS REQUIRED

Phillips

screwdriver

Flat blade

screwdriver

Adjustable

wrench

Electrical

tape

Wire cutter

/ Stripper

Step ladder

5HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

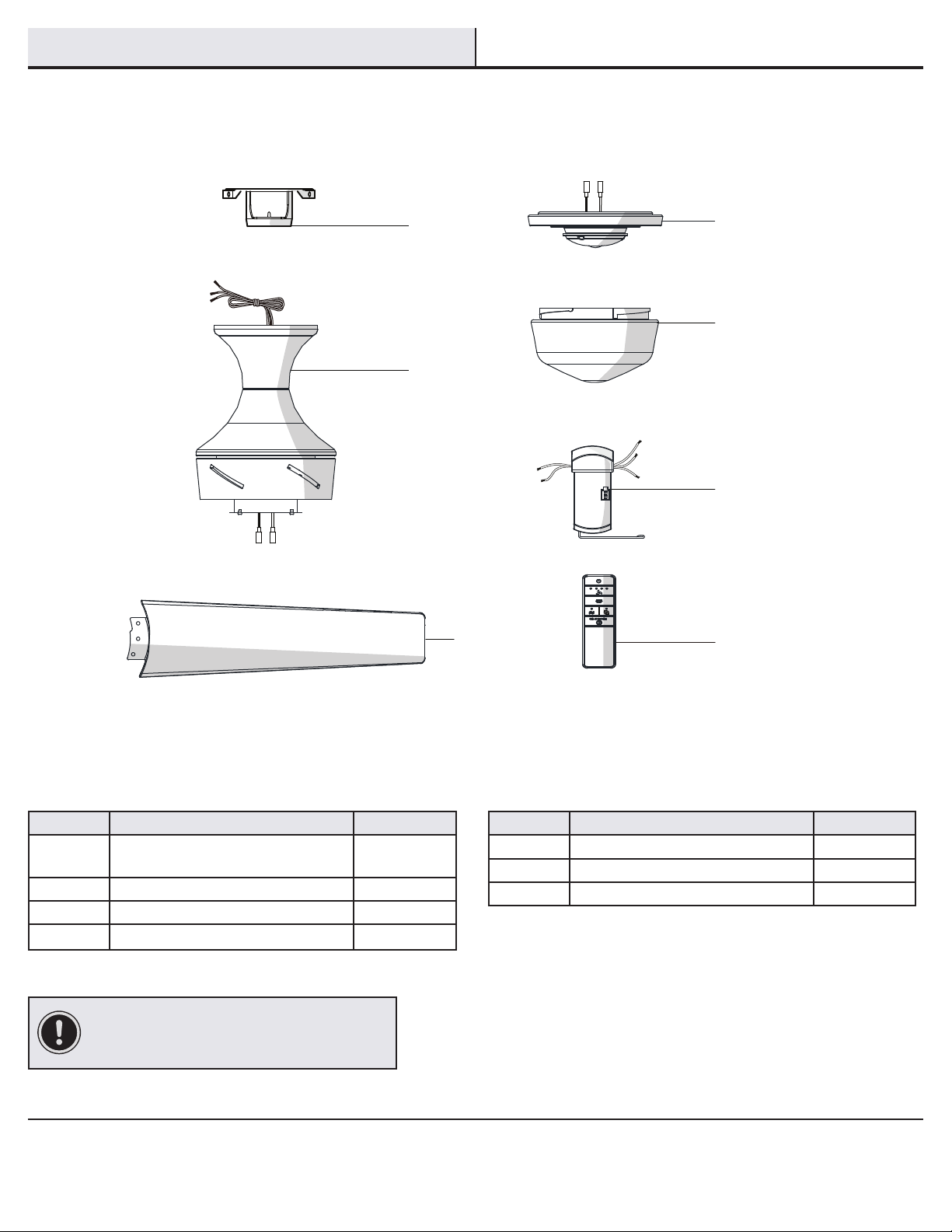

Part Description Quantity

ASlide-on mounting bracket

(inside canopy) 1

B Fan-motor assembly 1

C Blade 5

D Light kit tter assembly (LED included) 1

Part Description Quantity

E Glass bowl 1

F Receiver 1

G Transmitter (battery included) 1

IMPORTANT: This product and/or components are

governed by one or more of the following U.S. Patents:

5,947,436; 5,988,580; 6,010,110; 6,046,416, 6,210,117

and other patents pending.

Pre-Installation (continued)

PACKAGE CONTENTS

Installation

MOUNTING OPTIONS

WARNING: To reduce the risk of re, electric shock

or personal injury, mount to outlet box marked

“Acceptable for fan support of 35 lbs. (15.9 Kg)

or less”, and use screws provided with the outlet

box. An outlet box commonly used for the support

of lighting xtures may not be acceptable for fan

support and may need to be replaced. If in doubt,

consult a qualied electrician.

If your ceiling fan does not have an existing UL-listed mounting

box, then install one using the following instructions:

□Disconnect the power by removing the fuses or turning off

the circuit breakers.

□Secure the outlet box directly to the building structure. Use

the appropriate fasteners and materials. The outlet box and

support structure must be securely mounted and capable of

reliably supporting a minimum of 35 lbs. (15.9kg). Use only

UL-listed outlet boxes marked “Acceptable for fan support of

35 lbs. (15.9 Kg) or less” Do not use a plastic outlet box.

The illustrations below show three different ways to mount the

outlet box.

Outlet Box

Hanger Bar

NOTE: To hang your fan where there is an existing xture

but no ceiling joist, you may need an installation hanger

bar as shown above (available at any Home Depot store).

7HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

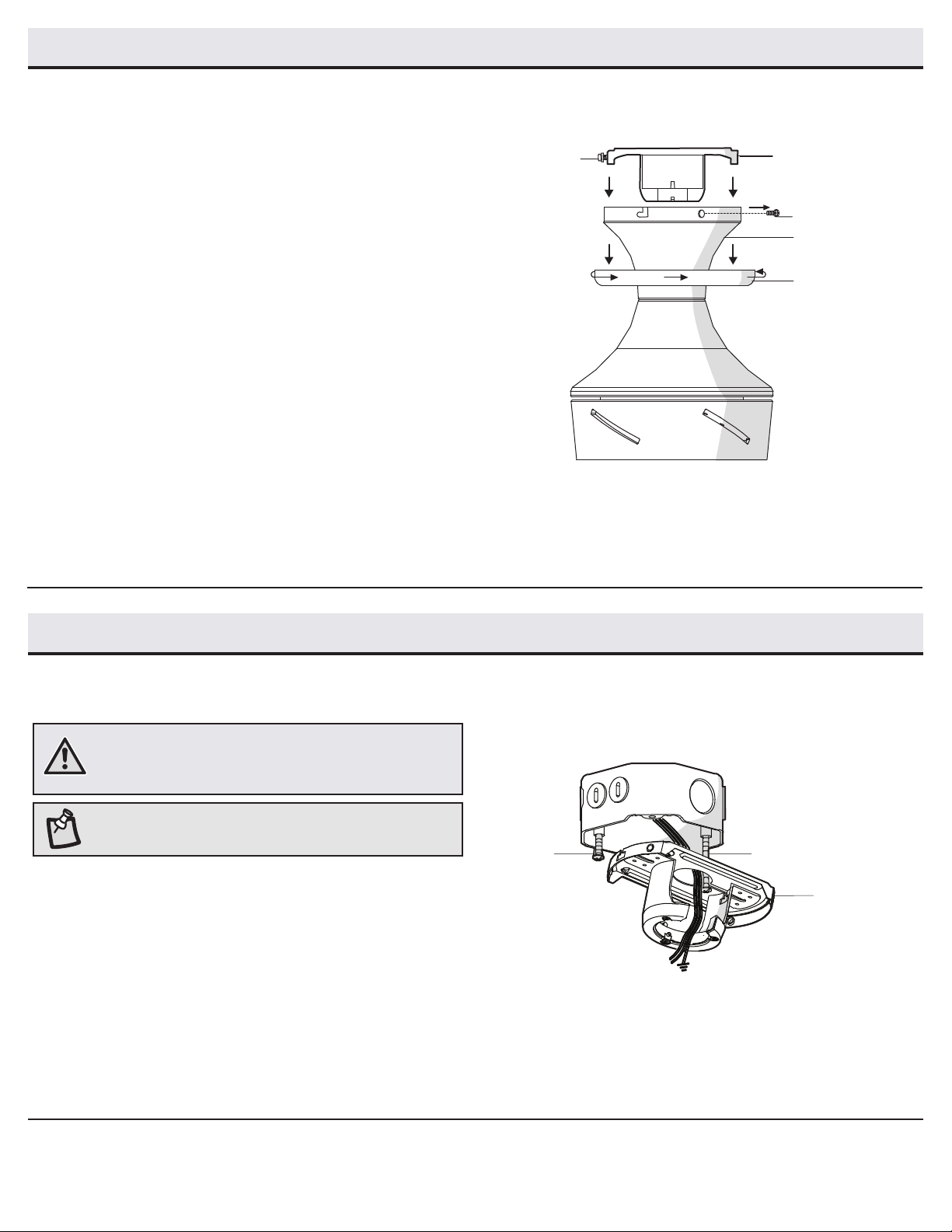

Assembly - Standard Ceiling Mount

Preparing for mounting

□Remove the canopy ring (EE) from the fan motor assembly

(B) by turning the ring counterclockwise until it unlocks.

□Remove the mounting bracket (A) from the fan motor

assembly (B) by loosening the two canopy screws (CC)

located in the “L shaped” slots.

□Remove and save the two canopy screws (DD) in the round

holes. This will enable you to remove the mounting bracket

(A).

Assembly - Hanging the Fan

Attaching the fan to the electrical

box

□Loosen the two mounting screws (II) in the outlet box.

□Pass the 120-Volt supply wires through the center hole in the

mounting bracket (A).

□Slide the mounting bracket (A) on to the mounting screws (II)

and center the mounting bracket (A) in relation to the outlet box.

If necessary, use leveling washers (not included) between the

slide-on mounting bracket (A) and the outlet box. The at side of

the slide-on mounting bracket (A) should face toward the outlet

box, as shown.

□Securely tighten the two mounting screws (II).

WARNING: To reduce the risk of re, electric shock or personal

injury, mount to outlet box marked “Acceptable for fan support

of 35 lbs. 15.9 kg) or less”, and use screws provided with the

outlet box.

NOTE: The mounting bracket (A) is designed to slide into place

on an outlet box with the outlet box screws (II) installed.

Assembly - Hanging the Fan (continued)

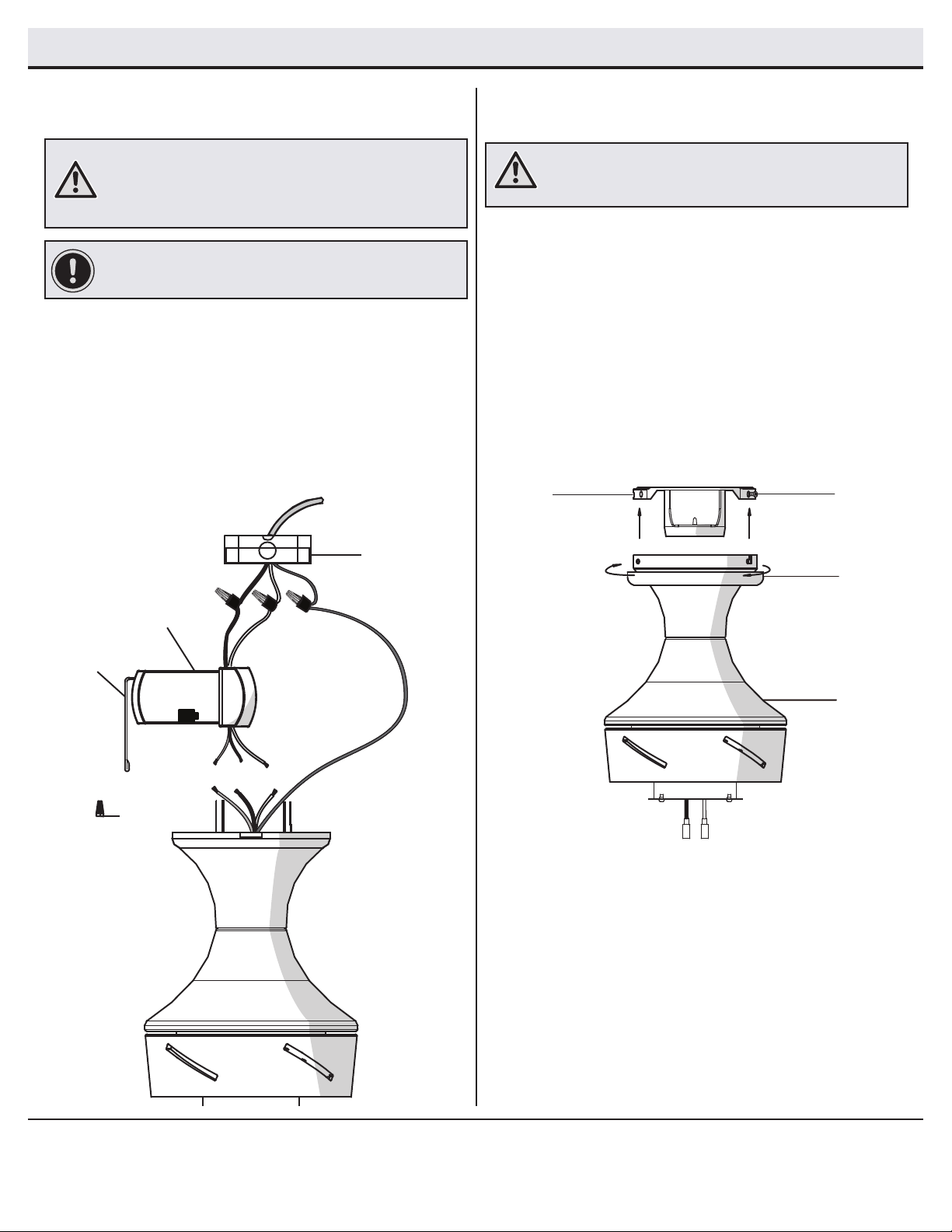

Hanging the fan

□Carefully lift the fan-motor assembly (B) up to the slide-on

mounting bracket (A).

□Hang the fan on the hook (FF) provided by utilizing one of

the non-slotted (round) holes at the outer rim of the fan-

motor assembly (B).

WARNING: The hook (FF) is only to balance the fan while

making the electrical connections. Failure to hang as shown

may result in the hook (FF) breaking, causing the fan to fall.

The hook must pass from the inside to the outside of the

canopy.

WARNING: When hanging the fan on the hook (FF) it is critical

that you use one of the non-slotted (round) holes in the fan-

motor assembly (B).

NOTE: The frequencies on your receiver and hand unit have

been preset at the factory. Before installing the receiver,

make sure the dip switches on the receiver and hand unit are

set to the same frequency. The dip switches on the hand unit

are located inside the battery compartment.

NOTE: The switch marked O/D controls the dimming function

of the light. Use a ballpoint pen or small screwdriver to

switch to O to disable the dimming function. The factory

preset is D.

Setting the code on the remote

control and receiver

□Remove the remote control (G) battery cover by pressing

rmly on the arrow and sliding the cover off.

□Slide the dip switches to your choice of either up or down.

The factory setting is up.

□Slide the dip switches (ZZ) on the receiver (F) to the same

position as set on the remote control (G).

□Install two 1.5V AAA batteries (included).

□Replace the battery cover on the remote control (G).

□Insert the silicone rubber stopper (OO) into the hole on the

receiver (F) to cover the dip switches.

1 2 3 4

D O

1 2 3 4

ON DIP

1 2 3 4

D O

1 2 3 4

NOTE: The battery will weaken with age and should be

replaced before leaking takes place as this will damage the

hand unit. Dispose of used battery properly and keep the

battery out of the reach of children.

9HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Installing the receiver

□Position the house supply wires (AAA) to one side of the

slide-on mounting bracket (A); position the fan wires (BBB)

to the opposite side.

□Insert the narrow end of the receiver (F) (as shown, at side

towards the ceiling) into the slide-on mounting bracket until

it rests on top of the ball/downrod assembly.

WARNING: To reduce the risk of re or electric shock,

remember to disconnect power. The electrical wiring must

meet all local and national electrical code requirements.

The electrical source and fan must be 110/120 volt, 60Hz.

Do not use this product in conjunction with any variable wall

control. Incorrect wire connection can damage this receiver.

CAUTION: If other fan wires are a different color, have this

unit installed by a licensed electrician.

CAUTION: Do not install the receiver in a damp location or

immerse in water (For indoor use only). Do not pull on or cut

the receiver leads shorter. Do not drop or bump the unit.

AAA

BBB

Assembly - Hanging the Fan (continued)

45Wiring the receiver to the household

wiring

IMPORTANT: Use the wire connecting nuts (BB) supplied

with your fan. Secure the connectors with electrical tape and

ensure there are no loose strands or connections.

WARNING: Each wire not supplied with this fan is designed to

accept up to one 12-gauge house wire and two wires from the

fan. If you have larger than 12-gauge house wiring or more

than one house wire to connect to the fan wiring, consult an

electrician for the proper size wire nuts to use.

□Spread the wires apart so that the green and white wires

are on one side of the outlet box and the black wire is on the

other side.

□Connect the green fan wires to the household ground wire

(this may be a green or bare wire) using a wire connecting

nut (BB).

□Connect the receiver black (or red) wire to the household

black (hot) wire using a wire connecting nut (BB).

□Connect the receiver (F) white wire to the household white

wire (neutral) wire using a wire connecting nut (BB).

□Secure each wire connecting nut using electrical tape.

Black

(or Red)

White

Black

Green (or Bare)

Green

Outlet Box

in the ceiling

(GG)

Receiver

Antenna

White

Receiver (F)

BB (x3)

1 2 3 4

ON DIP

WARNING: To avoid possible electrical shock, turn the

electricity off at the main fuse box before wiring. If you

feel you do not have enough electrical wiring knowledge or

experience, contact a licensed electrician.

Assembly - Hanging the Fan (continued)

Outlet box

in the ceiling

(GG)

Receiver (F)

Blue

Receiver

Antenna

Black White

Green

BB (x3)

1 2 3 4

ON DIP

Making the electrical connection

IMPORTANT: Use the plastic wire connectors (BB) supplied with

your fan. Secure the connectors with electrical tape and ensure

there are no loose strands or connections.

WARNING: Each wire not supplied with this fan is designed to

accept up to one 12-gauge house wire and two wires from the

fan. If you have larger than 12-gauge house wiring or more

than one house wire to connect to the fan wiring, consult an

electrician for the proper size wire nuts to use.

□Connect the fan motor white wire to the receiver white wire

using a wire connecting nut (BB).

□Connect the fan motor black wire to the receiver black wire

using a wire connecting nut (BB).

□Connect the fan motor blue wire to the receiver blue wire

using a wire connecting nut (BB).

□Secure each wire connecting nut using electrical tape.

□Turn the wire connecting nut (BB) upward and push the wiring

into the outlet box (GG).

Mounting the fan-motor assembly

□Align the locking slots of the fan-motor assembly (B) with the

two screws (CC) in the slide-on mounting bracket (A). Push up

to engage the slots, and turn clockwise to lock the fan-motor

assembly (B) in place.

□Firmly tighten the two mounting screws (CC).

□Install the two mounting screws (saved from Assembly Step

1 “Preparing for mounting”) into the holes in the fan-motor

assembly (B) and tighten rmly.

□Install the decorative canopy ring (EE) by aligning the ring’s

slots with the screws in the fan-motor assembly (B). Rotate

the canopy ring (EE) counterclockwise to lock it in place.

ACC

WARNING: The locking slots of ceiling canopy are provided only

as an aid to mounting. Do not leave the fan assembly unattended

until all four canopy screws are engaged and rmly tightened.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Home Decorators Collection Lüfter Handbücher

Home Decorators Collection

Home Decorators Collection KINGSBROOK 60-KBR Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection DRAPER YG664-BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection 60-BDT Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection TRENTINO II YG475-WH Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection AM909A-MBK Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection 59252 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection BENTLEY III Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection GAMALI 60-FORY Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection N609-BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection SALEEN YG458-GM Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection GAMALI 56000 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection 51662 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection ASHBY PARK 59252 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection SANDY COVE 52-GLH Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection MERCER 54725 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection CHAMBERLAIN 42-CHAM Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection VINWOOD 56001 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection DRISKOL Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection CARDEN AM852-BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection CONNOR 51847 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection HARRINGTON 59236 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection MAKENNA Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection WINDWARD IV Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection AVONBROOK 59256 Bedienungsanleitung

Beliebte Lüfter Handbücher anderer Marken

ELTA FANS

ELTA FANS H03VV-F Bedienungsanleitung

Hunter

Hunter 20714 Gebrauchsanweisung

Emerson

Emerson CARRERA VERANDA CF542ORB00 Bedienungsanleitung

Hunter

Hunter Caraway Gebrauchsanweisung

Panasonic

Panasonic FV-15NLFS1 Bedienungsanleitung

Kompernass

Kompernass KH 1150 Bedienungsanleitung

VES

VES FALA100/12V/TR Bedienungsanleitung

Vertiv

Vertiv Liebert DCD Bedienungsanleitung

Westinghouse

Westinghouse GFP Series Bedienungsanleitung

Venmar

Venmar KUBIX HRV PLUS Series Bedienungsanleitung

Maico

Maico ECR 31 Bedienungsanleitung

Sonnenkonig

Sonnenkonig Dinky Bedienungsanleitung

S&P

S&P ECOWATT HXBR Bedienungsanleitung

Wider

Wider IMP03369BH Bedienungsanleitung

Panasonic

Panasonic F-60DHN Bedienungsanleitung

Hinkley

Hinkley HIGHLAND Bedienungsanleitung

Broan

Broan 766BN Bedienungsanleitung

Premium

Premium PFS16022 Montageanleitung
