Home Decorators Collection 51556 Bedienungsanleitung

Questions, problems, missing parts? Before returning to the store,

call Home Decorators Collection Customer Service

8 a.m. - 6 p.m., EST, Monday-Friday.

1-800-986-3460

HOMEDEPOT.COM/HOMEDECORATORS

THANK YOU

We appreciate the trust and condence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive

to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home

improvement needs. Thank you for choosing Home Decorators Collection!

Item # 1001 029 135

Model # 51556

ETL Model # 56-BRM

USE AND CARE GUIDE

BREEZEMORE 56-INCH CEILING FAN

Table of Contents ................................................................2

Safety Information...............................................................2

Warranty ............................................................................... 3

Pre-Installation ....................................................................3

Installation............................................................................6

Assembly..............................................................................7

Operation ...........................................................................13

Care and Cleaning.............................................................16

Troubleshooting.................................................................16

1. To reduce the risk of electric shock, ensure the electricity has

been turned off at the circuit breaker or fuse box before you

begin.

2. All wiring must be in accordance with the National Electrical

Code ANSI/NFPA 70-1999 and local electrical codes. Electrical

installation should be performed by a qualied licensed

electrician.

3. The outlet box and support structure must be securely mounted

and capable of reliably supporting a minimum of 35 lbs. (15.9

kg). Use only UL-listed outlet boxes marked “Acceptable for

Fan Support of 35 lbs. (15.9 kg) or less.”

4. The fan must be mounted with a minimum of 7 ft (2.1 m) of

clearance from the trailing edge of the blades to the oor.

5. Do not place objects in the path of the blades.

6. To avoid personal injury or damage to the fan and other items,

use caution when working around or cleaning the fan.

7. After making electrical connections, spliced conductors should

be turned upward and pushed carefully up into the outlet box.

The wires should be spread apart with the grounded conductor

and the equipment-grounding conductor on one side of the

outlet box.

8. All set screws must be checked and retightened where

necessary before installation.

WARNING: To reduce the risk of personal injury,

do not bend the blade brackets (also referred to as

anges) during assembly or after installation. Do not

insert objects in the path of the blades.

WARNING: To reduce the risk of re or electric

shock, do not use this fan with any solid-state speed

control device.

WARNING: Electrical diagrams are for reference

only. If you are using a light kit, refer to the light kit

instructions manual to make the electrical

connections. Optional use of any light kit shall be

UL-listed and marked suitable for use with this fan.

WARNING: To avoid possible electrical shock,

turn the electricity off at the main fuse box before

wiring. If you feel you do not have enough electrical

wiring knowledge or experience, contact a licensed

electrician.

Safety Information

Table of Contents

CAUTION: To reduce the risk of personal injury,

use only the screws provided with the outlet box.

WARNING: To reduce the risk of re, electric shock

or personal injury, mount to outlet box marked

“Acceptable for fan support of 35 lbs. (15.9 kg) or

less”, and use screws provided with the outlet box.

READ AND SAVE THESE INSTRUCTIONS.

WARNING: To reduce the risk of re or electric shock,

this fan should only be used with fan speed control part

no. RH786NR, manufactured by Rhine Electronic Co.,

LTD.

This device complies with part 15 of the FCC rules, operation is subject to the following two conditions. (1) this device may not cause harmful

interference and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: Changes or modications not expressly

approved by the party responsible for compliance

could void the user’s authority to operate the

equipment.

3HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Pre-Installation

Warranty

The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a

lifetime after the date of purchase by the original purchaser. The supplier also warrants that all other fan parts, excluding any glass or acrylic

blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the date

of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior

model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing

and reinstalling the product are your responsibility. Damage to any part such as by accident or misuse or improper installation or by afxing any

accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover any changes in brass nish,

including rusting, pitting, corroding, tarnishing, or peeling. Brass nishes of this type give their longest useful life when protected from varying

weather conditions. A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons

shall render the warranty invalid. There is no other express warranty. Home Decorators Collection hereby disclaims any and all warranties,

including but not limited to those of merchantability and tness for a particular purpose to the extent permitted by law. The duration of any

implied warranty which cannot be disclaimed is limited to the time period as specied in the express warranty. Some states do not allow a

limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall not be liable for incidental,

consequential, or special damages arising out of or in connection with product use or performance except as may otherwise be accorded by

law. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion or limitation may not apply to you.

This warranty gives specic legal rights, and you may also have other rights which vary from state to state. This warranty supersedes all prior

warranties. Shipping costs for any return of product as part of a claim on the warranty must be paid by the customer.

Contact the Customer Service Team at 1-800-986-3460 or visit www.HomeDepot.com/homedecorators.

SPECIFICATIONS

NOTE: These are approximate measures. They do not

include the Amps and Wattage used by the light kit.

Size Speed Volts

Fan Power

Consumption

(without lights)

WATT

Airow

CFM

Airow Efciency

(Higher Is Better)

CFM/WATT

Net

Weight

Gross

Weight Cubic Feet

56 in.

120

1 1878 1878

20.28 lbs

(9.2 kgs)

24.25 lbs

(11 kgs) 3.08 cu.ft.

2 2 2614 1307

3 3 3422 1141

4 5 4329 866

5 8 5061 633

6 13 5869 451

7 22 7100 323

8 28 7503 268

9 35 8201 234

Part Description Quantity

AA Transmitter (battery included) 1

BB Plastic wire connecting nut 3

Pre-Installation (continued)

HARDWARE INCLUDED

NOTE: Hardware not shown to actual size.

TOOLS REQUIRED

Phillips

screwdriver

Flat blade

screwdriver

Adjustable

wrench

Electrical

tape

Wire cutter

/ Stripper

Step ladder

NOTE: Hardware should be packaged in a

blister pack.

Part Description Quantity

CC Blade attachment screws 15

DD Decorative nut 15

5HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Part Description Quantity

ASlide-on mounting bracket

(inside canopy) 1

B Ball/downrod assembly 1

C Canopy 1

D Decorative motor collar cover 1

Part Description Quantity

E Fan-motor assembly with light kit pan

pre-attached

F Blade 5

G Light kit tter assembly 1

H Glass bowl 1

I Light bulbs 2

IMPORTANT: This product and/or components are

governed by one or more of the following U.S. Patents:

5,947,436; 5,988,580; 6,010,110; 6,046,416, 6,210,117

and other patents pending.

Pre-Installation (continued)

PACKAGE CONTENTS

Installation

MOUNTING OPTIONS

WARNING: To reduce the risk of re, electric shock

or personal injury, mount to outlet box marked

“Acceptable for fan support of 35 lbs. (15.9 Kg)

or less”, and use screws provided with the outlet

box. An outlet box commonly used for the support

of lighting xtures may not be acceptable for fan

support and may need to be replaced. If in doubt,

consult a qualied electrician.

If your ceiling fan does not have an existing UL-listed mounting

box, then install one using the following instructions:

□Disconnect the power by removing the fuses or turning off

the circuit breakers.

□Secure the outlet box directly to the building structure. Use

the appropriate fasteners and materials. The outlet box and

support structure must be securely mounted and capable of

reliably supporting a minimum of 35 lbs. (15.9kg). Use only

UL-listed outlet boxes marked “Acceptable for fan support of

35 lbs. (15.9 Kg) or less” Do not use a plastic outlet box.

The illustrations below show three different ways to mount the

outlet box.

If the canopy touches the downrod, then remove the decorative canopy

bottom cover, and turn the canopy 180° before attaching the canopy to

the mounting plate.

To hang your fan where there is an existing xture but no ceiling joist,

you may need an installation hanger bar as shown above

(available at any Home Depot store).

NOTE: You may need a longer downrod to maintain

proper blade clearance when installing on a steep, sloped

ceiling. The maximum angle allowable is 30° away from

horizontal.

Outlet Box

Recessed

Outlet

Box

Provide Strong

Support

Ceiling

Mounting

Plate

Outlet Box

Hanger Bar

7HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Assembly - Standard Ceiling Mount

Routing the wires

Assembling the fan

Preparing for mounting

□Remove the canopy bottom cover (J) from the canopy (C) by

turning the bottom cover counterclockwise until it unlocks.

□Loosen the two canopy screws (EE) located in the

bottom of the mounting bracket, and turn the canopy

counterclockwise to remove the mounting bracket (A) from

the canopy (C).

□Route the wires exiting the top of the fan-motor

assembly (E) through the center of the canopy bottom

cover (J).

□Insert the ball/downrod (B) through the canopy (C) and

slide the decorative motor collar cover (D) onto the end

of the ball/downrod (B). Make sure the slots on the

canopy (C) are on top.

□Route the wires exiting the top of the fan motor

assembly (E) through the downrod as shown.

□Remove the setscrew (FF) by turning it counterclockwise.

□Install the downrod (B) by inserting it into the motor collar (K),

and turning it clockwise until it is tight.

□Reinstall the setscrew (FF) turning clockwise until tight.

NOTE: This fan is equipped with a safety tab (HH). Should

the setscrew (FF) ever become loose while the fan is

running in reverse, the safety tab (HH) will engage and

stop the fan from falling.

CAUTION: To ensure wobble-free operation and to avoid

damage to the fan, the downrod (B) and the setscrew

(FF) must be completely tightened

Assembly - Hanging the Fan

Attaching the fan to the electrical

box Hanging the fan

□Loosen the two outlet box screws (GG) in the outlet box.

□Pass the 120-Volt supply wires through the center hole in the

mounting bracket (A).

□Slide the mounting bracket (A) on to the outlet box screws (GG)

and center the mounting bracket (A) in relation to the outlet box.

If necessary, use leveling washers (not included) between the

slide-on mounting bracket (A) and the outlet box. The at side of

the slide-on mounting bracket (A) should face toward the outlet

box, as shown.

□Securely tighten the two outlet box screws (GG).

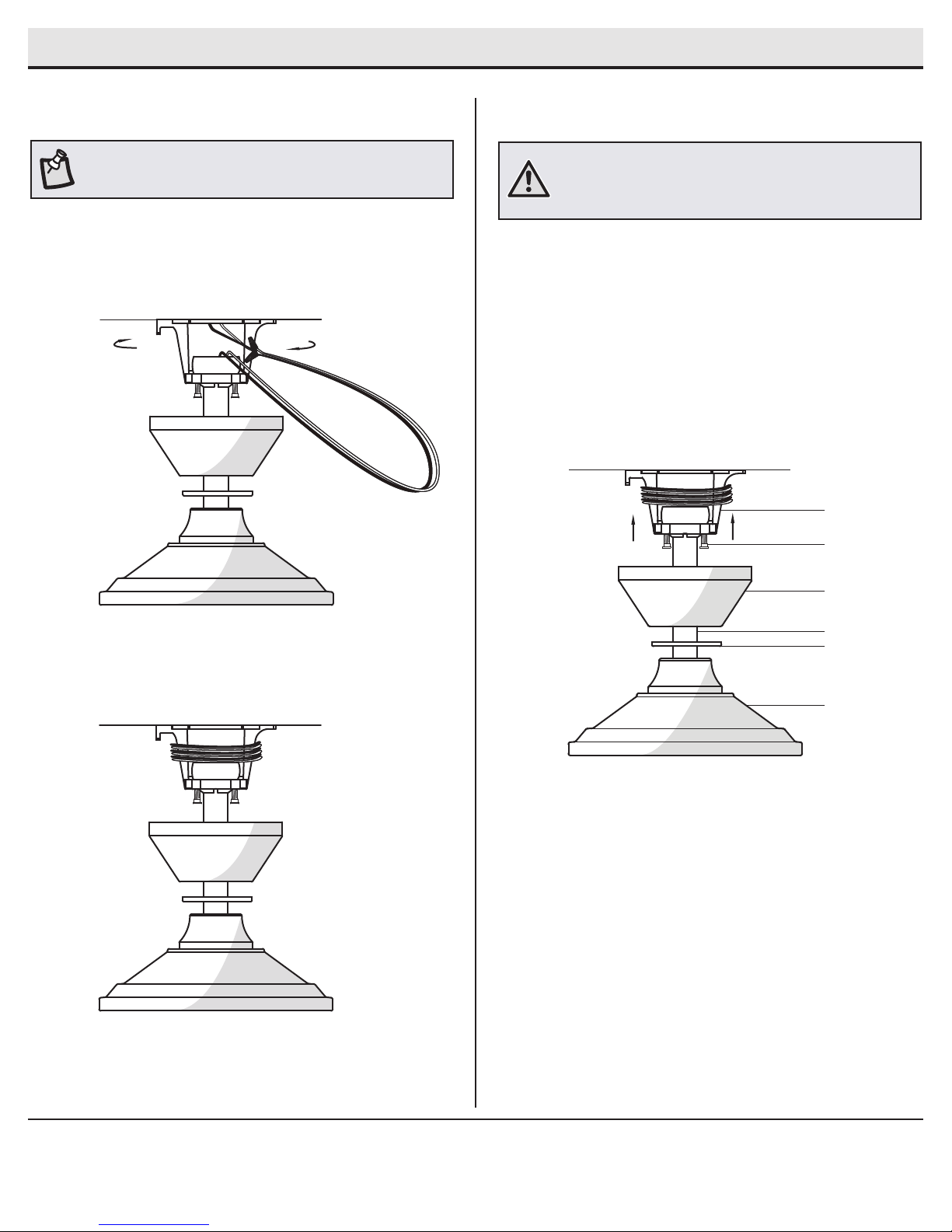

□Carefully lift the fan-motor assembly (E) up to the slide-on

mounting bracket (A).

□Insert the ball portion of the ball/downrod assembly into

the socket of the slide-on mounting bracket (A).

□Turn the ball/downrod assembly clockwise until it is seated

with the tab of the slide-on mounting bracket (A) aligned

with the slot in the ball.

WARNING: To reduce the risk of re, electric shock or personal

injury, mount to outlet box marked “Acceptable for fan support

of 35 lbs. 15.9 kg) or less”, and use screws provided with the

outlet box.

NOTE: The mounting bracket (A) is designed to slide into place

on an outlet box with the outlet box screws (GG) installed.

9HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Assembly - Hanging the Fan (continued)

Outlet box

in the ceiling II

Green or bare wire

Black White

Green

Black White

Making the electrical connection

IMPORTANT: Use the plastic wire connectors (BB) supplied with

your fan. Secure the connectors with electrical tape and ensure

there are no loose strands or connections.

WARNING: Each wire not supplied with this fan is designed to

accept up to one 12-gauge house wire and two wires from the

fan. If you have larger than 12-gauge house wiring or more

than one house wire to connect to the fan wiring, consult an

electrician for the proper size wire nuts to use.

□The fan comes with 78 in. lead wires for use with an extended

ball/ downrod assembly. If using the 4.5 in. ball/downrod

assembly (B) provided, you can cut the lead wires to your

desired length (no shorter than 12 in.). This will make extra

room in the canopy (C), if you do not wish to cut the wires,

you will need to neatly wrap them.

□Connect the fan motor green wires to the household green or

bare wire using a wire connecting nut (BB).

□Connect the fan motor white wires to the household white

wire using a wire connecting nut (BB).

□Connect the fan motor black wires to the household black

wire using a wire connecting nut (BB).

□Secure each wire connecting nut using electrical tape.

□Turn the wire connecting nut (BB) upward and push the wiring

into the outlet box (II).

NOTE: The fan comes with 78 in. lead wires for use with an

extended ball/ downrod assembly. If using the 4.5 in. ball/downrod

assembly (B) provided, you can cut the lead wires to your desired

length (no shorter than 12 in.)

WARNING: Remove the rubber motor stops on the bottom of the

fan before installing the blades or testing the motor.

Mounting the fan-motor assembly

(standard mount)

□Align the locking slots of the canopy with two screws (EE)

in the mounting bracket (A). Push up to engage the slots and

turn clockwise to lock in place.

□Firmly tighten the two screws (EE).

□Install the decorative bottom cover (J) by aligning the cover’s

slots with the screws in the bottom of the canopy (C). Rotate

the bottom cover clockwise to lock in place.

WARNING: When using the standard ball/downrod mounting, the

tab in the ring at the bottom of the mounting bracket must rest in

the groove of the hanger ball. Failure to properly seat the tab in

the groove could cause damage to the wiring.

Assembly - Hanging the Fan (continued)

Wrapping the extra wire

□Gently wrap the excess wire around the mounting bracket.

□Secure with electrical tape.

NOTE: Follow this step ONLY if you did not cut the extra length off

from the wires coming from the ceiling fan.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Home Decorators Collection Lüfter Handbücher

Home Decorators Collection

Home Decorators Collection 34777-HBUG Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection TRENTINO II YG475-WH Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection HAYDEN LAKE 59929 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection KITTERIDGE 35442-HBUM Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection AM382B-BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection BROUGHTON Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection ALTURA II Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection FELDNER 56055 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection CORINTH Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection Trudeau YG545-BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection 7982HDCBN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection BAXTAN AM731A-MBK Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection DOWNEY 56043 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection HANSFIELD YG656-BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection PORTWOOD YG528-NI Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection INTERVALE N609A-BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection ACWORTH YG623A-MWH Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection 52170 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection FENCEHAM Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection FENCEHAM YG491A-BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection 56047 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection HIGHSTONE 56040 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection CHAPLIN AM443-BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection EASTWIND 43260 Bedienungsanleitung

Beliebte Lüfter Handbücher anderer Marken

ELTA FANS

ELTA FANS H03VV-F Bedienungsanleitung

Hunter

Hunter 20714 Gebrauchsanweisung

Emerson

Emerson CARRERA VERANDA CF542ORB00 Bedienungsanleitung

Hunter

Hunter Caraway Gebrauchsanweisung

Panasonic

Panasonic FV-15NLFS1 Bedienungsanleitung

Kompernass

Kompernass KH 1150 Bedienungsanleitung

VES

VES FALA100/12V/TR Bedienungsanleitung

Vertiv

Vertiv Liebert DCD Bedienungsanleitung

Westinghouse

Westinghouse GFP Series Bedienungsanleitung

Venmar

Venmar KUBIX HRV PLUS Series Bedienungsanleitung

Maico

Maico ECR 31 Bedienungsanleitung

Sonnenkonig

Sonnenkonig Dinky Bedienungsanleitung

S&P

S&P ECOWATT HXBR Bedienungsanleitung

Wider

Wider IMP03369BH Bedienungsanleitung

Panasonic

Panasonic F-60DHN Bedienungsanleitung

Hinkley

Hinkley HIGHLAND Bedienungsanleitung

Broan

Broan 766BN Bedienungsanleitung

Premium

Premium PFS16022 Montageanleitung
