THANK YOU

We appreciate the trust and condence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive

to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home

improvement needs. Thank you for choosing Home Decorators Collection!

Item #1007 976 477, 1007 976 475

Model #56040, 56041

UL Model #70-ELIR

USE AND CARE GUIDE

HIGHSTONE 70-INCH CEILING FAN

To view an instructional video on how to install this product:

1. Go to www.homedepot.com and enter either the Item or Model number, found in the top

right corner of the cover of this instruction manual, in the search eld.

2. Click on your product from the list of search results and click on the video link in the

“Product Overview” section.

Questions, problems, missing parts? Before returning to the store,

call Hubspace Customer Service

8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday

1-877-592-5233

HOMEDEPOT.COM/HUBSPACE

Table of Contents ................................................................ 2

Safety Information...............................................................2

Warranty ...............................................................................3

Pre-Installation ....................................................................3

Installation............................................................................6

Assembly..............................................................................7

Operation ...........................................................................15

Care and Cleaning.............................................................18

Troubleshooting.................................................................18

1. To reduce the risk of electric shock, ensure the electricity has been

turned off at the circuit breaker or fuse box before you begin.

2. All wiring must be in accordance with the National Electrical Code

ANSI/NFPA 70 and local electrical codes. Electrical installation

should be performed by a qualied licensed electrician.

3. The outlet box and support structure must be securely mounted

and capable of reliably supporting a minimum of 35 lb (15.9

kg). Use only UL Listed outlet boxes marked “Acceptable for Fan

Support of 35 lb (15.9 kg) or less.”

4. The fan must be mounted with a minimum of 7 ft. (2.1 m) of

clearance from the trailing edge of the blades to the oor.

5. Do not place objects in the path of the blades.

6. To avoid personal injury or damage to the fan and other items, use

caution when working around or cleaning the fan.

7. After making electrical connections, spliced conductors should be

turned upward and pushed carefully up into the outlet box. The

wires should be spread apart with the grounded conductor and the

equipment-grounding conductor on one side of the outlet box.

8. All set screws must be checked and retightened where

necessary before installation.

9. Use only with light kits marked “Suitable for damp locations”.

WARNING: To reduce the risk of personal injury, do

not bend the blade brackets (also referred to as

anges) during assembly or after installation. Do

not insert objects in the path of the blades.

WARNING: Electrical diagrams are for reference

only. If you are using a light kit, refer to the light kit

instructions manual to make the electrical

connections. Optional use of any light kit shall be

UL Listed and marked suitable for use with this fan.

WARNING: To avoid possible electrical shock, turn

the electricity off at the main fuse box before

wiring. If you feel you do not have enough electrical

wiring knowledge or experience, contact a licensed

electrician.

Safety Information

Table of Contents

CAUTION: To reduce the risk of personal injury,

use only the screws provided with the outlet box.

WARNING: To reduce the risk of re, electric shock

or personal injury, mount to outlet box marked

“Acceptable for fan support of 35 lb (15.9 kg) or

less”, and use screws provided with the outlet box.

READ AND SAVE THESE INSTRUCTIONS.

WARNING: To reduce the risk of re or electric

shock, this fan should only be used with fan speed

control part no. JY1156H-LD-F1-EL, manufactured

by Chungear Industrial Co., Ltd.

WARNING: To reduce the risk of electric shock, this

fan must be installed with an isolating wall switch.

3HOMEDEPOT.COM/HUBSPACE

Please contact 1-877-592-5233 for further assistance.

Pre-Installation

Warranty

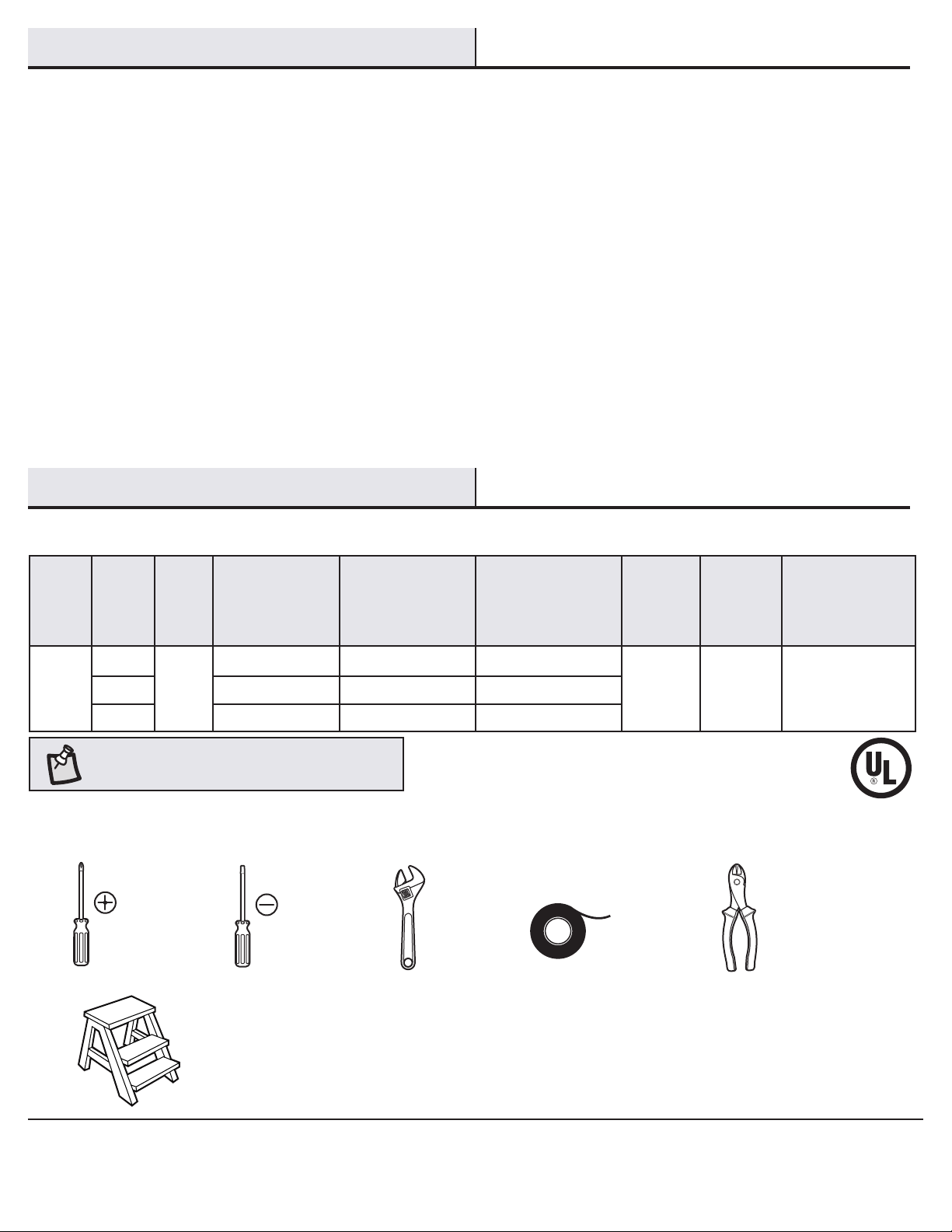

SPECIFICATIONS

NOTE: These are approximate measures. They do not

include the amps and wattage used by the light kit.

Size Speed Volts

Fan Power

Consumption

(without lights)

WATT

Airow

CFM

Airow Efciency

(higher is better)

CFM/WATT

Net

Weight

Gross

Weight Cubic Feet

70 in.

Low

120

7 3712 530

24.14 lb

(10.95 kg)

33.62 lb

(15.25 kg) 3.46 cu. ft.

Medium 18 6307 350

High 36 8867 246

TOOLS REQUIRED

Phillips

screwdriver

Flat blade

screwdriver

Adjustable

wrench

Electrical

tape

Wire

cutter/

stripper

Step ladder

The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a

lifetime after the date of purchase by the original purchaser. The supplier warrants that the light kit, excluding any glass, to be free from defects in

workmanship and material at the time of shipment from the factory for a period of ve years after the date of purchase by the original purchaser.

The supplier also warrants that all other fan parts, excluding any glass or acrylic blades, to be free from defects in workmanship and material at the

time of shipment from the factory for a period of two years after the date of purchase by the original purchaser. We agree to correct such defects

without charge or at our option replace with a comparable or superior model if the product is returned. To obtain warranty service, you must present

a copy of the receipt as proof of purchase. All costs of removing and reinstalling the product are your responsibility. Damage to any part, such as by

accident, misuse, improper installation, or by afxing any accessories, is not covered by this warranty. Because of varying climatic conditions this

warranty does not cover any changes in brass nish, including rusting, pitting, corroding, tarnishing, or peeling. Brass nishes of this type give their

longest useful life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect.

Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. Home Decorators Collection

hereby disclaims any and all warranties, including but not limited to those of merchantability and tness for a particular purpose to the extent

permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specied in the express warranty.

Some states do not allow a limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall not be

liable for incidental, consequential, or special damages arising out of or in connection with product use or performance except as may otherwise

be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion or limitation may not

apply to you. This warranty gives specic legal rights, and you may also have other rights which vary from state to state. This warranty supersedes

all prior warranties. Shipping costs for any return of product as part of a claim on the warranty must be paid by the customer.

Contact the Customer Service Team at 1-877-592-5233 or visit www.HomeDepot.com/hubspace.

Part Description Quantity

AA Blade attachment screws 16

BB Plastic wire connecting nut 3

CC Hanger pin 1

DD Locking pin 1

Pre-Installation (continued)

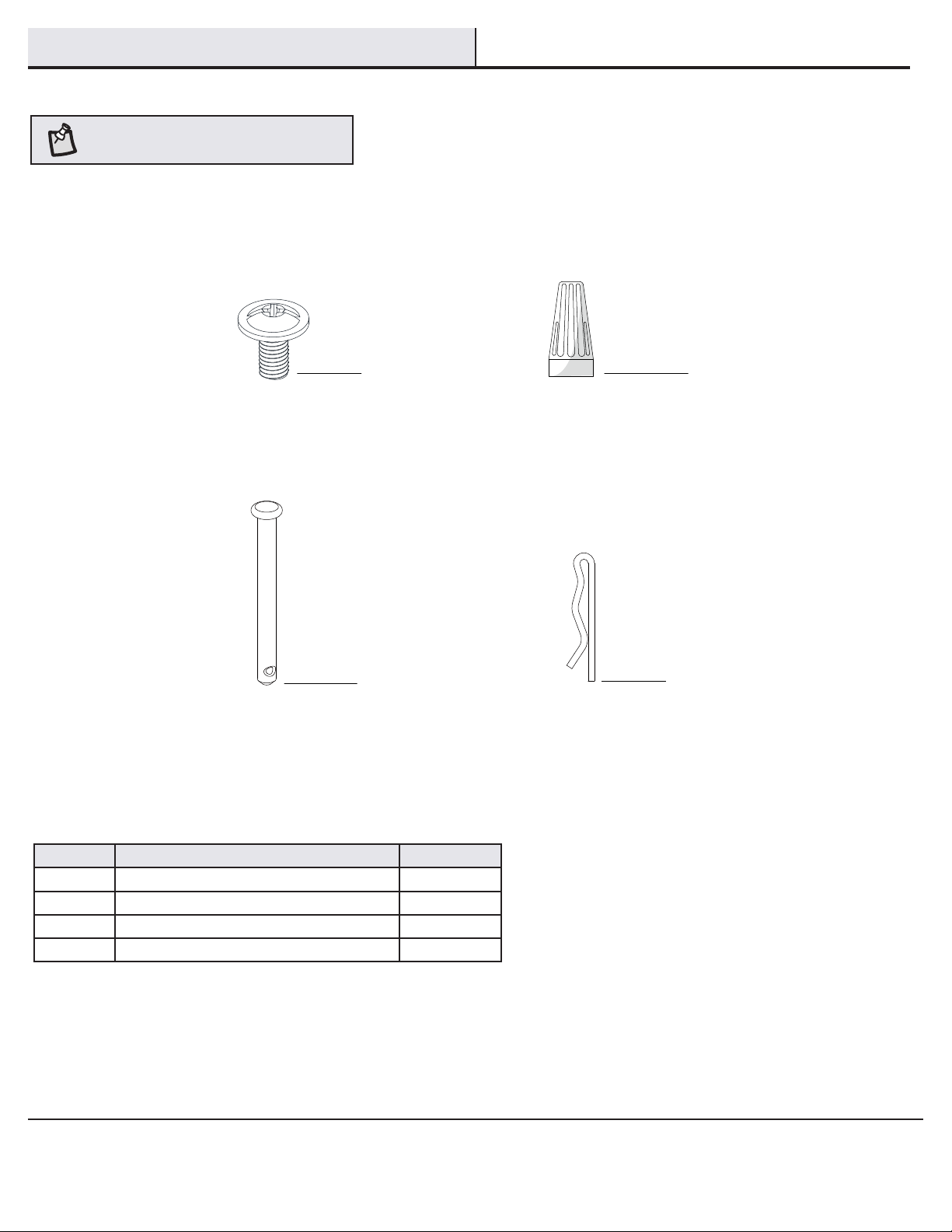

HARDWARE INCLUDED

NOTE: Hardware not shown to actual size.

CC DD

5HOMEDEPOT.COM/HUBSPACE

Please contact 1-877-592-5233 for further assistance.

Part Description Quantity

ASlide-on mounting bracket

(inside canopy) 1

B Ball/downrod assembly 1

C Canopy 1

D Decorative motor collar cover 1

E Fan motor assembly 1

F Blade 5

G Light kit pan 1

Part Description Quantity

H Light kit tter assembly 1

I Glass shade 1

J Receiver 1

K Remote control 1

L 3-pin extension wire (66 in.) 1

M 2-pin extension wire (66 in.) 1

N Battery 2

O Cap (for installation without light kit) 1

IMPORTANT: This product and/or components are governed by

one or more of the following U.S. Patents: 5,947,436; 5,988,580;

6,010,110; 6,046,416; 6,210,117 and other patents pending.

Pre-Installation (continued)

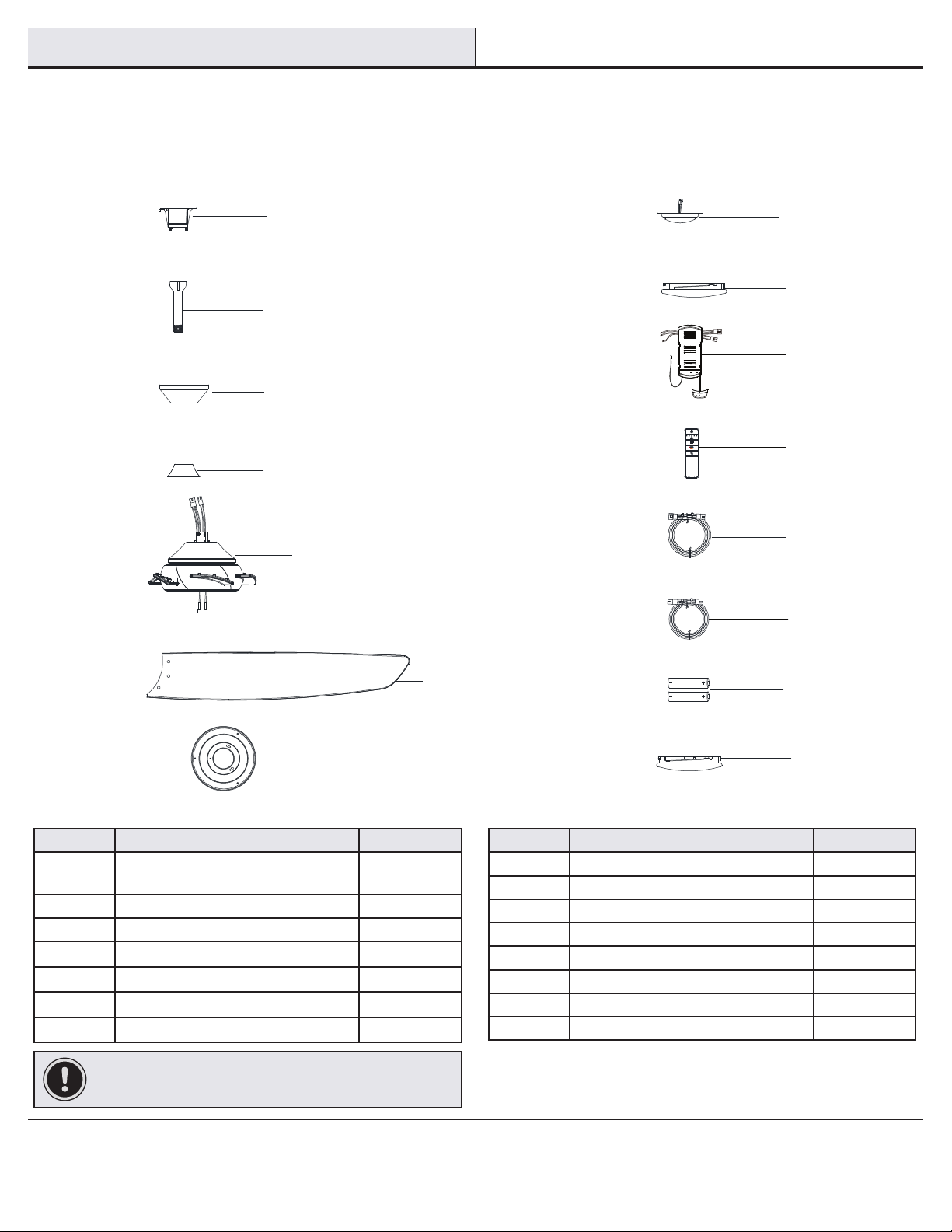

PACKAGE CONTENTS

Installation

MOUNTING OPTIONS

WARNING: To reduce the risk of re, electric shock

or personal injury, mount to an outlet box marked

“Acceptable for fan support of 35 lb (15.9 kg) or less”,

and use screws provided with the outlet box. An outlet

box commonly used for the support of lighting xtures

may not be acceptable for fan support and may need to

be replaced. If in doubt, consult a qualied electrician.

If your ceiling fan does not have an existing UL Listed mounting

box, then install one using the following instructions:

□Disconnect the power by removing the fuses or turning off

the circuit breakers.

□Secure the outlet box directly to the building structure. Use

the appropriate fasteners and materials. The outlet box and

support structure must be securely mounted and capable of

reliably supporting a minimum of 35 lb (15.9 kg). Use only UL

Listed outlet boxes marked “Acceptable for fan support of

35 lb (15.9 kg) or less.” Do not use a plastic outlet box.

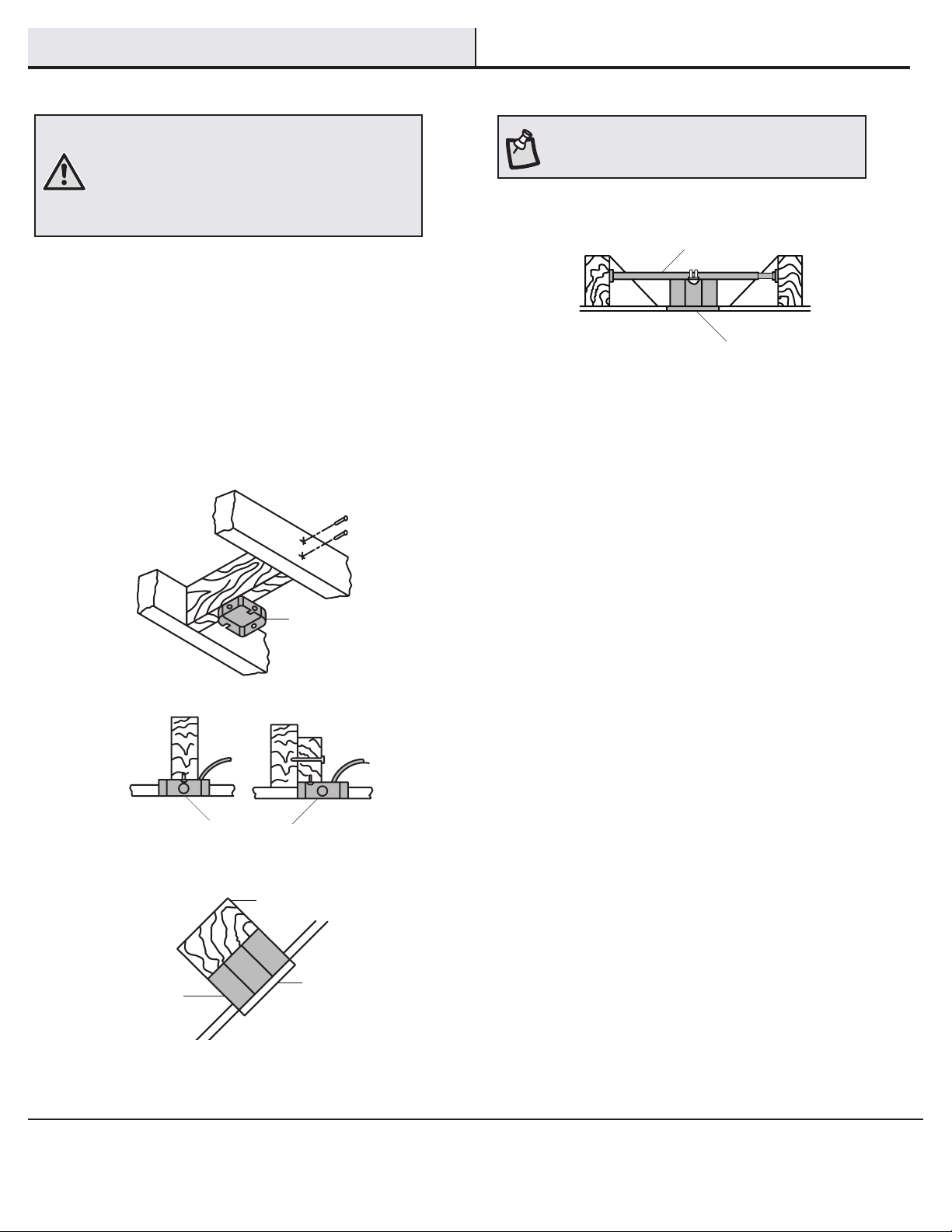

The illustrations below show three different ways to mount the

outlet box.

If the canopy (C) touches the ball/downrod assembly (B), then remove

the decorative motor collar cover (D), and turn the canopy (C) 180°

before attaching the canopy (C) to the mounting plate.

To hang your fan where there is an existing xture but no ceiling joist,

you may need an installation hanger bar as shown above

(available at any Home Depot store).

NOTE: You may need a longer downrod to maintain

proper blade clearance when installing on a steep, sloped

ceiling. The maximum angle allowable is 15° away from

horizontal.

Outlet Box

Recessed

Outlet

Box

Provide Strong

Support

Ceiling

Mounting

Plate

Outlet Box

Hanger Bar

7HOMEDEPOT.COM/HUBSPACE

Please contact 1-877-592-5233 for further assistance.

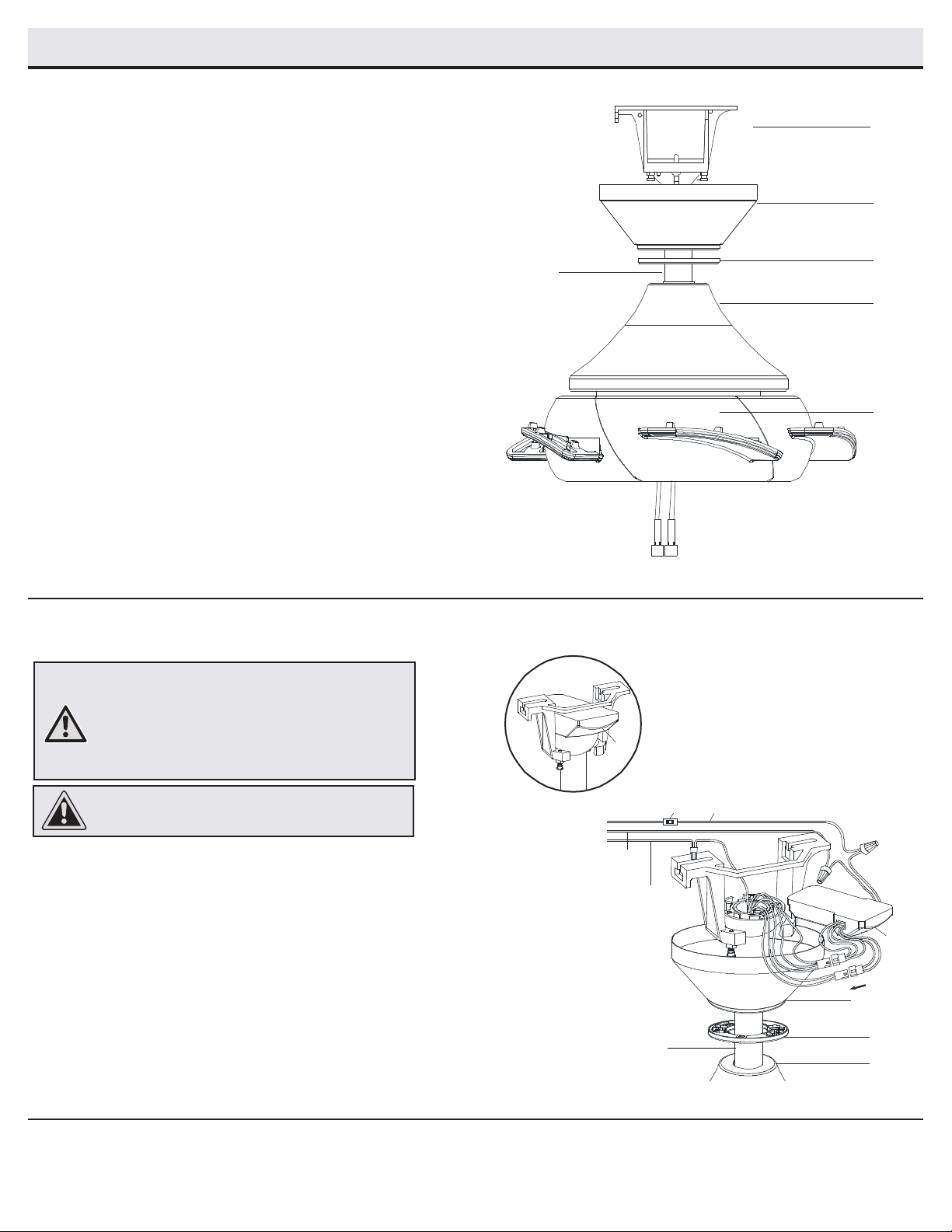

Assembly - Standard Ceiling Mount

Routing the wires

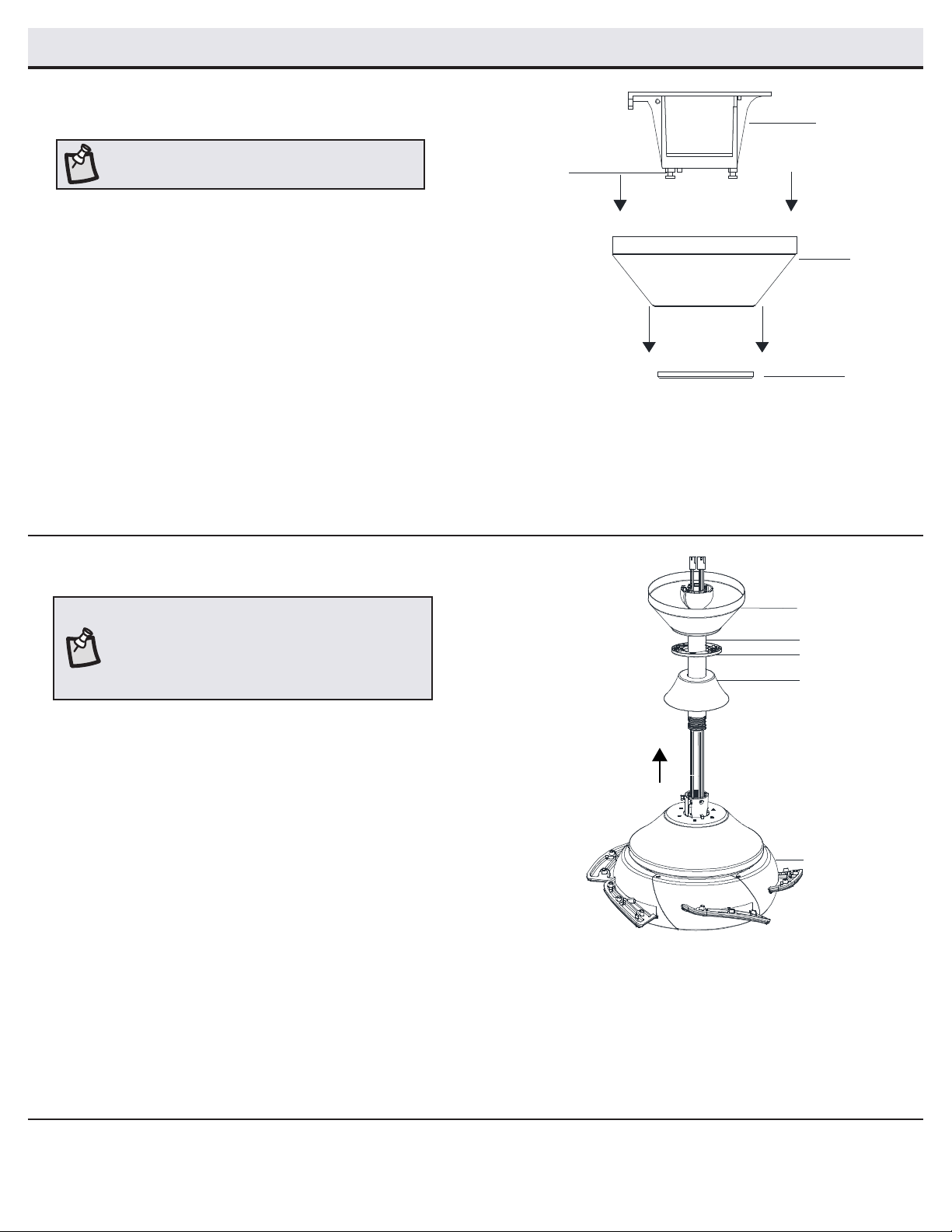

Preparing for mounting

□Remove the magnetic canopy bottom cover (JJ) from the

canopy (C) by pulling it off.

□Loosen the two canopy screws (EE) located in the bottom of

the slide-on mounting bracket (A).

□Turn the slide-on mounting bracket (A) counterclockwise and

lift it up to remove the mounting bracket from the canopy (C).

□Route the wires exiting the top of the fan motor assembly (E)

through the decorative motor collar cover (D) and then the center

of the canopy bottom cover (JJ).

□Make sure the opening of canopy (C) is on top and insert the ball/

downrod assembly (B) through the canopy (C).

□Route the wires exiting the top of the fan motor assembly (E)

through the downrod as shown.

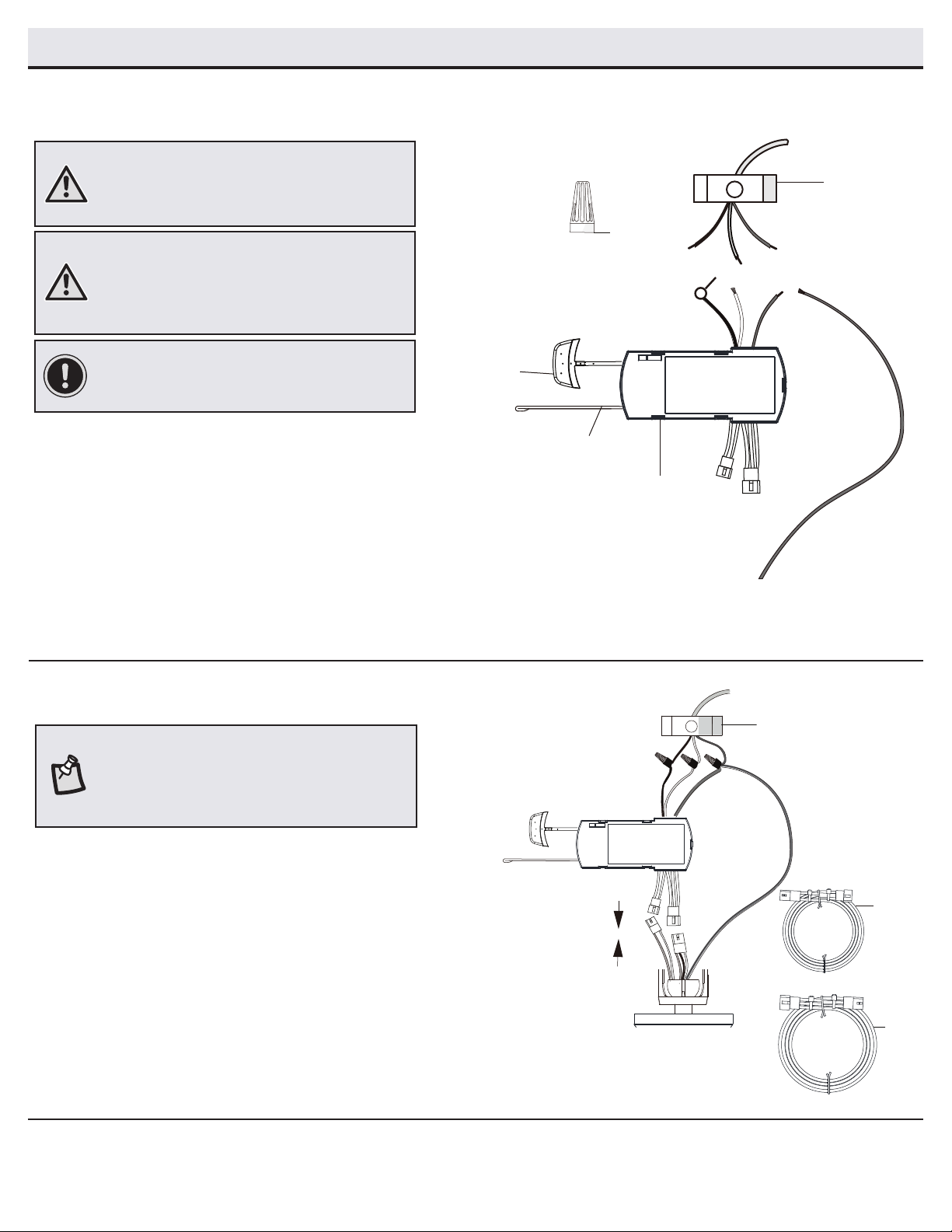

NOTE: The fan comes with 12 in. lead wires for use with

the provided 6 in. ball/downrod assembly (B). If you wish

to use a longer downrod, attach the 3-pin extension wire

(L) and 2-pin extension wire (M) to the fan by connecting

the molded adaptor plugs from the extension wires to the

3-pin and 2-pin adaptor plugs from the fan.

NOTE: The magnet is pre-attached on the canopy

bottom cover for you to remove and install easily.

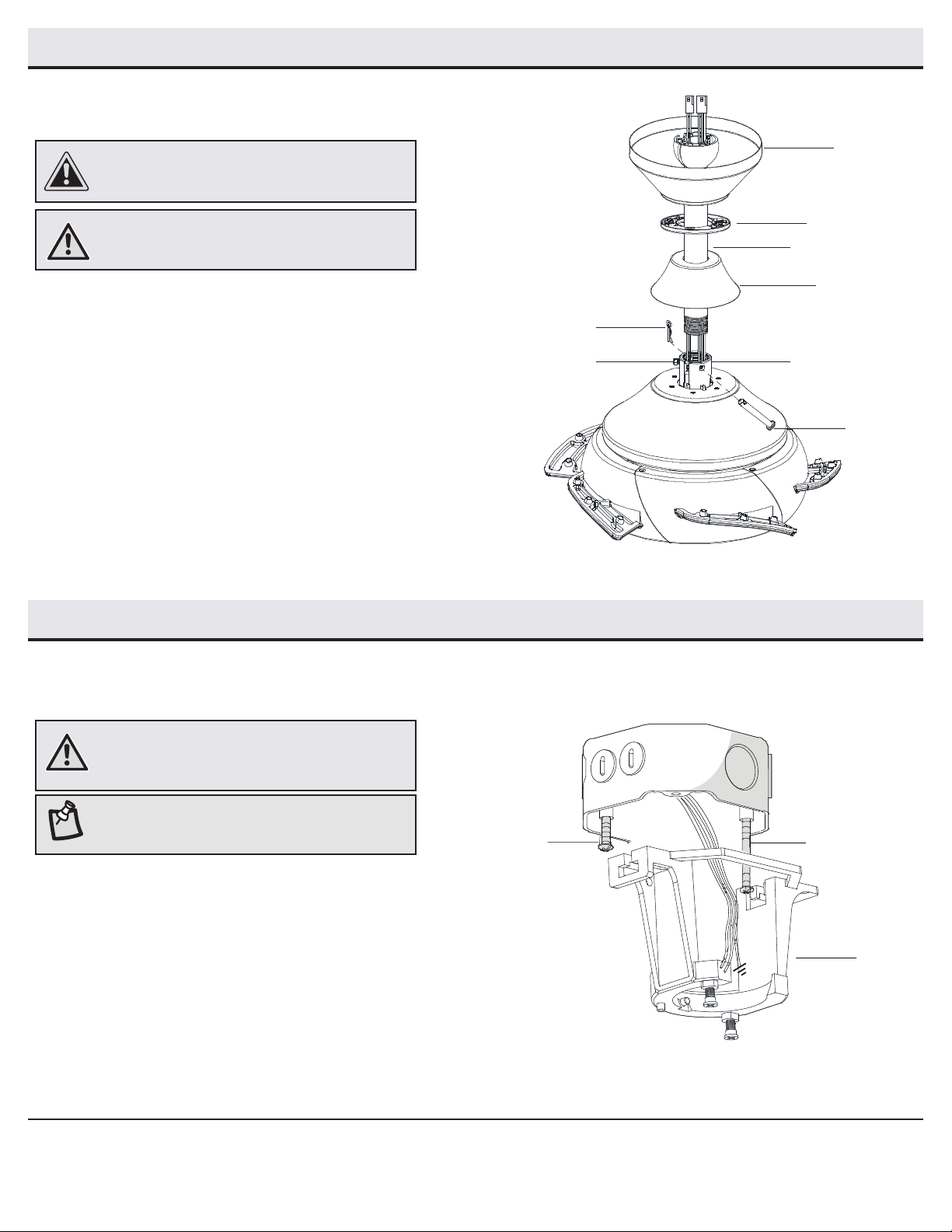

Attaching the fan to the

electrical box

□Loosen the two mounting screws (GG) in the outlet box.

□Pass the 120-Volt supply wires through the center hole in the

slide-on mounting bracket (A).

□Slide the slide-on mounting bracket (A) on to the mounting

screws (GG) and center the slide-on mounting bracket (A) in

relation to the outlet box. If necessary, use leveling washers

(not included) between the slide-on mounting bracket (A) and

the outlet box. The at side of the slide-on mounting bracket (A)

should face toward the outlet box, as shown.

□Securely tighten the two mounting screws (GG).

WARNING: To reduce the risk of re, electric shock

or personal injury, mount to an outlet box marked

“Acceptable for fan support of 35 lb (15.9 kg) or less”,

and use screws provided with the outlet box.

NOTE: The slide-on mounting bracket (A) is designed

to slide into place on an outlet box with the outlet box

screws (GG) installed.

Assembly - Standard Ceiling Mount (continued)

Assembling the fan

□Loosen, but do not remove, the set screws (KK) on the collar

(PP) on top of the fan motor assembly (E).

□Install the ball/downrod assembly (B) by inserting it into the

motor collar (PP), and turning it clockwise until the holes at

the bottom of the ball/downrod assembly (B) align with the

holes in the collar on top of the fan motor assembly (E).

□Carefully insert the hanger pin (CC) through the holes in the

collar (PP) and ball/downrod assembly (B). Be careful not to

jam the hanger pin (CC) against the wiring inside the ball/

downrod assembly (B).

□Insert the locking pin (DD) through the hole near the end of

the hanger pin (CC) until it snaps into its locked position.

□Re-tighten the set screws (KK) on the collar (PP) on top of the

fan motor assembly (E).

WARNING: Failure to properly install the locking

pin (DD) could result in the fan becoming loose and

possibly falling.

CAUTION: To ensure wobble-free operation and to avoid

damage to the fan, the ball/downrod assembly (B) and the

set screw (KK) must be completely tightened.

Assembly - Hanging the Fan

KK PP

9HOMEDEPOT.COM/HUBSPACE

Please contact 1-877-592-5233 for further assistance.

Assembly - Hanging the Fan (continued)

Hanging the fan

□Carefully lift the fan motor assembly (E) up to the slide-on

mounting bracket (A).

□Insert the ball portion of the ball/downrod assembly (B)

into the socket of the slide-on mounting bracket (A).

□Turn the ball/downrod assembly (B) clockwise until it is

seated with the tab of the slide-on mounting bracket (A)

aligned with the slot in the ball.

Installing the receiver

□Position the house supply wires to one side of the

slide-on mounting bracket (A). Position the fan wires

to the opposite side.

□Insert the narrow end of the receiver (J) (as shown,

at side towards the ceiling) into the slide-on

mounting bracket (A) until it rests on top of the ball/

downrod assembly (B).

WARNING: To reduce the risk of re or electric shock,

remember to disconnect power. The electrical wiring

must meet all local and national electrical code

requirements. The electrical source and fan must

be 110/120 volts, 60Hz. Do not use this product in

conjunction with any variable wall control. Incorrect

wire connection can damage this receiver.

CAUTION: If other fan wires are a different color, have

this unit installed by a licensed electrician.

BJJ

Black

White

Ground/Green

Wall switch

Power source

Black

White

Assembly - Hanging the Fan (continued)

Wiring the fan to the receiver

□If using the 6 in. ball/downrod assembly (B) provided, wire the

receiver to the fan wires by connecting the molded adaptor

plug from the receiver (J) with the molded adaptor of the fan

motor assembly (E) together.

□If you wish to use longer downrod, you can use the extension

lead wire (66 in.) (L) and (M) provided by connecting the

molded adaptor together.

Wiring the receiver to the

household wiring

WARNING: To avoid possible electrical shock, turn

the electricity off at the main fuse box before

wiring. If you feel you do not have enough electrical

wiring knowledge or experience, contact a licensed

electrician.

WARNING: Each wire nut supplied with this fan is

designed to accept up to one 12-gauge house wire

and two wires from the fan. If you have larger than

12-gauge house wiring or more than one house wire to

connect to the fan wiring, consult an electrician for the

proper size wire nuts to use.

IMPORTANT: Use the wire connecting nuts (BB)

supplied with your fan. Secure the connectors with

electrical tape and ensure there are no loose strands or

connections.

□Spread the wires apart so that the green and white wires

are on one side of the outlet box and the black wire is on the

other side.

□Connect the green fan wires to the household ground wire

(this may be a green or bare wire) using a wire connecting

nut (BB).

□Connect the receiver (J) black (or red) wire to the household

black (hot) wire using a wire connecting nut (BB).

□Connect the receiver (J) white wire to the household white

wire (neutral) using a wire connecting nut (BB).

□Secure each wire connecting nut using electrical tape.

NOTE: The fan comes with 12 in. lead wires for use with

the provided 6 in. ball/downrod assembly (B). If you wish

to use a longer downrod, attach the 3-pin extension wire

(L) and 2-pin extension wire (M) to the fan by connecting

the molded adaptor plugs from the extension wires to

the 3-pin and 2-pin adaptor plugs from the fan.

Black

Green (or Bare)

Green

Outlet Box

Receiver

Antenna

White

Green

Wi-Fi

Antenna

Outlet box

Green

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Home Decorators Collection Lüfter Handbücher

Home Decorators Collection

Home Decorators Collection FENCEHAM YG491A-BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection BROUGHTON Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection STATEWOOD 51770 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection 52111 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection 52-MONT Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection 68-ATRDC Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection Merryn Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection 56052 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection KENSGROVE YG493OD-ORB Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection CARDEN AM852-BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection WILMINGTON AM696-BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection BROUGHTON YG671-BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection MERWRY SW1422 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection VENDOME 51884 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection WINDLOW 52-VAGN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection BECKFORD Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection TRENTINO II YG475-BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection KENSGROVE Series Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection SUDLER RIDGE 51714 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection PIERSSON Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection LAKE GEORGE AM127-NI Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection 56072 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection DELMORE 56054 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection GAZELLE 51550 Bedienungsanleitung

Beliebte Lüfter Handbücher anderer Marken

ELTA FANS

ELTA FANS H03VV-F Bedienungsanleitung

Hunter

Hunter 20714 Gebrauchsanweisung

Emerson

Emerson CARRERA VERANDA CF542ORB00 Bedienungsanleitung

Hunter

Hunter Caraway Gebrauchsanweisung

Panasonic

Panasonic FV-15NLFS1 Bedienungsanleitung

Kompernass

Kompernass KH 1150 Bedienungsanleitung

VES

VES FALA100/12V/TR Bedienungsanleitung

Vertiv

Vertiv Liebert DCD Bedienungsanleitung

Westinghouse

Westinghouse GFP Series Bedienungsanleitung

Venmar

Venmar KUBIX HRV PLUS Series Bedienungsanleitung

Maico

Maico ECR 31 Bedienungsanleitung

Sonnenkonig

Sonnenkonig Dinky Bedienungsanleitung

S&P

S&P ECOWATT HXBR Bedienungsanleitung

Wider

Wider IMP03369BH Bedienungsanleitung

Panasonic

Panasonic F-60DHN Bedienungsanleitung

Hinkley

Hinkley HIGHLAND Bedienungsanleitung

Broan

Broan 766BN Bedienungsanleitung

Premium

Premium PFS16022 Montageanleitung
