Installation and Operation Guide

Portable, Wired & Wireless Doorbell

English

German

French

Dutch

Spanish

Portuguese

Italian

DC915/7XX

DW915XX

AC1

AC2

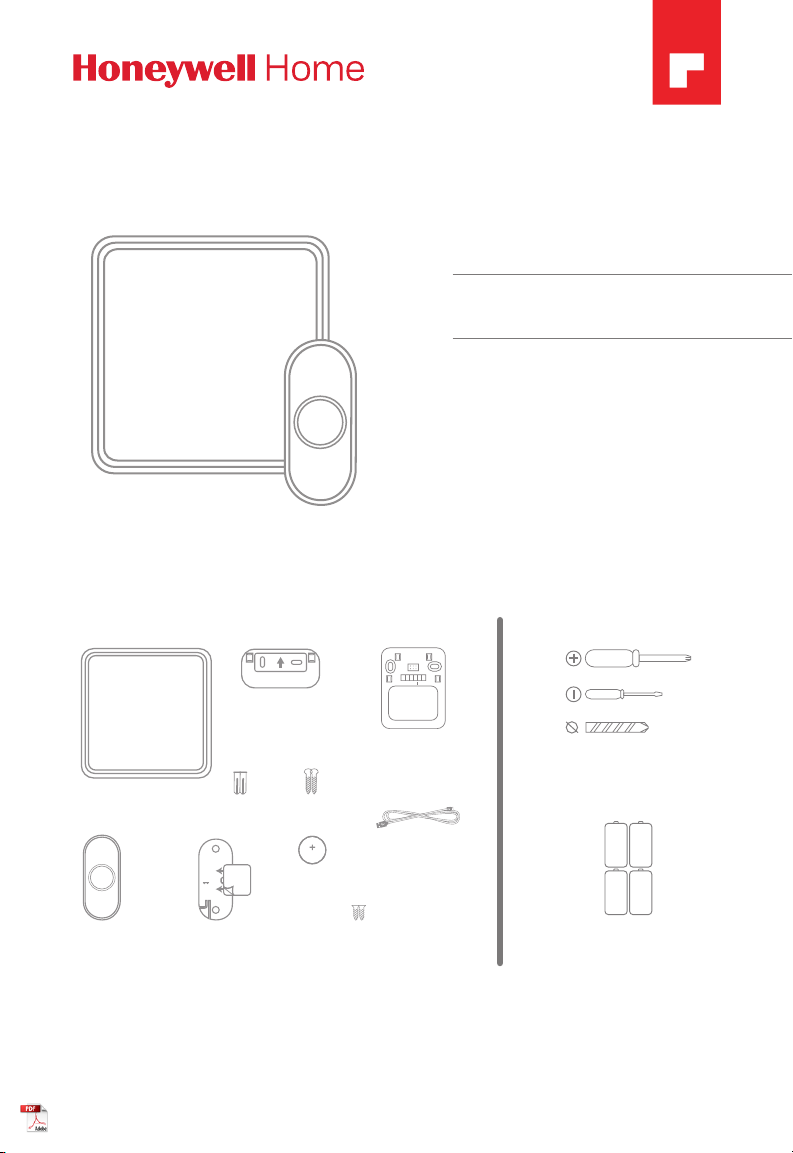

Preparation

Doorbell

Push

Button

Wall

Anchors

Round Head

Screws

Flat Head

Screws

Phillips Screwdriver

Standard Screwdriver

Drill and 1/4 in. (6 mm) Drill Bit

4 C Alkaline Batteries

Doorbell Wall

Mounting Bracket for

DC91X Models Only

Push Button Mounting

Bracket and Adhesive Pad

For installation, you will need

Content will vary according to your kit

The push button supplied with this kit is pre-programmed to operate with the doorbell.

If it is not, see “Connect a Push Button” on page 8. Push button model and

contents may vary from those shown above.

CR2032

Battery

USB Cable

DC917

Models Only

Doorbell Wall

Mounting Bracket for

DW915 Models Only

Overview

Just follow these simple steps:

1. Install batteries.

2. Set up the doorbell and your preferences.

3. Install the doorbell and the push button.

Safety

Before proceeding with the installation, please note the following safety

warnings:

• Always follow the manufacturer’s advice when using power tools and wear

suitable protective equipment (e.g. safety goggles) when drilling holes, etc.

• Before drilling holes in walls, check for hidden electricity cables and water

pipes. The use of a cable/pipe locator is advisable if in doubt.

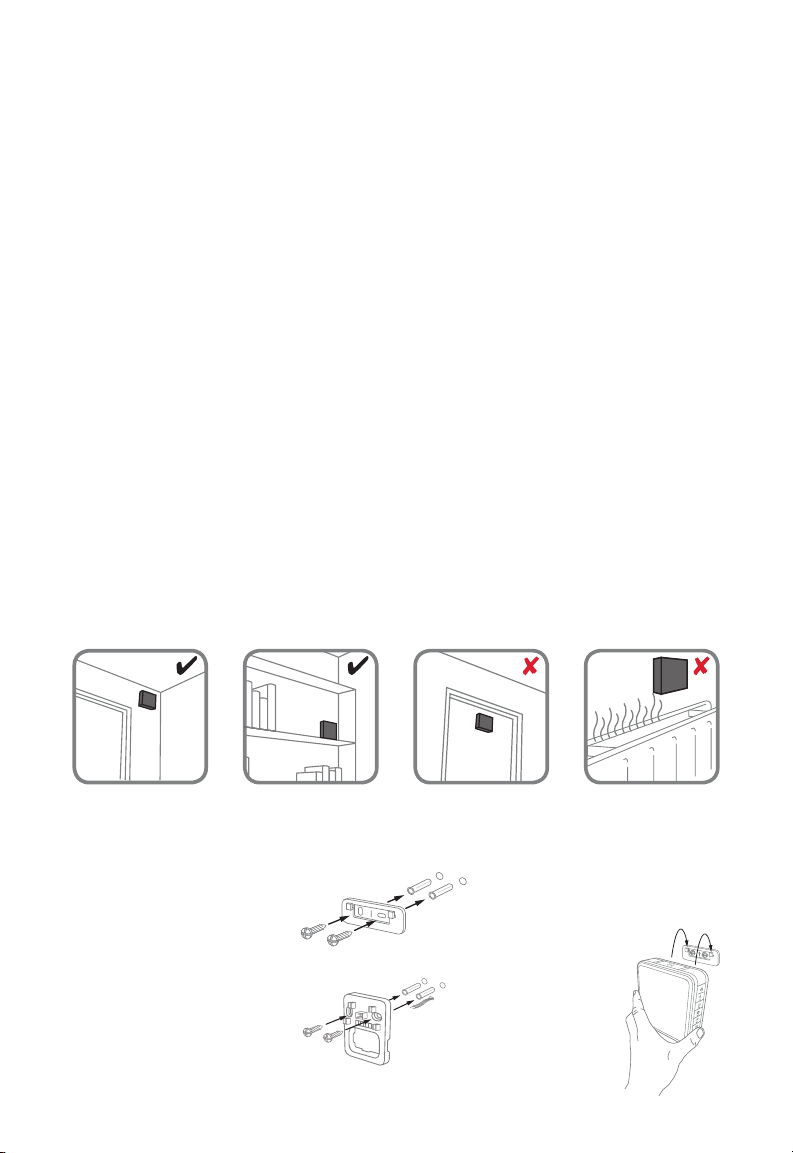

Install Doorbell

If you are not mounting the doorbell to the wall, place it where you want it.

1. Screw the doorbell

wall mounting bracket

to the wall using the

screws and anchors

included (if necessary).

Drill 1/4 inch holes for

the anchors.

2. Hang the doorbell on

the mounting bracket.

Installation

Choose a location that is not near a heat source or on something that moves

(like a door). For non-mounting locations, choose a place where the doorbell

will be easy to see and hear.

For DC9XX models

AC1

AC2

For DW9XX model

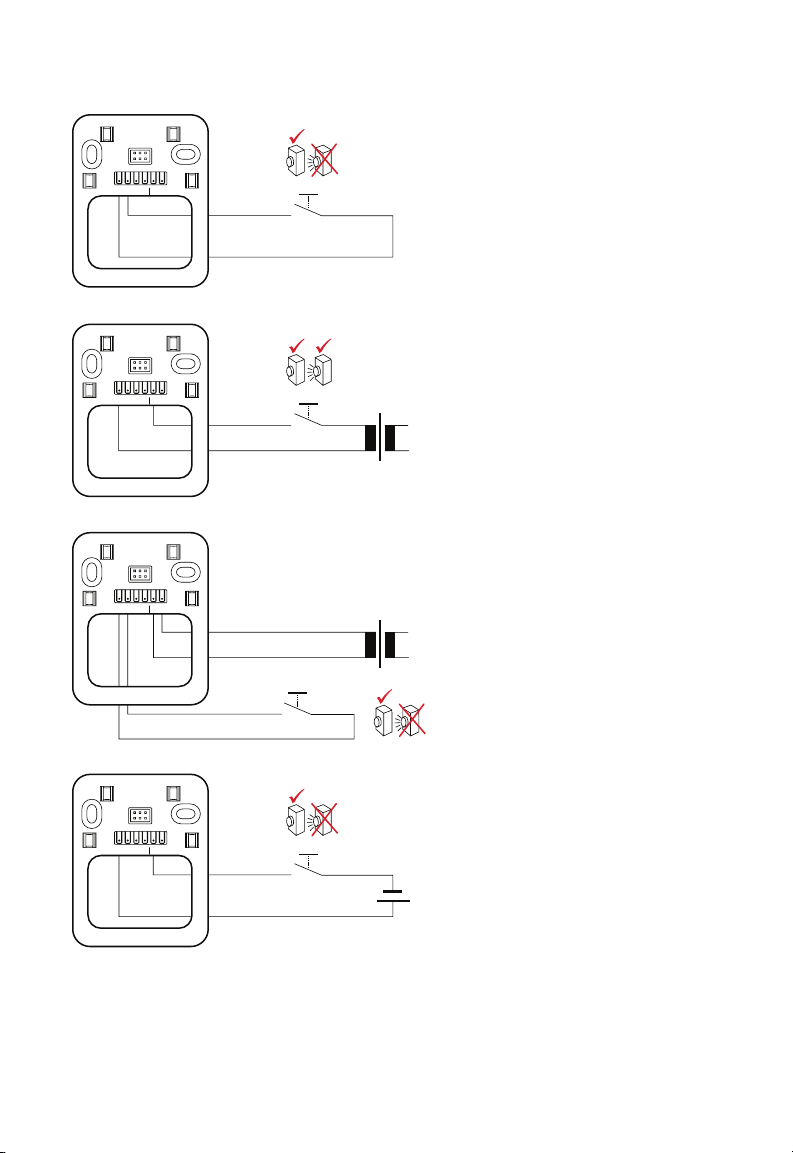

Wiring Diagrams (DW9XX Models Only)

•Potential-free connection of a

wired doorbell button

• A second wired doorbell button

(terminals B1 & B2) can be

connected

• DCP917, DW915 battery/batteries

must be inserted

• Wireless expansion of a wired

doorbell/intercom system

• A second wired doorbell button

(terminals B1 & B2) can be

connected

• Replacement of the existing

doorbell system with DW915/

DW315

• DCP917, DW915 battery/batteries

must be inserted

• Direct connection of a power

supply (for DW9../DW3.. only)

• A second wired doorbell button

(terminals B1 & B2) can be

connected

• Batteries for DW915 not required

• Wireless expansion of a wired

battery-powered chime (note the

polarity)

• DCP917, DW915 battery/batteries

must be inserted

AC1

AC2

AC1

AC2

AC1

AC2

AC1

AC2

8-16 VAC

230 V

Setup and Operation

Press the push button to test whether it is paired with the doorbell. The

doorbell will light up and ring. If it does not, see “Connect a Push Button” on

page 8.

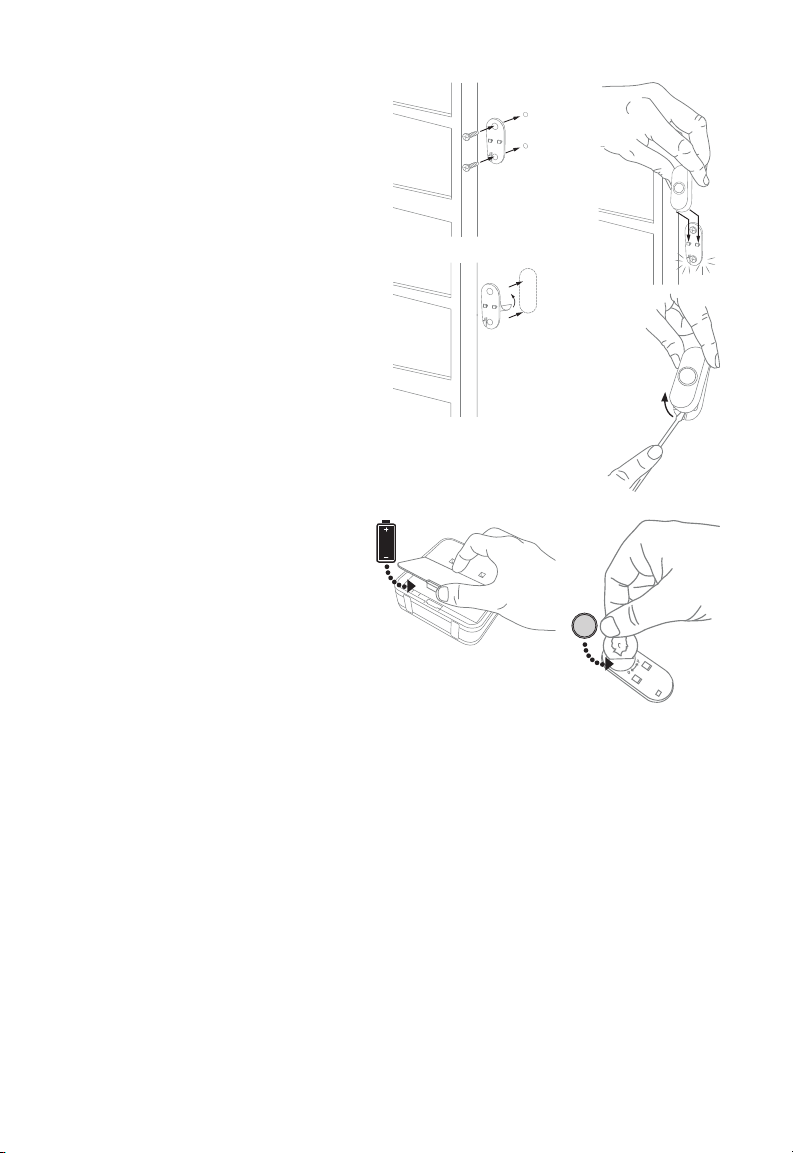

Install Batteries

1. Open the battery cover and

install 4 C alkaline batteries.

2. Open the battery cover and

install the CR2032 battery.

Install the Push Button

1. Mount the push button

bracket in the desired

location. Use the screws.

–OR–

Use the adhesive backing. If

using the adhesive backing,

clean the surface first.

2. Snap the push button onto

the mounting bracket.

–OR–

Note: If you need to remove the push button, use a small screwdriver

to release the tab.

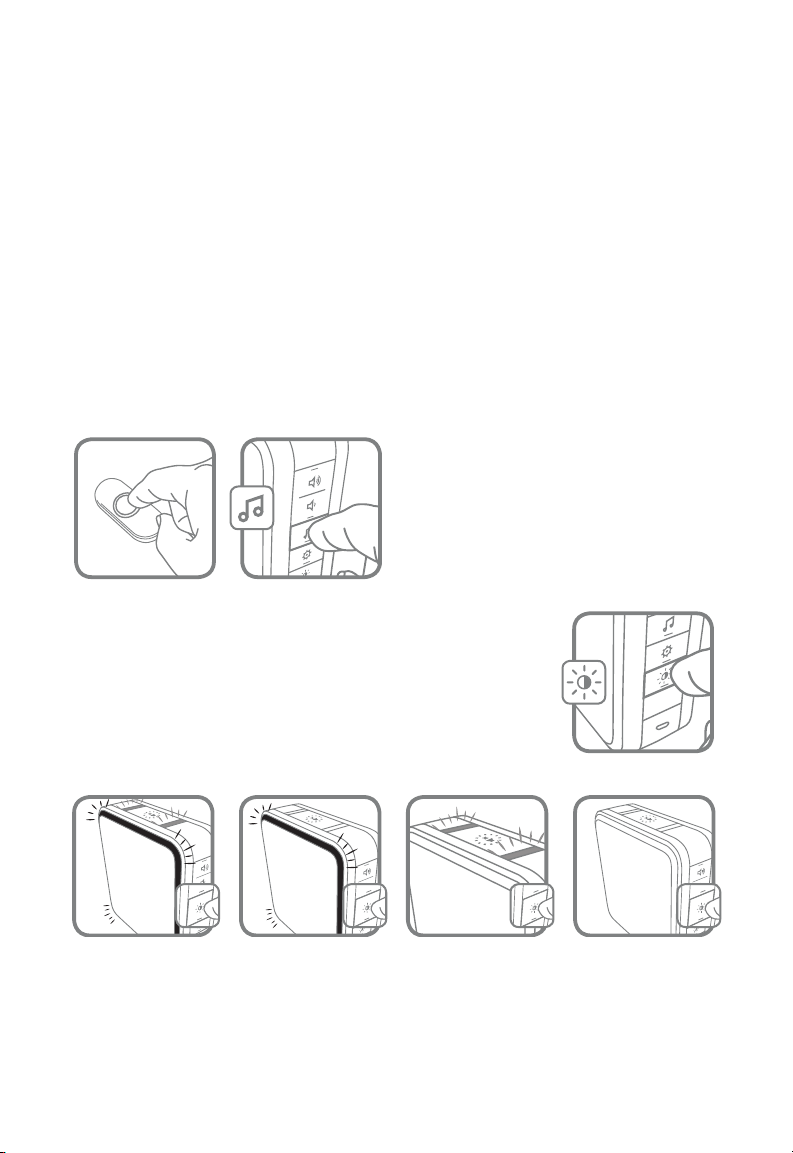

Change the Light Pattern

Press the Sunlight button to change the lights that ash

when the doorbell rings.

Press the Sunlight button.

1 time 2 times 3 times 4 times

Halo light and

top lights

Halo light

only

Top lights only No lights

Change the Tune

Press the Music button to change the doorbell tune.

Every time you press the Music button, the tune will change. Stop pressing the

Music button when you hear the tune you want.

If you have multiple push buttons paired with the chime, you can select the

melody for the last push button that was triggered.

Press the push button. (For any new push button, ensure that it is paired rst.

Refer to “Connect a Push Button” on page 8.)

Within 12 seconds, press the melody selection button until the desired tune is

selected.

Ding Dong

Westminster

Piano

Fantasy

Marimba

Bell

Soft Alert

Smart Sax

Your Tune (any

MP3 le you copy

to the doorbell)

Adjust the Volume

Press the Volume Up or Volume Down buttons to adjust

the volume of the Doorbell.

Set the Mute

You can also mute the doorbell for specic amounts of

time. Press the Mute button.

Mute button shows Doorbell is mute

1 time doorbell is mute

2 times 3 hours

3 times 6 hours

Mute button shows Doorbell is mute

4 times 9 hours

5 times 12 hours

6 times no longer mute

Mute the Doorbell

Press the Mute button to silence the doorbell.

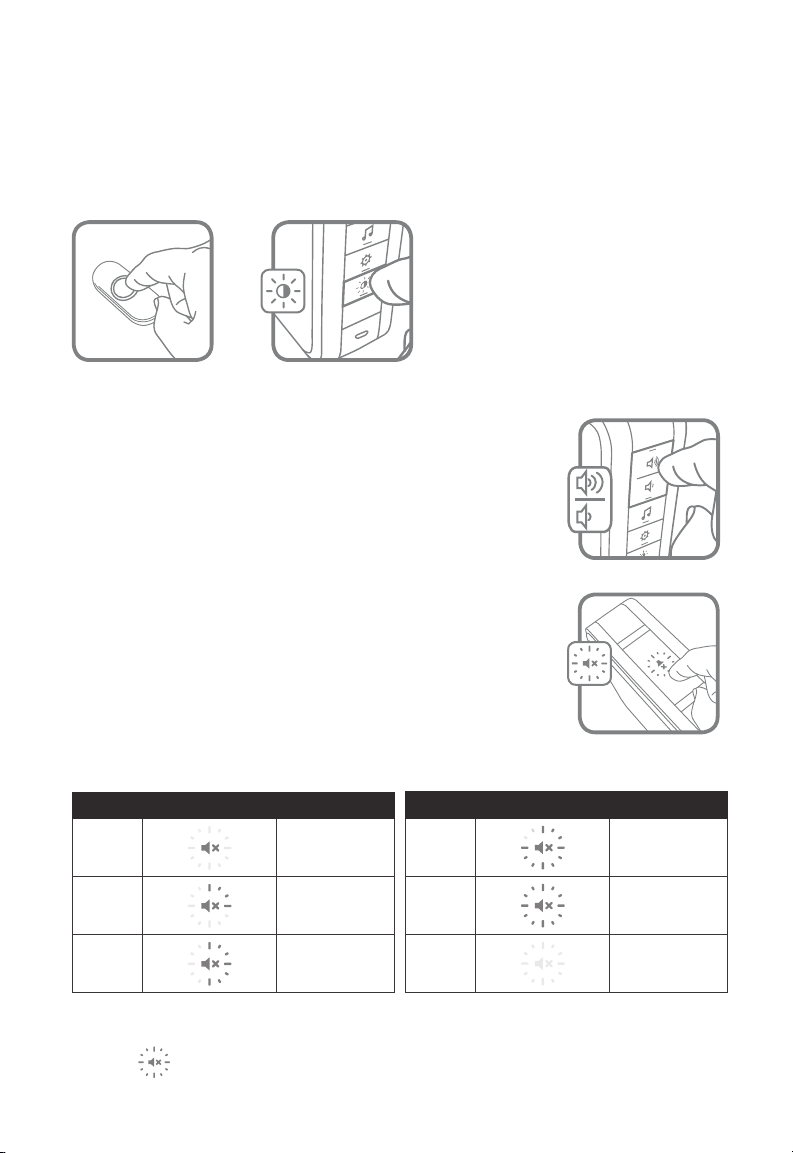

Change the Halo Light Colour

Press the push button.

Within 12 seconds, press the

Sunlight button.

Every time you press the Sunlight

button, the halo light will change

colour. Stop pressing the Sunlight

button when you see the colour

you want:

Light Blue

White

Red

Dark Blue

Green

Purple

Yellow

It is also easier to unmute the doorbell by pressing and holding the mute

button until it beeps.

Accessories

You can connect up to 6 accessories to your doorbell, including other push

buttons, window or door opening sensors, and motion sensors.

If you try to connect more accessories than the max number, the doorbell will

sound two beeps.

Connect a Motion Sensor

1. Press and hold the Setting button on

the doorbell for three seconds.

The halo light will circle.

2. Within 20 seconds of pressing the

Setting button, wave or make some

other kind of motion in front of the

motion sensor.

Before linking your outdoor motion

sensor, you will need to adjust its

settings:

Turn the Dusk control and Time control

fully anti-clockwise to its minimum

setting.

Ensure your sensor is in Day Mode. This

will be shown by the slider button being

in the left position (Sun symbol).

Customize your Doorbell (DC917XX Models Only)

You can customize your doorbell to play part of any song or sound you choose.

You can also create a Secret Knock with a different ring.

Your Tune

You can install any MP3 le as a custom tune.

1. Connect the USB cable to the doorbell, then

plug it into a computer.

2. Using your computer, copy the tune you want

(MP3 format only) onto the doorbell. The

doorbell connects to your computer like a jump

drive.

3. Follow the Change the Tune process on page

5to select your tune.

4. Press the push button and your tune will play for up to 15 seconds.

The USB cable can power the doorbell if it is plugged into a USB charging

socket. This feature does not work when plugged into a computer.

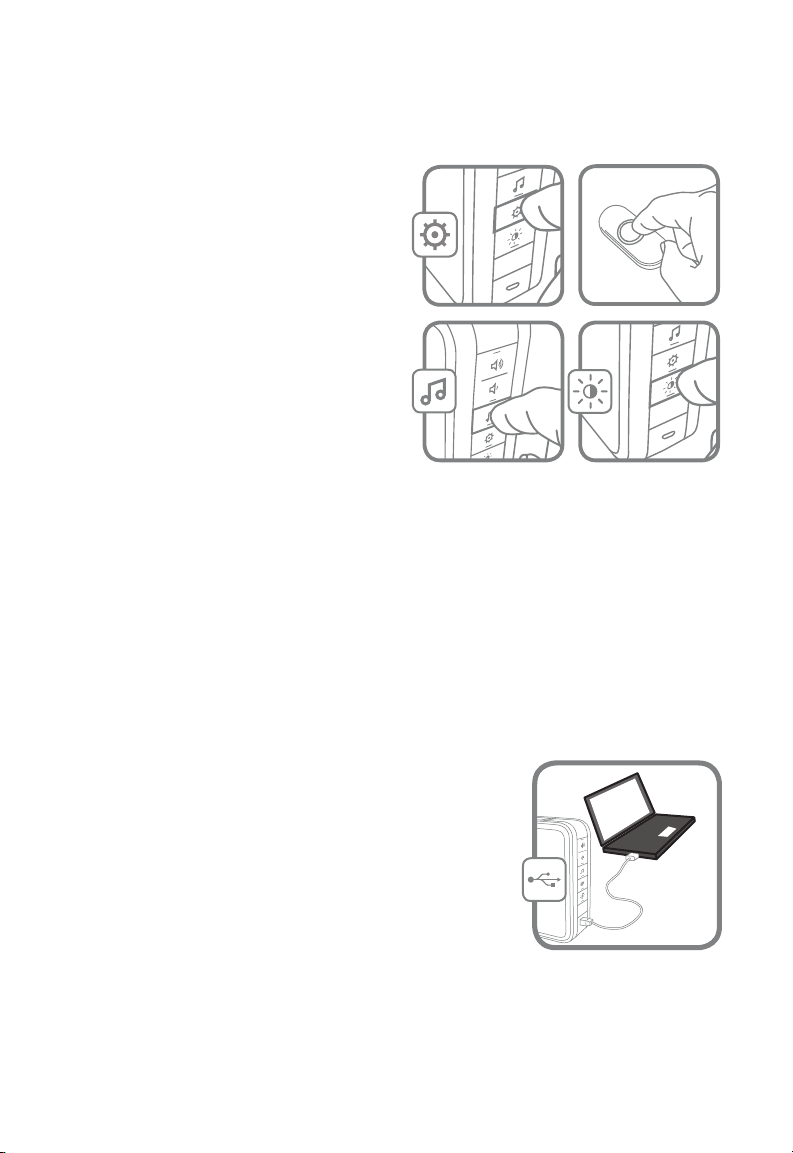

Connect a Push Button

Follow these steps to change the ring and halo light colour for an existing

doorbell, too.

1. Press and hold the Setting button

on the doorbell for three seconds.

The halo light will circle.

2. Press the push button.

3. Within 12 seconds of pressing the

push button, press the Music button

to select the ring for that push

button.

4. Within 12 seconds of pressing the

doorbell, press the Sunlight button

to select a halo light colour for that

push button.

Secret Knock

For each push button, you can set up a Secret Knock that has a different

ring and halo light colour. The Secret Knock is triggered by pressing the push

button quickly 3 times.

1. Press the push button 3 times quickly.

2. Within 12 seconds of pressing the push button, press the Music button to

select the ring for the Secret Knock.

3. Within 12 seconds of pressing the push button, press the Sunlight button

to select a halo light colour for the Secret Knock.

Built-In Range Extender Function

The series 9 range of doorbells have a built in range extender function,

meaning that when it receives a signal from a linked push button it will

automatically boost the signal in a 200m diameter range.

The only condition will be to link the push button or buttons to all the chimes

that are required to be triggered by the range extender.

Maintenance

Your doorbell and push button require no maintenance except periodically

changing the batteries.

If using the correct batteries, battery life should be approximately:

• Up to 5 years for the doorbell; replace with 4 C alkaline batteries

• Up to 2 years for the push button; replace with a CR2032 lithium battery

Low Battery Notification

When the doorbell batteries are low, the bottom edge of the halo light ashes

yellow every 6 seconds until the batteries are replaced.

When the push button batteries are low, two beep sounds are heard after the

normal tune.

www.resideo.com

license from Honeywell International Inc.

32343181-001 Rev.A

https://livewell.honeywellhome.com

Reset

This process removes all pairings, including the push button that came with

this doorbell:

1. Remove the doorbell batteries.

2. Press and hold the Setting button and replace the battery at the same

time.

3. The halo light will circle and the doorbell is returned to its default factory

settings.

Specications

Doorbell Push Button

Operating Temperature -5ºC to 40ºC -20ºC to 50ºC

Honeywell Home ActivLink™ 868 MHz 868 MHz

Range (open eld) 200 m 200 m

Sound Level (typical) 90 dB -

Battery Type C cell alkaline (x 4) CR2032

Battery Life (5 activations/day) Up to 5 years Up to 2 years

Rain proof N/A IP55

Troubleshooting

If Then

The doorbell does not work

1. Press the Mute button until all of the Mute lights are off.

2. Make sure that correct batteries (4 C alkaline cells, 1 CR2032) are installed with the

correct polarity.

3. The doorbell might be out of range; try the doorbell in a different location.

4. Reconnect the doorbell. See “Connect a Push Button” on page 8.

5. Check all the batteries and replace if needed.

6. Check if the condence LED on the transmitters is working when activated.

7. Check if the doorbell is muted.

8. Check that the transmitter is linked with the chime.*

Two ‘beep’ sounds are heard after

the normal tune Replace doorbell push battery with a new CR2032.

The halo light ashes yellow at

the bottom edge Replace doorbell batteries with 4 new C alkaline batteries.

Range is reduced

1. Metal structures including uPVC door frames can reduce the range. Don’t mount the the

doorbell or doorbell push on or near metal structures.

2. Move the doorbell closer to the doorbell push button.

3. Weak batteries will reduce range. In cold conditions (below 5ºC), batteries may need to

be replaced more often.

*Under these scenarios the push button is considered the “transmitter”. Other examples of transmitters are the wireless motion

(PIR) sensor or wireless door window sensor.

Andere Handbücher für DW915 Series

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Honeywell Zubehör Handbücher

Honeywell

Honeywell RPW210 Benutzerhandbuch

Honeywell

Honeywell SIX Series Bedienungsanleitung

Honeywell

Honeywell TRADELINE Y594 Bedienungsanleitung

Honeywell

Honeywell FSA Series Bedienungsanleitung

Honeywell

Honeywell HIH-6130 Series Bedienungsanleitung

Honeywell

Honeywell C7189R01 Bedienungsanleitung

Honeywell

Honeywell DC915 series Betriebsanleitung

Honeywell

Honeywell 40003916 Powerhead Bedienungsanleitung

Honeywell

Honeywell 203365A Bedienungsanleitung

Honeywell

Honeywell Sensepoint HT Bedienungsanleitung

Honeywell

Honeywell DC917 Series Bedienungsanleitung

Honeywell

Honeywell IR800M Konfigurationshandbuch

Honeywell

Honeywell Notifier FSP-951 Bedienungsanleitung

Honeywell

Honeywell DT8016MF4 DUAL TEC Bedienungsanleitung

Honeywell

Honeywell DUAL TEC DT8360ACM-SN Bedienungsanleitung

Honeywell

Honeywell Fire-Lite Alarms AD365 Bedienungsanleitung

Honeywell

Honeywell Lyric RF6GB Bedienungsanleitung

Honeywell

Honeywell P7635 Bedienungsanleitung

Honeywell

Honeywell C7089 Bedienungsanleitung

Honeywell

Honeywell C7110C1001 Bedienungsanleitung

Honeywell

Honeywell Ex-Or LightSpot Silver Series Installations- und Betriebshandbuch

Honeywell

Honeywell RPW112A Benutzerhandbuch

Honeywell

Honeywell T87 Bedienungsanleitung

Honeywell

Honeywell RPW102 Bedienungsanleitung

Beliebte Zubehör Handbücher anderer Marken

Hillco

Hillco 2810 Bedienungsanleitung

Siemens

Siemens QSA2700D Bedienerhandbuch

Contours

Contours ZY024 Bedienungsanleitung

Saivod

Saivod VS621 Bedienungsanleitung

Virtuox

Virtuox VirtuCLEAN 2.0 Bedienungsanleitung

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Bedienungsanleitung

Z-Wave

Z-Wave HSD-200Z Bedienungsanleitung

turck

turck FMX-IM-2UPLI63FX Bedienungsanleitung

Decagon Devices

Decagon Devices 10HS Bedienungsanleitung

UPPAbaby

UPPAbaby Cup Holder Bedienungsanleitung

Elko

Elko SmartSensor Leakage Wireless Bedienungsanleitung

Grizzly

Grizzly H8371 Bedienungsanleitung

Panasonic

Panasonic HG-T Series Bedienungsanleitung

IFM Electronic

IFM Electronic Efector 250 Series Referenzhandbuch

DigiDesign

DigiDesign 888/24 I/O Bedienungsanleitung

PROZIS

PROZIS QUAY Bedienungsanleitung

patagonia

patagonia PSI Vest Bedienungsanleitung

SFC Energy

SFC Energy EFOY GO! Bedienungsanleitung
