Huawei OptiXstar V183 Bedienungsanleitung
Huawei OptiXstar V183
Quick Start
Issue 01
Date 2023-04-28
HUAWEI TECHNOLOGIES CO., LTD.
Copyright © Huawei Technologies Co., Ltd. 2023. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means without prior
written consent of Huawei Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of their respective
holders.
Notice
The purchased products, services and features are stipulated by the contract made between Huawei and
the customer. All or part of the products, services and features described in this document may not be
within the purchase scope or the usage scope. Unless otherwise specied in the contract, all statements,
information, and recommendations in this document are provided "AS IS" without warranties, guarantees
or representations of any kind, either express or implied.
The information in this document is subject to change without notice. Every eort has been made in the
preparation of this document to ensure accuracy of the contents, but all statements, information, and
recommendations in this document do not constitute a warranty of any kind, express or implied.
Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base
Bantian, Longgang
Shenzhen 518129
People's Republic of China
Website: https://www.huawei.com
Email: [email protected]
Issue 01 (2023-04-28) Copyright © Huawei Technologies Co., Ltd. i
Contents
1 Device Introduction.................................................................................................................1
2 Placing the Device................................................................................................................... 2
3 Connecting Cables................................................................................................................... 3
4 Indicator Description.............................................................................................................. 7
5 FAQs..........................................................................................................................................10
Huawei OptiXstar V183
Quick Start Contents
Issue 01 (2023-04-28) Copyright © Huawei Technologies Co., Ltd. ii
1 Device Introduction
Huawei OptiXstar V183 is a Master FTTR for the Huawei FTTR OptiXstar F30 Pro.
It uses GPON/XGS-PON technologies to implement ultra-broadband access for
users.
NO TE
The gures in this document may dier from the actual products. The actual products
prevail.
Huawei OptiXstar V183
Quick Start 1 Device Introduction
Issue 01 (2023-04-28) Copyright © Huawei Technologies Co., Ltd. 1
2 Placing the Device
CA UTION
Do not install the Master FTTR outdoors or in an outdoor cabinet.

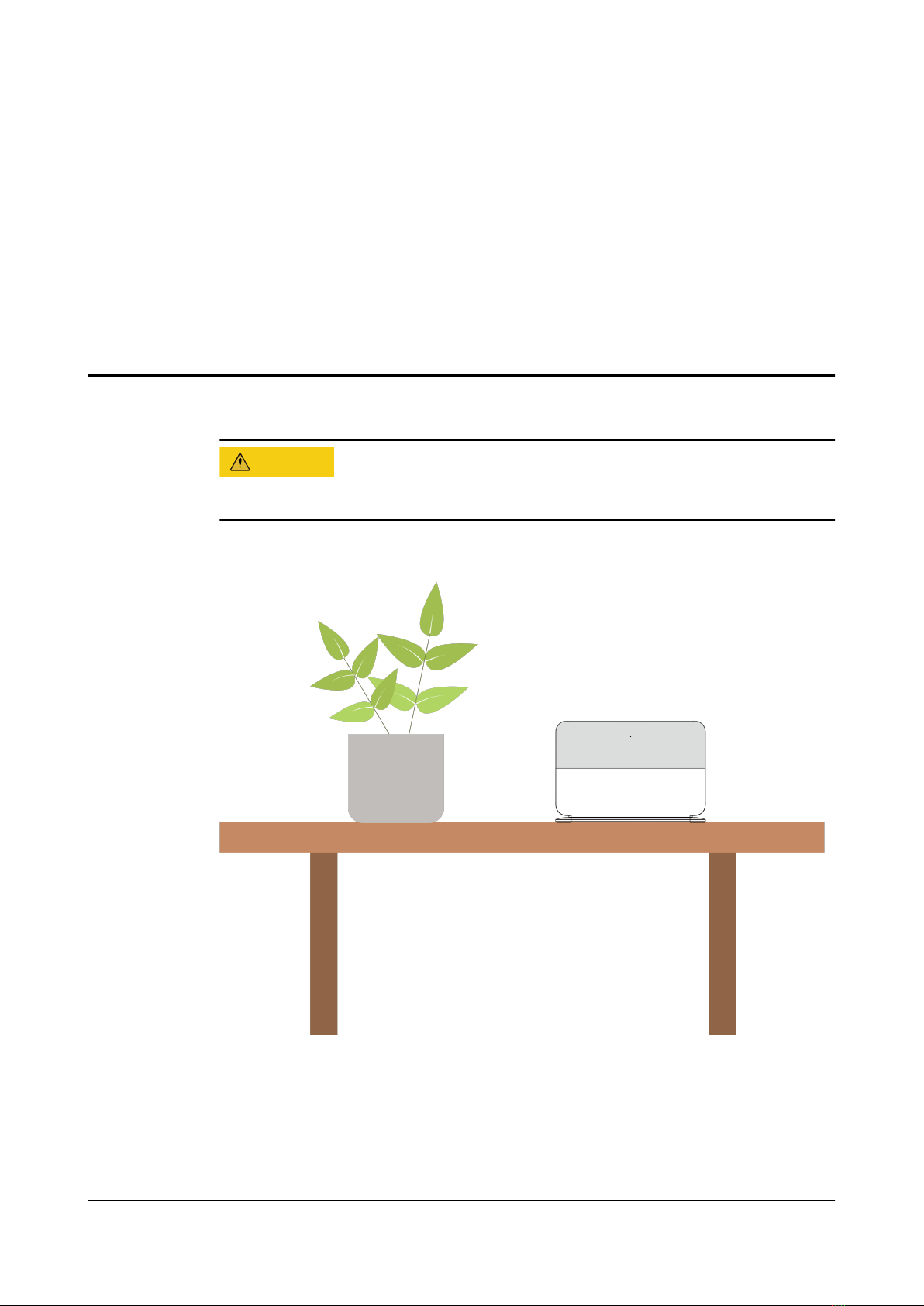

Vertically placed on a desk
Huawei OptiXstar V183
Quick Start 2 Placing the Device
Issue 01 (2023-04-28) Copyright © Huawei Technologies Co., Ltd. 2
3 Connecting Cables
NO TE
● To extend Wi-Fi coverage at home, ask professional technicians to connect the Slave
FTTR to the Master FTTR using optical network components. The Slave FTTR
automatically synchronize Wi-Fi parameters from the Master FTTR.
● Before connecting optical bers, open the rear cover of the Master FTTR.
Huawei OptiXstar V183
Quick Start 3 Connecting Cables
Issue 01 (2023-04-28) Copyright © Huawei Technologies Co., Ltd. 3
Huawei OptiXstar V183
Quick Start 3 Connecting Cables
Issue 01 (2023-04-28) Copyright © Huawei Technologies Co., Ltd. 4
No. Port/Button Description
1On/O Turns on or o the device.
2 Power Connects to a power cable.
3 USB Connects to a USB device.
4 Reset Restarts the device.
When the device is started, use a needle-type object to
press this button to restart the device. Press and hold this
button for more than 10 seconds to restore factory
settings and restart the device.
5 LAN1 to
LAN4
Connects to a computer, IP STB, or router and supports
10/100/1000 Mbit/s auto-sensing.
6 TEL Connects to a telephone or fax machine.
Huawei OptiXstar V183
Quick Start 3 Connecting Cables
Issue 01 (2023-04-28) Copyright © Huawei Technologies Co., Ltd. 5
No. Port/Button Description
7 WLAN/WPS Integrates the function of WLAN and WPS.
● When the wireless function (WLAN) is enabled, press
the WLAN/WPS switch for 1s to 5s to start Wi-Fi
protected setup (WPS) negotiation.
● When the wireless function (WLAN) is enabled, press
and hold the button WLAN/WPS switch for more than
5s to turn o the wireless function (WLAN).
● When the wireless function (WLAN) is disabled, tap the
WLAN/WPS switch for more than 1s to turn on the
wireless function (WLAN).
8 LED Indicates the indicator switch.
● On: The indicator is working properly.
●O: All indicators are o.
NOTE
You are advised to turn on the indicator switch to detect
abnormal indicator status in a timely manner.
9 FTTR Indicates a P2MP optical port, which is connected to the
ber distribution unit.
10 PON Connects to drop cables and supports GPON or XGS-PON
upstream access.
Huawei OptiXstar V183
Quick Start 3 Connecting Cables
Issue 01 (2023-04-28) Copyright © Huawei Technologies Co., Ltd. 6
4 Indicator Description
Indicator Status Description
Indicator on
the front
panel
(above the
logo)
Steady on ● Steady red: The device is being powered on,
or the device has been started but is not
connected to the Internet.
● Steady white: The device is started and
connected to the Internet.
O The device is powered o.
PON/LOS See the following table.
LAN1-LAN4
(with LED
indicators)
Steady on The network port is connected, but no data is
being transmitted.
Blinking The network port is connected and data is
being transmitted.
O The network port is not connected.
TEL Steady on The telephone service is enabled.
Blinking The phone is being used.
O The telephone service is disabled.
USB Steady on The USB port is connected, but no data is
being transmitted.
Blinking Data is being transmitted over the USB port.
O The USB port is not connected.
WLAN Steady on The WLAN function is enabled.
Blinking Data is being transmitted.
O The WLAN function is disabled.
WPS Steady on WPS authentication is enabled.
Huawei OptiXstar V183
Quick Start 4 Indicator Description
Issue 01 (2023-04-28) Copyright © Huawei Technologies Co., Ltd. 7
