IAT Mini Portable Wireless NVR System Bedienungsanleitung

Mini Portable Wireless NVR System

IP Network Camera with USB Receiver

USER’S MANUAL

Copy Right © IA Technologies

Warranty

The warranty is for one year from the date of purchase. During the one-year

warranty period, the product is eligible for replacement in case of defects in

material and workmanship. In such cases, the defective unit will be repaired or

replaced by the manufacturer.

This warranty does not cover damages caused by improper use or from

unauthorized modifications by third parties. In addition, this warranty does not

cover expendable materials and defects, which constitute as normal wear and

tear.

Copy Right © IA Technologies

Webpage : www.iat101.com ; www.ia-tecs.com

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation.

This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one of the following measures:

. Reorient or relocate the receiving antenna.

. Increase the separation between the equipment and receiver.

. Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

. Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: To assure continued compliance, any changes or modifications not

expressly approved by the party responsible for compliance could void the user's

authority to operate this equipment. (Example - use only shielded interface cables

when connecting to computer or peripheral devices).

FCC Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits set forth for an

uncontrolled environment. This equipment should be installed and operated with a

minimum distance of 20 centimeters between the radiator and your body.

This transmitter must not be co-located or operating in conjunction with any other

antenna or transmitter.

The antennas used for this transmitter must be installed to provide a separation

distance of at least 20 cm from all persons and must not be co-located or operating in

conjunction with any other antenna or transmitter.

Copy Right © IA Technologies

Webpage : www.iat101.com ; www.ia-tecs.com

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN!

CAUTION :

TO REDUCE THE RISK OF ELECTRICAL SHOCK,

DO NOT OPEN COVERS (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

Safety Precautions

** It is advised to read the Safety Precaution Guide through carefully before

operating the product, to prevent any possible danger.

WARNING: This symbol is intended to alert the user to the presence of un-insulated

“dangerous voltage”.

CAUTION: This symbol is intended to alert the user to presence of important

operating and maintenance (Servicing) instructions in the literature accompanying

the appliance.

Do not Plug and unplug the power cord, it may result product malfunction.

Do not install the product in an environment where the humidity is high.

Unless the product is waterproof or weatherproof, otherwise poor image quality may

occur.

Do not drop the product or subject them to physical shocks.

Except for vandal-proof or shockproof product, otherwise malfunctions may occur.

Never keep the product to direct strong light.

It can damage the product.

Do not spill liquid of any kind on the product.

If it gets wet, wipe it dry immediately. Alcohol or beverage can contain minerals that

corrode the electronic components.

Do not install the product in extreme temperature conditions.

Use the camera under conditions where temperatures are ventilation when operating

under high temperatures.

Copy Right © IA Technologies

Webpage : www.iat101.com ; www.ia-tecs.com

About This Manual

This manual is designed to assist users to operate the Wireless IP USB Camera –

NVR (read carefully). Information in this document has been carefully checked for

accuracy; however, no guarantee is given as to the correctness of the contents.

The information contained in this document is subject to change without notice

Table of Contents

Safety Caution……………………………………………………………………2

1- Getting Start…………………………………………………………..……….3

Checking the Packing List……………………………………………...…3

USB Receiver……………………………………………………………4

Camera…………………………………………………………………...4

PC System Requirements…………………………………………………4

2- Setting Up………………………………………………………………………5

Camera………………………………………………………………………5

Positioning the Camera…………………………………………………5

Power Supply…………………………………………………………….6

USB Receiver……………………………………………………………….6

Fine Tuning…………………………………………………..…...………6

Installing Supplied Software…………………………………………….6

3- Operation…………………………………………………………………….....7

Viewing Page……………………………………………………………….7

Pairing……………………………………………………………………… 8

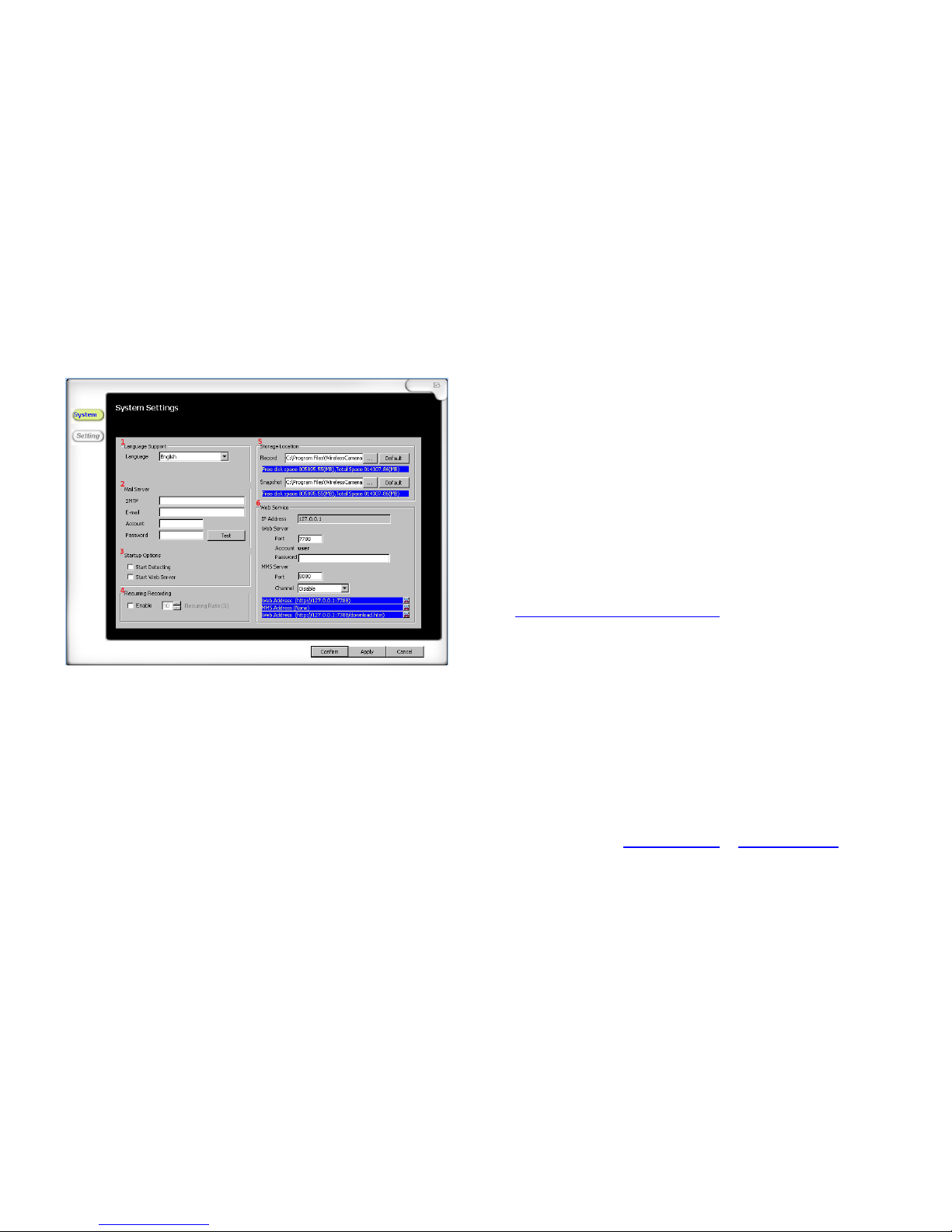

System Setting…...……………………………………………….….…….9

Remote Monitoring.……………………………………………………....10

Basic Setting……………………………………………………………....10

Image Adjust…………………………………………………………..…...11

Record Setting ……………………………………………………..…......11

Motion Detect……………………………………………………………....14

Alert Setting……………………………………………………................15

Play Back…………………………………………………………..………15

Appendix…………………………………………………………………………..16

Cleaning.………………………………………………………….……….16

Troubleshooting.…….……………………………………...…………….16

Technical Specification………………………….………….…………….16

1-- Getting started

Congratulations on your purchase of the network camera system. Use this system

to monitor locations wireless, as stand-alone solution.

Checking the packing list

Carefully unpack the network camera system and check the following items are

included:

Wireless Camera x 1

USB Receiver x 1

Mounting Bracket x 1

Switching Power Adaptor 5V DC 1A x 1

1.5m USB Extension Cable x 1

NVR software/ User’s Manual CD ROM x 1

Copy Right © IA Technologies 02/23/2011

Webpage : www.iat101.com ; www.ia-tecs.com

Identifying Parts

Refer to the following section to identify components of the camera and receiver.

USB Receiver

Wireless Camera

PC System Requirements

CPU: Pentium 1.6 GHz or higher (recommended)

RAM: 512 MB or higher (recommended)

Network: Ethernet Port

Resolution: 800 x 600 or 1024 x 768 (recommended)

Operating Software: Windows 2000, XP, Vista or Window 7

Windows Media Player 9 or higher (recommended)

One available USB port

CD-ROM Drive (For software installation)

Noun Definition

•IP Address Setting (IP Assignment): Camera Network Connection

•Account: PPPoE Account

•Password: PPoE Password

•Video Port: Remote Video Port

•Audio Port: Remote Audio Port

Copy Right © IA Technologies 02/23/2011

Webpage : www.iat101.com ; www.ia-tecs.com

1 Chain hole 6 Power On/Off

2 Microphone 7 Pairing Button

3 Camera 8 LED Indicator

4 Mounting Socket 9 DC IN

5 Foldable Stand 10

Antenna

2-- Setting Up

This section explains the mounting options and setup of the

wireless network camera – USB NVR system.

Wireless Camera Mounting Options

Using the supplied accessories, the camera can be placed on the platform,

mounted on a ceiling or wall, It also can be stuck in a discreet location.

- Put down the camera’s stand

The camera can be placed on a platform.

Copy Right © IA Technologies 02/23/2011

Webpage : www.iat101.com ; www.ia-tecs.com

- Ceiling / Wall installation

. Fix the camera to the wall or ceiling using the bracket supplied.

. The bracket used must fit securely in the mounting socket to ensure proper

installation.

-Sticking in a discreet location

Stick the camera to a discreet location using the Blue -Tack supplied.

Power Supply

-Connect the Power Adapter

Connect one end of the AC adapter to the DC IN jack of the camera the other

end to the wall outlet. Make sure power plug is pushed all the way in.

- Battery Recharge

The charging starts when the LED turns red. Charging is

finished when the LED turns off (after approx. 4 hours max.)

USB Receiver Setup

There is a driver / NVR software (WUSB Camera) CD in the package. Install

the WUSB Camera software before inserting the USB Receiver into one USB

port of PC.

Make sure the OS of PC is in line with requirements.

Fine Tuning

- Adjust the camera’s viewing angle according to the illustrations.

- Move the camera to make adjustment.

- To keep the USB receiver position above the desktop for best result. You can

connect USB receiver to the USB extension cable supplied to adjust the position

of USB receiver.

Installing supplied software

1. Insert CD-ROM with supplied software.

The setup menu will start.

• Double-click “My Computer” on the desktop, double-click “set up”,

install the software on C:

2. Click on the “Recommended Installation”.

•All necessary software will be installed.

•Only the software compatible with the PC in use will be displayed.

•Proceed with installation according to messages appearing on the screen.

3. Click “Finish” to complete the software installation.

When the software is well installed, you can find on the

desktop.

Copy Right © IA Technologies 02/23/2011

Webpage : www.iat101.com ; www.ia-tecs.com

3-- Operation

Viewing Page

Insert the USB Receiver to one USB port of PC and double-click

on the desktop, the viewer screen will display as shown below

Main Screen

then turn on the camera.

1. Monitoring Screen: This will display the camera’s view.

Depending on the configuration, you can have different type of viewing

methods on this screen.

2. Channel Status: This will display the status of each individual

camera.

: This icon indicates that the camera is monitoring

: This icon indicates that the camera is in standby mode

: This icon indicates that the camera is recording

: This icon indicates that the camera’s audio is enabled

3. Option Menu: This area allows you to do the following:

Snapshot: Built-in snapshot function allows user to capture

images they would like

Detect: Controls the view to go into detection mode or standby

mode

Web Server: Enables web server mode for remote viewer

Setup: This system built-in web interface offers more advanced

settings. On the viewing page, click the SETUP icon to enter

server settings page. It is a toggle button to switch between config

and view pages.

Playback: Enters the playback mode to view recorded videos

4. Camera/Screen Control: This area controls the following:

: Displays the signal strength of wireless cameras

: Cruise camera to let it automatically move on its own

: Opens the snapshot folders to view captured pictures

: Adjusts the screen size on the monitoring screen

: Displays one channel on the monitoring screen

: Displays multiple channels on the monitoring screen

: Cycles the camera to see all area

Copy Right © IA Technologies 02/23/2011

Webpage : www.iat101.com ; www.ia-tecs.com

5. Channel Information: Displays the current channel’s information

Pairing

1. Make sure the camera is turned on, the power LED of the camera will

Blink if it is power on.

2. Click for match setting, select a camera which you want to match, then

press and hold the pairing button on the side of the camera for about 6

seconds. If the pairing is successful, you can find “Match complete a

camera had been connected.” on the screen as shown below.

3 Press for full view on the screen as shown below

4. According to the previous method, to set cameras on other channels.

The monitor will display quad-view window as shown below.

System Setting

Press “web server” icon of the main screen to enter “System Setting”.

This section covers the main setup of the network camera system

1. Language Support: Changes the interface of the system to the

language selected

2. Mail Server: The mail server settings for users who wish to use the

e-mail notification when detection occurs

3. Start Up Options: Allows user to pre-determine start up options

including:

Start Detecting: Starts the viewer in detection mode

Start Web Server: Starts the viewer web server

4. Recurring Recording: Tick Enable, to records over older files to save

space for the hard disk

5. Record: Locations of where the files are being saved for recorded

videos and captured images. If it appears “Path of save to file not

exist”, you have to click both Default at the Record and Snapshot.

6. Web Service: Configuration settings for the web server

Network status such as current IP and related details are clearly shown.

IP address: The IP address of the web service for the viewer

This system will log automatically the IP location of where

the current computers. If you use a router or dynamic IP,

refer to note 2 and 3.

Web Server Port: The port for the web service

Web Server Account: Default is “user”

Web Server Password: Password for the web service

You can set password, which is changeable

MMS Server Port: The port for the MMS service

MMS Server Channel: The channel for the MMS service

Select Enable for MMS function

Note: If you require a dynamic IP, you will need to configure your network to

allow access to your camera. First you will need to open the required port for

the computer attached to the camera (default port: 7788). You will then need

to configure you dynamic IP to forward correctly to your external IP address.

We recommend using the service offered by dyndns

(http://www.dyndns.com/support/kb/dvrs.html). Once your hostname has

been configured, install the update client software

(http://www.dyndns.com/support/clients/).

Webpage : www.iat101.com ; www.ia-tecs.com

Inhaltsverzeichnis

Andere IAT DVR Handbücher

IAT

IAT DVR4-D1 Bedienungsanleitung

Beliebte DVR Handbücher anderer Marken

FLIR

FLIR M3100E Series Bedienungsanleitung

VTRACKPRO

VTRACKPRO FPRO300 Bedienungsanleitung

Swann

Swann NVR-7085 models Bedienungsanleitung

XtendLan

XtendLan DVR-1670C Bedienungsanleitung

urmet domus

urmet domus 1093/004AHD Bedienungsanleitung

Holux

Holux M1 Bedienungsanleitung

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Bedienungsanleitung

Whistler

Whistler D16VRS Bedienungsanleitung

Defender Security

Defender Security 82-20235 Bedienungsanleitung

MISUMI

MISUMI MP-WF100M Bedienungsanleitung

Speco

Speco D8HU Bedienungsanleitung

UST

UST DDR-E04AA Gebrauchsanweisung

Consolidated

Consolidated Digital Video Recorder Bedienungsanleitung

Mace

Mace DVR0404RW Kurzanleitung

RCA

RCA RTD315W Bedienungsanleitung

FSM

FSM Colibri Grande PRO Bedienungsanleitung

Hauppauge

Hauppauge HD PVR 2 Bedienungsanleitung

Identivision

Identivision ICR-PH161i PIONEER Bedienungsanleitung
